Toyota YARIS Front Drive Shaft — Figure 4302

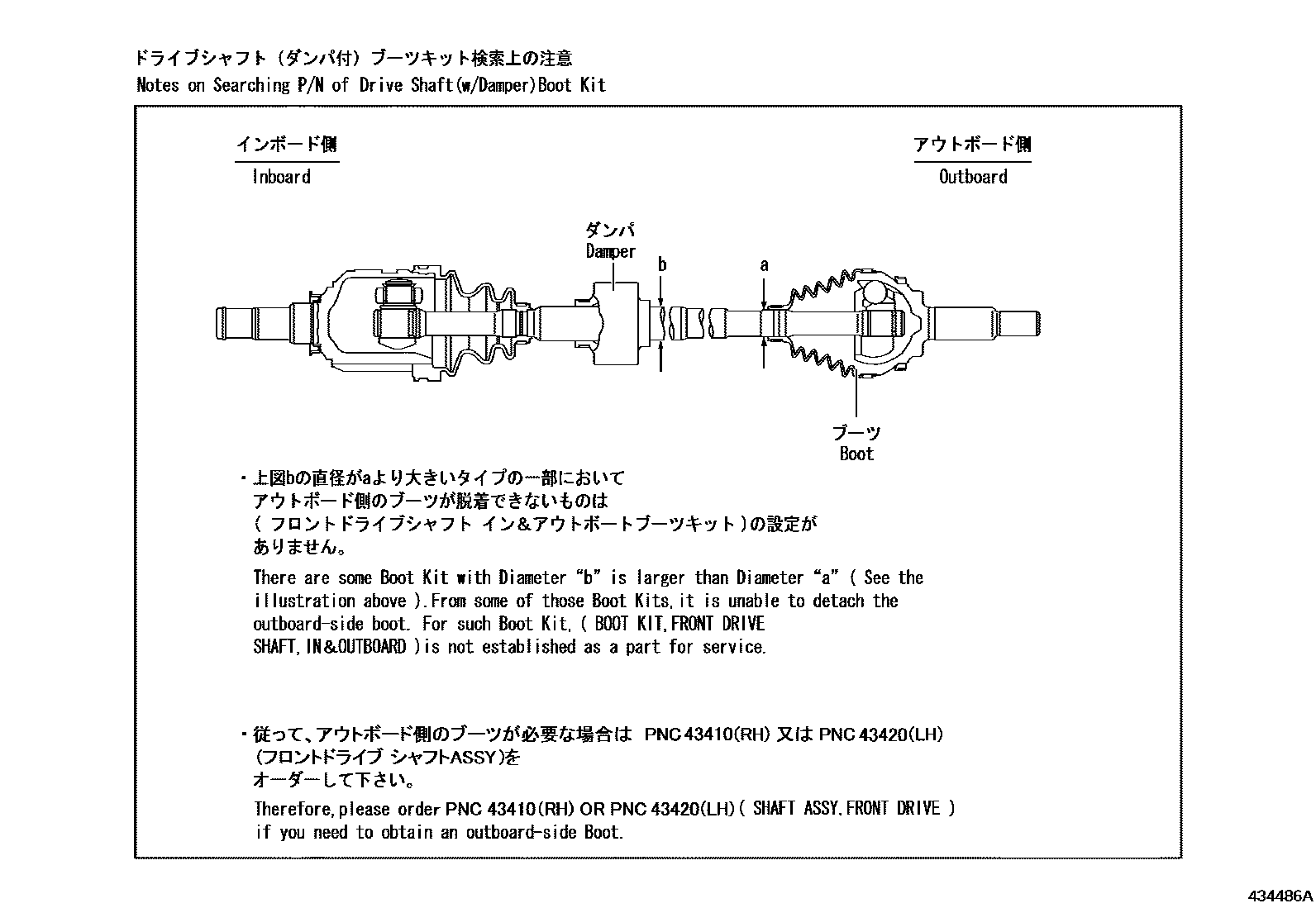

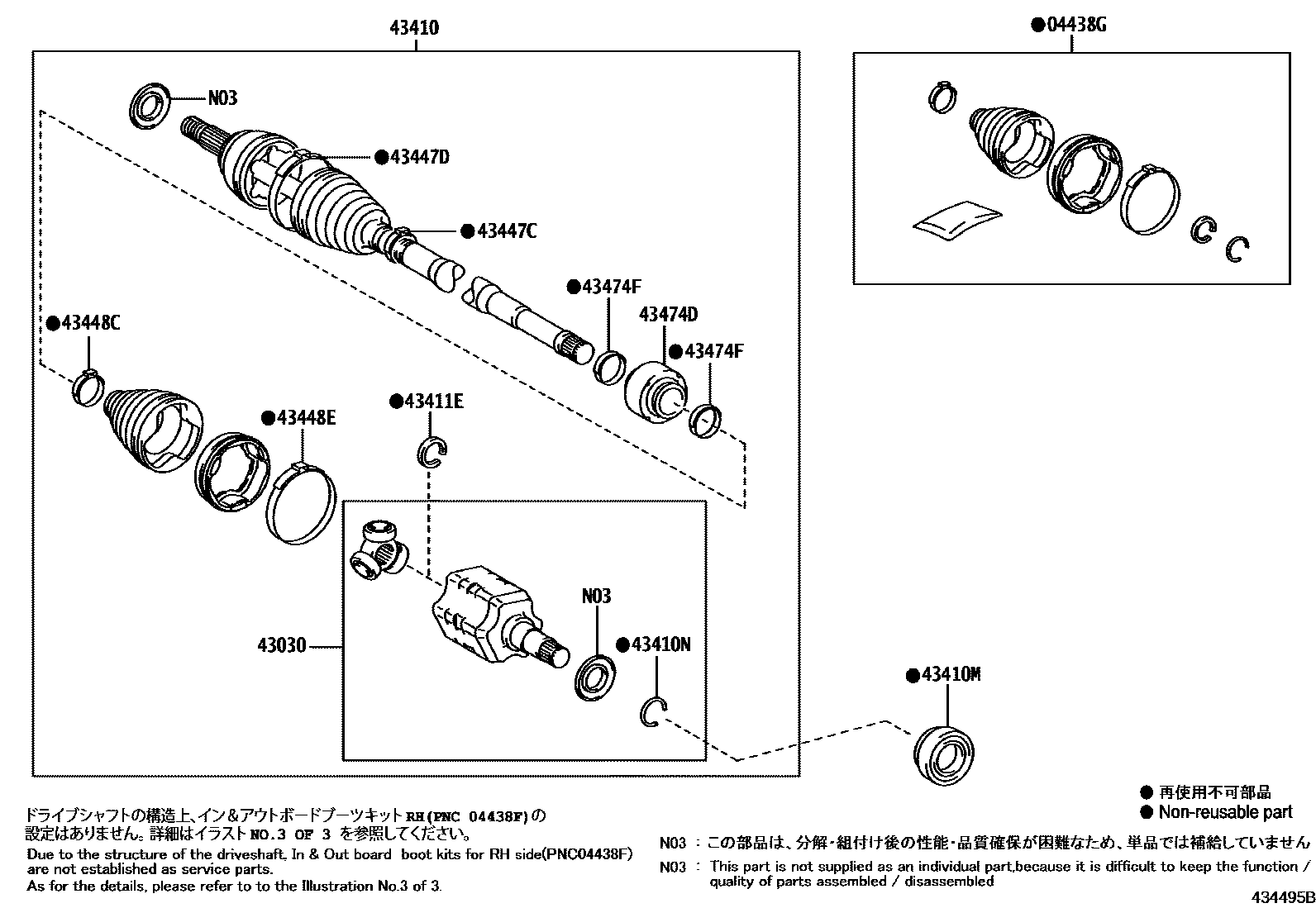

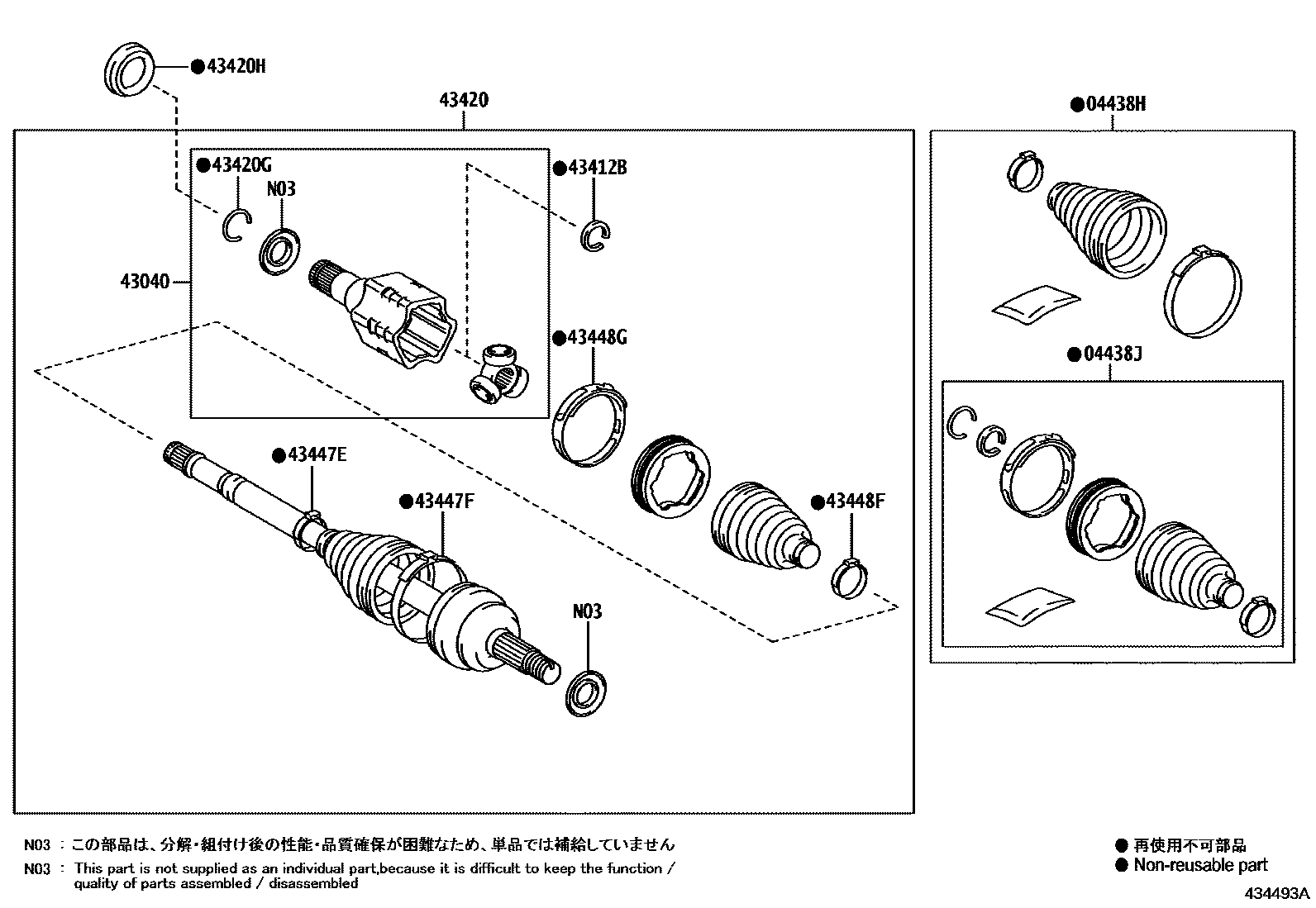

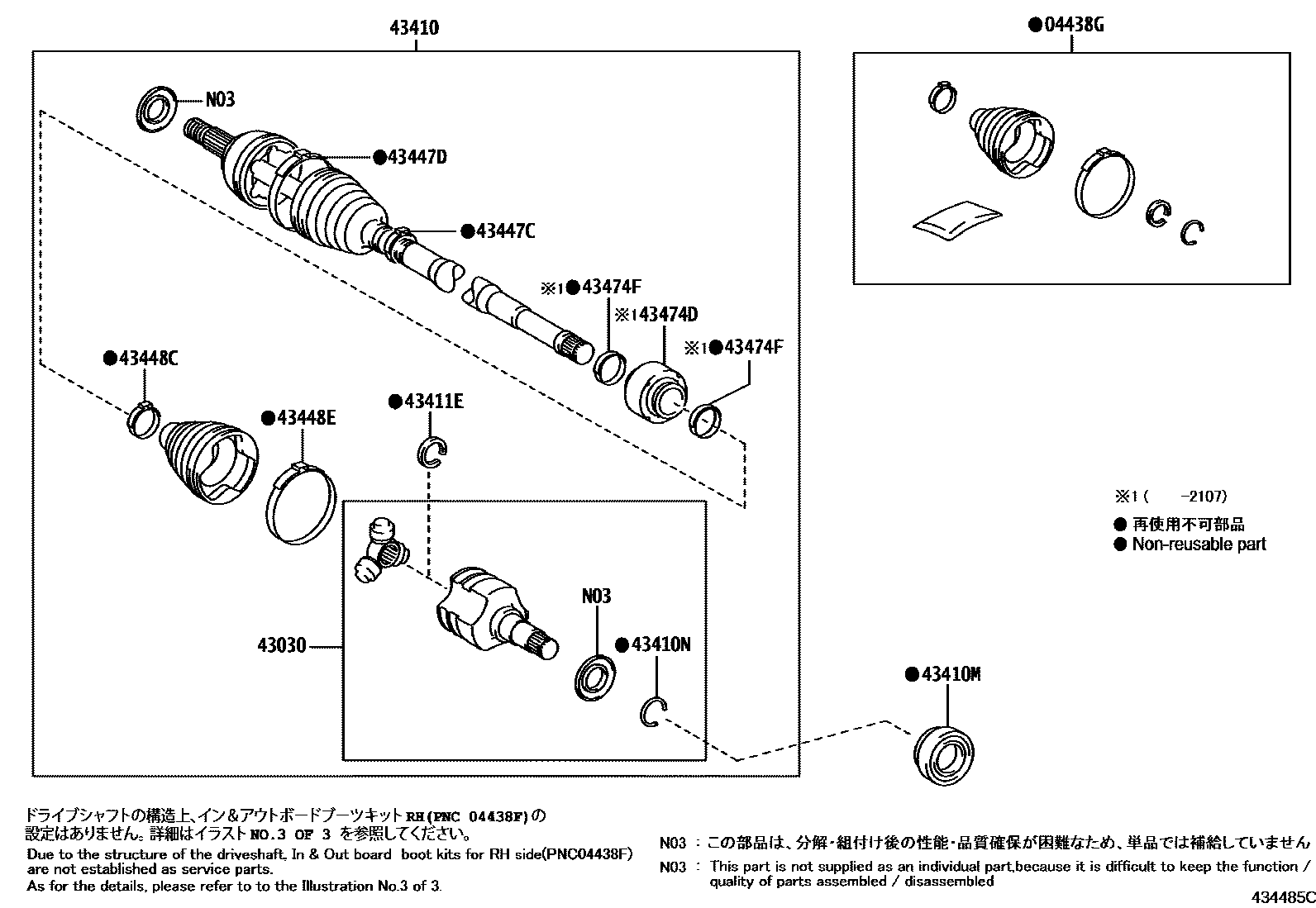

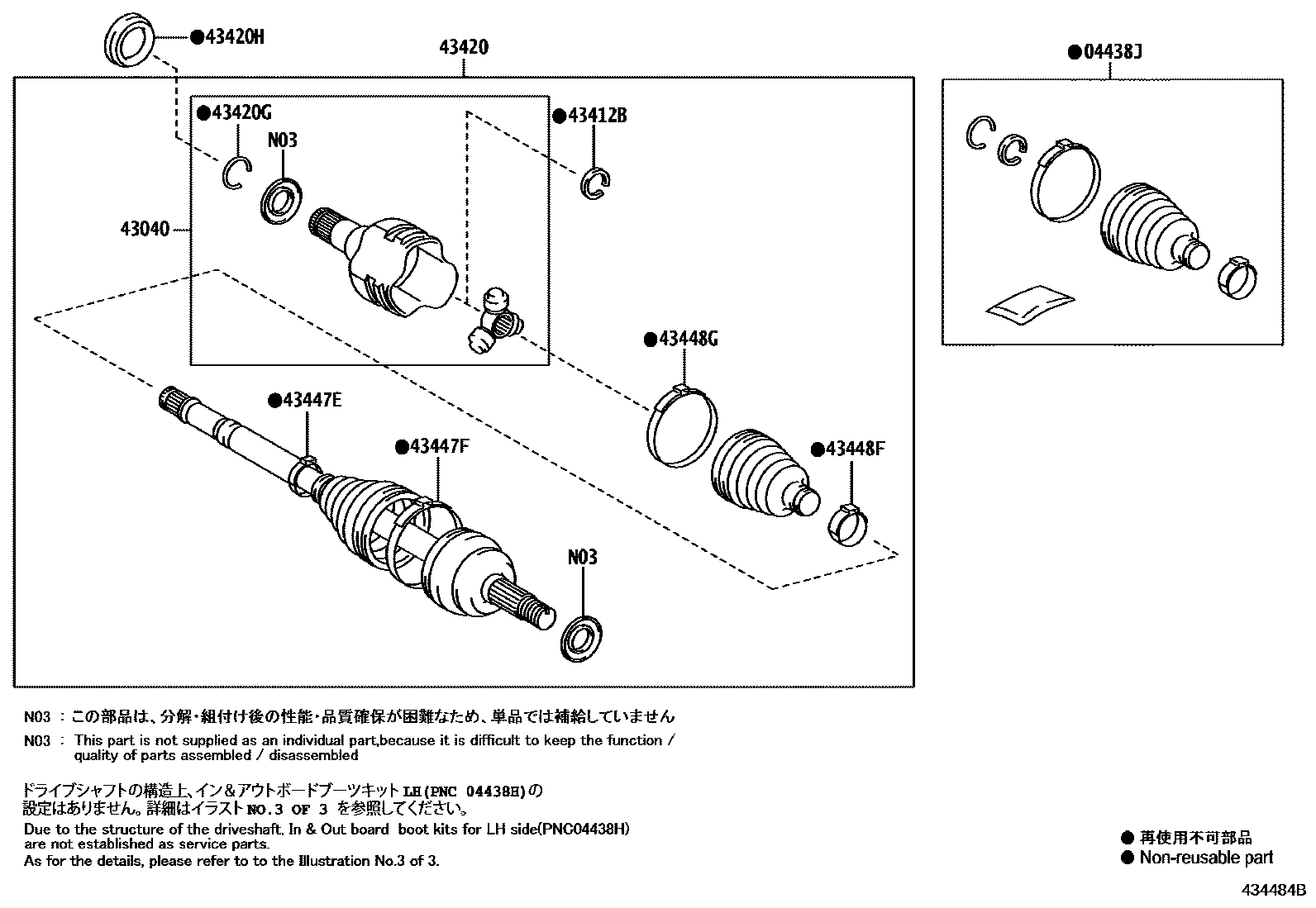

Toyota YARIS EPC diagram 4302, Front Drive Shaft, with 5 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-52490 · 04437-K0020 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-52905 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-52490 · 04437-K0020 |
| 43030 | Right front drive shaft inner universal joint assembly | 43040-K0010 · 43040-K0020 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-K0010 · 43040-K0020 |
| 43410 | Right front driveshaft assembly | 43410-52360 · 43410-52380 · 43410-52490 |
| 43410M | Front drive shaft right oil seal | 90311-35083 |
| 43410N | Hole snap ring (for right front driveshaft) | 90521-27005 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-12070 · 90520-22029 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-12070 · 90520-22029 |
| 43420 | Left front drive shaft assembly | 43420-52320 · 43420-52350 |
| 43420G | Hole snap ring (for left front driveshaft) | 90521-27005 |
| 43420H | Front drive shaft left oil seal | 90311-35082 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-12230 · 42345-52260 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-12240 · 42345-52250 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-12230 · 42345-52260 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-12240 · 42345-52250 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-12230 · 42345-52340 · 42345-K0080 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-12180 · 42345-K0091 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-12230 · 42345-52340 · 42345-K0080 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-12180 · 42345-K0091 |
| 43474D | Right front driveshaft shock absorber | 43474-52110 · 43474-52130 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-12090 |
