Toyota YARIS 冷却器和配管(HEV 或 BEV 或 FCEV) — Figure 3914

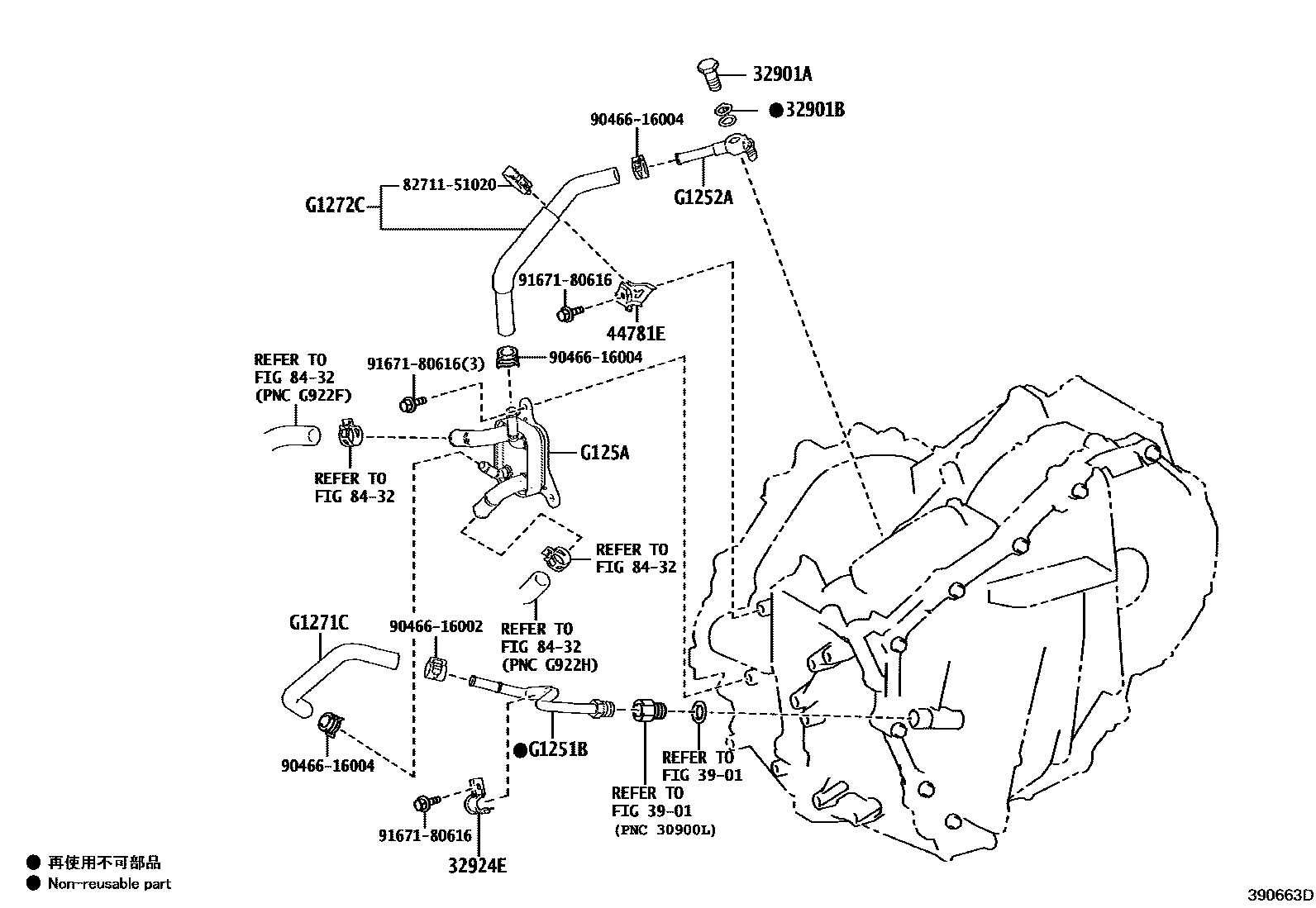

Toyota YARIS EPC diagram 3914, 冷却器和配管(HEV 或 BEV 或 FCEV), with 1 images and 9 PNC and OE references.

Toyota YARIS 冷却器和配管(HEV 或 BEV 或 FCEV) EPC diagram — 390663D
冷却器和配管(HEV 或 BEV 或 FCEV) — 390663D (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
32901AConnector bolt (for oil cooler)90401-12039
32901BGasket (for transmission oil cooler connector)90430-12037
32924ENo. 2 transmission oil cooler pipe clamp32924-48010
44781Ehose holder44781-K0010
G1251BNo. 1 motor cooling pipeG1251-K0010
G1252ANo. 2 motor cooling pipeG1252-K0010
G125AMotor coolerG125A-K0010
G1271CNo. 1 motor cooling hoseG1271-K0010
G1272CNo. 2 motor cooling hoseG1272-K0010
