Toyota YARIS Exhaust Pipe — Figure 1702

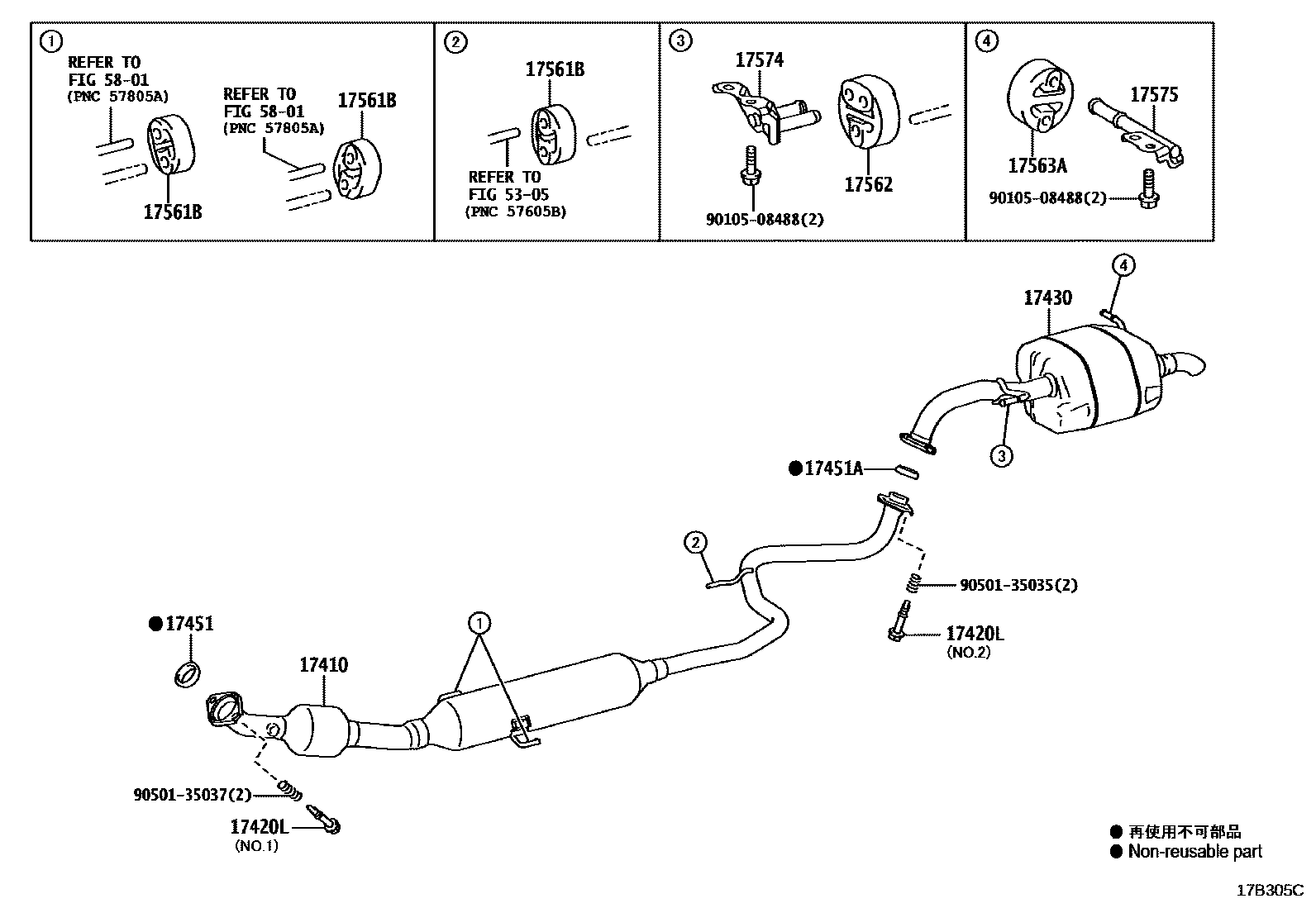

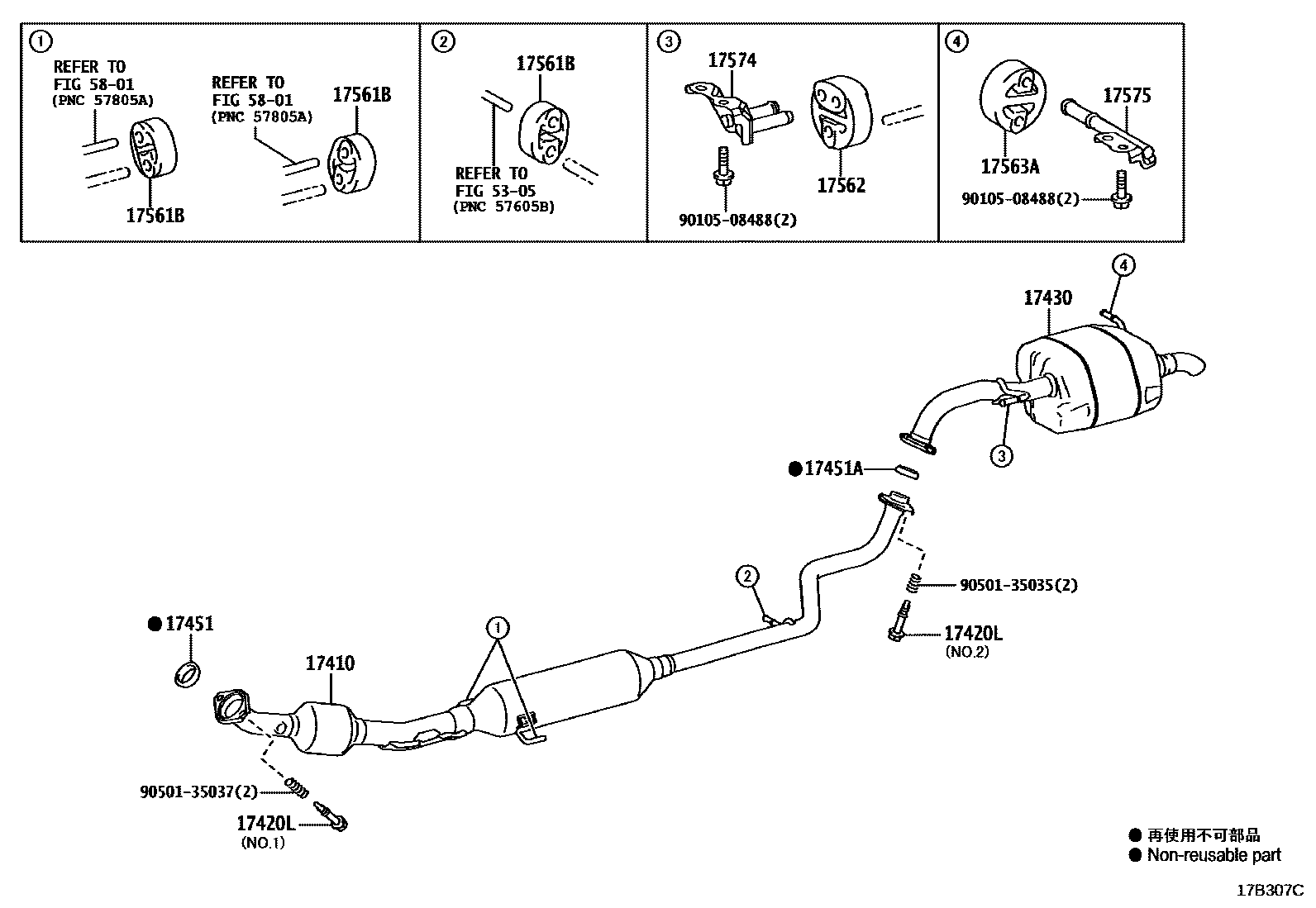

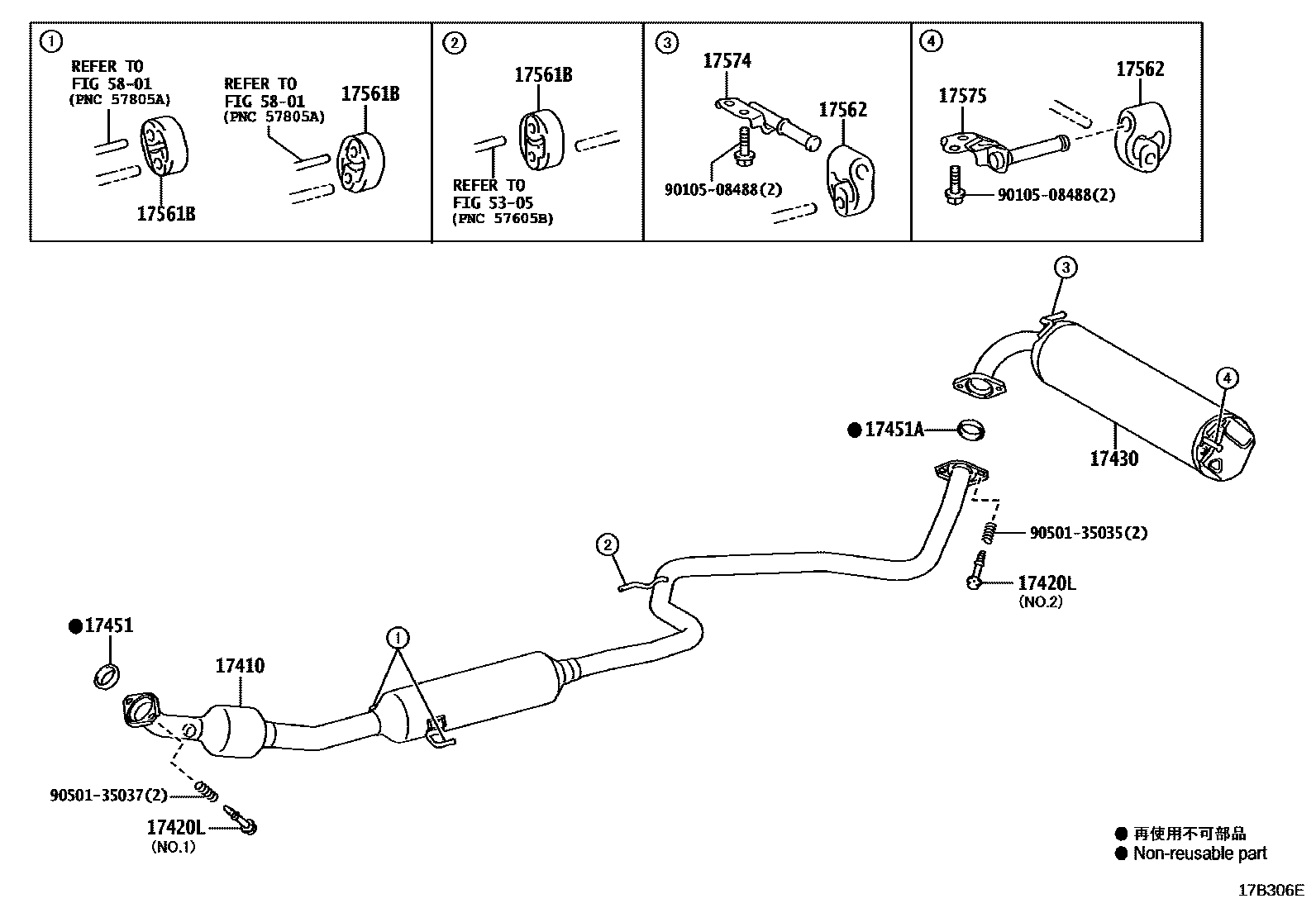

Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-15300 · 17410-15320 · 17410-15330 · 17410-15510 · 17410-15520 |
| 17420L | Flange bolts (for exhaust pipe) | 90109-10182 · 90109-10183 · 90901-05020 · 90901-05026 |
| 17430 | Exhaust tailpipe assembly | 17430-15670 · 17430-15740 · 17430-15741 · 17430-15742 · 17430-15770 |
| 17451 | Exhaust pipe gasket | 17451-21070 |
| 17451A | No. 2 exhaust pipe gasket | 17451-23042 · 17451-23043 |
| 17561B | No. 1 exhaust pipe lifting lug | 17565-47010 |
| 17562 | No. 2 exhaust pipe lifting lug | 17565-28020 · 17565-74320 |
| 17563A | No. 3 exhaust pipe lifting lug | 17565-28010 |
| 17574 | No. 4 exhaust pipe bracket | 17574-15060 · 17574-15070 |
| 17575 | No. 5 exhaust pipe bracket | 17575-15040 · 17575-15050 |
