Toyota YARIS Engine Mounting — Figure 1107

Toyota YARIS EPC diagram 1107, Engine Mounting, with 2 images and 8 PNC and OE references.

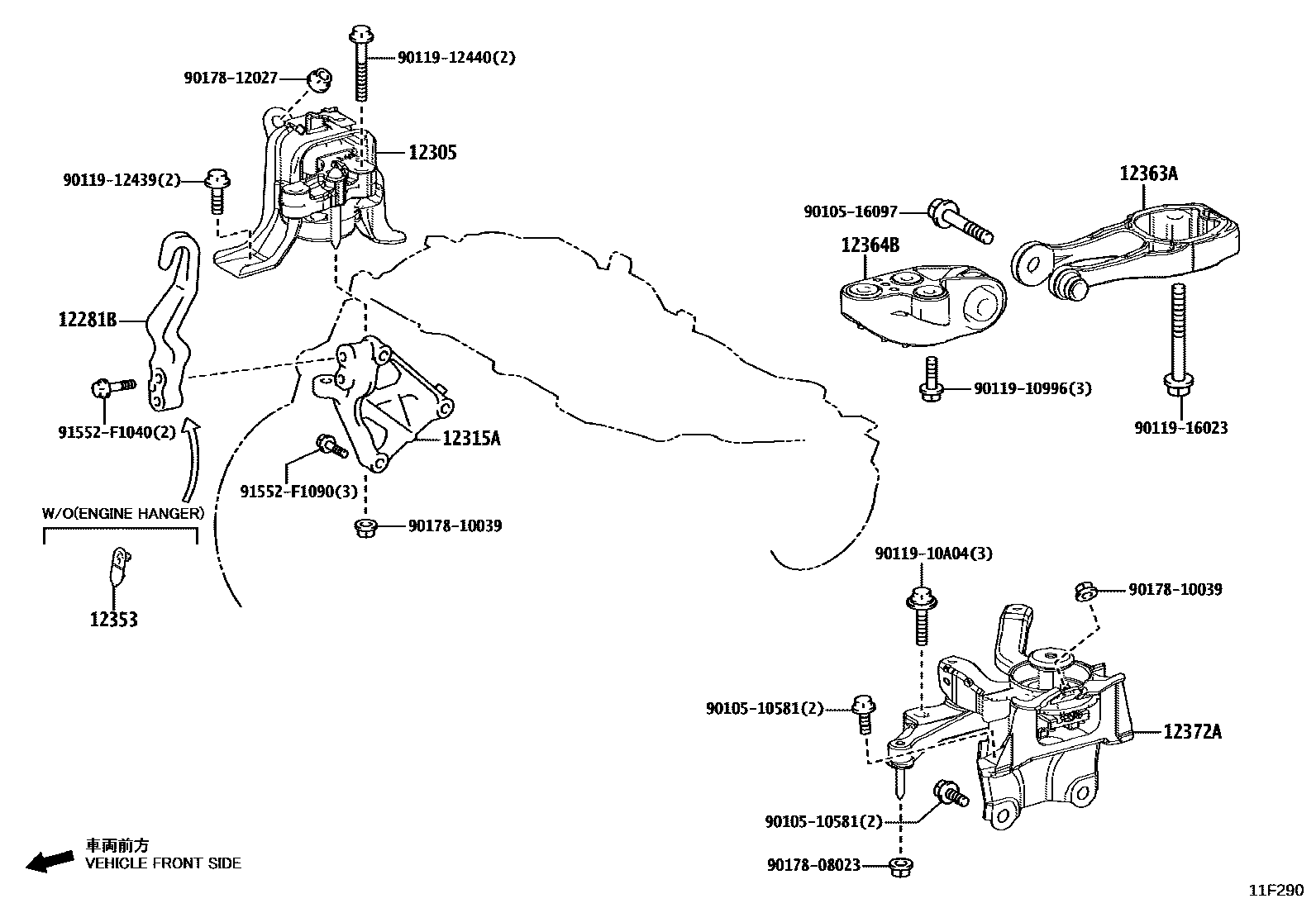

Toyota YARIS Engine Mounting EPC diagram — 11F290
Engine Mounting — 11F290 (202008 – 999999)

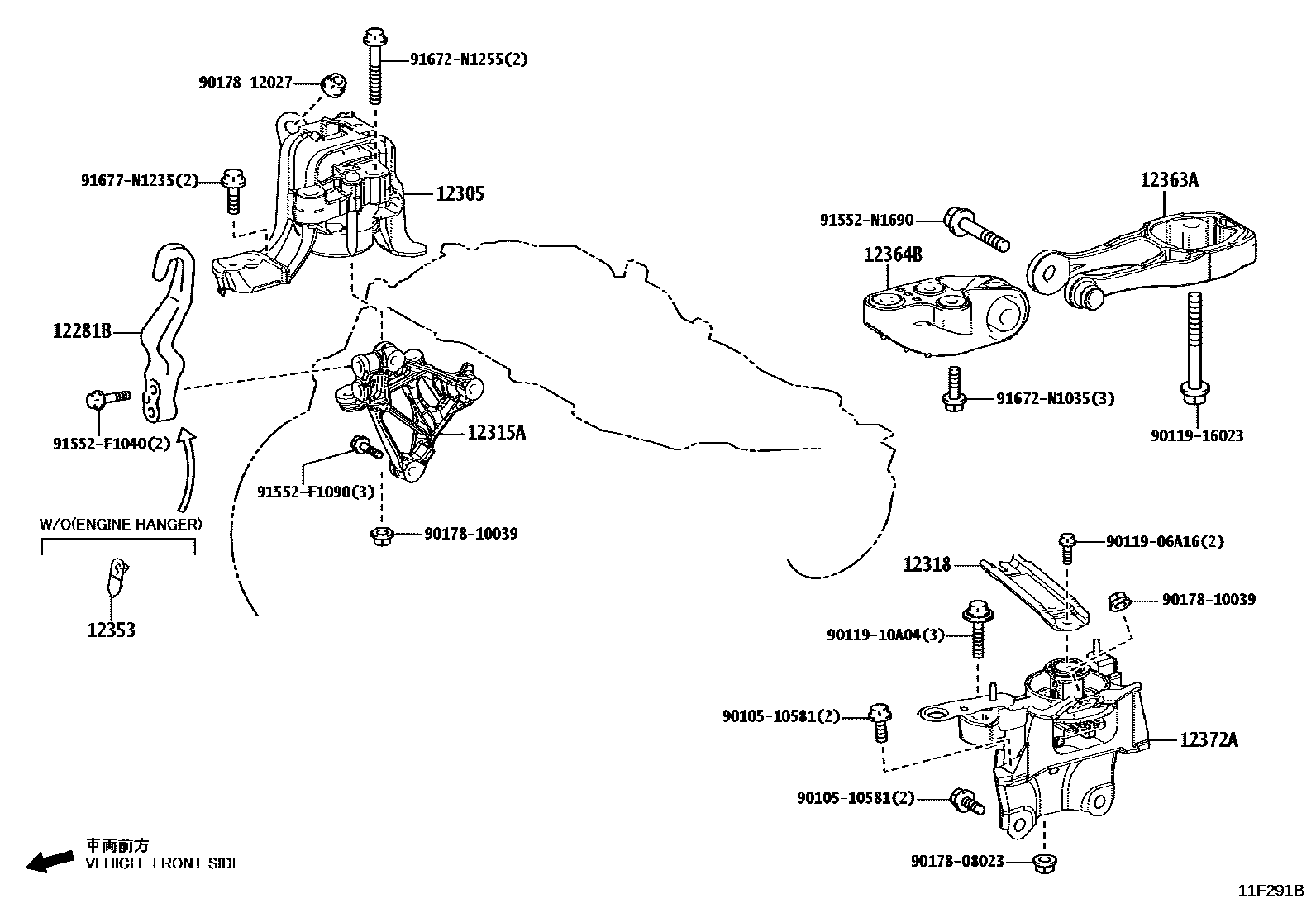

Toyota YARIS Engine Mounting EPC diagram — 11F291B
Engine Mounting — 11F291B (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
12281BEngine No. 1 hanger12281-25030
12305Engine right side mounting vibration isolation pad sub-assembly12305-15090 · 12305-15100
12315AEngine right side mounting bracket (for transversely mounted engine)12315-15090 · 12315-15100
12318Engine left mounting bracket12318-15070
12353Engine mounting bracket cover12353-15010
12363AEngine movement control lever12363-15050
12364BEngine No. 2 motion control lever12364-15010 · 12364-15060
12372AEngine left-side mounting vibration isolation pad (for transversely mounted engines)12372-15270 · 12372-15281
