Toyota YARIS Timing Gear Cover & Rear End Plate — Figure 1106

Toyota YARIS EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 2 images and 8 PNC and OE references.

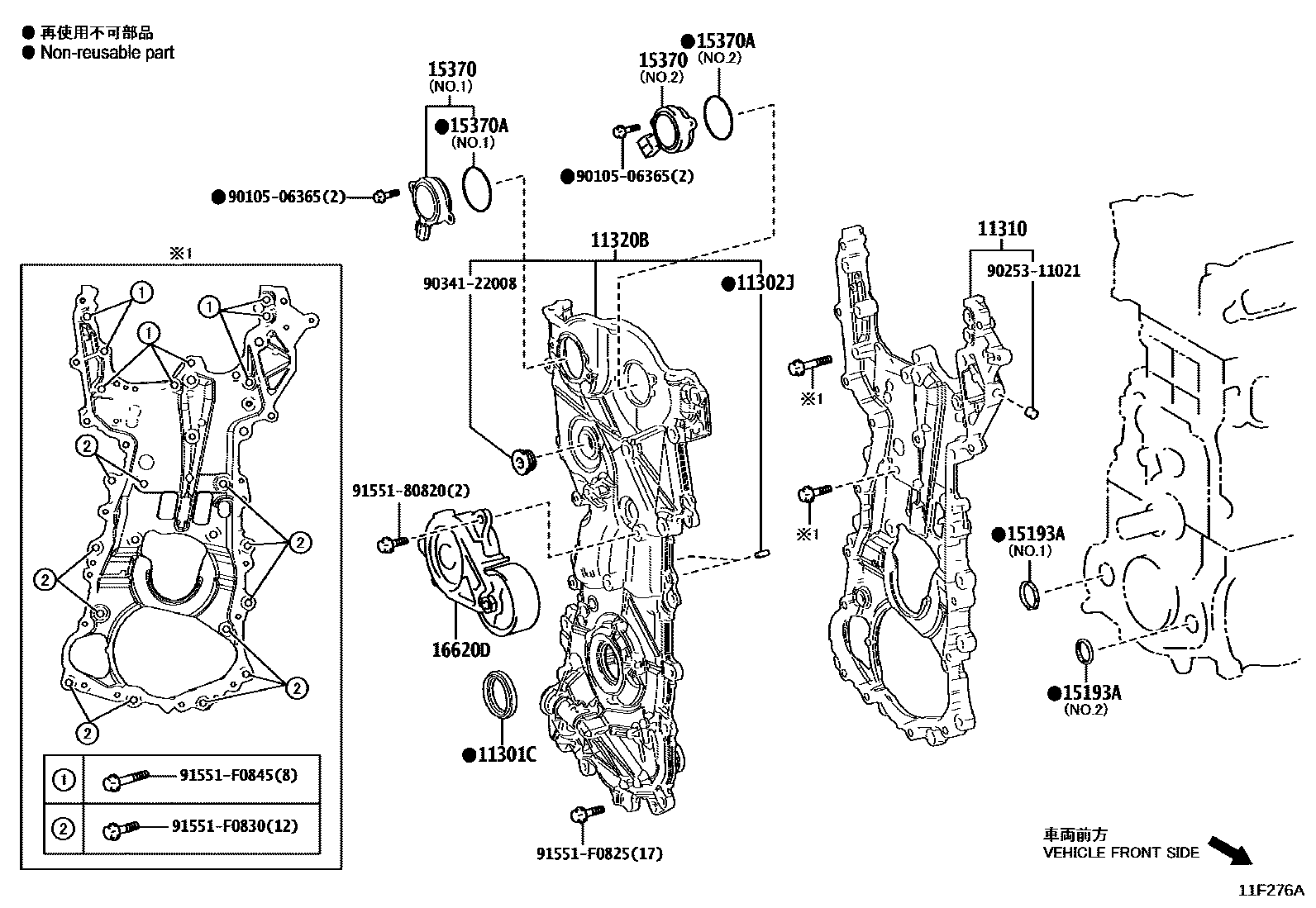

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 11F276A
Timing Gear Cover & Rear End Plate — 11F276A (202008 – 999999)

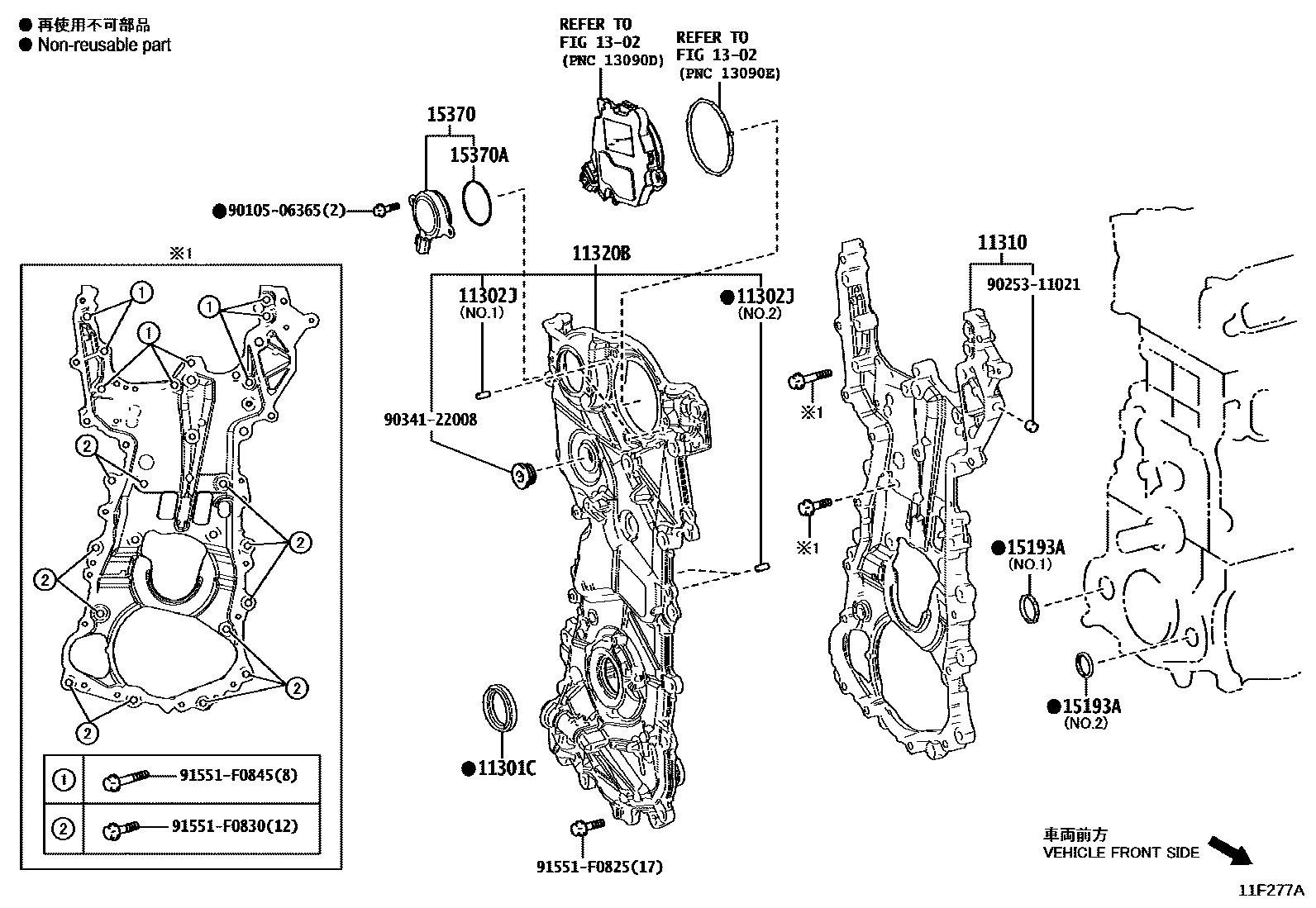

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 11F277A
Timing Gear Cover & Rear End Plate — 11F277A (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301COIL SEAL (FOR TIMING GEAR OR CHAIN CASE)90311-40044
11302JDirect sales (for timing chain cover)90250-04097 · 90250-06003
11310Timing chain cover assembly11310-15010
11320BNo. 2 timing chain cover assembly11320-15010 · 11320-15020 · 11320-15021
15193Aoil pump gasket15193-15010 · 15197-15040
15370Camshaft timing oil control solenoid valve assembly15370-25020 · 15370-36010
15370AO-ring (for camshaft timing oil control solenoid valve)90301-44006 · 90301-50003
16620DPoly V-belt tensioner assembly16620-24010 · 16620-24020 · 16620-24021
