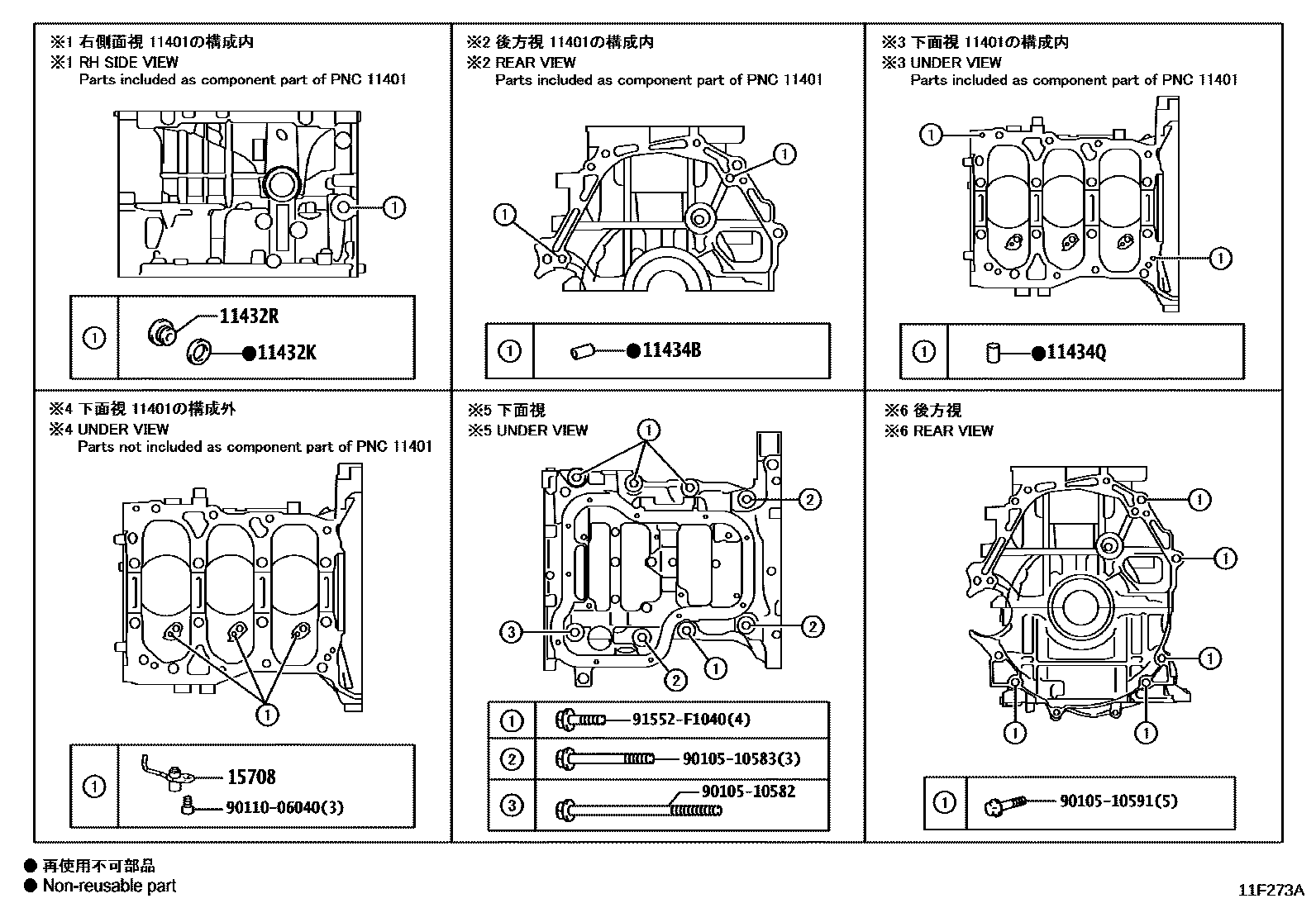

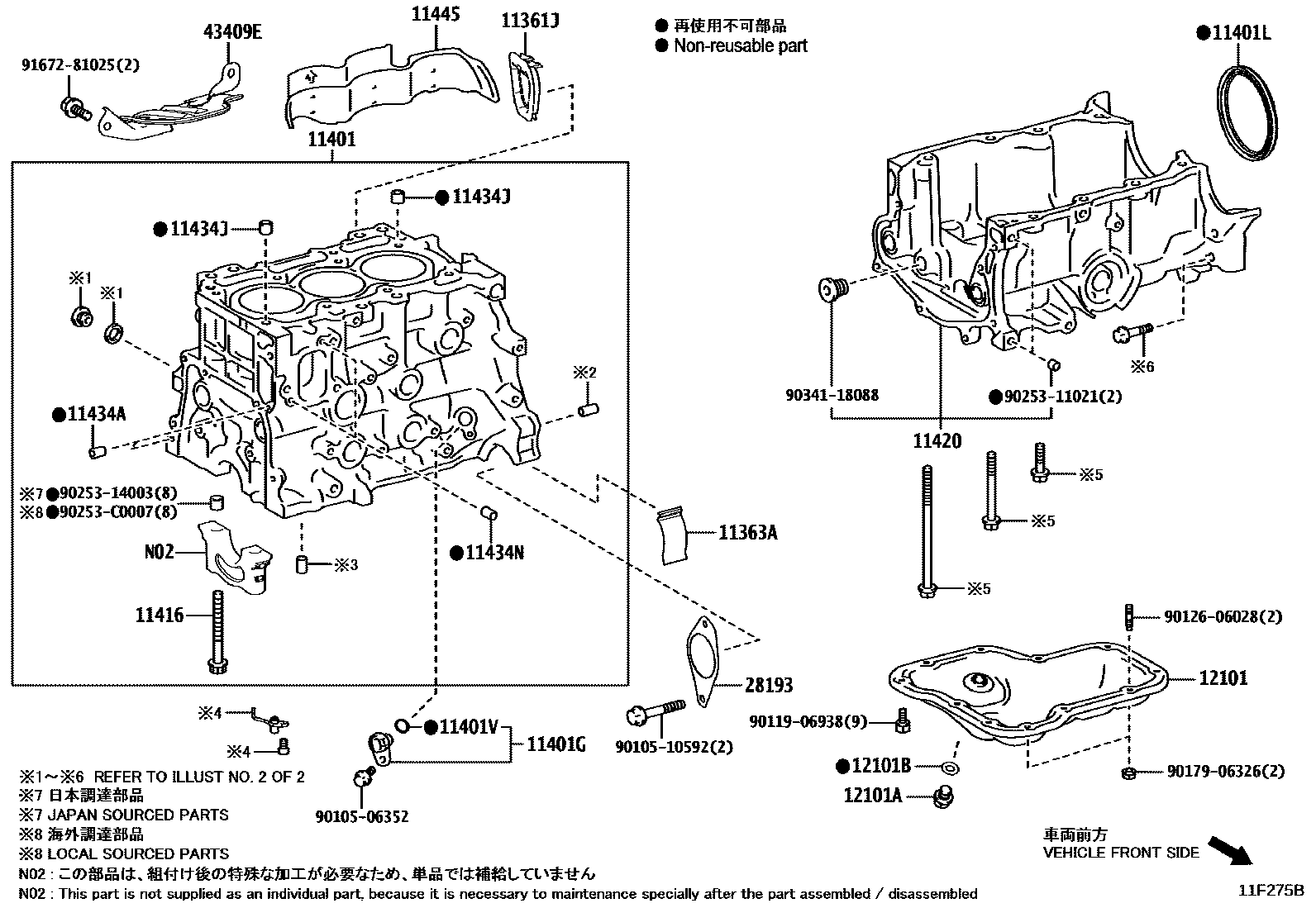

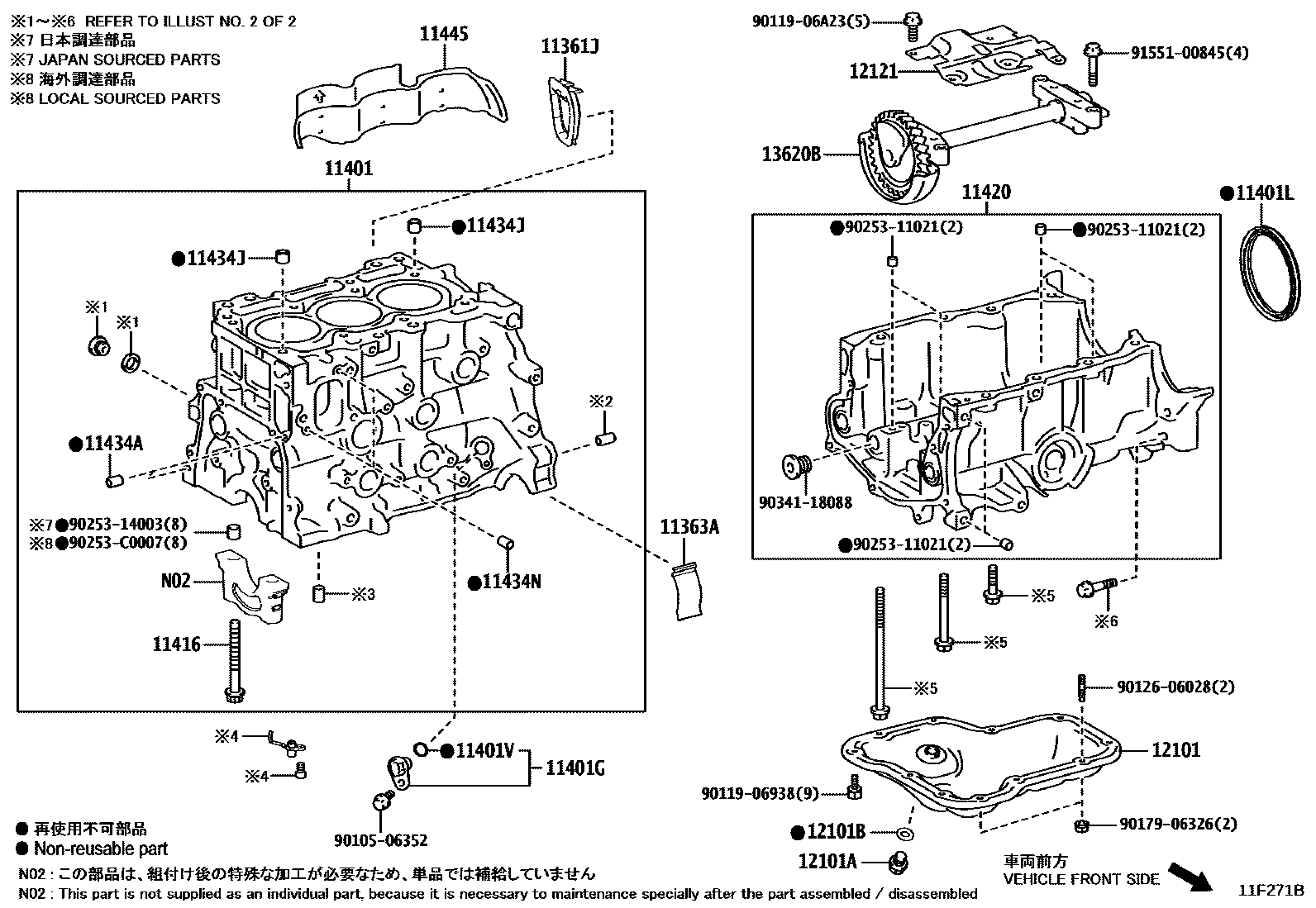

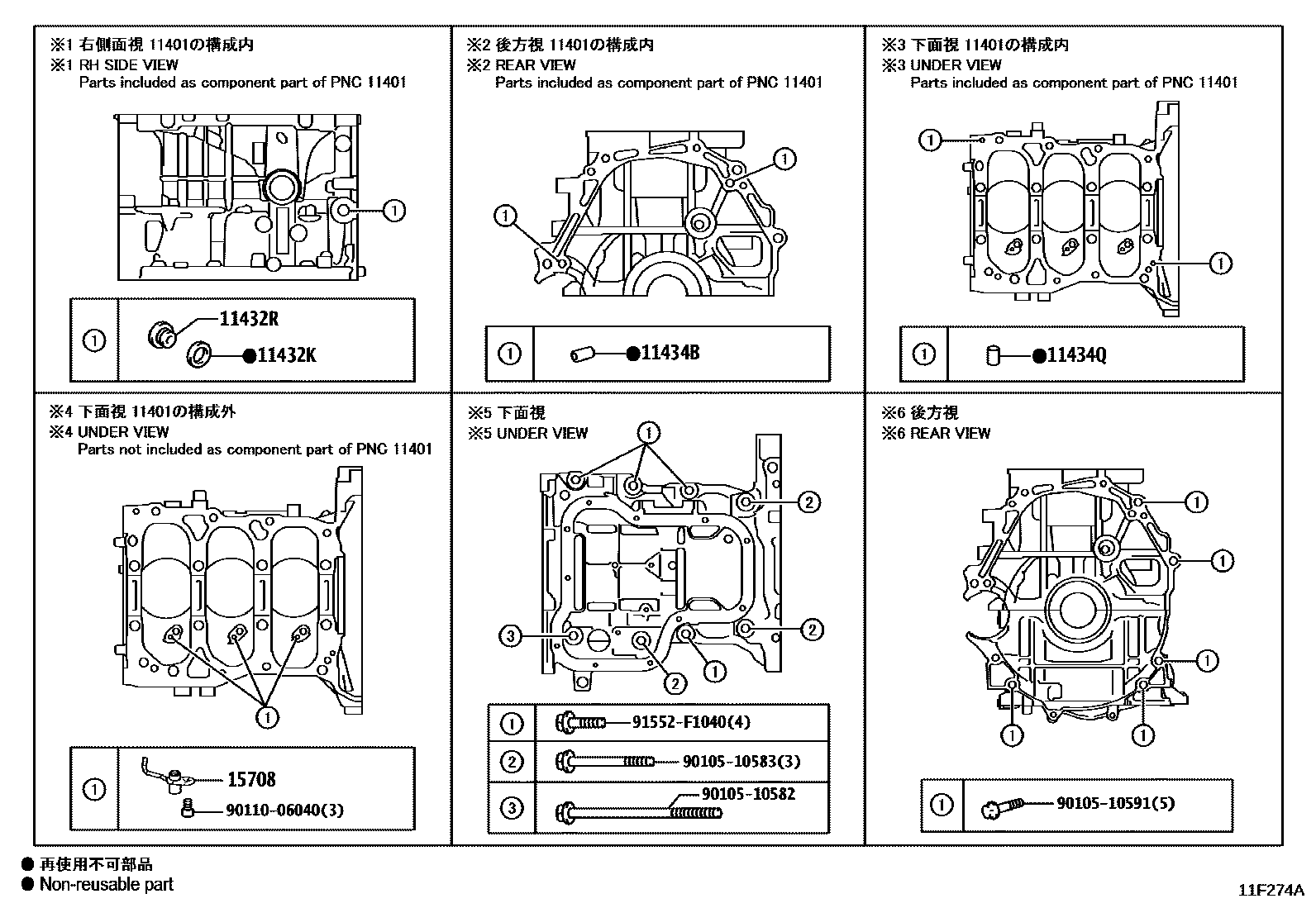

Toyota YARIS Cylinder Block — Figure 1105
Toyota YARIS EPC diagram 1105, Cylinder Block, with 4 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-25010 |
| 11363A | Flywheel housing side cover | 11363-15010 |
| 11401 | Cylinder block sub-assembly | 11410-19005 |
| 11401G | crankshaft position sensor | 90919-05095 |
| 11401L | SEAL, ENGINE REAR OIL | 90311-90011 |
| 11401V | Crankshaft position sensor O-ring | 90301-11039 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02197 |
| 11420 | Reinforce crankcase assembly | 11420-15010 · 11420-15020 |
| 11432K | Headed straight thread plug liner | 90430-18008 |
| 11432R | No. 1 headed straight thread plug (for cylinder block) | 90341-18023 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-06003 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13017 |
| 11434N | Direct sales (for water inlet housing) | 90250-06003 |
| 11434Q | Direct sales (for crankcase) | 90250-06003 |
| 11445 | Cylinder block water jacket spacer | 11445-15010 |
| 12101 | Oil pan sub-assembly | 12102-15010 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 12121 | No. 1 oil pan baffle | 12121-15050 |
| 13620B | Engine balancer assembly | 13620-15010 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-15010 |
| 28193 | Starter hole vibration isolation pad | 28193-25010 |
| 43409E | Drive shaft heat insulation pad sub-assembly | 43409-K0040 |
