Toyota YARIS Engine Overhaul Gasket Kit — Figure 1103

Toyota YARIS EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

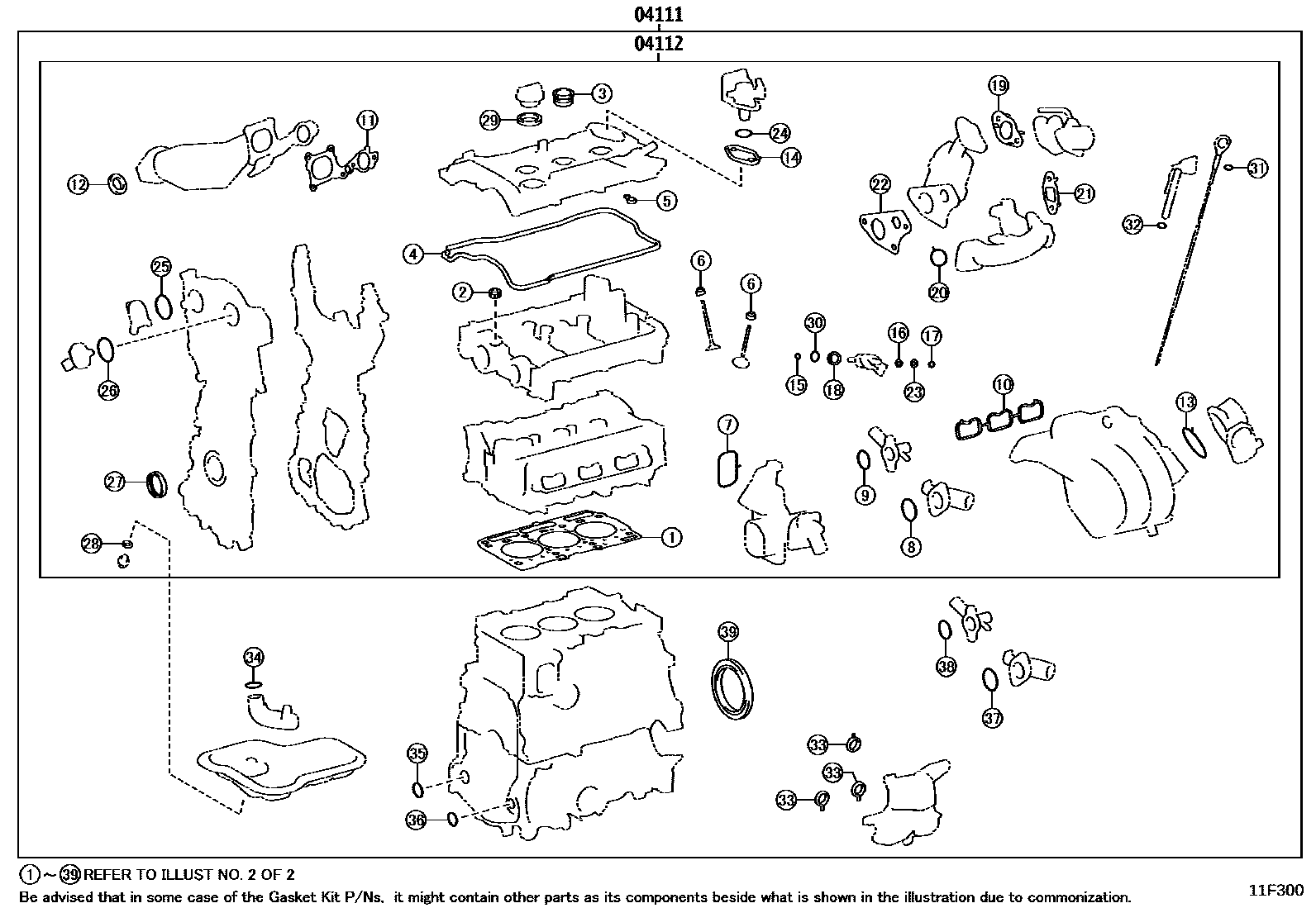

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11F300
Engine Overhaul Gasket Kit — 11F300 (202008 – 999999)

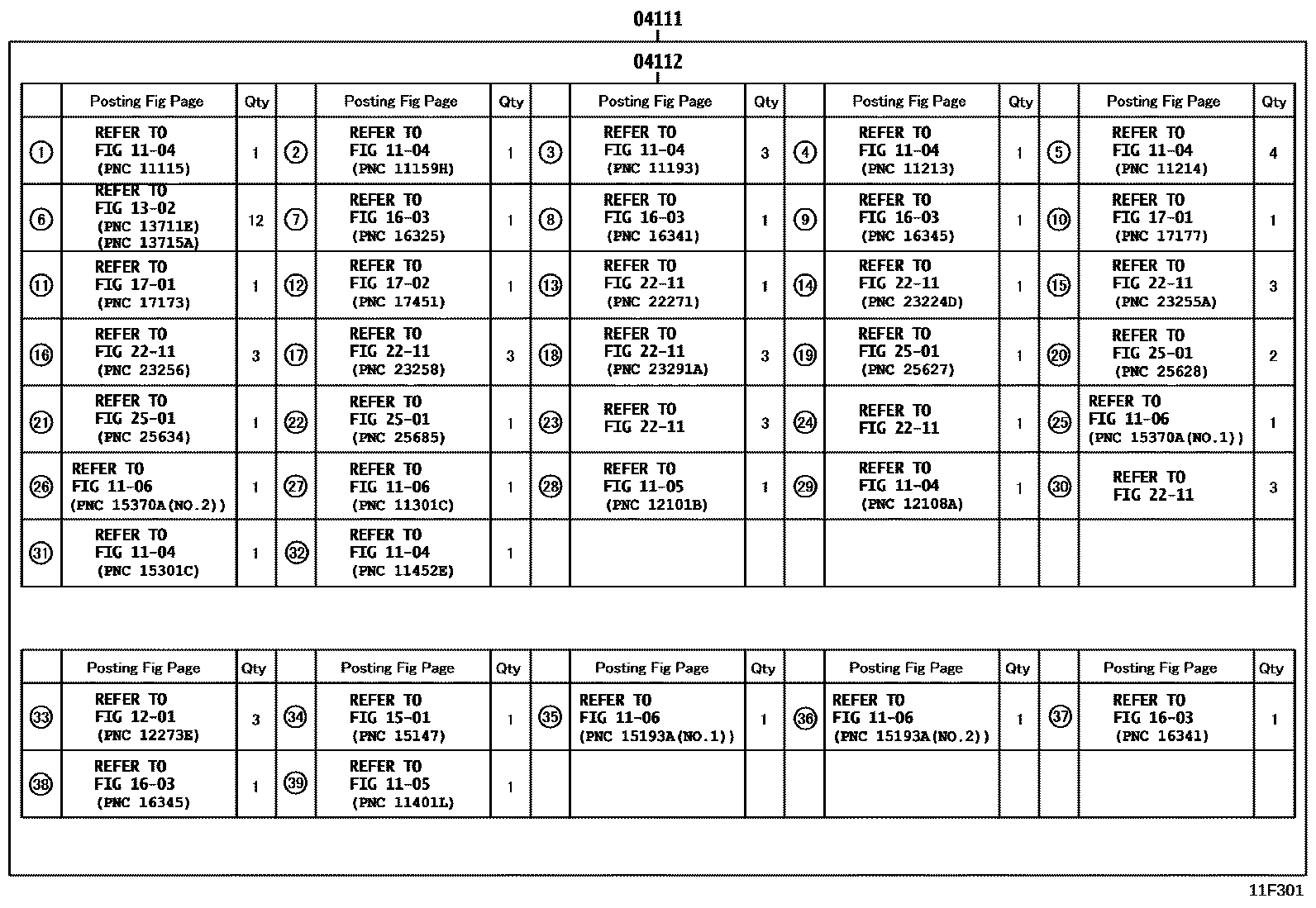

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11F301
Engine Overhaul Gasket Kit — 11F301 (202008 – 999999)

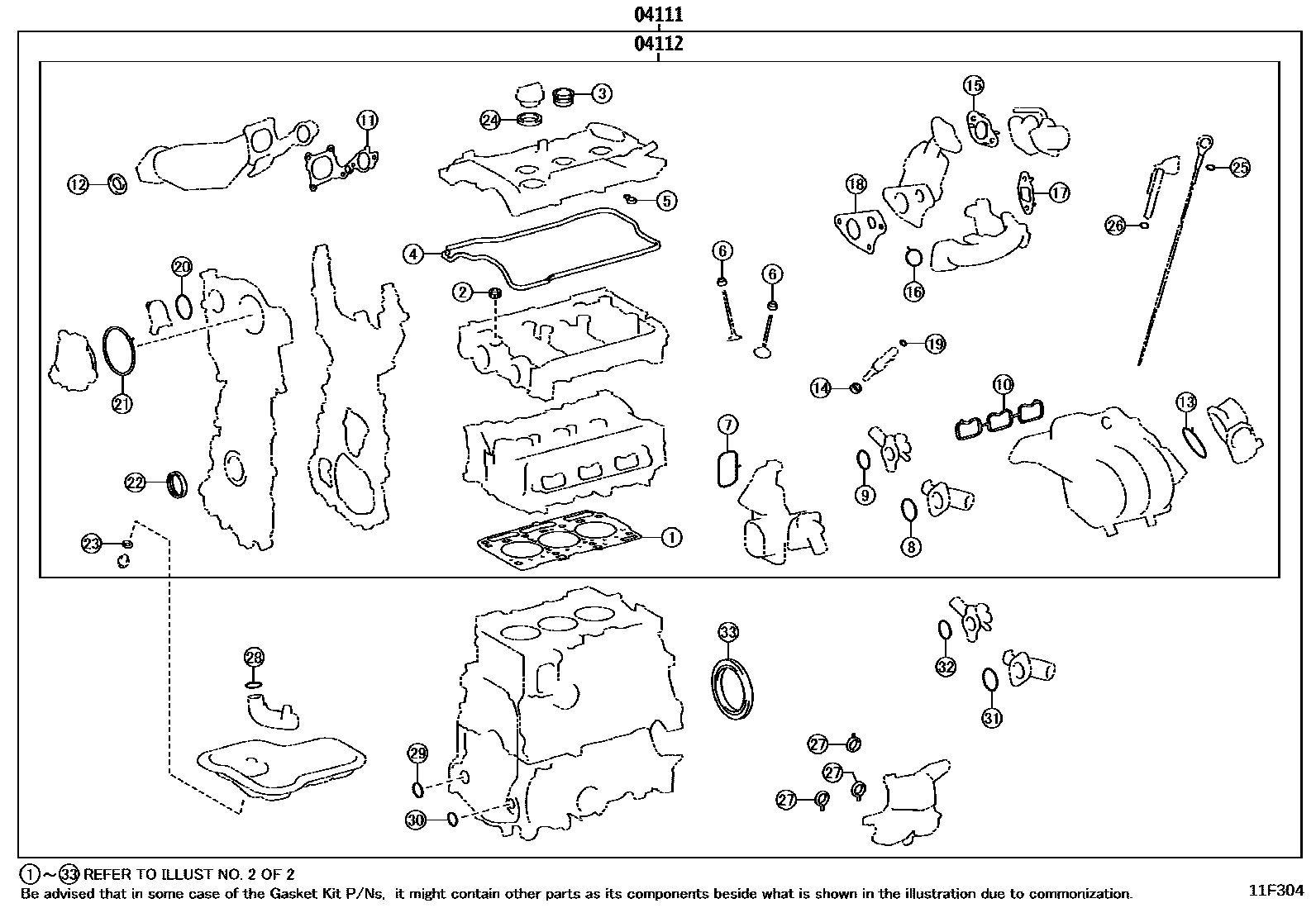

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11F304
Engine Overhaul Gasket Kit — 11F304 (202008 – 999999)

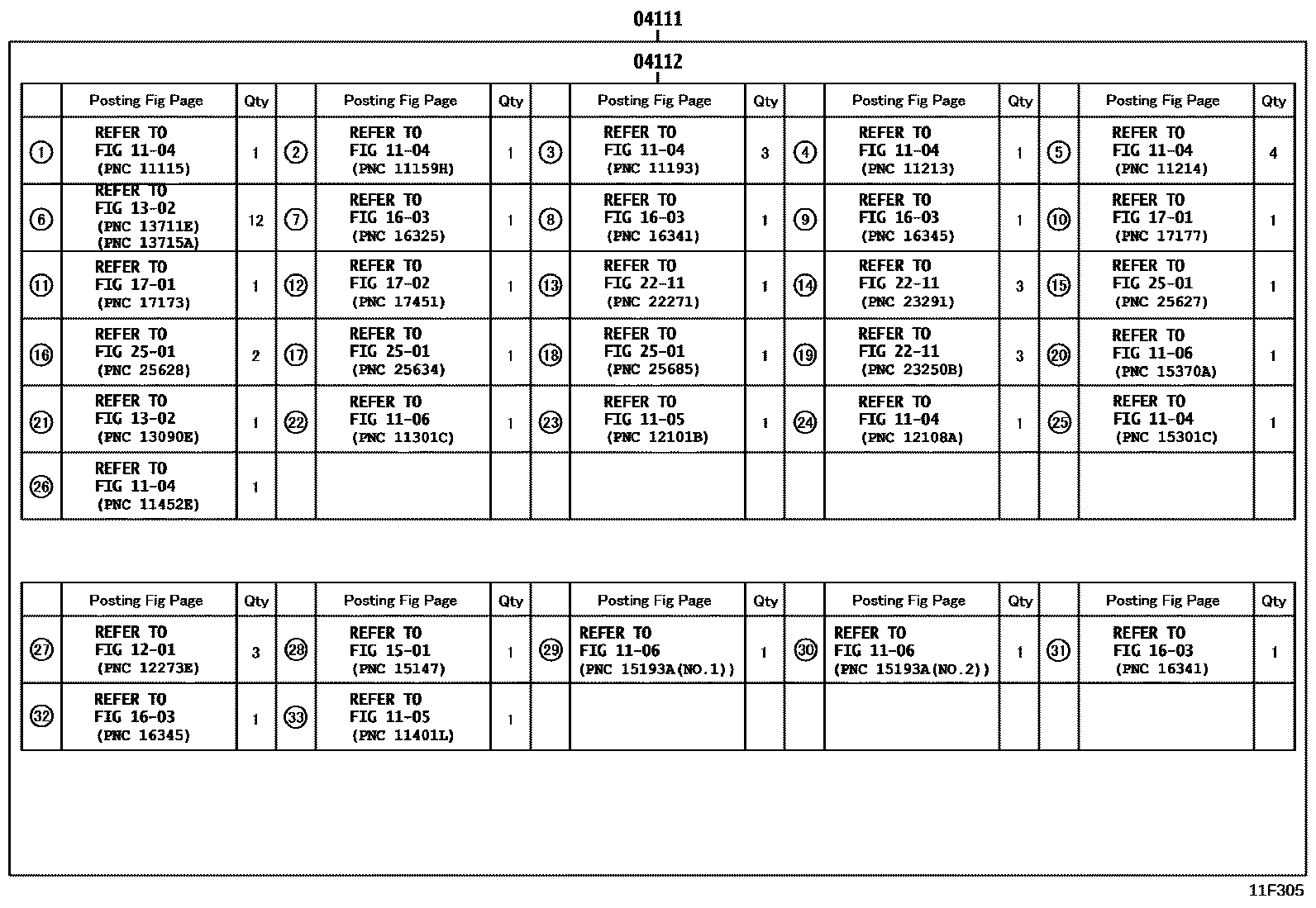

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11F305
Engine Overhaul Gasket Kit — 11F305 (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-15110 · 04111-15111 · 04111-15121
04112Engine valve grinding pad assembly04112-15120 · 04112-15121 · 04112-15131
