Toyota YARIS Heating & Air Conditioning - Cooler Piping — Figure 8718

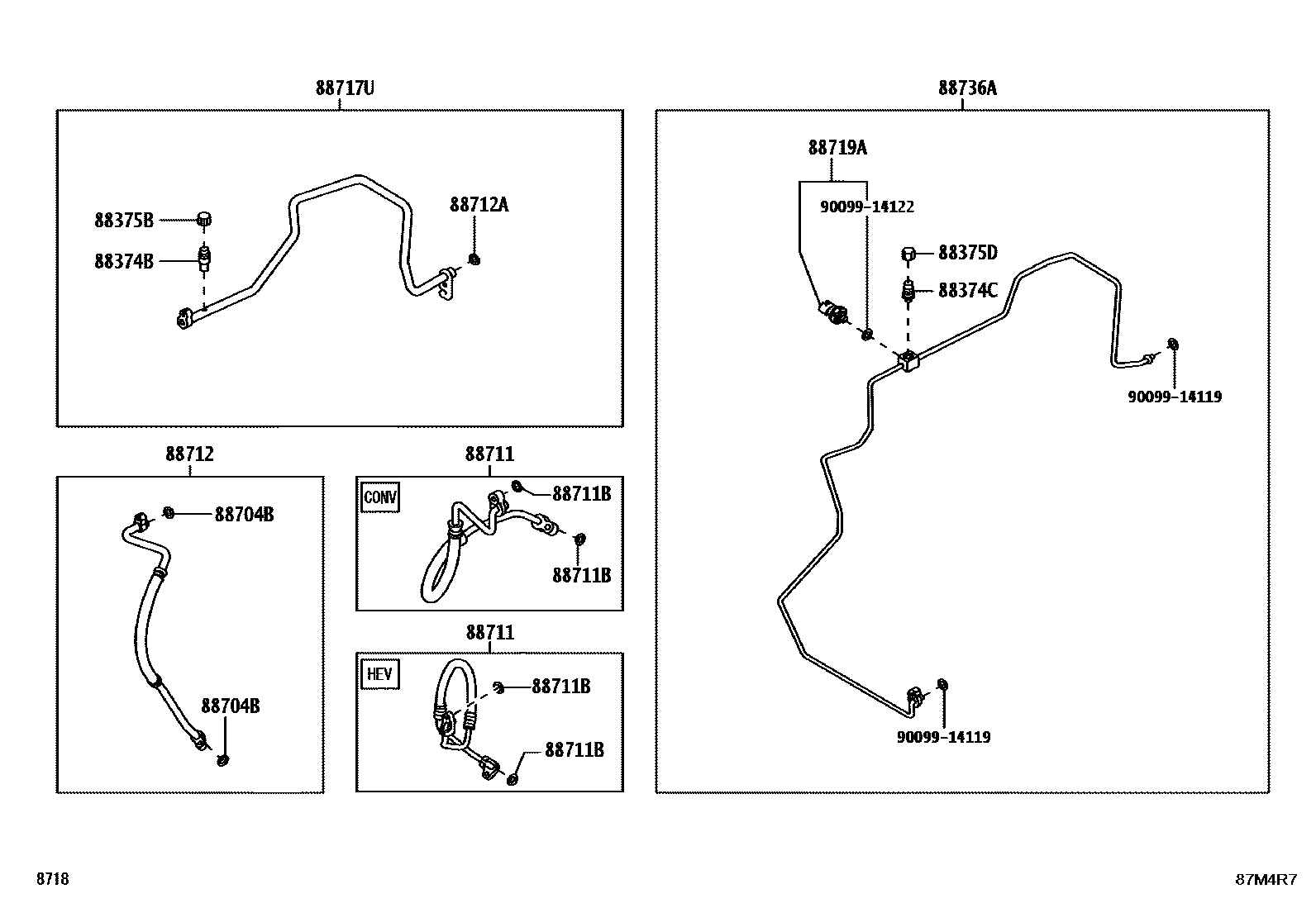

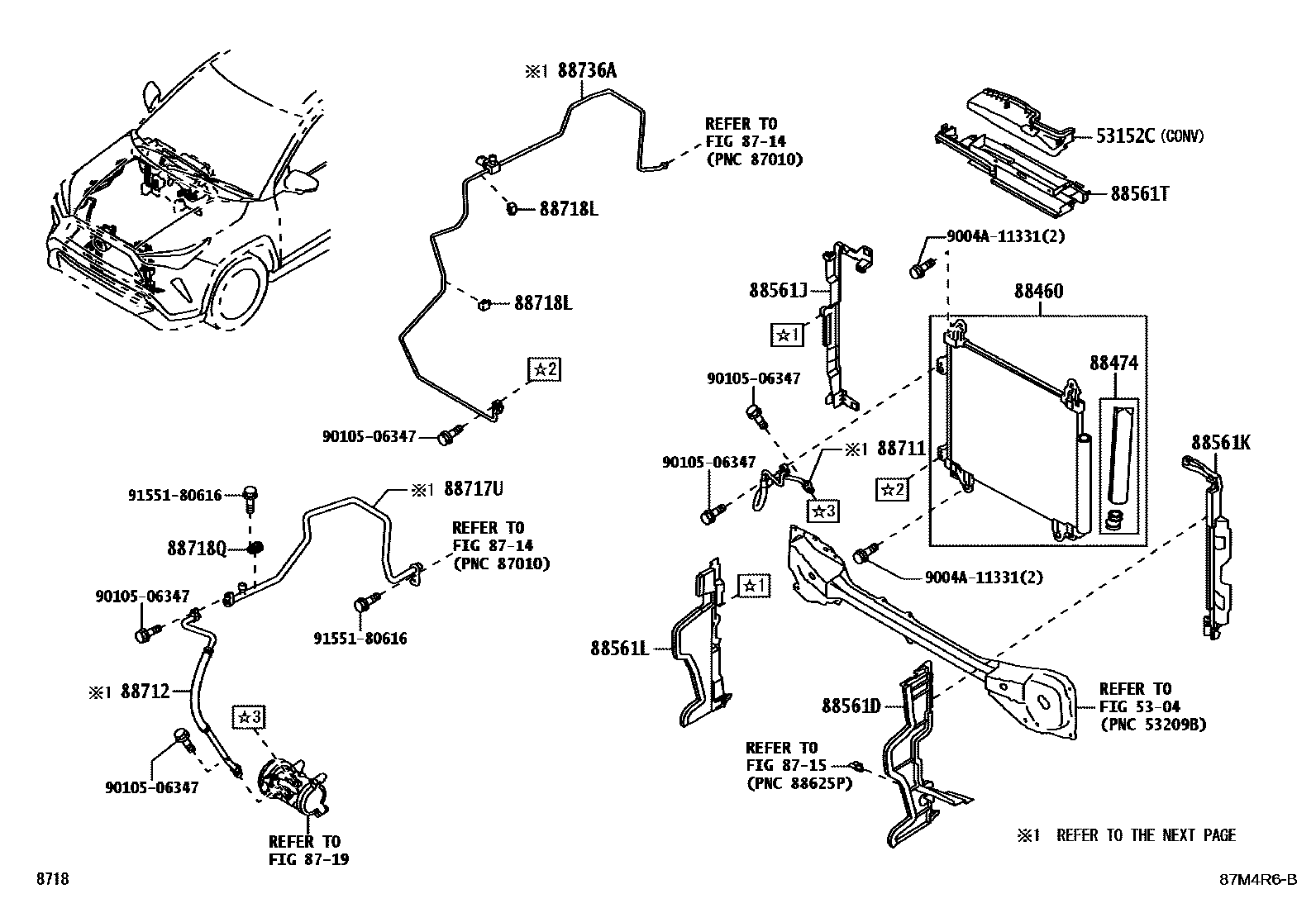

Toyota YARIS EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53152C | Radiator grille deflector | 53152-BZ190 |
| 88374B | Service valve No. 1 | 88374-02010 |
| 88374C | Service valve No. 2 | 88374-02010 |
| 88375B | No. 1 maintenance valve cover | 88375-02130 |
| 88375D | No. 2 maintenance valve cover | 88375-02120 |
| 88460 | Air conditioning condenser assembly | 88460-BZ470 |
| 88474 | cooler dryer | 88474-12010 |
| 88561D | No. 3 air inlet grille | 88561-BZE10 |
| 88561J | No. 1 air inlet grille | 88561-BZD80 |
| 88561K | No. 2 air inlet grille | 88561-BZD90 |
| 88561L | No. 4 air inlet grille | 88561-BZE00 |
| 88561T | GRILLE, ADMISSION AIR NO.5 | 88561-BZD60 · 88561-BZD70 |
| 88704B | O-ring (for suction hose) | 90099-14121 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-BZB10 · 88711-BZB20 |
| 88711B | O-ring (for cooler refrigerant drain hose) | 90099-14120 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-BZC20 · 88712-BZC30 · 88712-BZC40 |
| 88712A | O-ring (for cooler refrigerant suction hose) | 90099-14121 |
| 88717U | No. 1 suction pipe | 88717-BZ740 · 88717-BZ750 · 88717-BZ790 |
| 88718L | Pipe clamp | 88718-0D460 |
| 88718Q | Pipe clamp | 88718-BZ800 |
| 88719A | Air conditioning pressure sensor | 88719-B2020 |
| 88736A | Liquid pipe A (for refrigerated box) | 88716-BZL60 · 88716-BZL70 · 88716-BZM00 |
