Toyota YARIS 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota YARIS EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 4 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

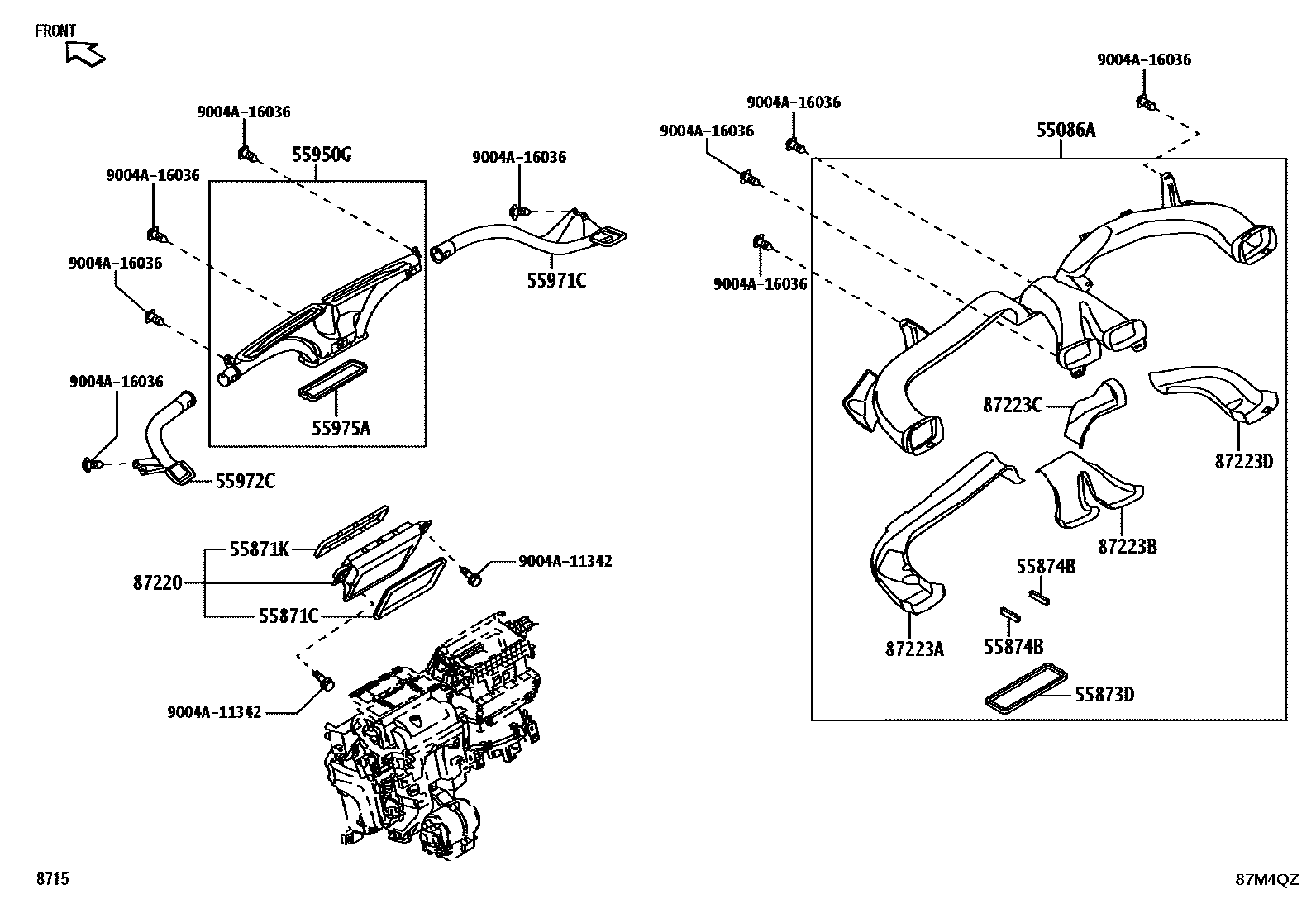

| 55086A | Heater to central air register air duct sub-assembly | 55086-BZ460 |
| 55871C | Air duct seals | 55875-BZ060 |
| 55871K | Air duct seals | 55876-BZ020 |
| 55873D | central duct seal | 55873-BZ180 |
| 55873E | Air duct seals | 55873-BZ200 |
| 55874B | No. 4 air duct seal | 55874-BZ080 |

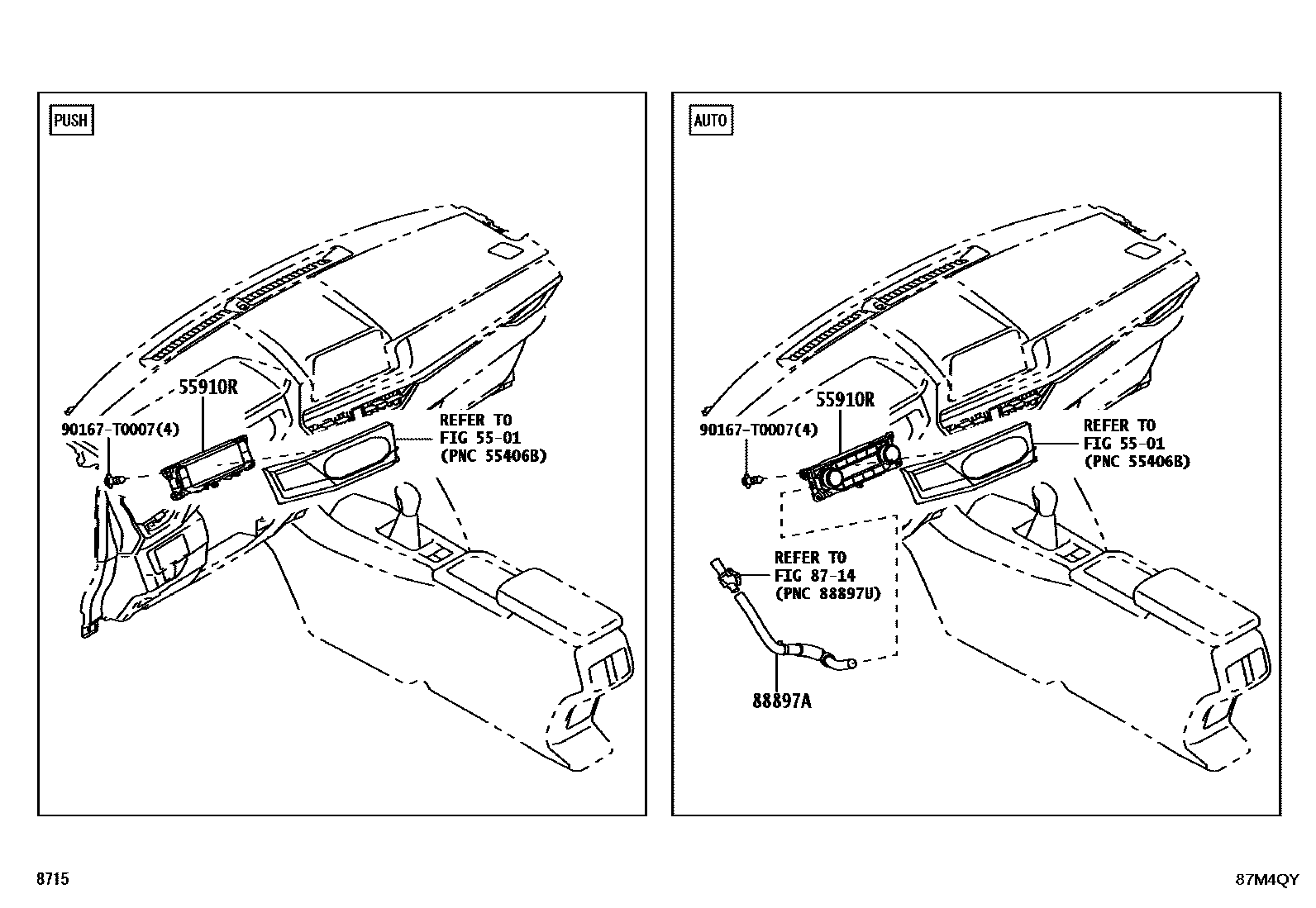

| 55910R | Heater control assembly | 55910-BZ780 · 55910-BZD80 · 55910-BZD90 |
| 55950G | Defroster nozzle assembly | 55950-BZ350 |
| 55971C | Side defroster No. 1 nozzle air duct | 55961-BZ130 |
| 55972C | Side defroster No. 2 nozzle air duct | 55962-BZ130 |
| 55975A | Defroster No. 1 Nozzle Seal | 55975-BZ100 |

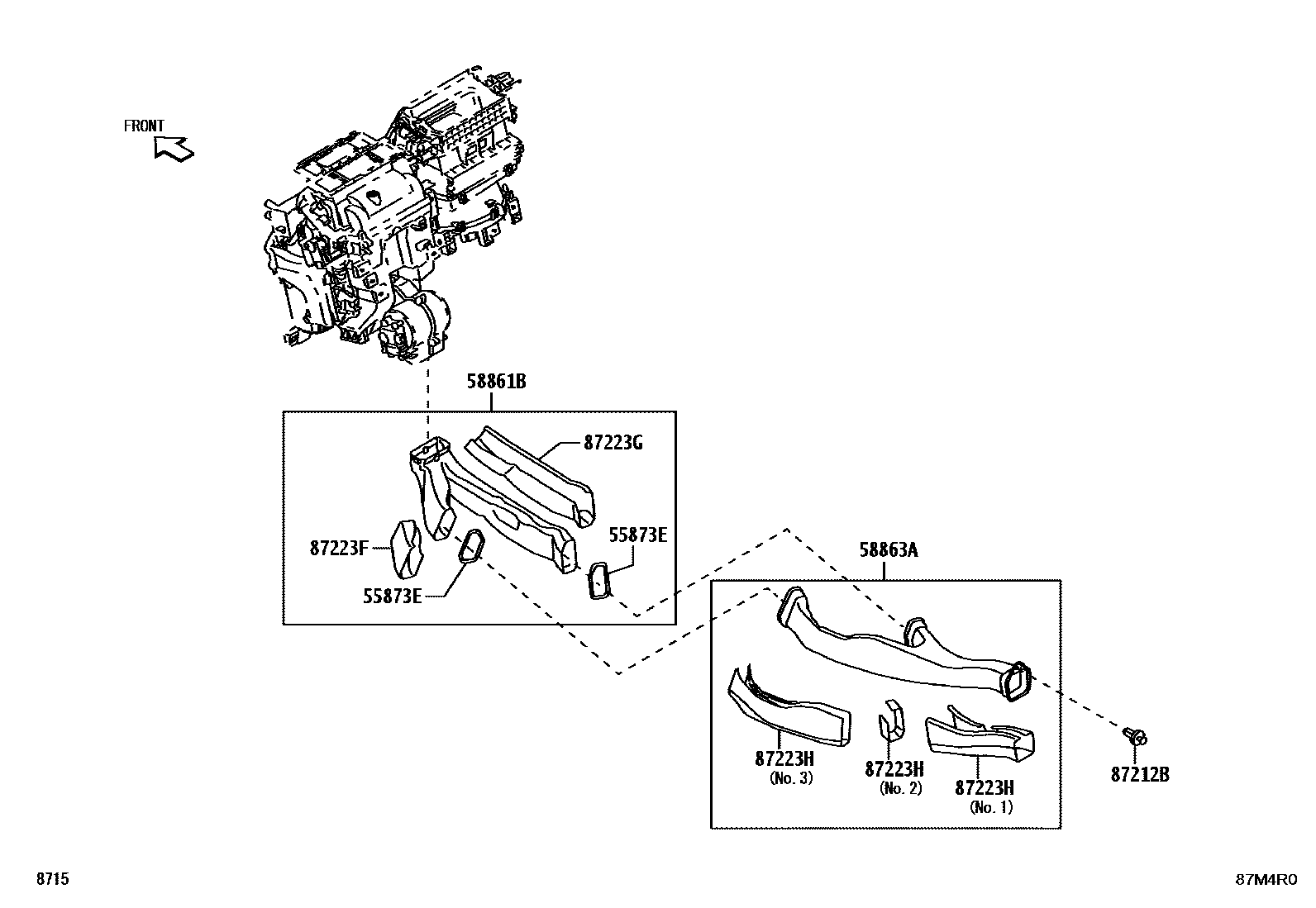

| 58861B | Air duct No. 1 for armrest box | 58861-BZ060 |
| 58863A | Armrest box No. 3 air duct | 58863-BZ030 |
| 87212B | Air duct clip | 90467-07215 |
| 87220 | Air duct assembly | 87220-BZ490 |
| 87223A | Duct gasket | 87223-BZF30 |
| 87223B | No. 2 air duct gasket | 87223-BZF00 |
| 87223C | No. 3 air duct gasket | 87223-BZF10 |
| 87223D | No. 4 air duct gasket | 87223-BZF20 |
| 87223F | No. 6 air duct gasket | 87223-BZ830 |
| 87223G | No. 7 air duct gasket | 87223-BZ840 |
| 87223H | No. 8 air duct gasket | 87223-BZ850 · 87223-BZF60 · 87223-BZF70 |

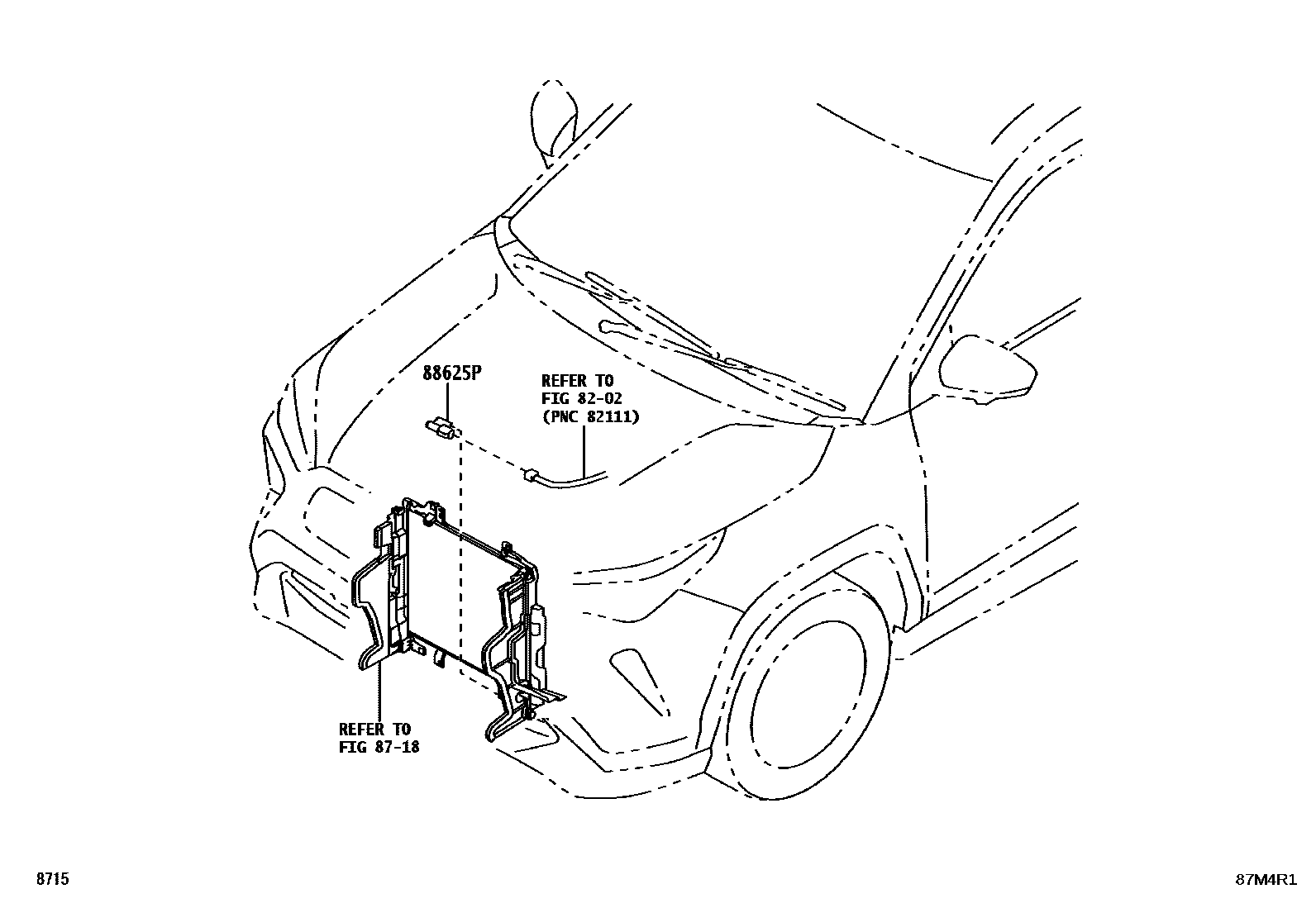

| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-B1080 |
| 88897A | aspirator tube | 88505-BZ110 |
