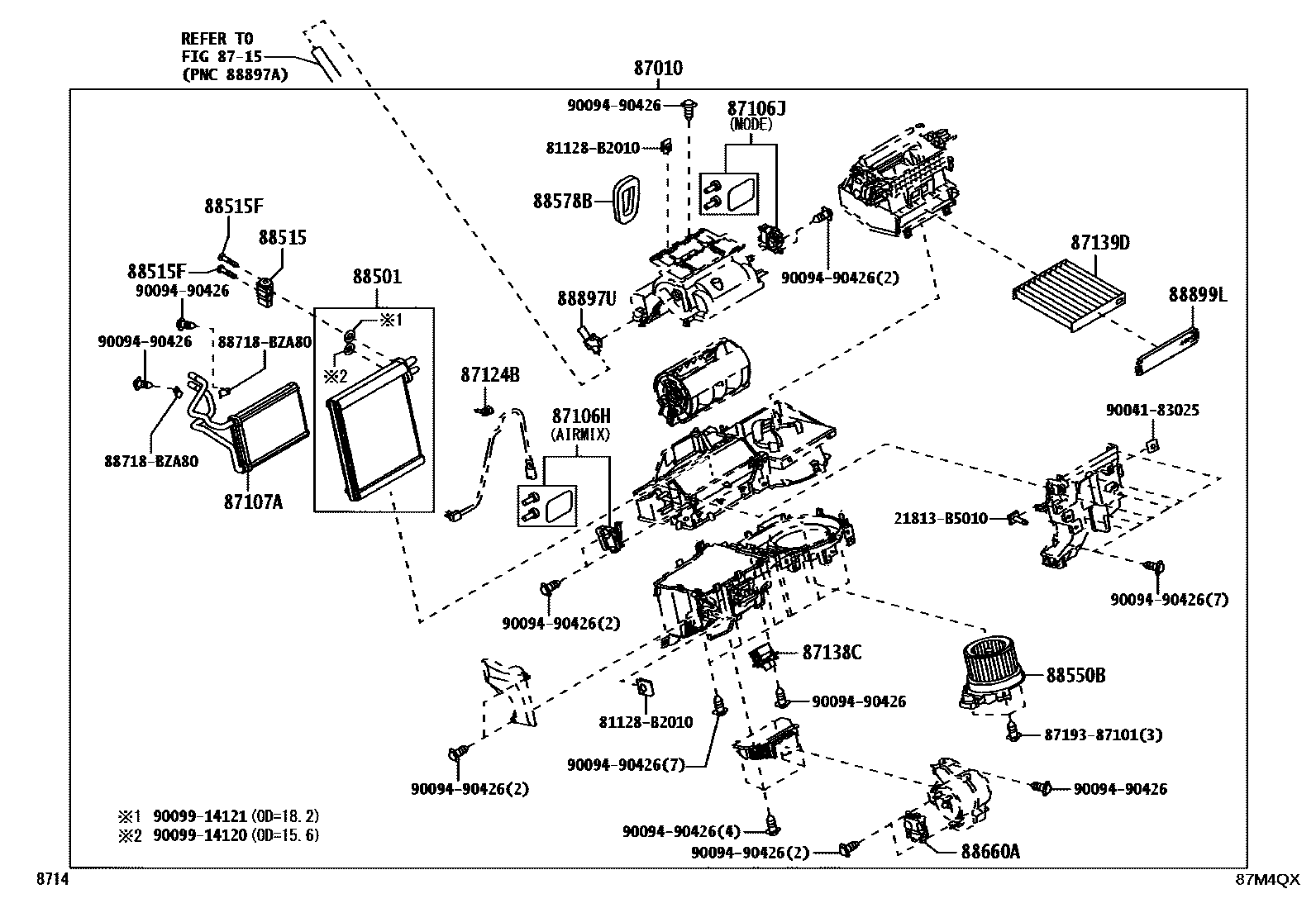

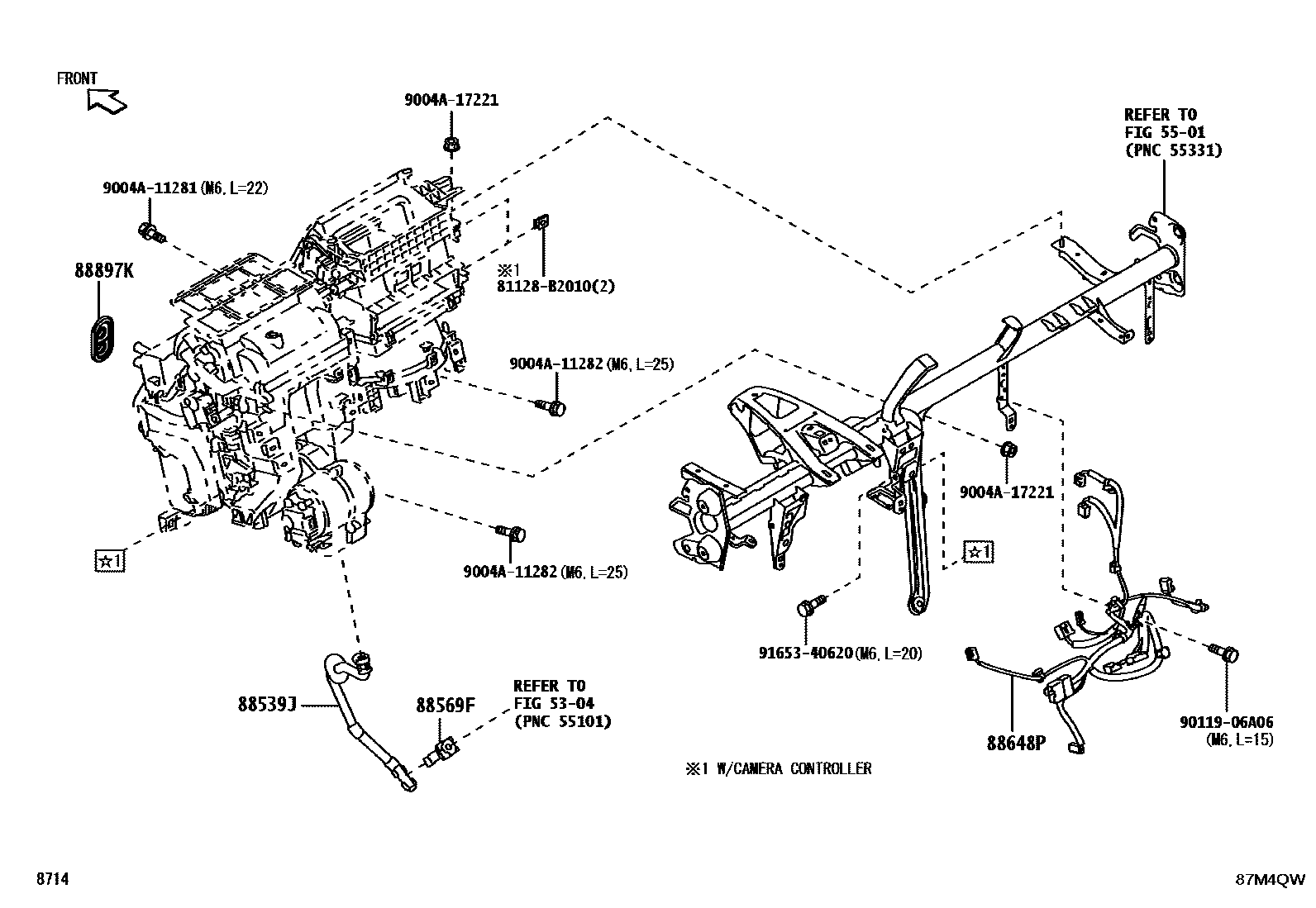

Toyota YARIS 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota YARIS EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87010 | Air conditioning unit assembly | 87010-BZ640 · 87010-BZE30 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-BZ100 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 88660-BZ150 |
| 87107A | Heater radiator device sub-assembly | 87107-BZ140 |
| 87124B | heater clip | 87126-B1010 |
| 87138C | Blower resistor | 87138-BZ260 |
| 87139D | Air fine filter element | 87139-BZ070 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-BZ500 |
| 88515 | Cooler expansion valve | 88515-BZ290 · 88515-BZ300 |
| 88515F | Bolt (for cooler expansion valve) | 9004B-10032 |
| 88539J | Cooler drain hose | 88539-BZ530 |
| 88550B | Blower motor assembly | 88550-BZ240 |
| 88569F | card holder | C8899-B2010 |
| 88578B | Cooling unit seal No. 1 | 88578-BZG10 |
| 88648P | Air conditioner No. 1 wiring harness | 88648-BZ780 · 88648-BZ790 |
| 88660A | No. 1 air conditioning servo mechanism assembly | 88660-BZ140 |
| 88897K | Seals (for cooler tubes) | 88897-BZ190 |
| 88897U | aspirator tube | 88897-BZ300 |
| 88899L | Cooling unit parts | 88899-02340 |
