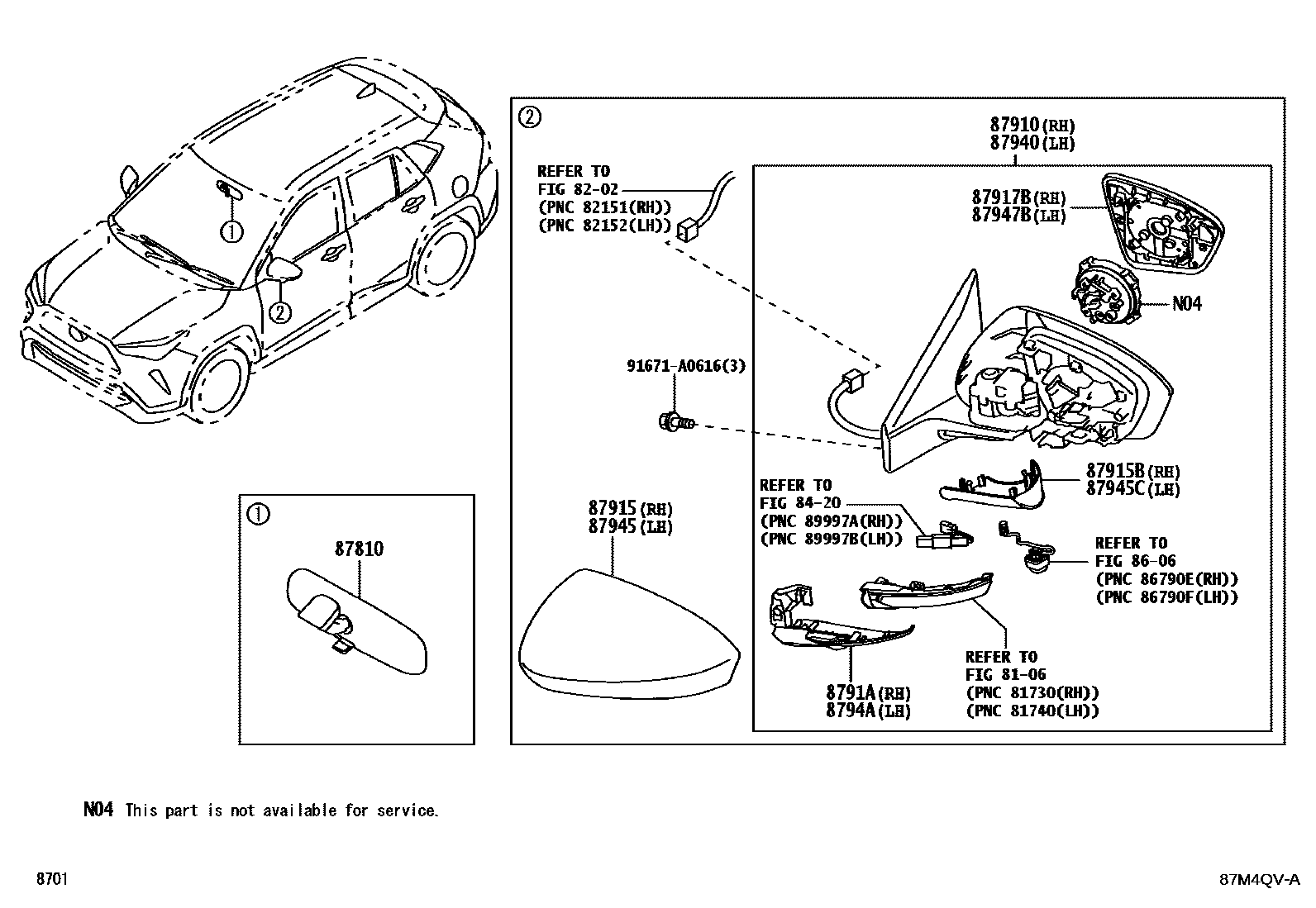

Toyota YARIS 后视镜 — Figure 8701
Toyota YARIS EPC diagram 8701, 后视镜, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-02112 · 87810-0WS30 · 87810-BZ320 |
| 87910 | Right exterior rearview mirror assembly | 87910-BY020 · 87910-BZY00 · 87910-BZY10 · 87910-BZY20 · 87910-BZY30 |
| 87915 | Right exterior rearview mirror cover | 87915-BZ870 |
| 87915B | Right exterior rearview mirror lower cover | 8791B-BZ180 |
| 87917B | Right exterior rearview mirror | 87917-BZ470 · 87917-BZ480 |
| 8791A | Right exterior rearview mirror cover No. 2 | 8791A-BZ210 · 8791A-BZ220 |
| 87940 | Left exterior rearview mirror assembly | 87940-BY020 · 87940-BZY00 · 87940-BZY10 · 87940-BZY20 · 87940-BZY30 |
| 87945 | Left exterior rearview mirror cap | 87945-BZ870 |
| 87945C | Left exterior rearview mirror lower cover | 8794B-BZ170 |
| 87947B | Left exterior rearview mirror | 87947-BZ450 · 87947-BZ460 |
| 8794A | No. 2 left exterior rearview mirror cap | 8794A-BZ200 · 8794A-BZ210 |
