Toyota YARIS 喇叭 — Figure 8611

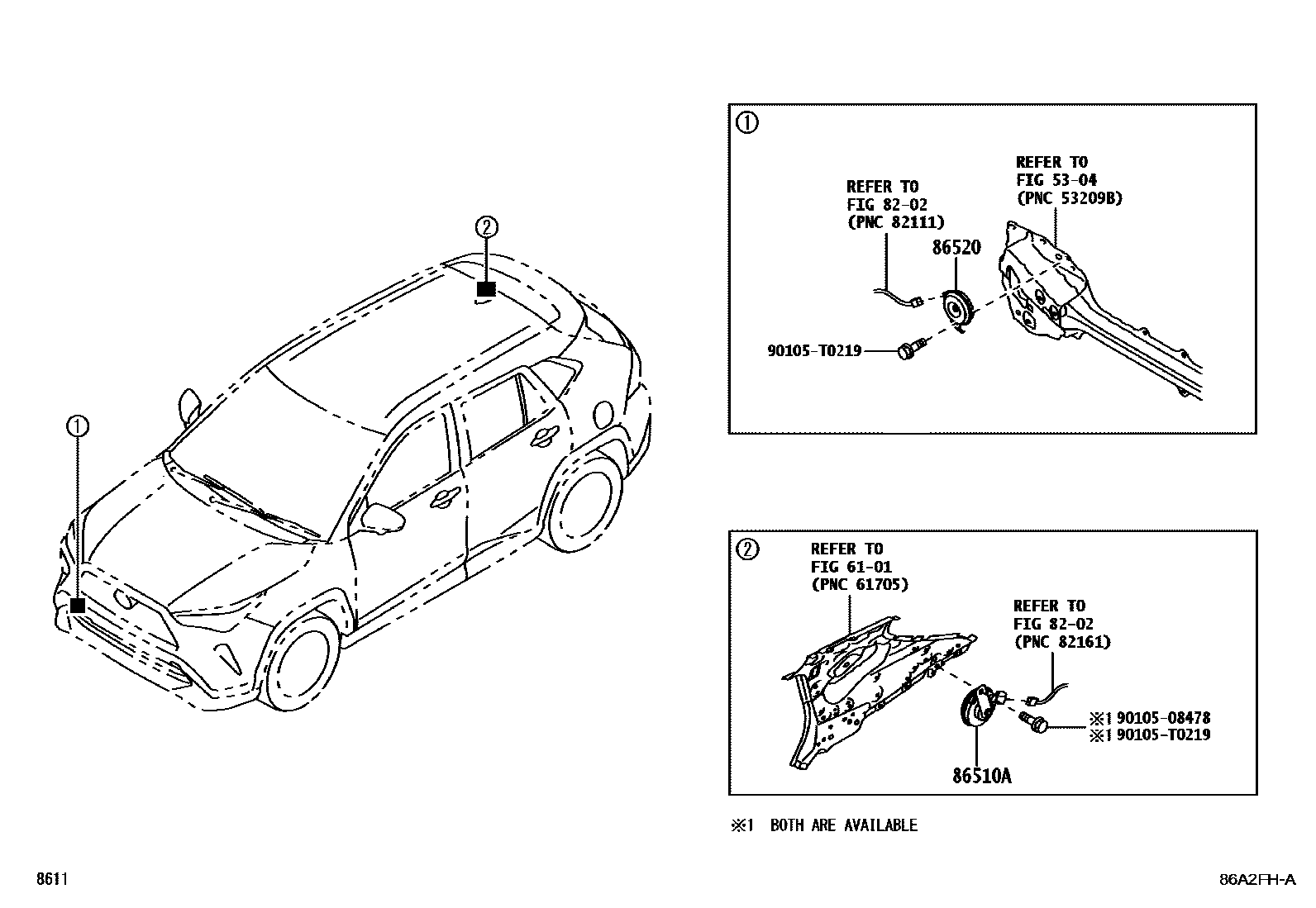

Toyota YARIS EPC diagram 8611, 喇叭, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86510A | Alarm horn assembly | 86520-BZ250 |
| 86520 | Subwoofer assembly | 86520-BZ440 · 86520-BZ470 |
Toyota YARIS EPC diagram 8611, 喇叭, with 1 images and 2 PNC and OE references.
| PNC | Part name | OE numbers |
|---|---|---|
| 86510A | Alarm horn assembly | 86520-BZ250 |
| 86520 | Subwoofer assembly | 86520-BZ440 · 86520-BZ470 |
