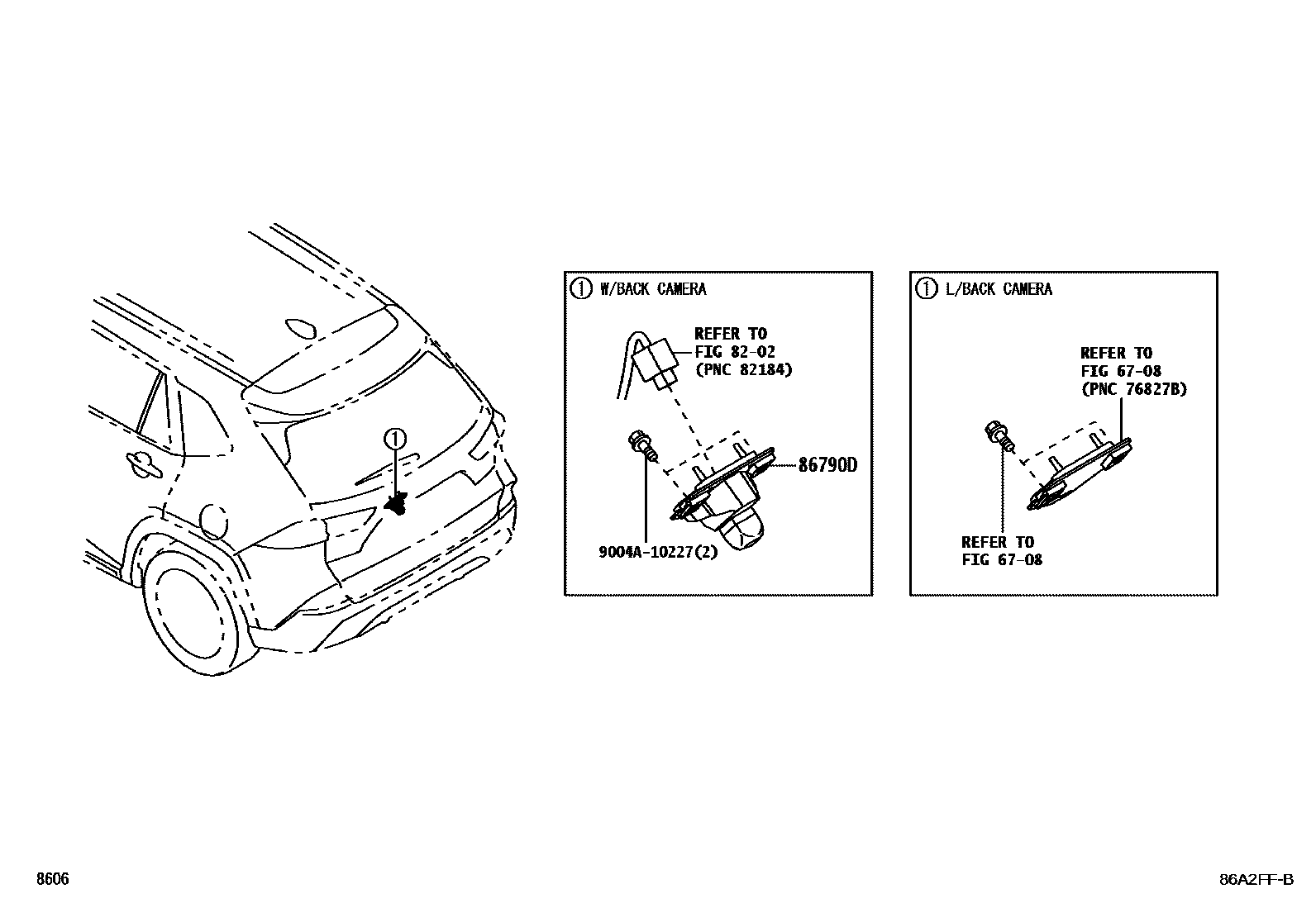

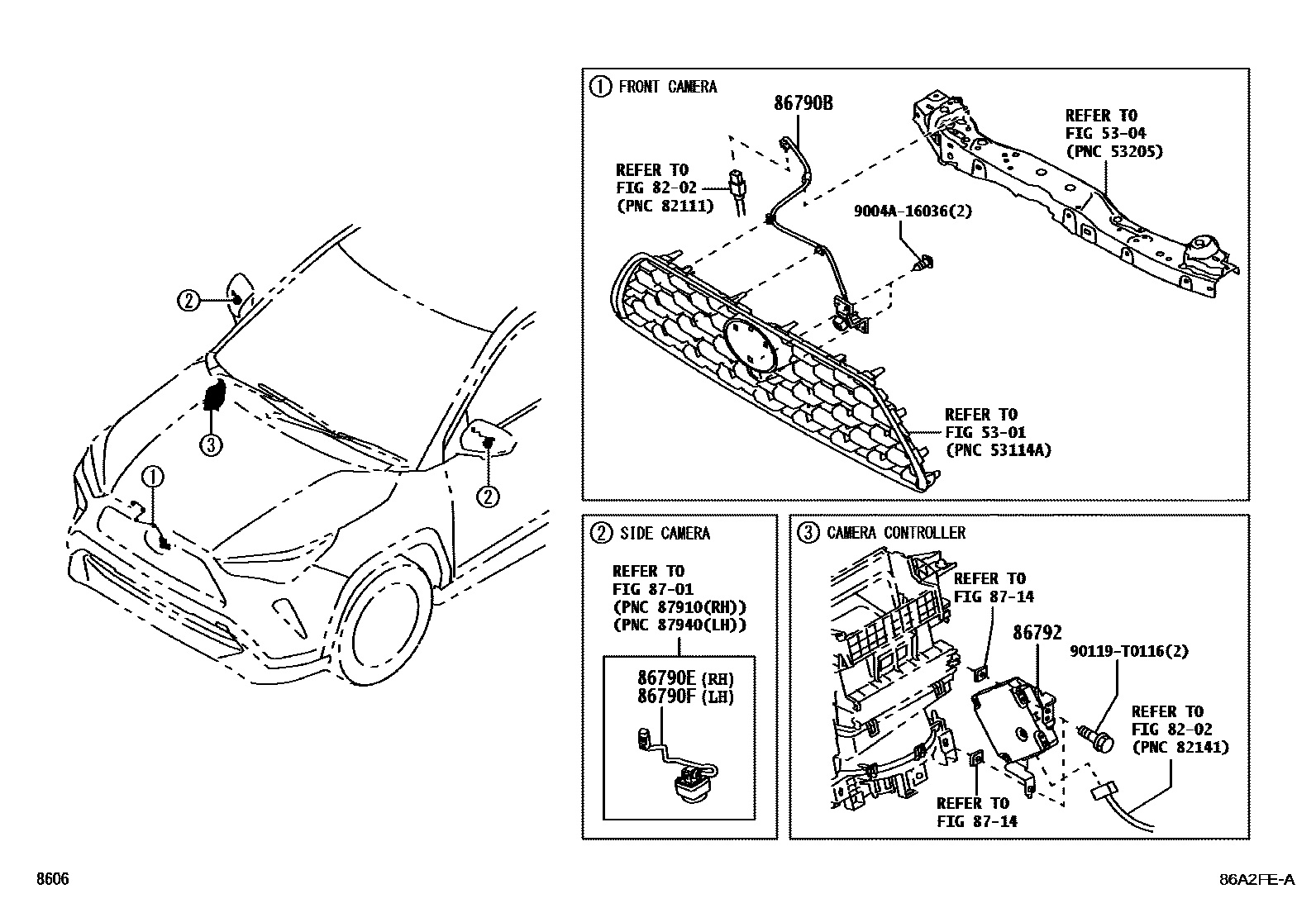

Toyota YARIS 倒车影像和摄像头 — Figure 8606
Toyota YARIS EPC diagram 8606, 倒车影像和摄像头, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86790B | Front image camera assembly | 86790-BZ321 |
| 86790D | Rear reversing image camera assembly | 86790-BZ310 |
| 86790E | Right image camera assembly | 86790-BZ290 |
| 86790F | Left image camera assembly | 86790-BZ290 |
| 86792 | Reversing camera controller | 86792-B1350 |
