Toyota YARIS 导航和前监视器显示屏 — Figure 8603

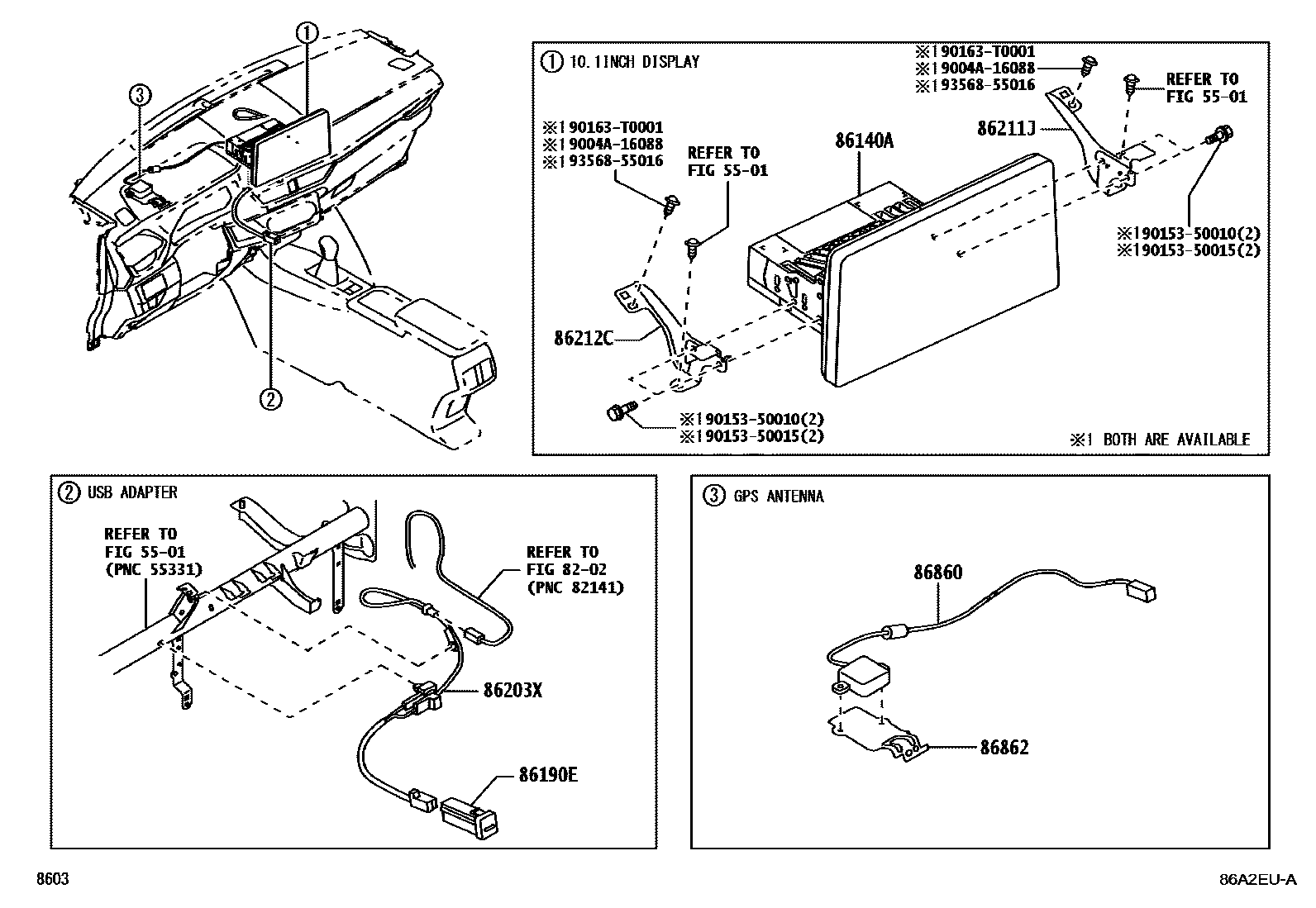

Toyota YARIS EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86140A | Radio and display receiver assembly | 86140-BP010 |
| 86190E | Stereo socket adapter assembly | 86190-12080 |
| 86203X | Radio wiring harness sub-assembly | 86203-B1090 |
| 86211J | No. 1 radio bracket | 86211-BZ700 |
| 86212C | No. 2 radio bracket | 86212-BZ700 |
| 86860 | Navigation antenna assembly | 86860-BP010 |
| 86862 | Navigation antenna bracket | 86862-BP010 |
