Toyota YARIS 扬声器 — Figure 8602

Toyota YARIS EPC diagram 8602, 扬声器, with 1 images and 6 PNC and OE references.

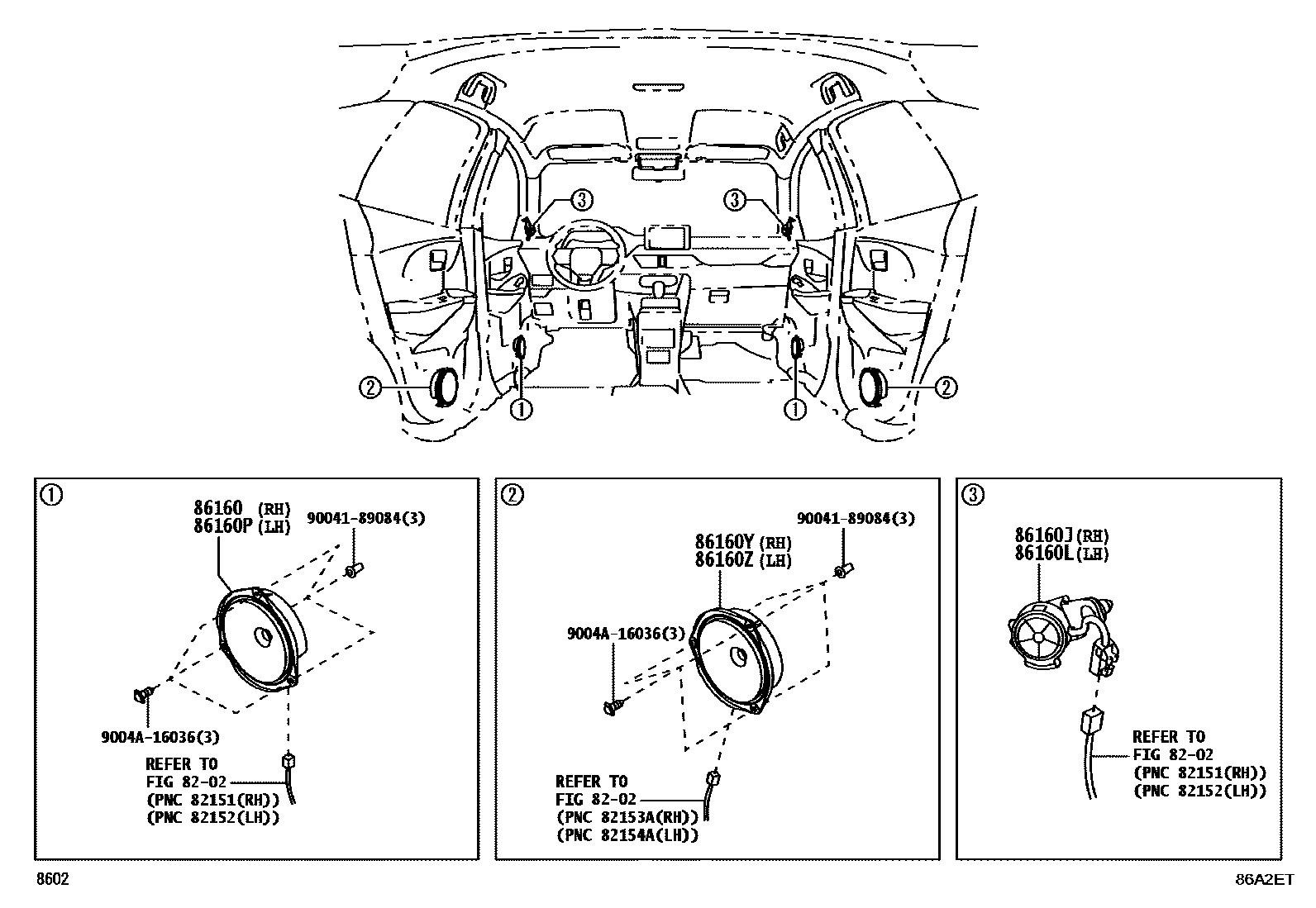

Toyota YARIS 扬声器 EPC diagram — 86A2ET
扬声器 — 86A2ET (202510 – 999999)

PNC and OE references

PNCPart nameOE numbers
86160No. 1 front speaker assembly86160-BZ420
86160JNo. 3 front speaker assembly86160-BZ540
86160LNo. 4 front speaker assembly86160-BZ550
86160PNo. 2 front speaker assembly86160-BZ420
86160YNo. 2 rear speaker assembly86160-BZ420
86160ZNo. 3 rear speaker assembly86160-BZ420
