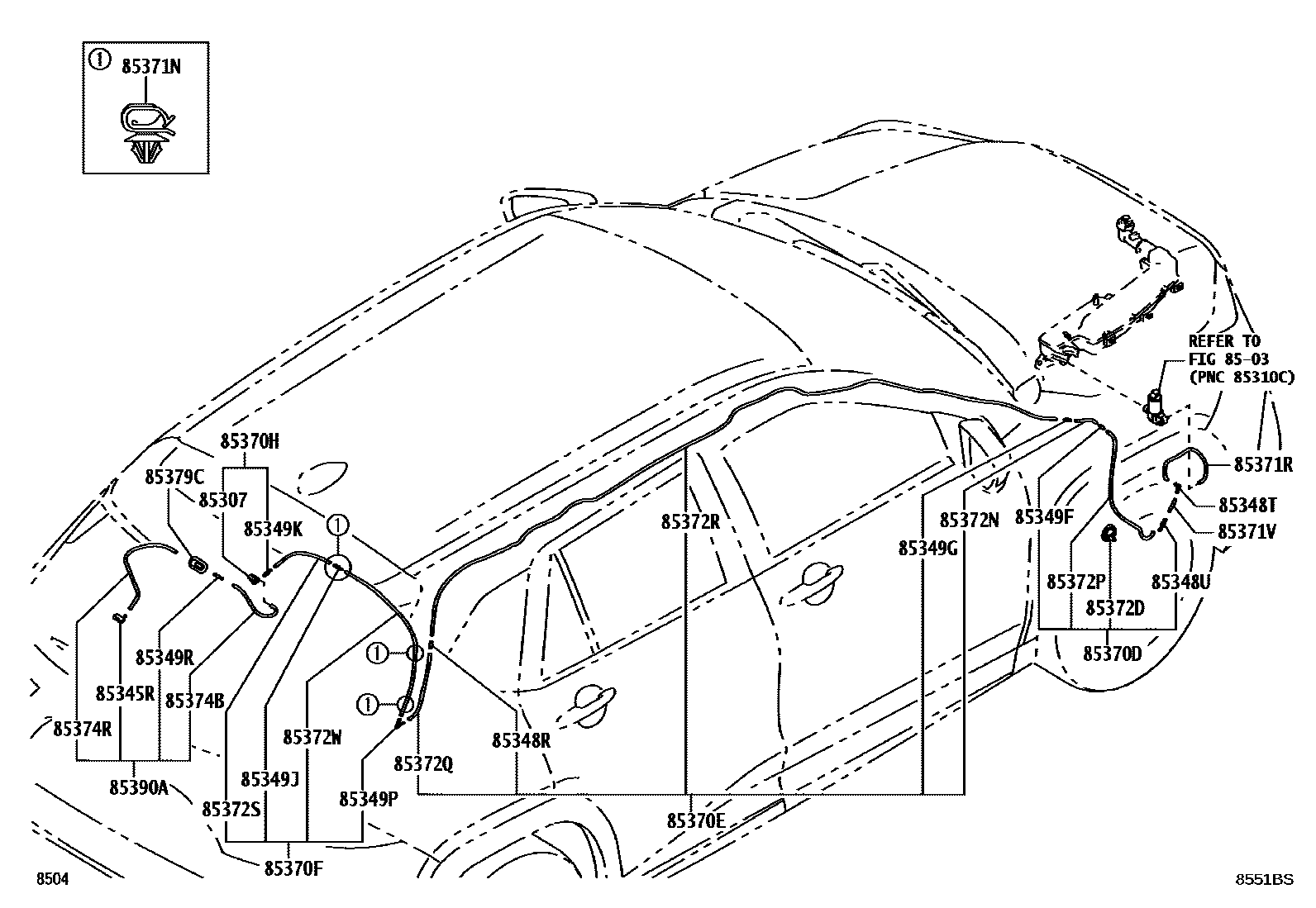

Toyota YARIS 后清洗器 — Figure 8504
Toyota YARIS EPC diagram 8504, 后清洗器, with 1 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85307 | Cleaner seal sub-assembly | 85307-B2040 |
| 85345R | Rear washer nozzle | 85391-BZ170 |
| 85348R | No. 1 rear washer hose connector | 85317-BZ080 |
| 85348T | No. 2 rear washer hose connector | 85349-87602 |
| 85348U | No. 3 rear washer hose connector | 85317-BZ080 |
| 85349F | No. 1 rear washer hose connector | 85317-BZ080 |
| 85349G | No. 2 rear washer hose connector | 85317-BZ080 |
| 85349J | No. 4 rear washer hose connector | 85317-BZ080 |
| 85349K | No. 2 rear cleaner elbow joint | 85317-BZ080 |
| 85349P | No. 3 rear cleaner elbow joint | 85355-97202 |
| 85349R | No. 5 rear washer hose connector | 85317-BZ080 |
| 85370D | No. 1 rear washer hose assembly | 85370-BZJ60 |
| 85370E | No. 2 rear washer hose assembly | 85370-BZJ30 |
| 85370F | No. 3 rear washer hose assembly | 85370-BZJ40 |
| 85370H | No. 4 rear washer hose assembly | 85370-BZJ50 |
| 85371N | Rear washer hose clamp | 82711-BZ100 |
| 85371R | Rear washer hose (from motor to connector) | 85374-B1430 |
| 85371V | Rear washer hose (from fitting to fitting) | 85374-87401 |
| 85372D | Rear washer hose seal | 85373-BZ160 |
| 85372N | No. 1 rear washer hose (from connector to connector) | 85374-BZN70 |
| 85372P | No. 2 rear washer hose (from connector to connector) | 85374-BZ690 |
| 85372Q | No. 3 rear washer hose (from connector to connector) | 85374-BZG40 |
| 85372R | Rear washer hose (from fitting to fitting or nozzle) | 85374-BZN80 |
| 85372S | No. 4 rear washer hose (from connector to connector) | 85374-BZP00 |
| 85372W | No. 5 rear washer hose (from connector to connector) | 85374-BZA80 |
| 85374B | Windshield washer hose (from connector to connector 1) | 85374-BZB60 |
| 85374R | Rear washer hose (from connector to nozzle) | 85374-BZP90 |
| 85379C | No. 1 rear washer hose seal | 85373-BZ010 |
| 85390A | Rear washer nozzle and hose assembly | 85390-BZ330 |
