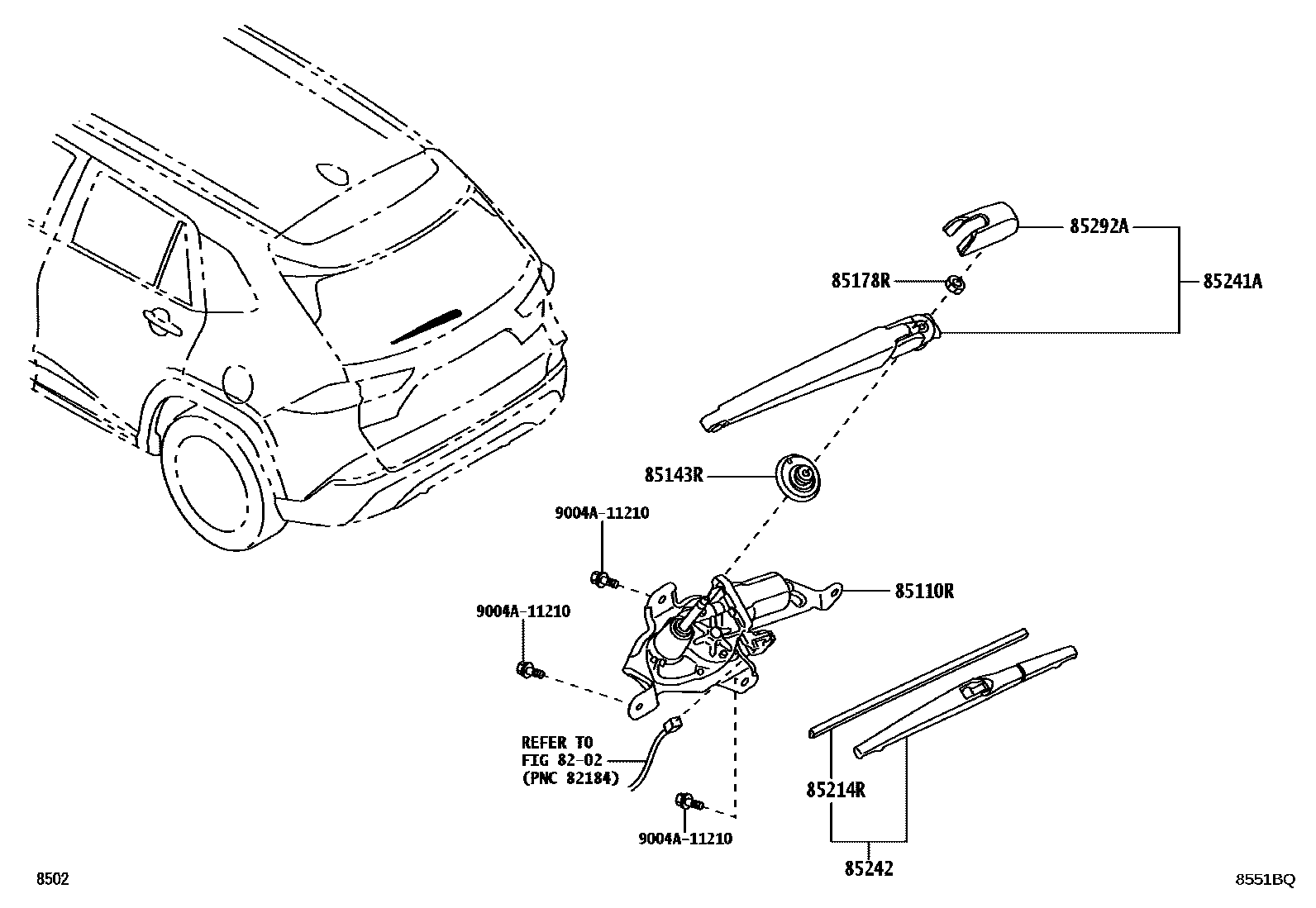

Toyota YARIS 后刮水器 — Figure 8502
Toyota YARIS EPC diagram 8502, 后刮水器, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110R | Rear wiper motor assembly | 85130-BZ260 |
| 85143R | Rear wiper motor seal | 85143-0K030 |
| 85178R | Nut (for securing rear wiper arm) | 9004A-17218 |
| 85214R | Rear wiper rubber strip | 85243-BZ150 |
| 85241A | rear wiper arm | 85241-BZ200 |
| 85242 | Rear wiper blade | 85242-BZ200 |
| 85292A | Rear wiper arm cap | 85292-BZ080 |
