Toyota YARIS HEV 控制ECU — Figure 8433

Toyota YARIS EPC diagram 8433, HEV 控制ECU, with 2 images and 4 PNC and OE references.

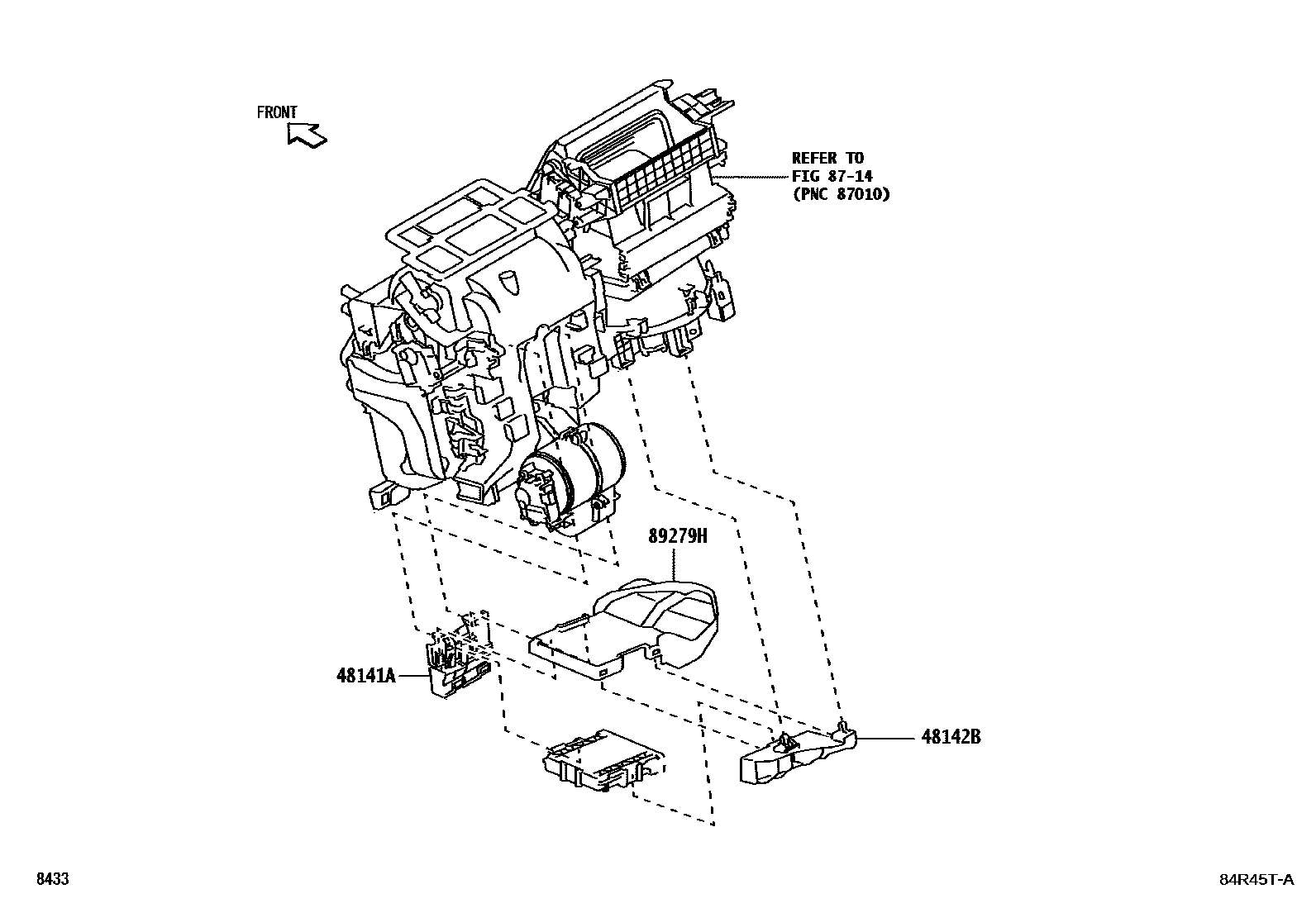

Toyota YARIS HEV 控制ECU EPC diagram — 84R45TA
HEV 控制ECU — 84R45TA (202510 – 999999)

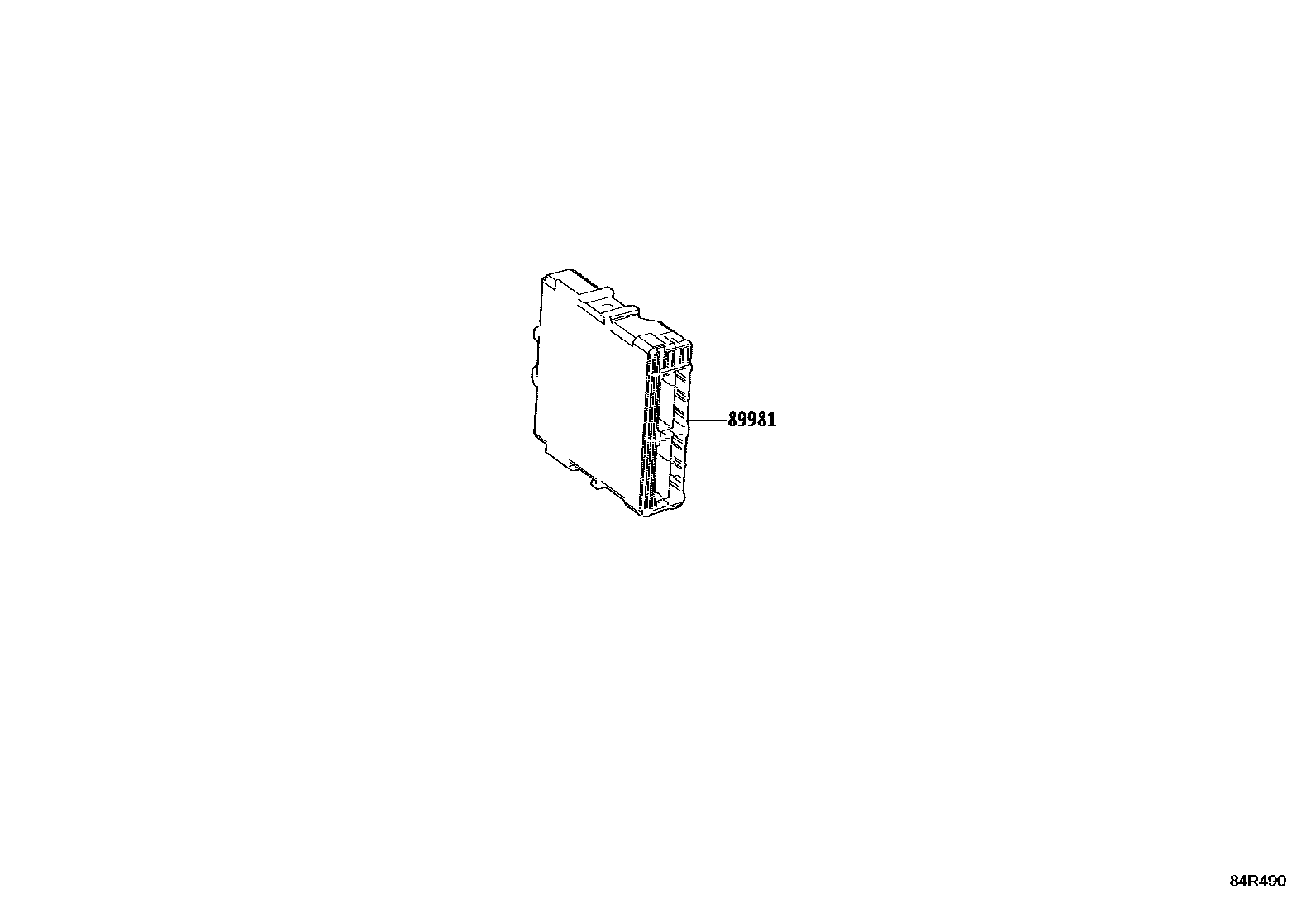

Toyota YARIS HEV 控制ECU EPC diagram — 84R490
HEV 控制ECU — 84R490 (202510 – 999999)

PNC and OE references

PNCPart nameOE numbers
48141ANo. 1 front spring clip48141-BZ020
48142BNo. 2 front spring clip48142-BZ020
89279HECU cover89279-BZ120
89981Hybrid vehicle control ECU89981-0J040 · 89981-0J150
