Toyota YARIS HEV 逆变器 — Figure 8431

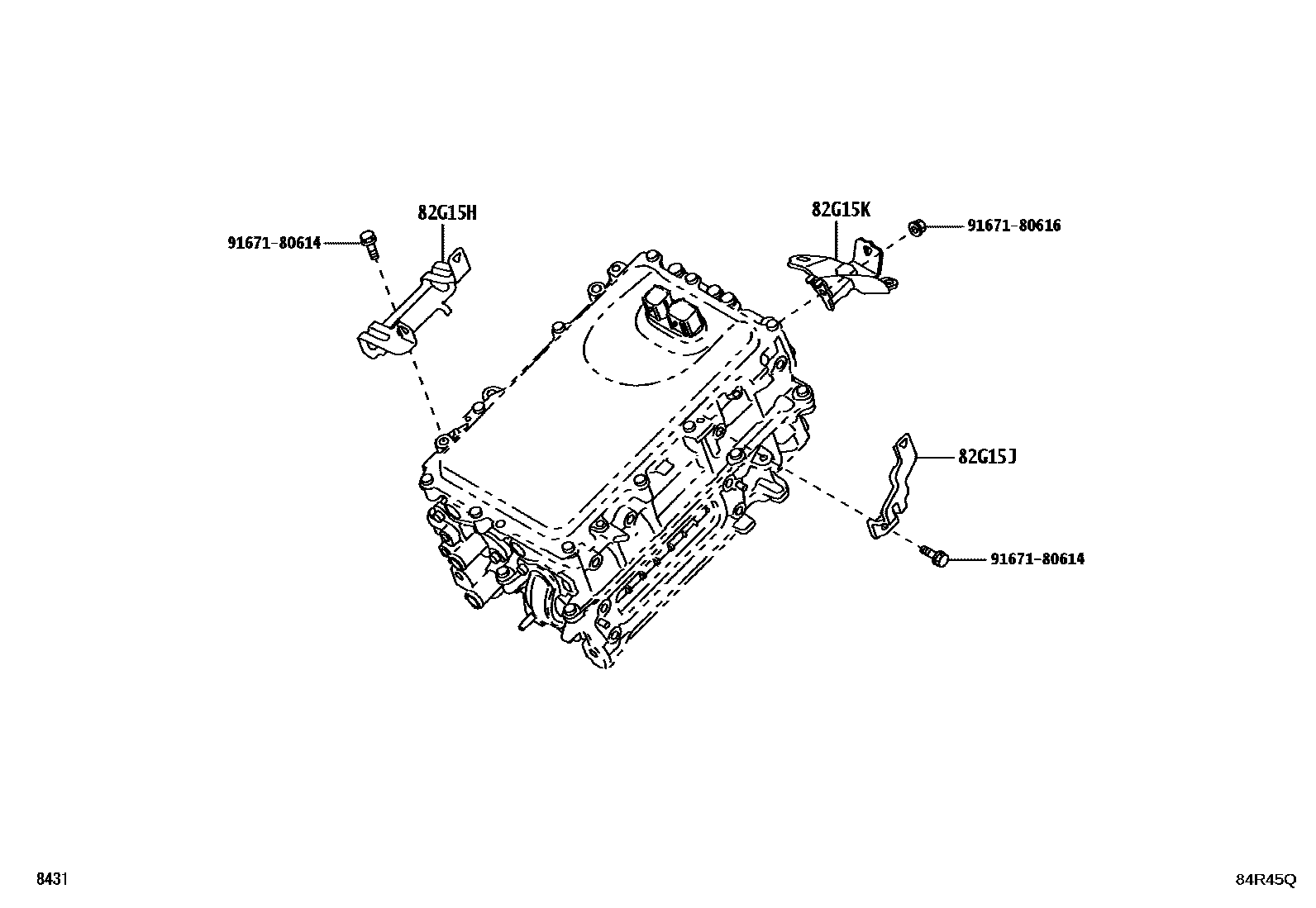

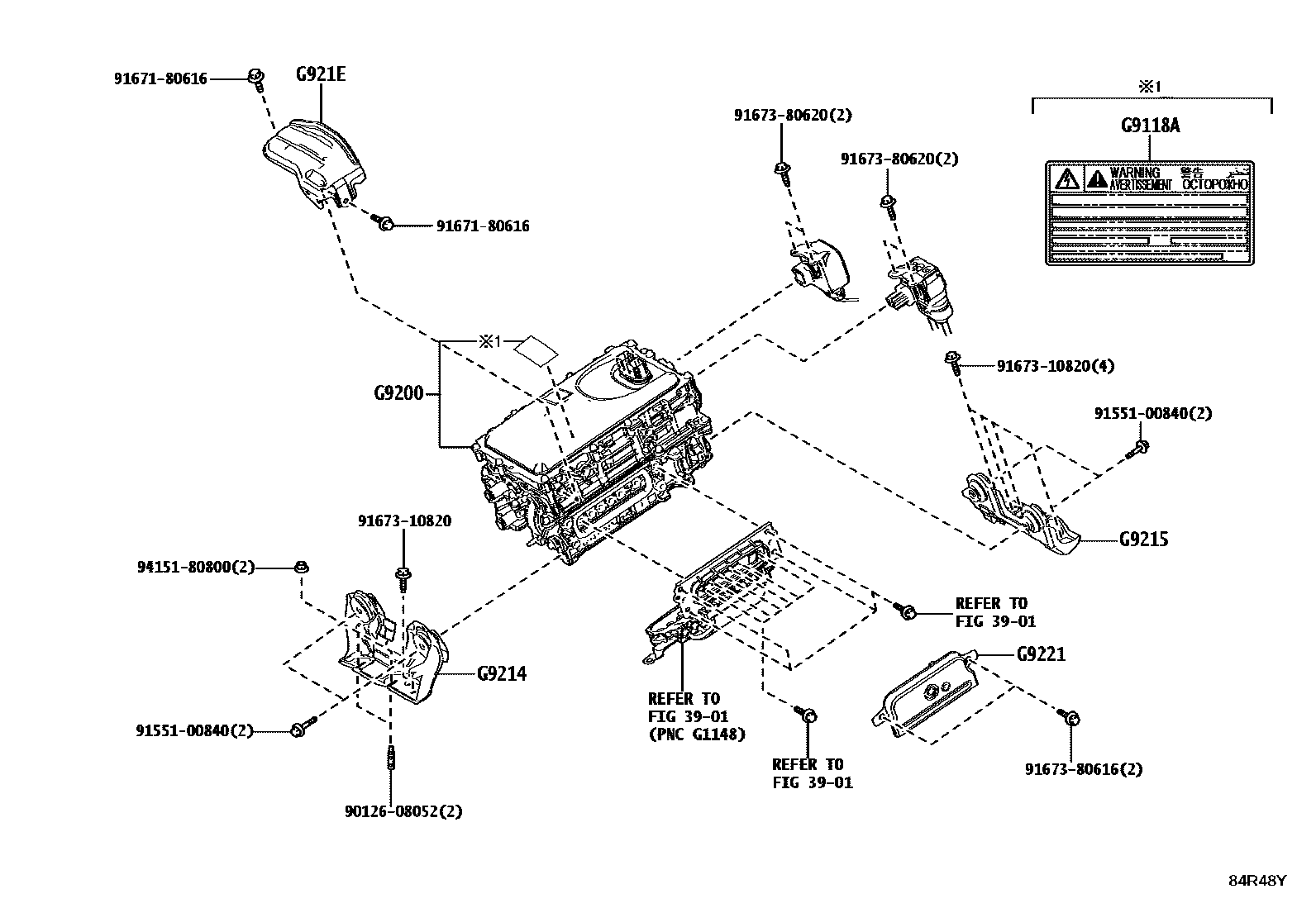

Toyota YARIS EPC diagram 8431, HEV 逆变器, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82G15H | No. 1 wire harness clamp bracket | 82715-BZR00 |
| 82G15J | No. 2 wire harness clip bracket | 82715-BZR10 |
| 82G15K | No. 3 wire harness clip bracket | 82715-BZR40 |
| G9118A | HV Motor Control Inverter Warning Labels | G9118-76010 |
| G9200 | Inverter assembly with converter | G92A0-66061 · G92A0-66120 |
| G9214 | No. 1 inverter bracket | G9214-K0010 |
| G9215 | No. 2 inverter bracket | G9215-K0010 |
| G921E | Inverter protection device | G921E-K0010 |
| G9221 | Inverter cover | G9022-47050 |
