Toyota YARIS 遥控门锁 — Figure 8420

Toyota YARIS EPC diagram 8420, 遥控门锁, with 2 images and 7 PNC and OE references.

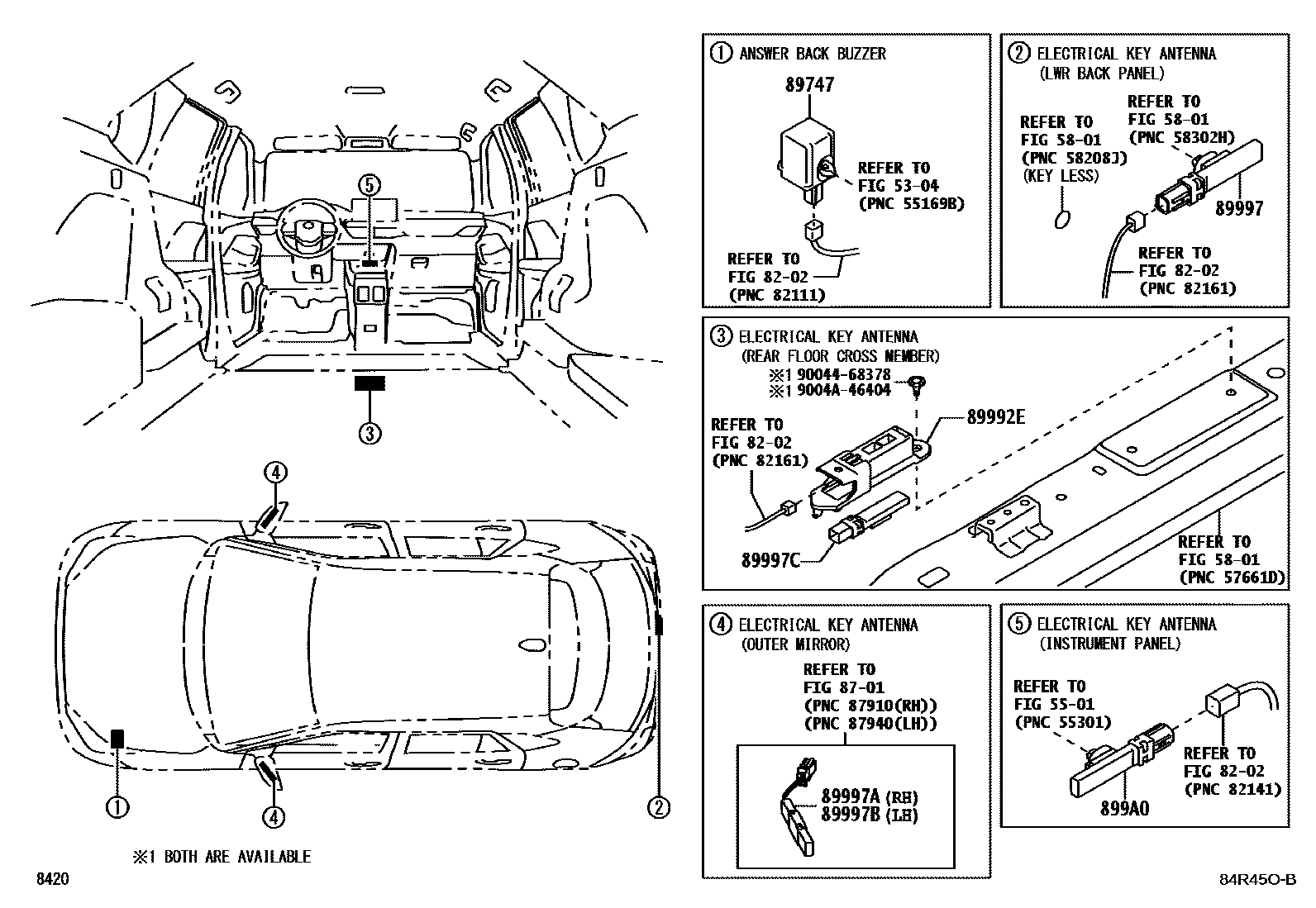

Toyota YARIS 遥控门锁 EPC diagram — 84R45OB
遥控门锁 — 84R45OB (202510 – 999999)

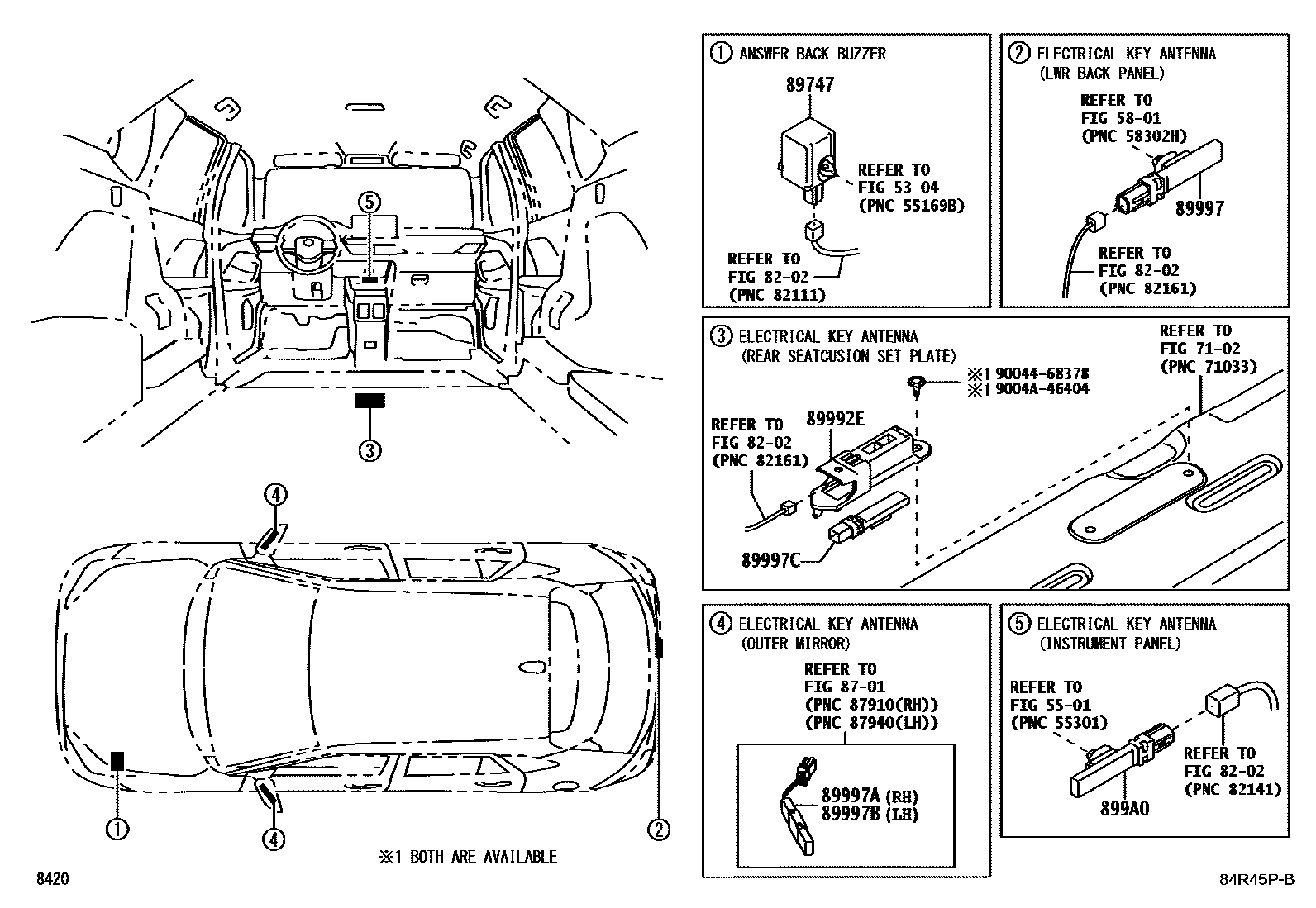

Toyota YARIS 遥控门锁 EPC diagram — 84R45PB
遥控门锁 — 84R45PB (202510 – 999999)

PNC and OE references

PNCPart nameOE numbers
89747Remote door lock buzzer89747-30040
89992EElectronic key case without oscillator89992-BZ060
89997electronic key antenna89997-BZ060
89997AElectronic key antenna No. 289997-BZ020
89997BANTENNE, CLE ELECTRIQUE, NO.389997-BZ020
89997CANTENNE, CLE ELECTRIQUE, NO.489997-BZ030
899A0No. 1 electronic key antenna assembly in car89997-BZ010
