Toyota YARIS ABS 和 VSC — Figure 8414
Toyota YARIS EPC diagram 8414, ABS 和 VSC, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

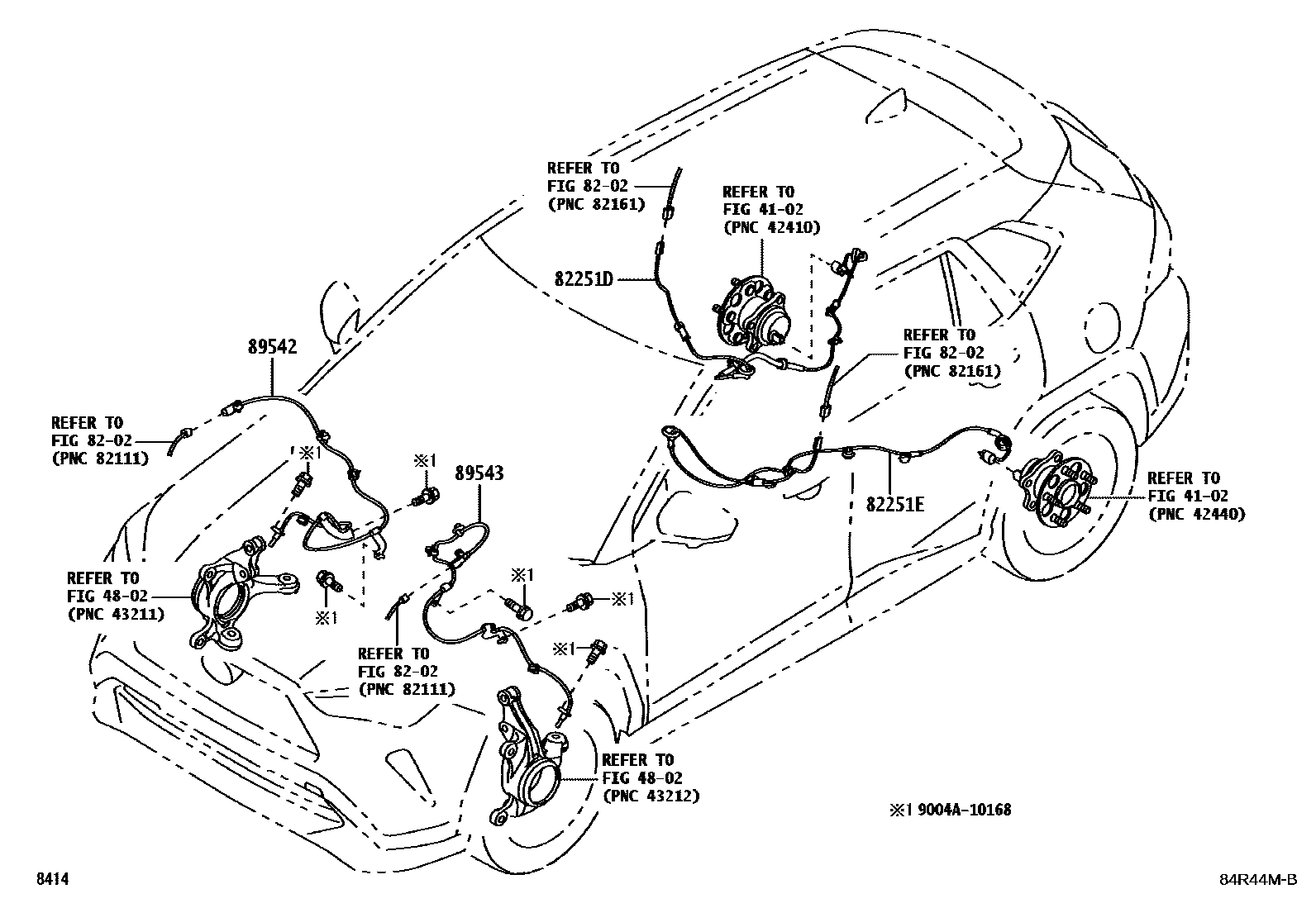

| 82251D | Right speed sensor harness | 82251-BZ370 · 82251-BZ390 |
| 82251E | Left speed sensor wiring harness | 82251-BZ380 · 82251-BZ400 |

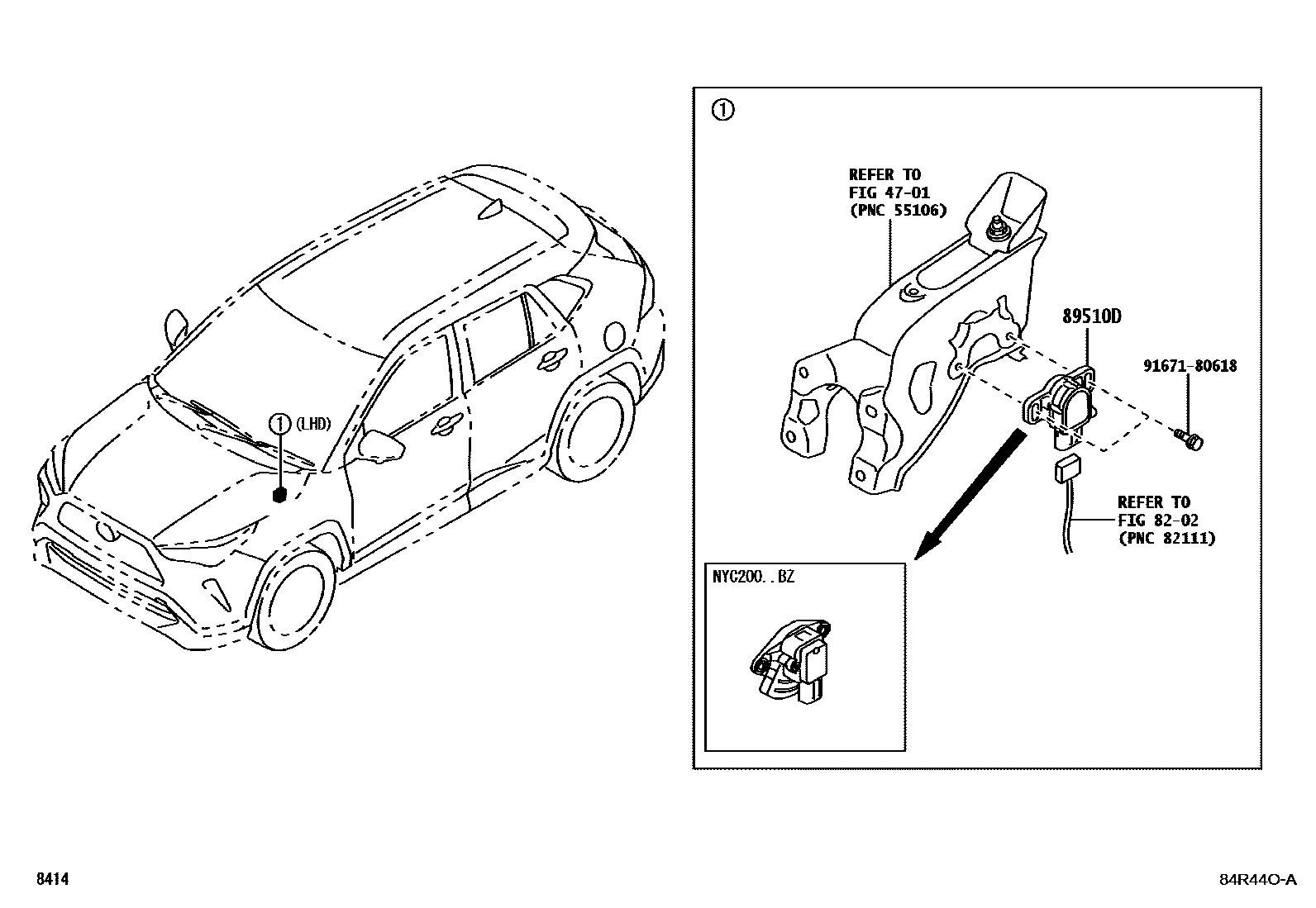

| 89510D | Brake pedal stroke sensor assembly | 89510-47040 · 89510-K0011 |
| 89542 | Right front wheel speed sensor | 89542-BZ180 |
| 89543 | Left front wheel speed sensor | 89543-BZ180 |

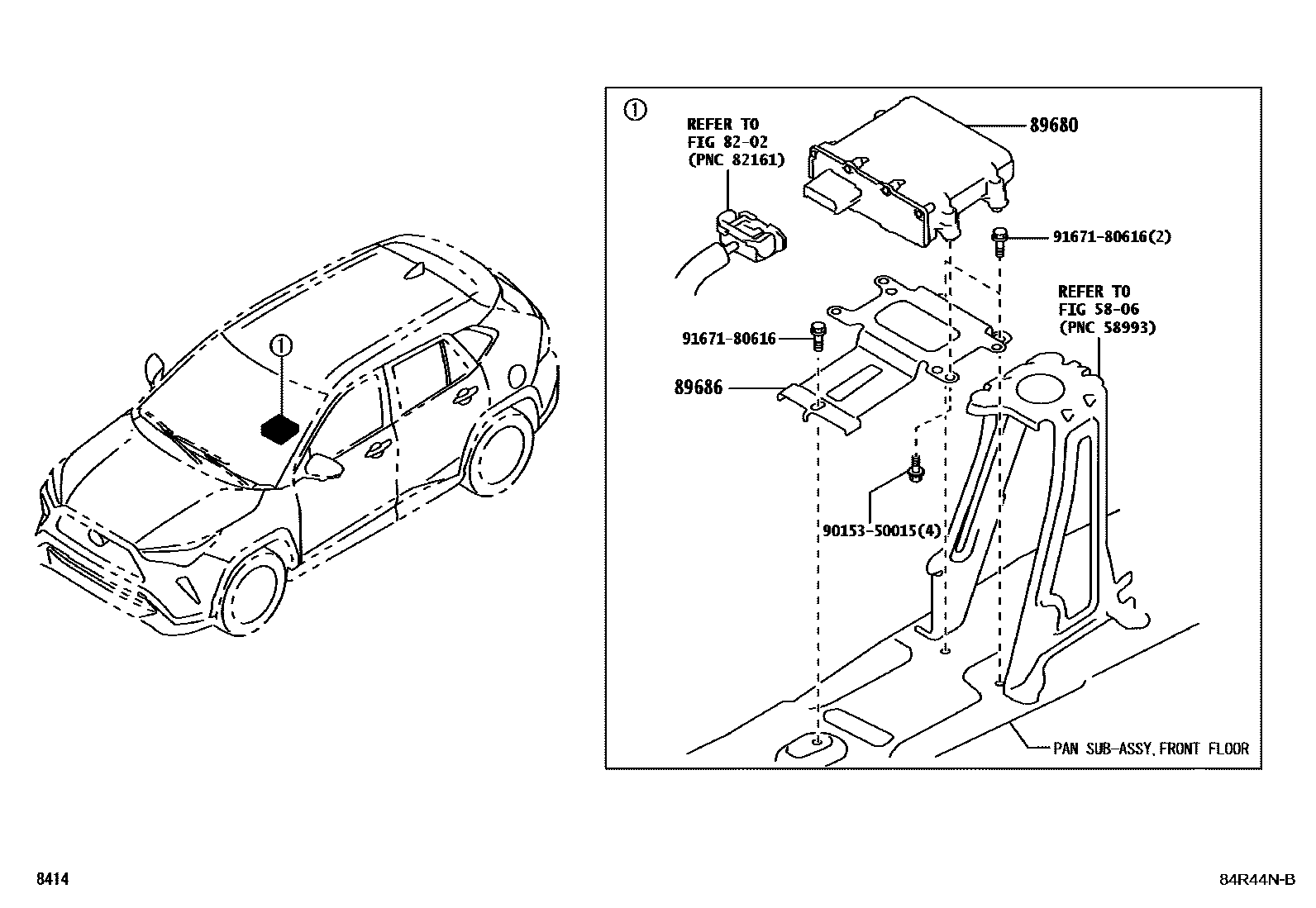

| 89680 | Brake control power supply assembly | 89680-K0010 |
| 89686 | No. 1 brake control power bracket | 89686-BZ010 |
