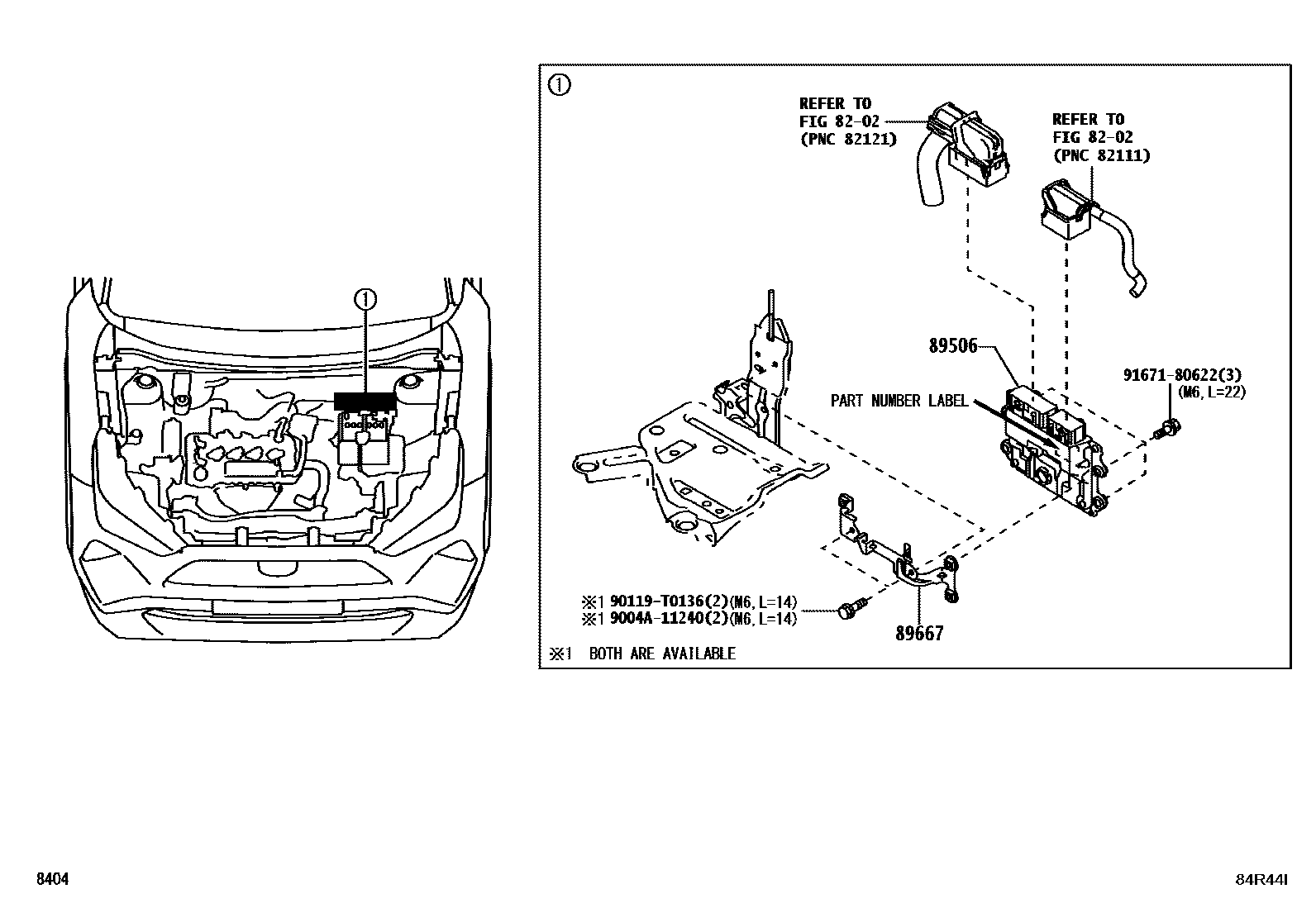

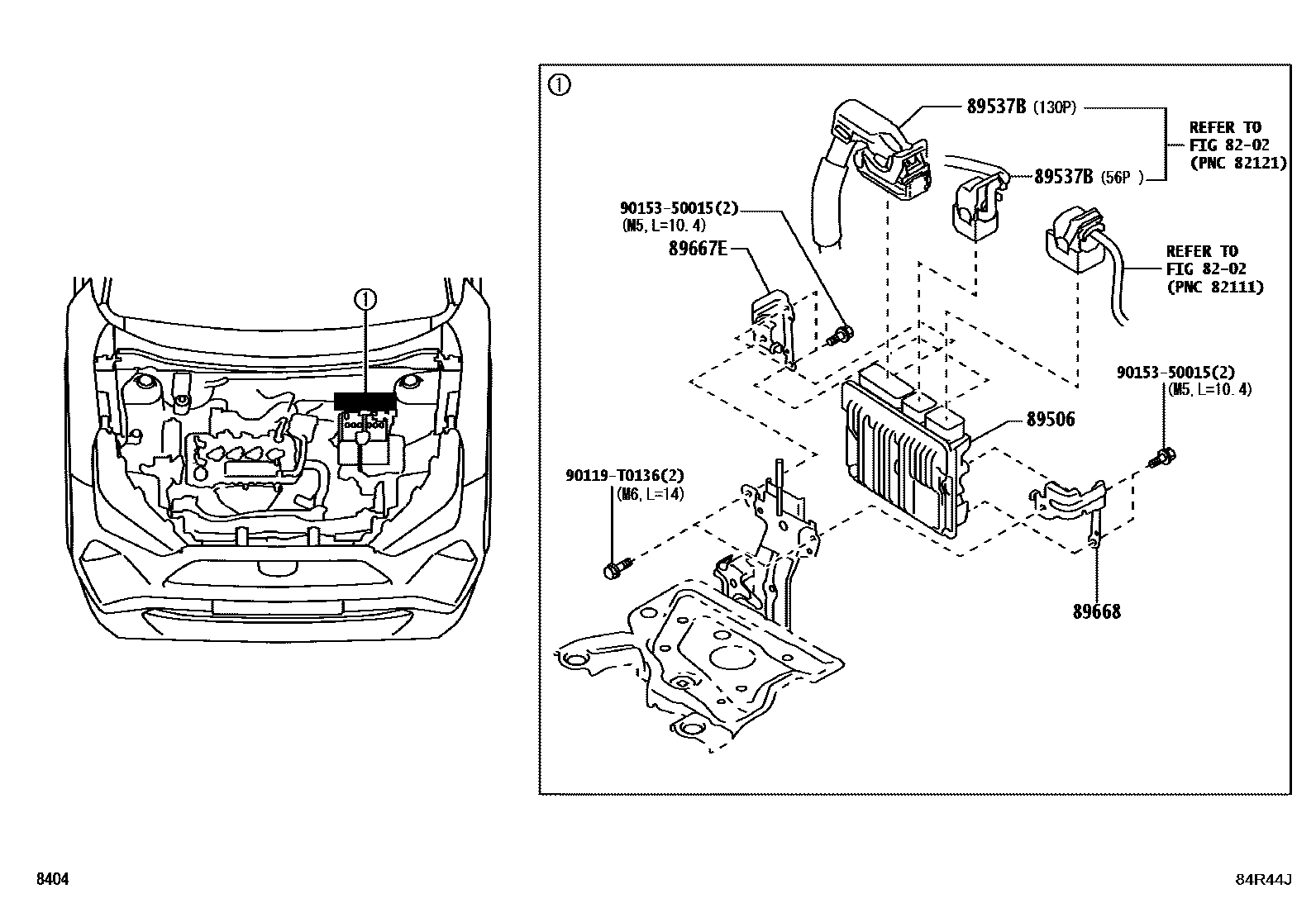

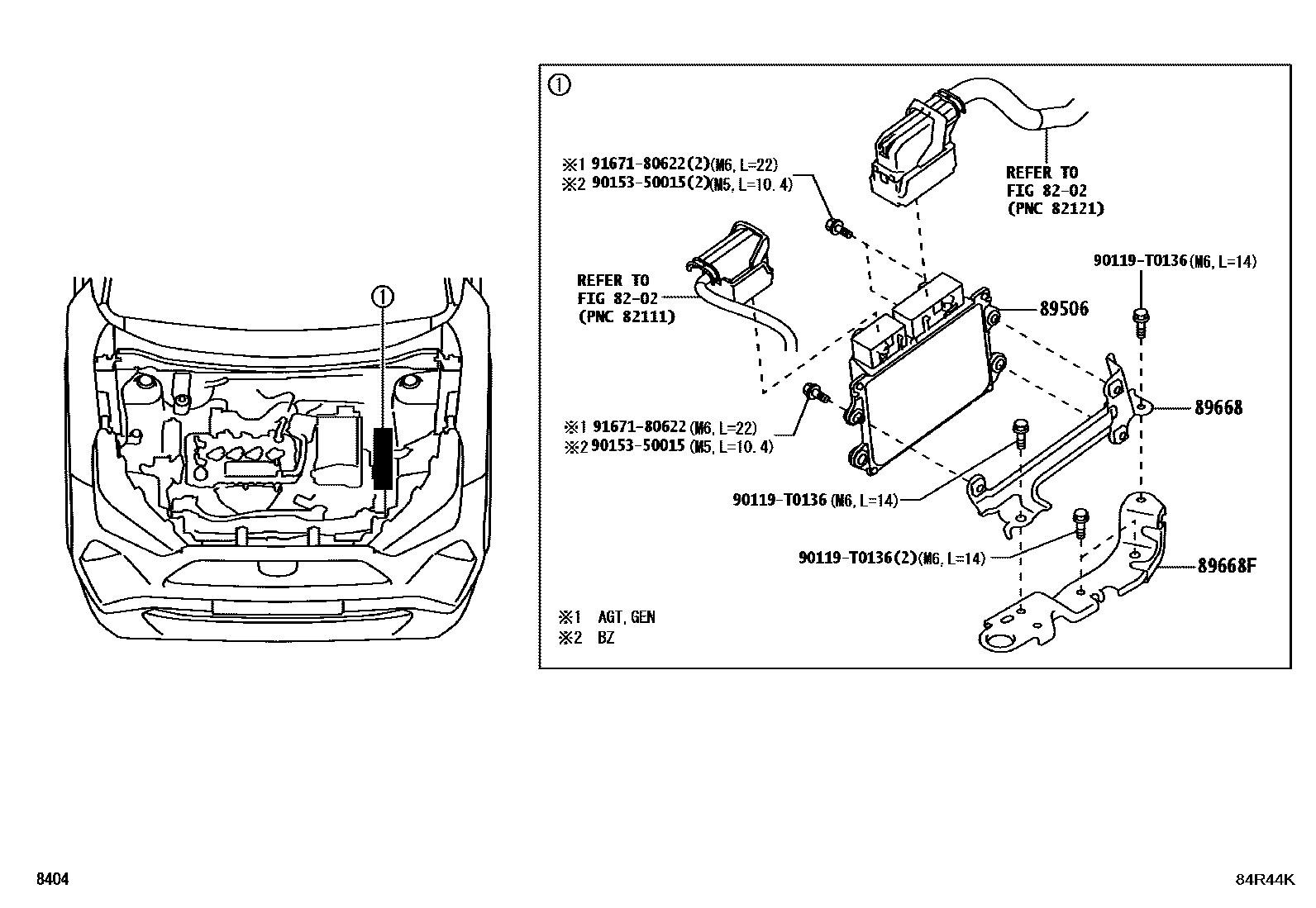

Toyota YARIS 电子燃油喷射系统 — Figure 8404
Toyota YARIS EPC diagram 8404, 电子燃油喷射系统, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89506 | Fuel injection ECU assembly | 895E0-BZG61 · 895E0-BZG81 · 895E0-BZJ00 · 895E0-BZJ10 · 895E0-BZJ20 · 895E0-BZJ30 · 895E0-BZJ40 · 895E0-BZJ50 |
| 89537B | ECU cover | 82821-BZ020 · 82821-BZ040 |
| 89667 | Engine control ECU bracket | 89667-BZ140 |
| 89667E | No. 1 engine control ECU bracket | 89667-BZ150 |
| 89668 | No. 2 engine control ECU bracket | 89667-BZ180 · 89667-BZ190 · 89668-BZ150 |
| 89668F | No. 2 engine control ECU bracket | 89668-B1030 · 89668-BZ180 |
