Toyota YARIS 开关和继电器和ECU — Figure 8401

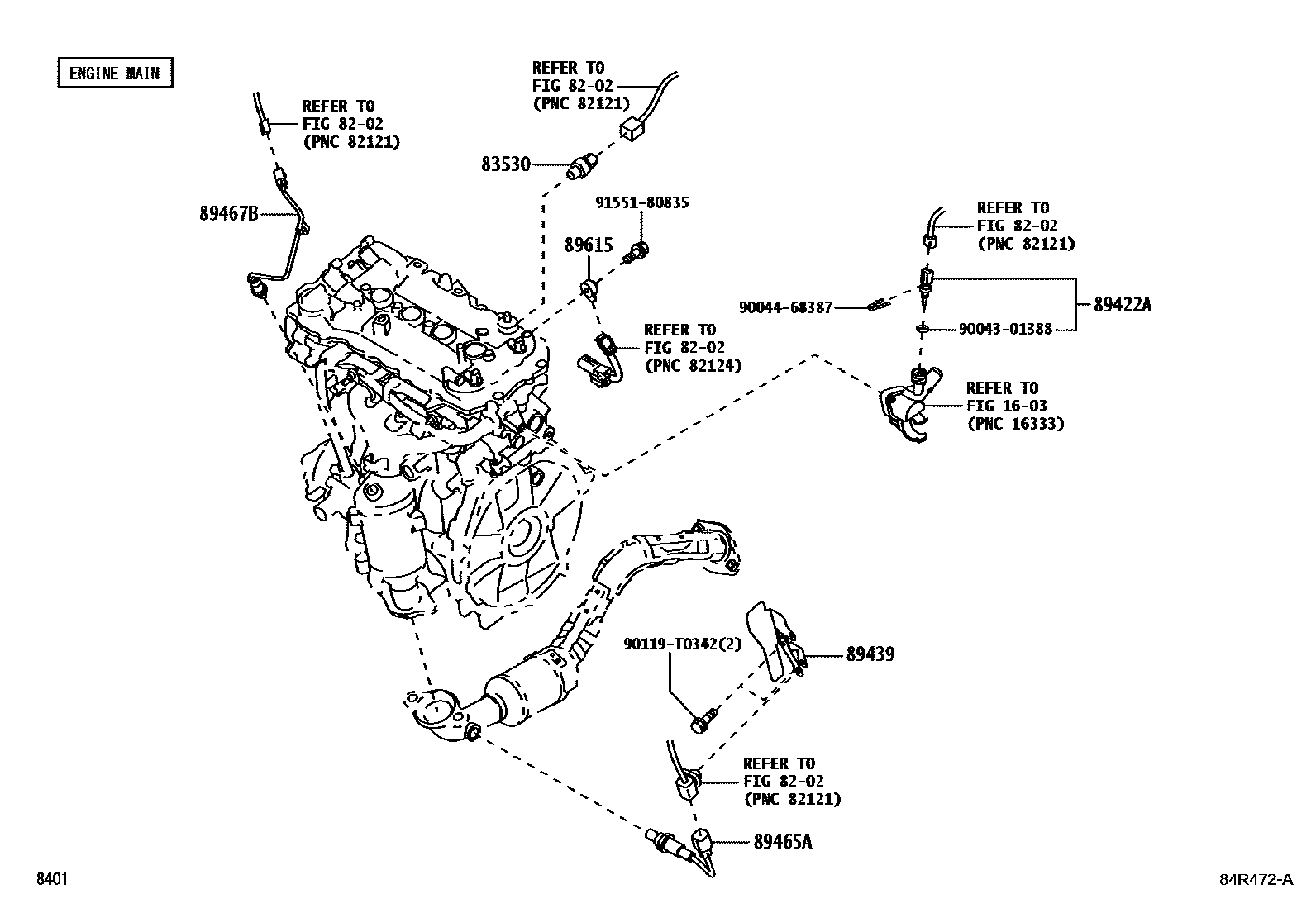

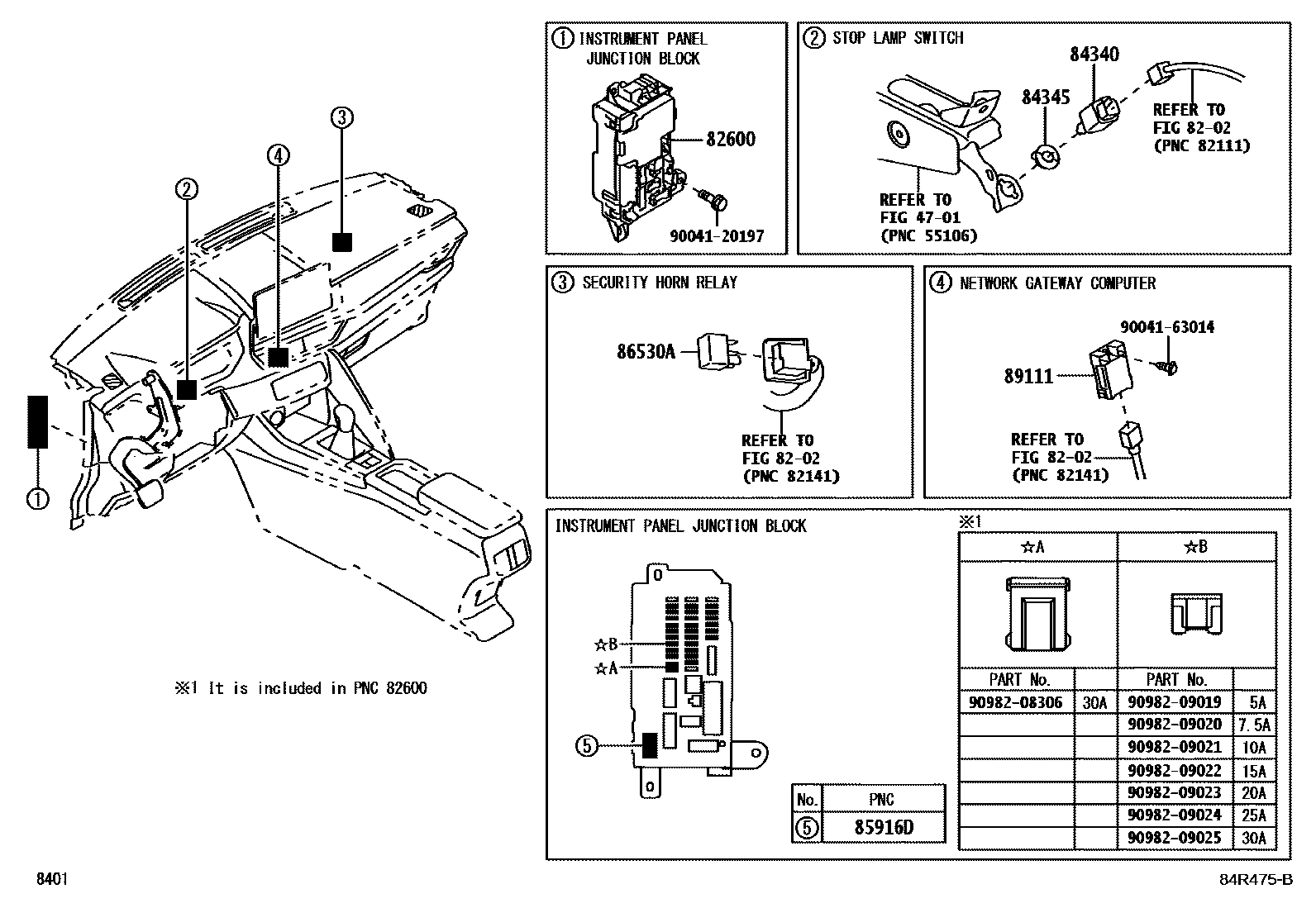

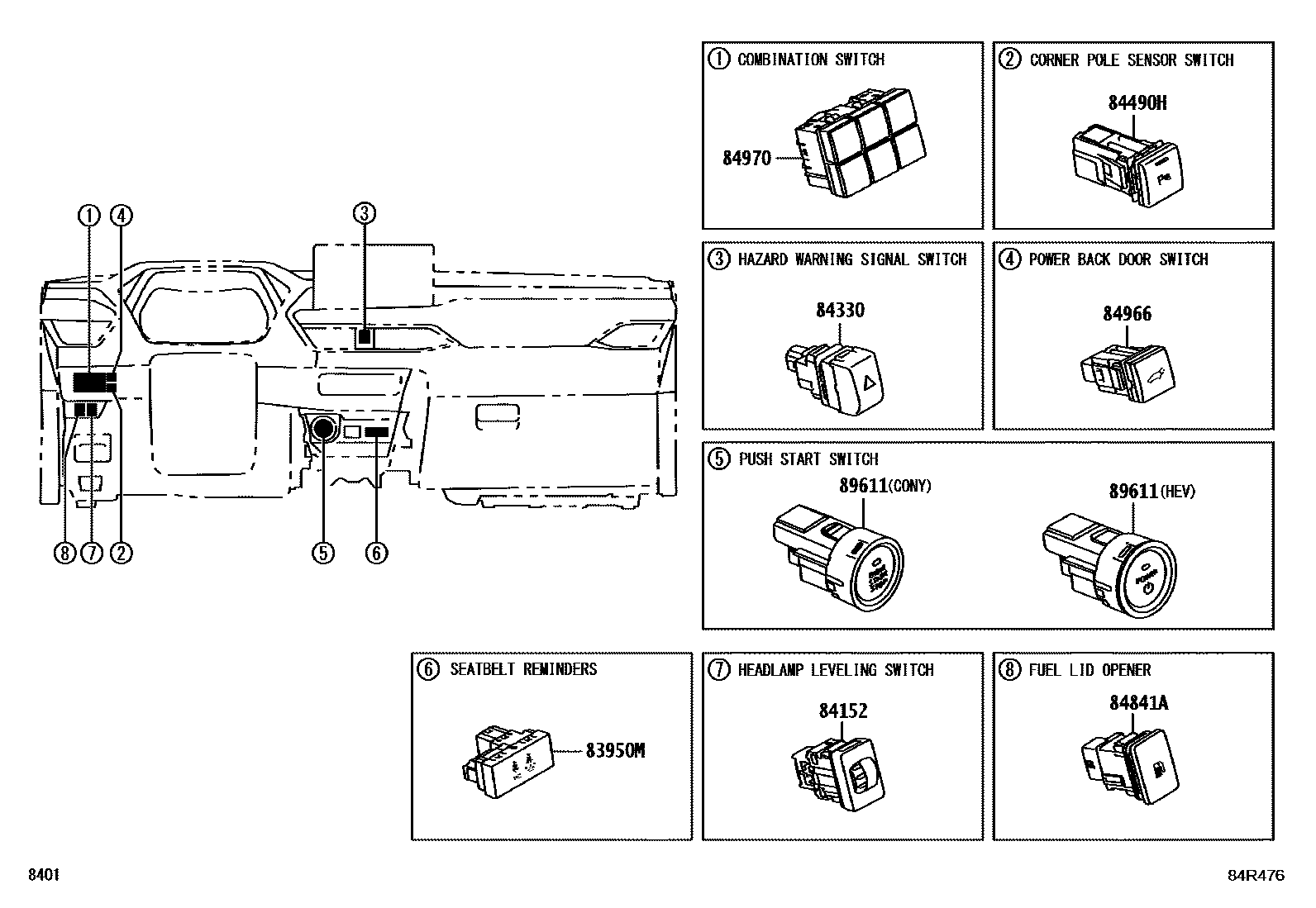

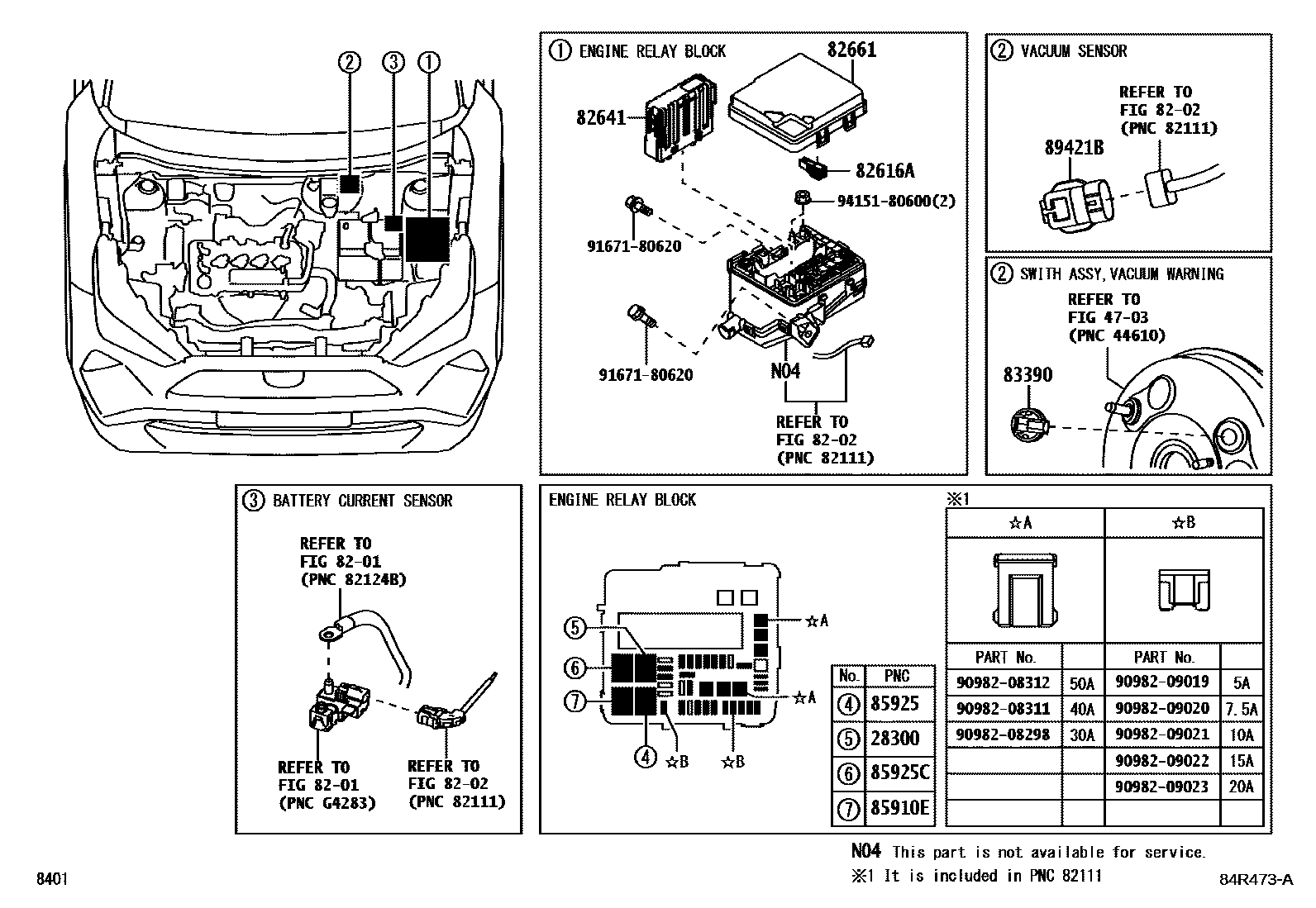

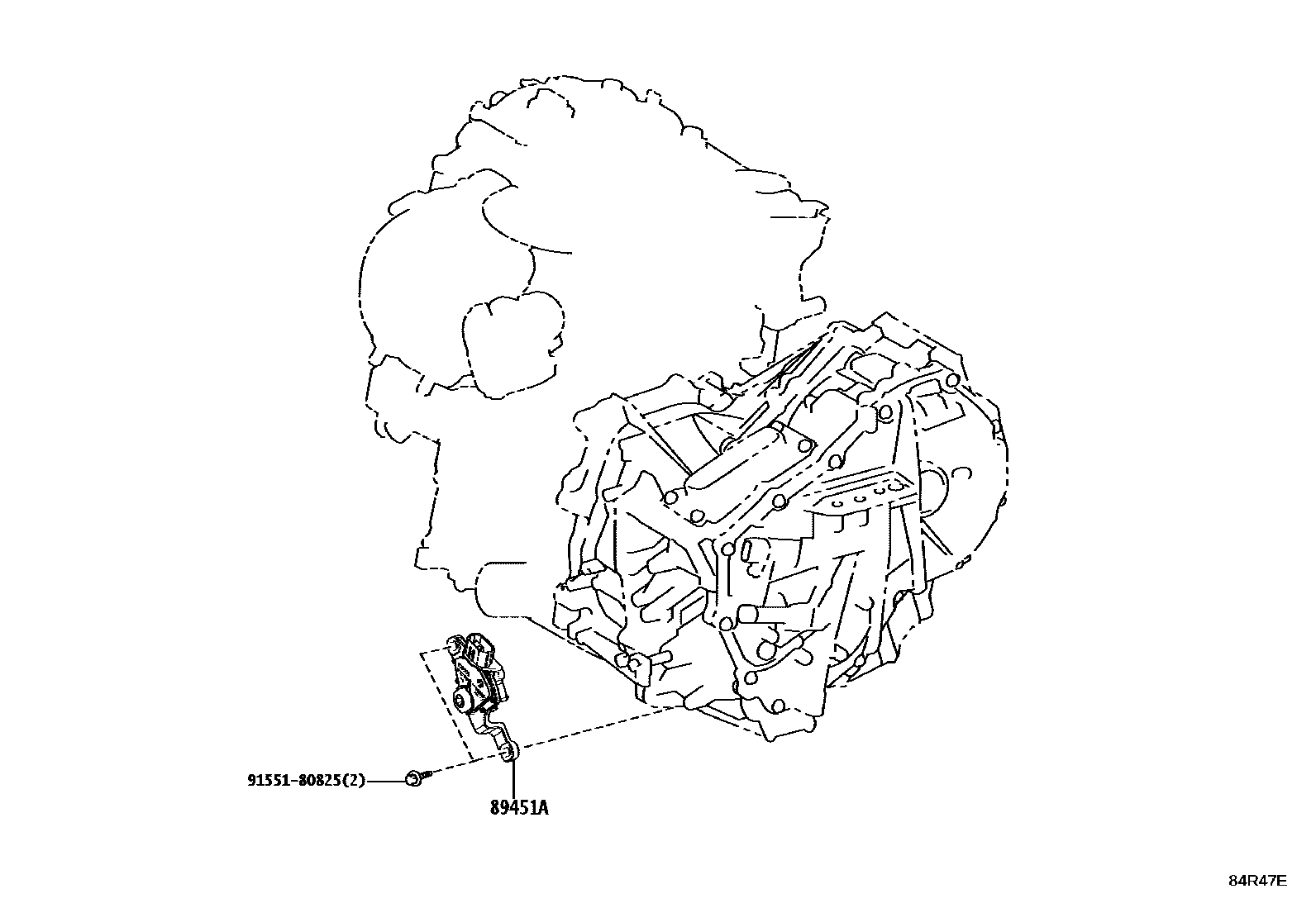

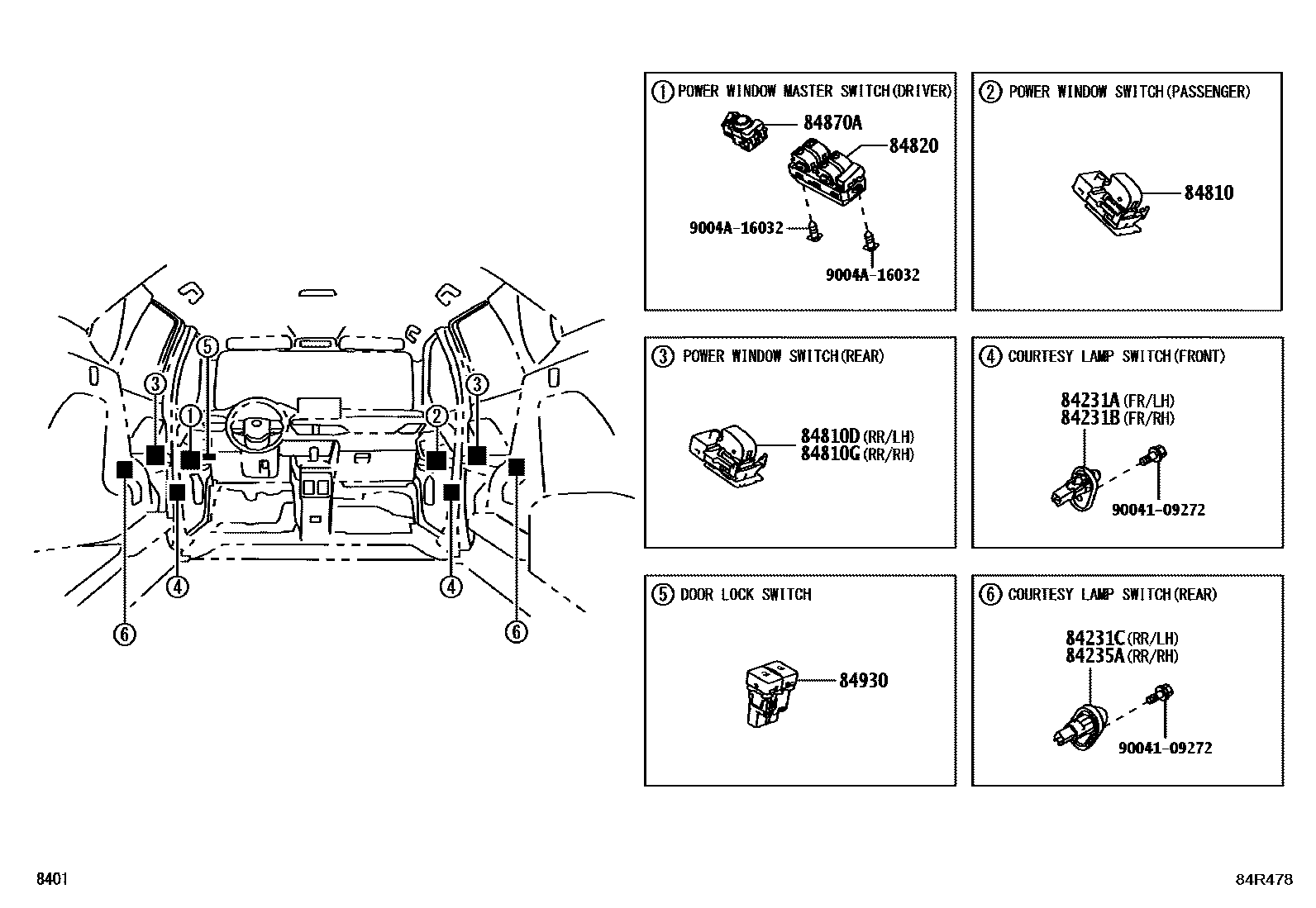

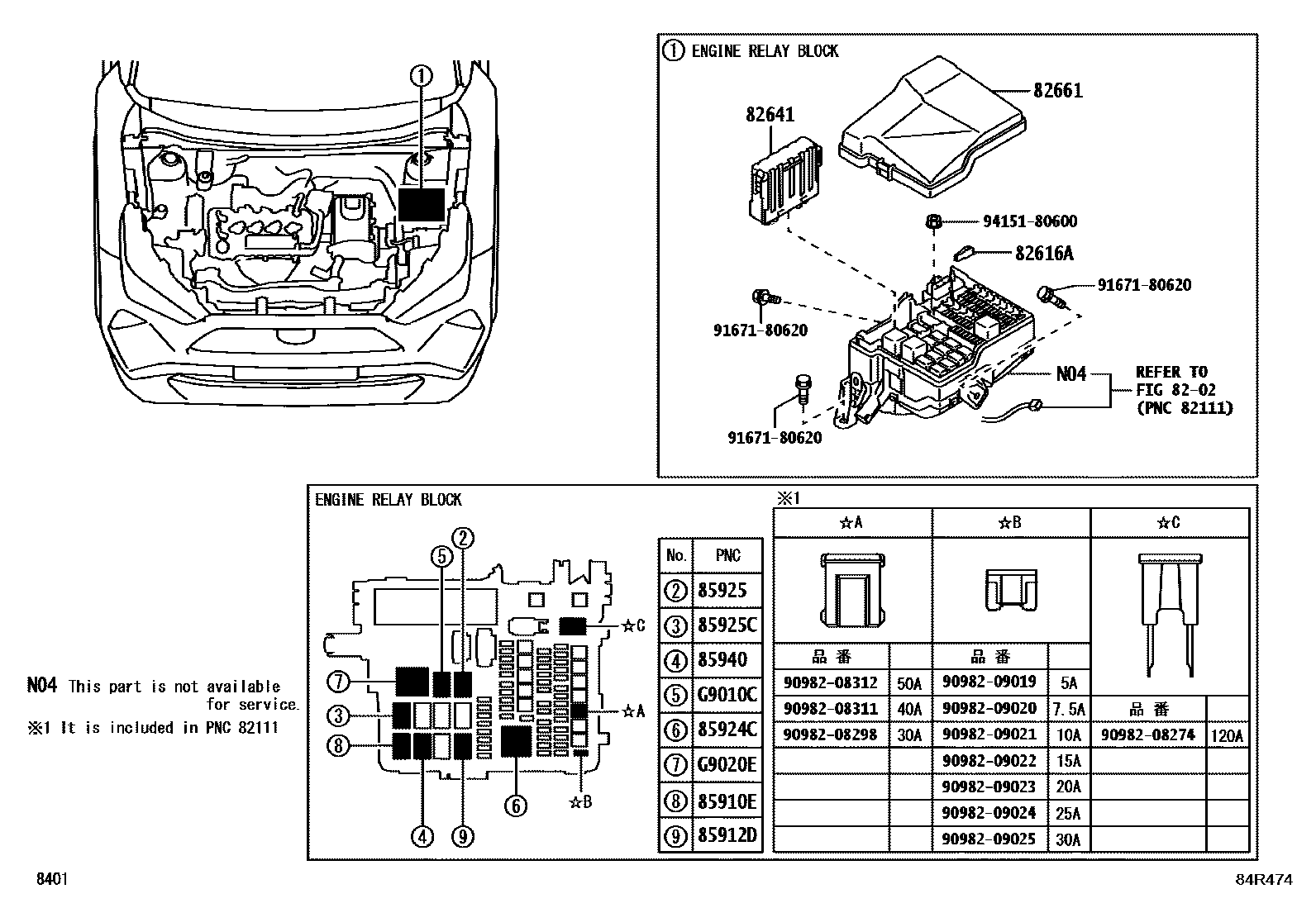

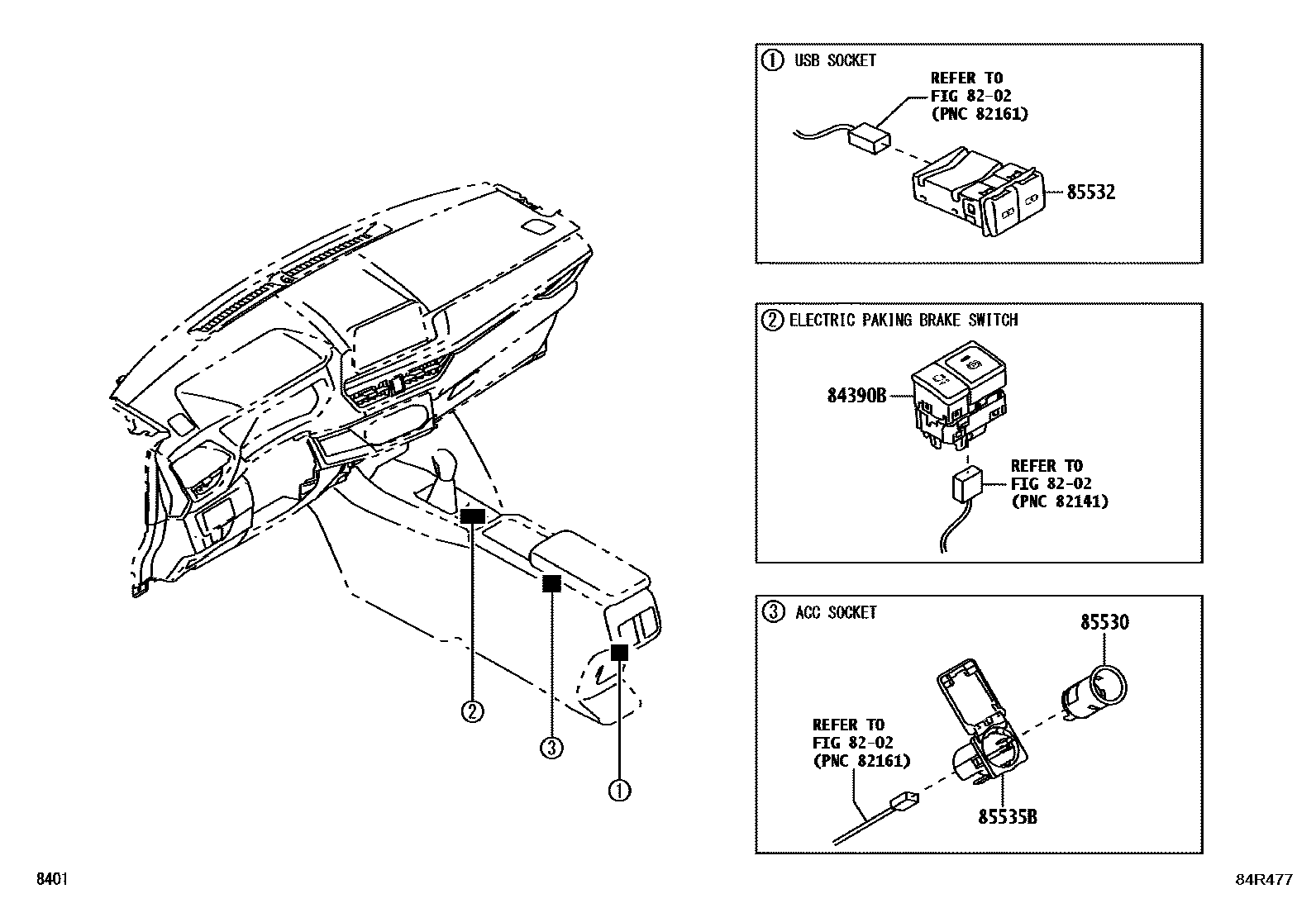

Toyota YARIS EPC diagram 8401, 开关和继电器和ECU, with 12 images and 69 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 90987-02027 |
| 82600 | Fuse box assembly | 82600-BY101 · 82600-BY291 · 82600-BY301 · 82600-BY312 · 82600-BY322 · 82600-BY461 · 82600-BY471 · 82600-BY481 · 82600-BY491 · 82600-BY501 · 82600-BY511 · 82600-BZW31 · 82600-BZX02 |
| 82616A | No.2 fuse puller | 82616-58010 |
| 82641 | Integrated relay No. 1 | 82641-BZ040 |
| 82661 | No. 1 relay box cover | 82661-B1510 · 82661-B1530 |
| 82G11K | Wire harness clip | 82711-1E360 |
| 82G11L | No. 2 wire harness clip | 82714-BZ010 |
| 83320 | Fuel gauge sensor assembly | 83301-BZ320 · 83301-BZ340 · 83301-BZ360 · 83301-BZ370 |
| 83390 | Vacuum warning switch assembly | 83390-28120 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-52050 |
| 83950M | Warning light assembly | 83950-BZ130 |
| 84030 | Multi-channel network switch assembly | 84030-BZ211 |
| 84140 | Headlight dimmer switch assembly | 84140-BZ411 · 84140-BZ521 |
| 84152 | Headlight beam height adjustment switch | 84152-BZ060 |
| 84231A | door control light switch | 84231-60070 |
| 84231B | door control light switch | 84231-60070 |
| 84231C | door control light switch | 84231-60070 |
| 84235A | door control light switch | 84231-60070 |
| 84330 | Hazard warning signal switch assembly | 84332-BZ280 |
| 84340 | brake light switch assembly | 84340-B2061 |
| 84345 | Brake light switch base adjuster | 84345-BZ040 |
| 84390B | Electric parking brake switch assembly | 84390-B2040 |
| 84490H | Angle rod sensor switch assembly | 84490-BZ090 |

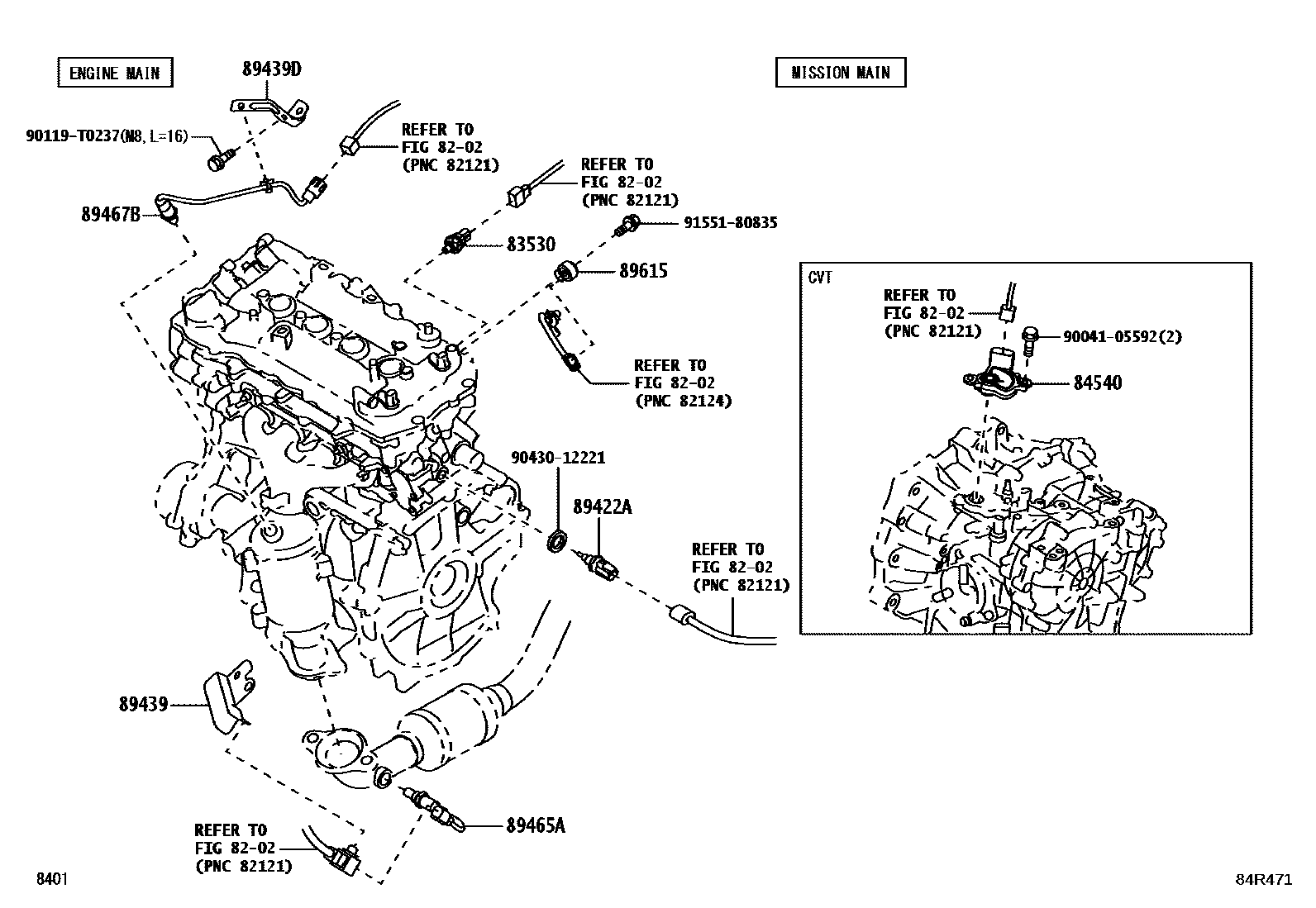

| 84540 | Neutral start switch assembly | 84540-B2040 |
| 84650 | Windshield wiper switch assembly | 84652-BZ441 |
| 84810 | Electric window lift switch assembly | 84810-BZ150 |
| 84810D | Rear electric window lift switch assembly | 84810-BZ150 |
| 84810G | No. 2 rear electric window lift switch assembly | 84810-BZ150 |
| 84820 | Electric window lift main switch assembly | 84820-BZ340 |
| 84840G | Back door opener switch assembly | 84840-47030 · 84840-47040 |
| 84841A | Fuel filler cap opener switch | 84841-B1010 |
| 84870A | Exterior rearview mirror switch assembly | 84870-BZ230 · 84870-BZ240 |
| 84930 | Door control switch assembly | 84930-BZ050 |
| 84931C | Back door control switch | 84966-BZ020 |
| 84966 | Automatic back door control switch | 84966-BZ010 |
| 84966A | No. 1 automatic back door control switch | 84966-BZ010 |

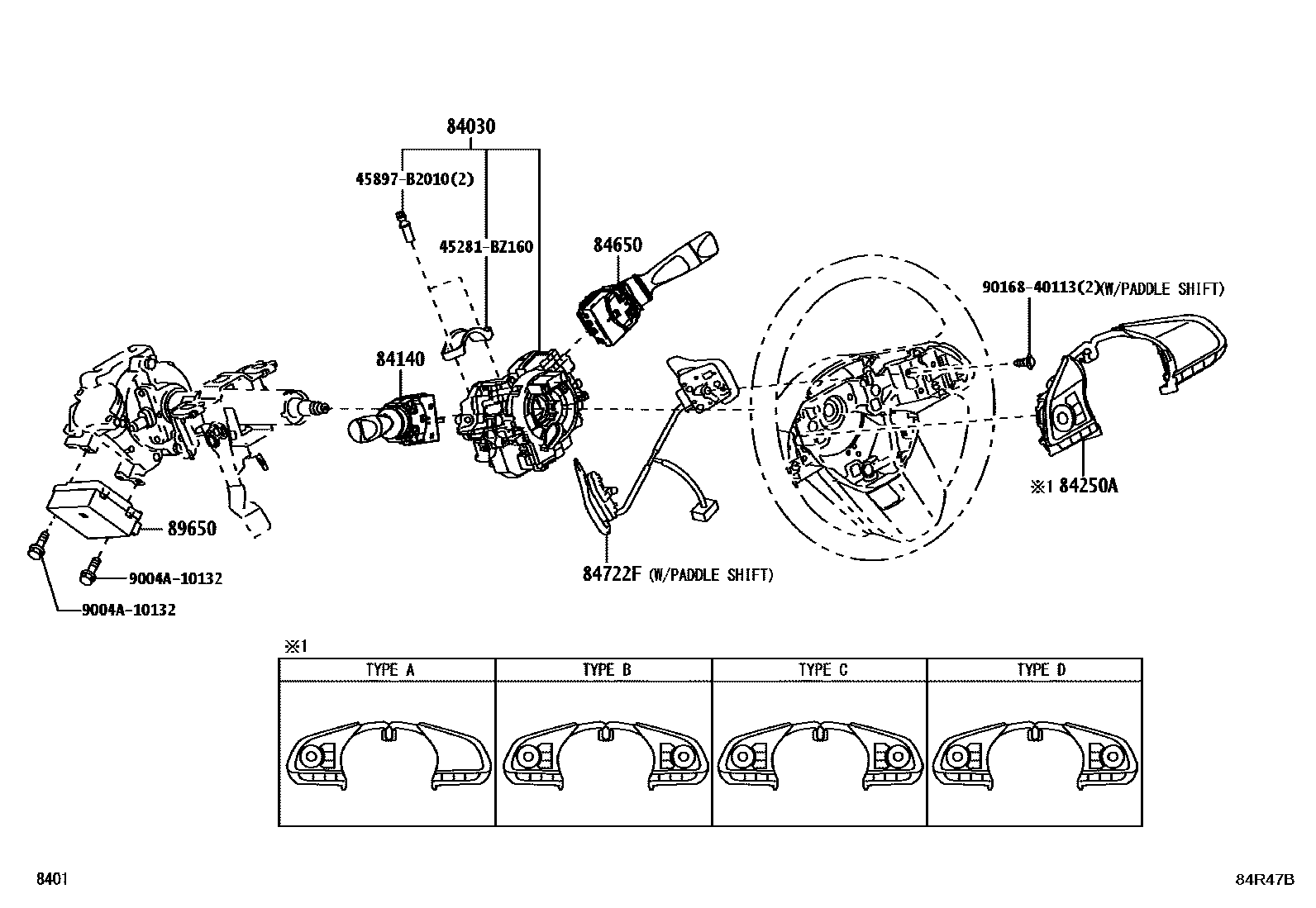

| 84970 | Combination switch assembly | 84970-BZ290 · 84970-BZ500 · 84970-BZ520 · 84970-BZ680 · 84970-BZ690 |
| 85530 | No. 1 power socket assembly | 85530-0D040 |
| 85532 | USB charging socket | 85532-BZ050 |
| 85535B | No. 1 power outlet cover | 85535-02140 |
| 85910E | Injector relay | 90987-02027 |
| 85912D | relay | 90987-02027 |
| 85916D | fog light relay | 90987-02027 |
| 85924C | IGCT relay | 90987-02031 |
| 85925 | Radiator fan relay | 90987-02027 |
| 85925C | Radiator fan relay No. 2 | 90987-02027 |
| 85940 | Windshield wiper relay assembly | 90987-02027 |
| 86530A | Horn relay | 9004A-98006 |

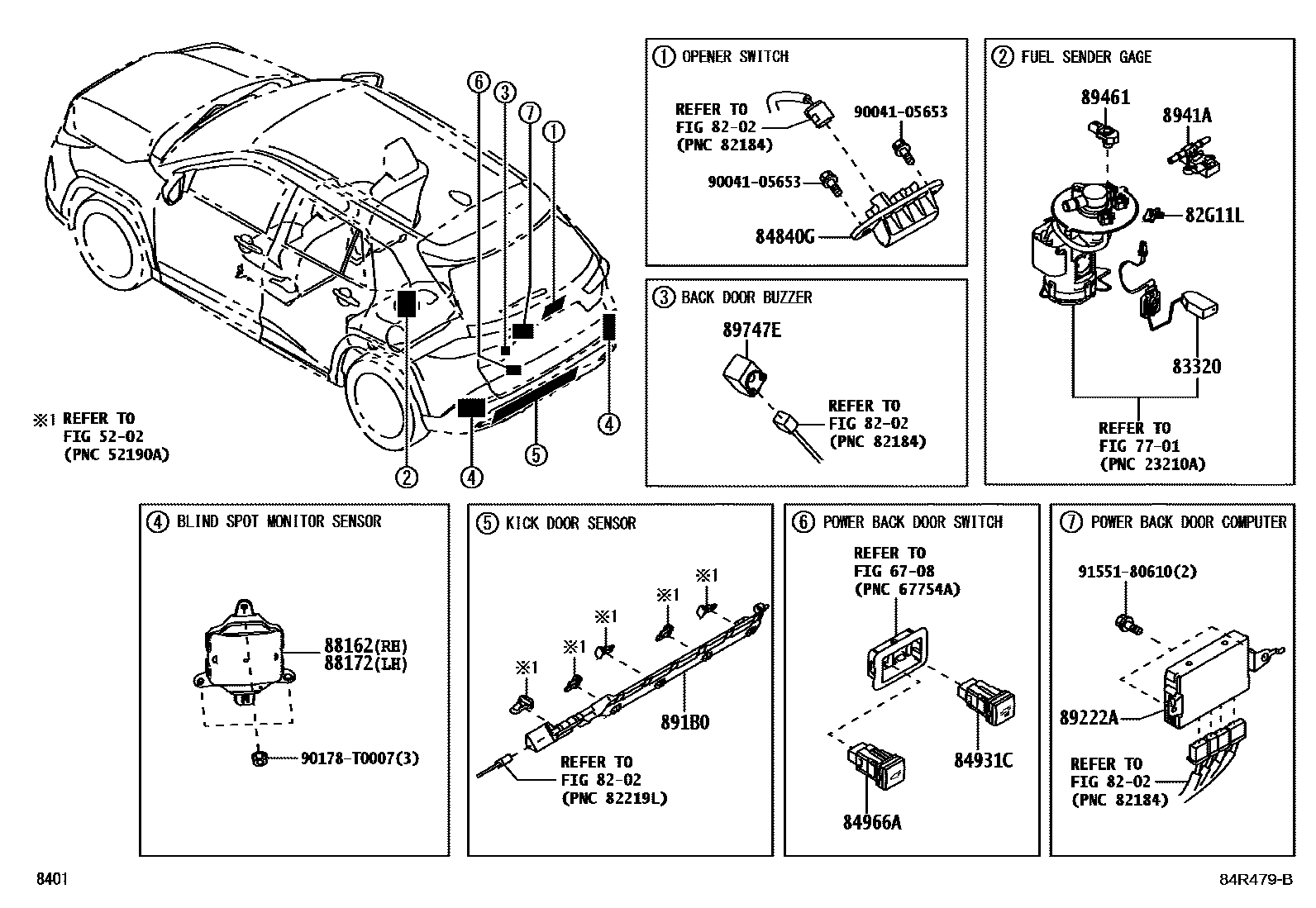

| 88162 | Blind spot monitor right sensor | 88162-B1161 |
| 88172 | Blind spot monitor left sensor | 88162-B1161 |
| 89111 | Network gateway ECU | 89111-BZ160 · 89111-BZ210 |
| 891B0 | Kick control sensor assembly | 891B2-B1010 |
| 89222A | Multi-channel network door ECU | 89222-B1030 |
| 8941A | Ethanol concentration sensor | 8941A-02010 |
| 89421B | vacuum sensor | 89421-B2030 |
| 89422A | water temperature sensor | 89422-33030 · 89422-B2030 |
| 89439 | Sensor holder | 89439-BZ201 · 89439-BZ250 · 89439-BZ280 · 89439-BZ290 |
| 89439D | Sensor No. 1 Bracket | 89439-BZ210 |
| 89451A | shift lever position sensor | 89451-10010 |
| 89461 | steam pressure sensor | 89461-47010 |
| 89465A | Oxygen sensor No. 2 | 89465-B1210 · 89465-BZ610 |
| 89467B | air fuel ratio sensor | 89467-B1070 · 89467-BZ020 |
| 89611 | One-button start switch | 89611-BZ030 · 89611-BZ040 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-BZ770 · 89650-BZ780 · 89650-BZ790 |
| 89747E | Electric back door warning buzzer | 89747-30040 |

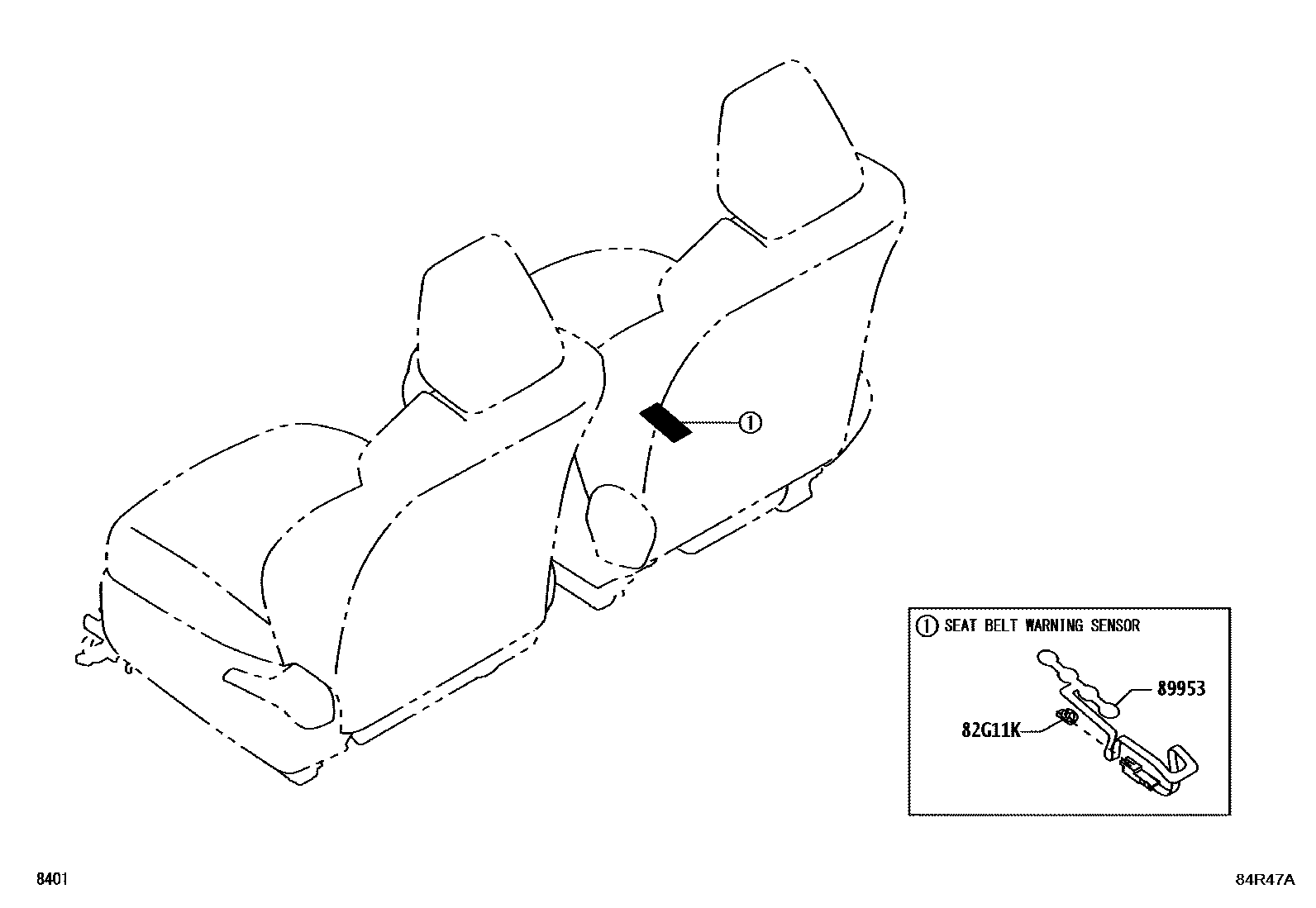

| 89953 | Seat Belt Warning Occupant Detection Sensor | 89953-02040 |
| G9010C | PCU radiator fan relay | 90987-02027 |
| G9020E | Hybrid water pump relay | 90987-02025 |
