Toyota YARIS 线束和卡夹 — Figure 8202
Toyota YARIS EPC diagram 8202, 线束和卡夹, with 8 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

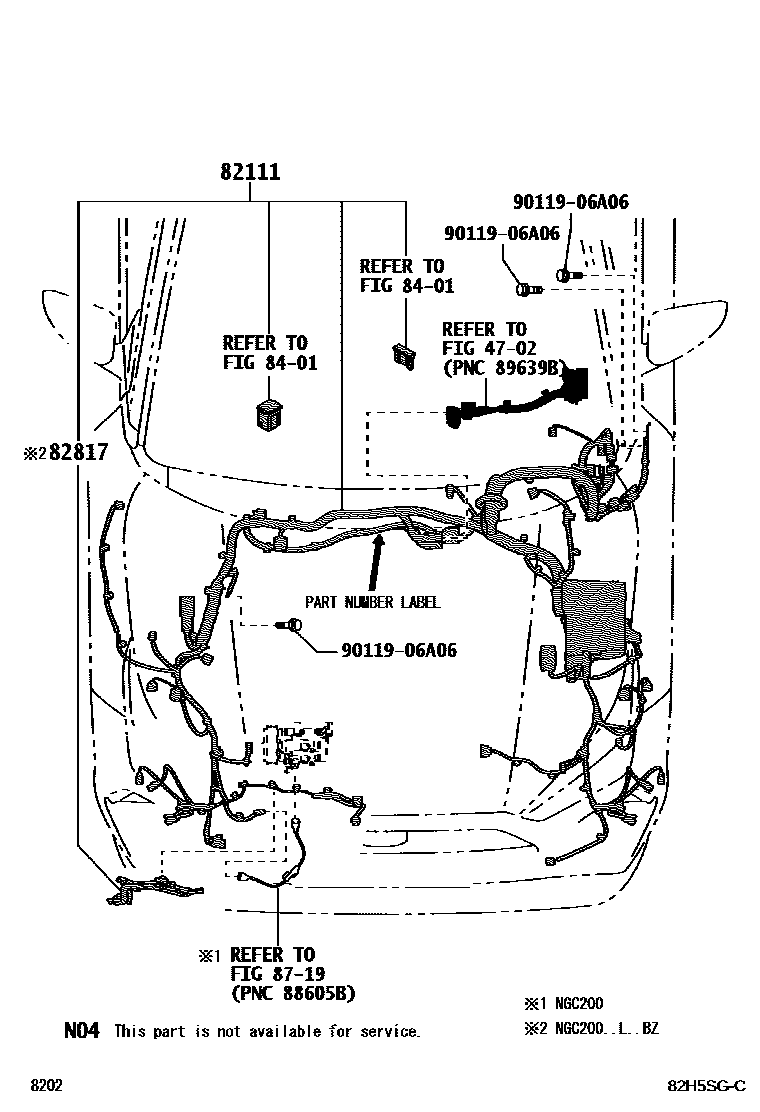

| 82111 | Engine room main wiring harness | 82111-BYC20 · 82111-BYP00 · 82111-BYP10 · 82111-BYP40 · 82111-BYP50 · 82111-BYP60 · 82111-BYP70 · 82111-BYU40 · 82111-BYU50 · 82111-BYU60 · 82111-BYU70 |

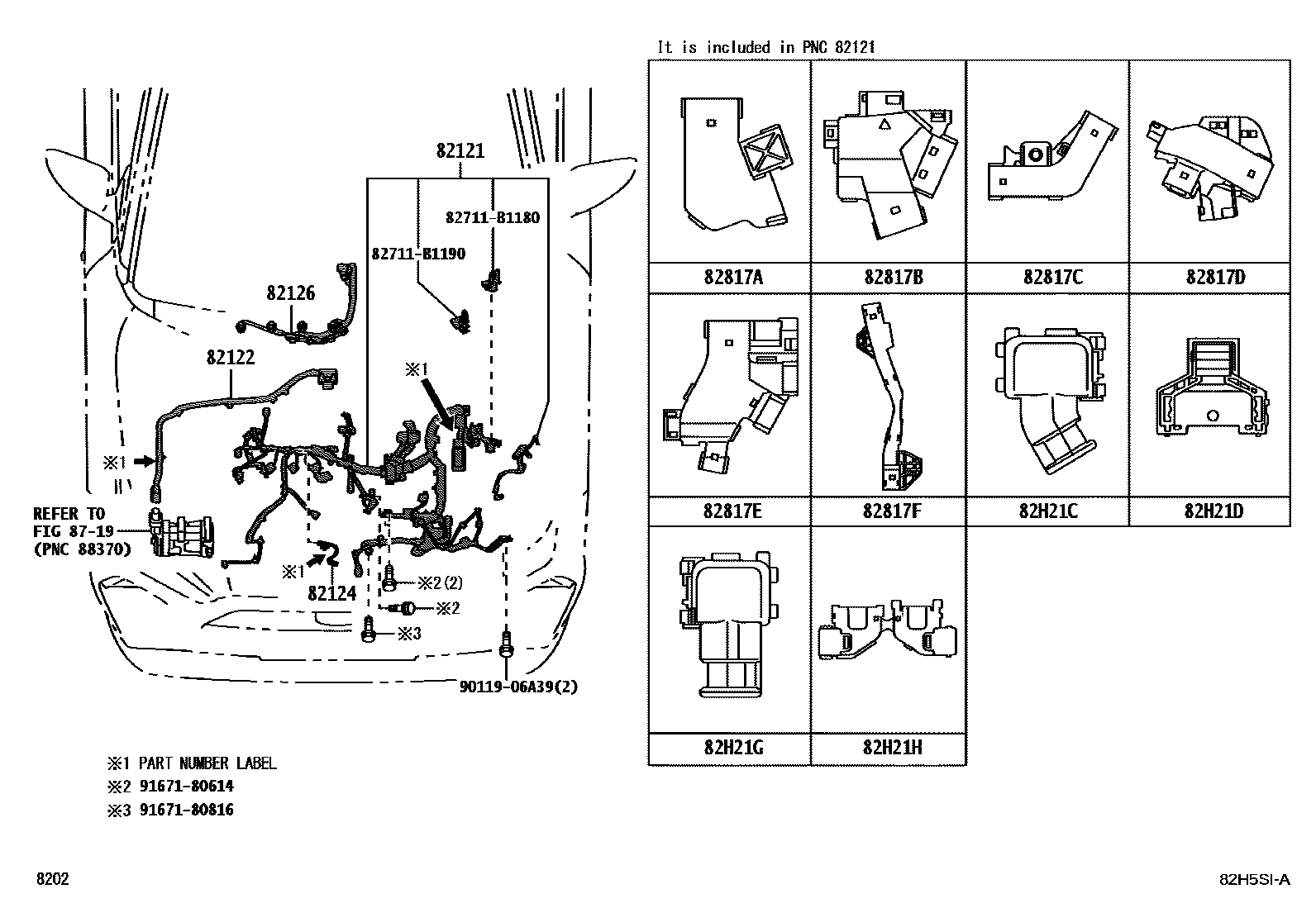

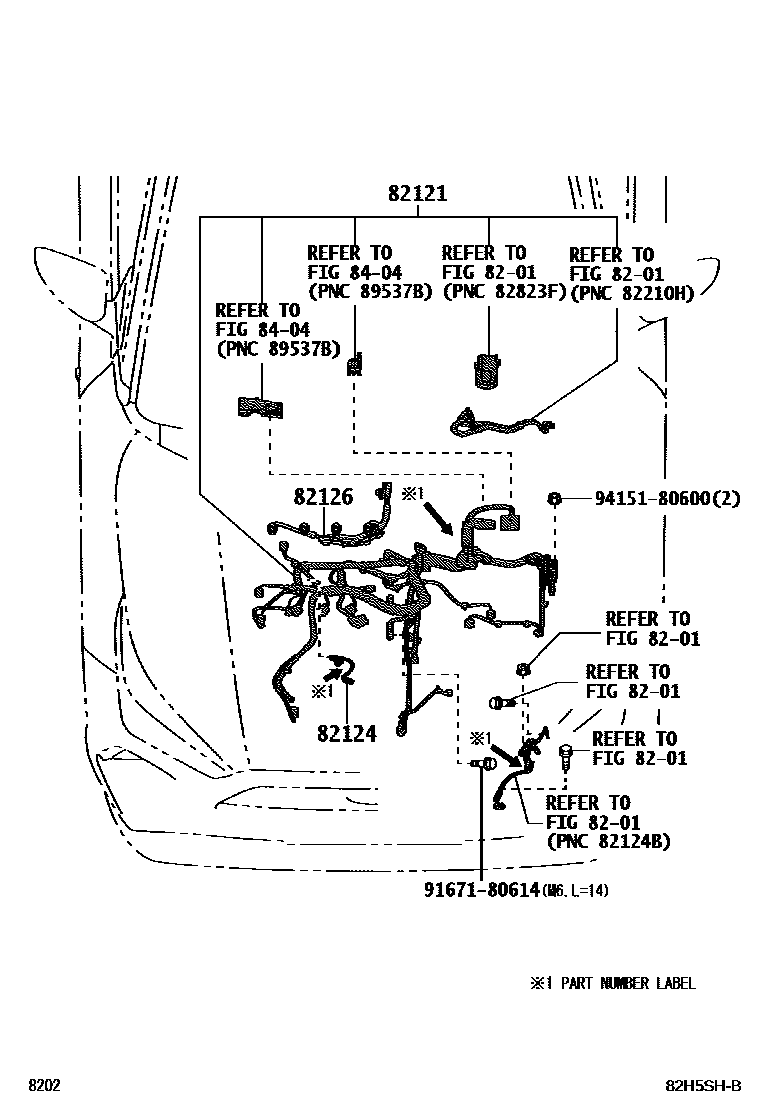

| 82121 | Engine wiring harness | 82121-BZL40 · 82121-BZL50 · 82121-BZL60 · 82121-BZS90 · 82121-BZT20 · 82121-BZT60 |
| 82122 | Engine No. 2 wiring harness | 82122-BZ400 · 82122-BZ410 |
| 82124 | Engine No. 4 wiring harness | 82124-BZ070 |
| 82126 | Engine wiring harness | 82126-BZ090 · 82126-BZ100 |

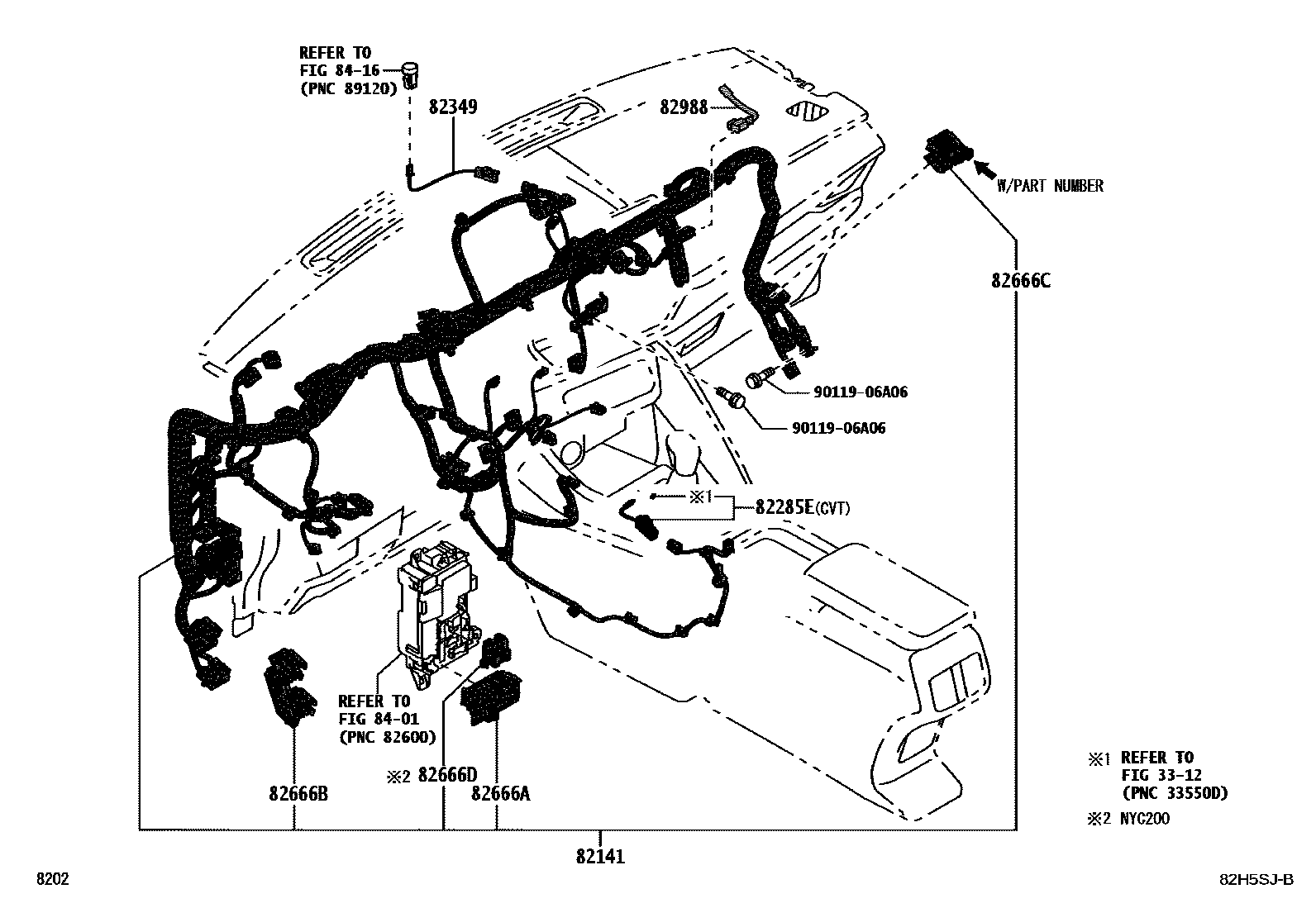

| 82141 | Dashboard wiring harness | 82145-BZ050 · 82145-BZ060 · 82145-BZ070 · 82145-BZ080 · 82145-BZ090 · 82145-BZ100 · 82145-BZ110 · 82145-BZ120 · 82145-BZ530 · 82145-BZ540 |

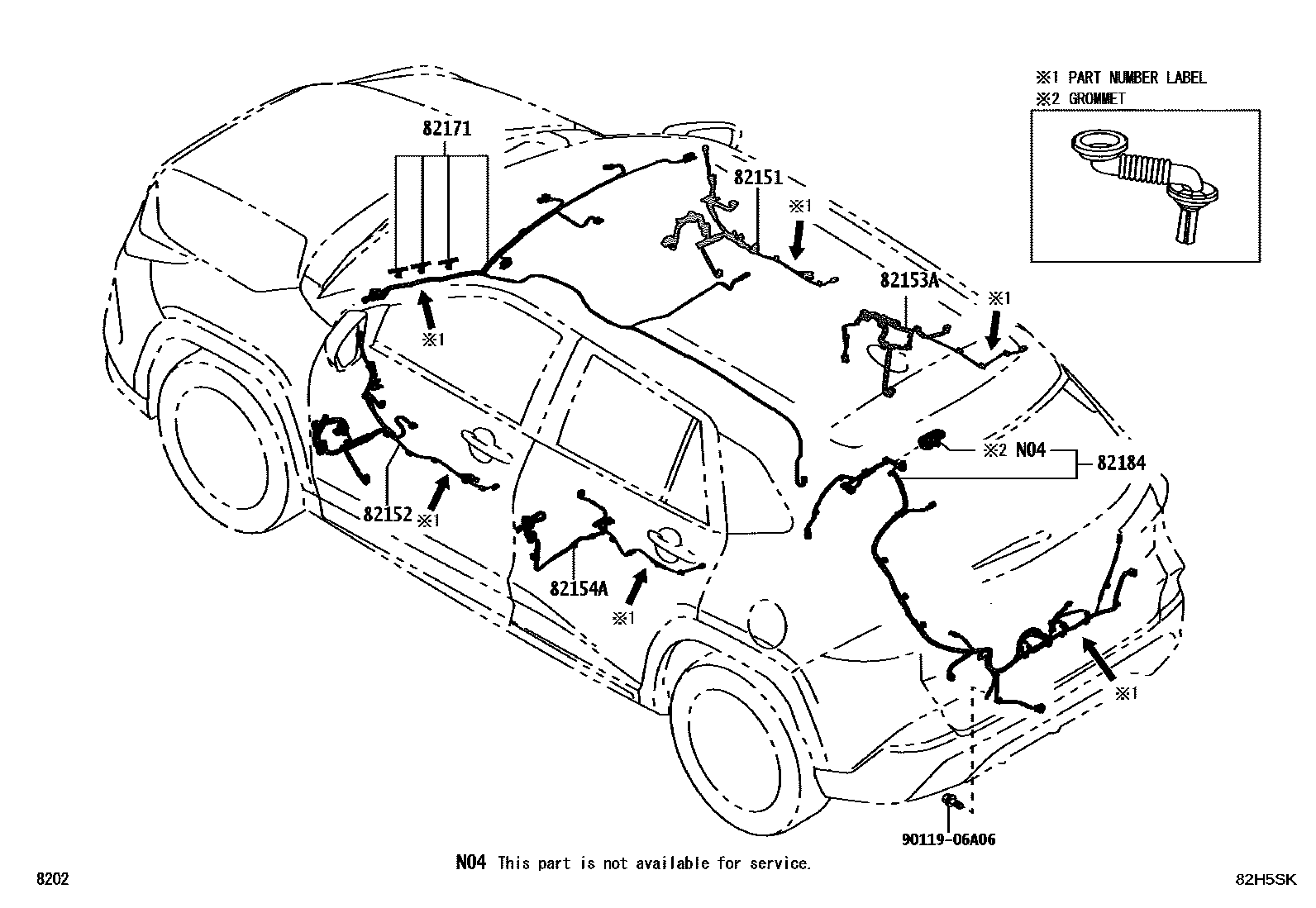

| 82151 | Right front door wiring harness | 82151-BZQ20 · 82151-BZQ30 · 82151-BZQ40 · 82151-BZR40 |
| 82152 | Left front door wiring harness | 82152-BZN90 · 82152-BZP00 · 82152-BZP10 · 82152-BZQ30 |
| 82153A | Right rear door wiring harness | 82153-BZ670 |
| 82154A | Left rear door wiring harness | 82153-BZ670 |

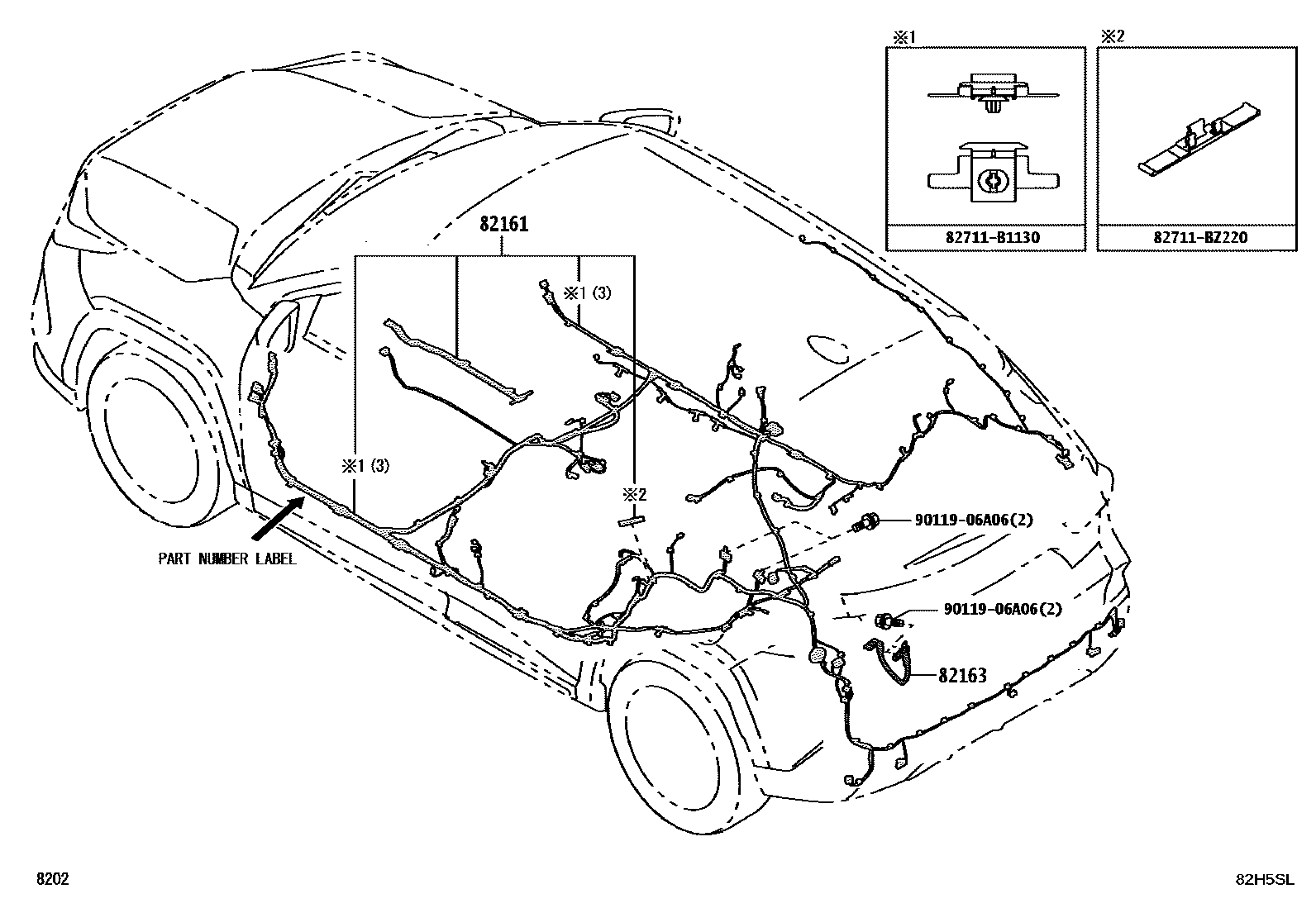

| 82161 | floor wiring harness | 82161-BYV80 · 82161-BYV90 · 82161-BYW00 · 82161-BYW10 · 82161-BYW20 · 82161-BYW30 · 82161-BYW40 · 82161-BYW50 · 82161-BYW60 · 82161-BYW70 · 82161-BYZ70 · 82161-BYZ80 |
| 82163 | Floor wiring harness No. 3 | 82163-BZ040 |

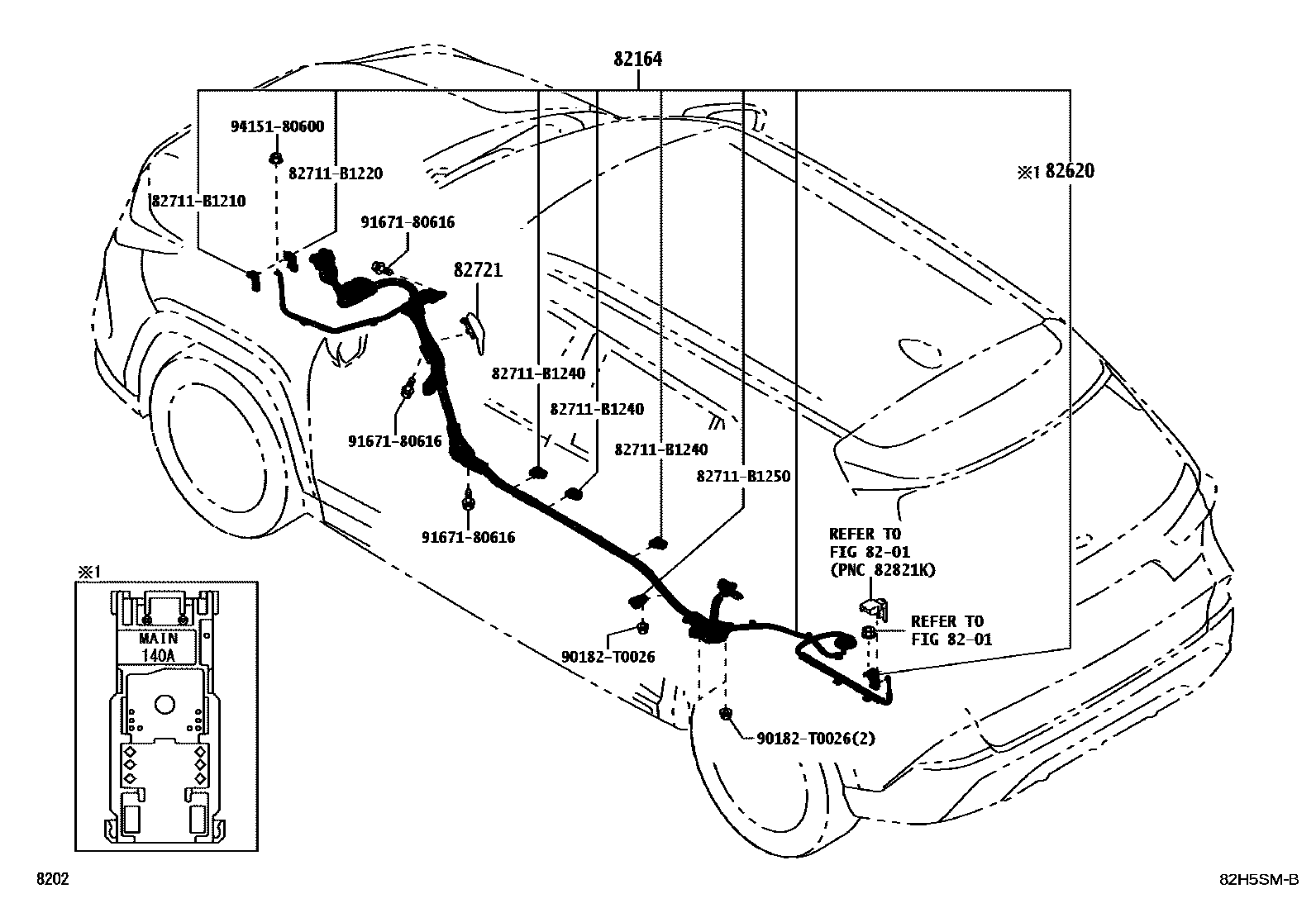

| 82164 | Frame wiring harness set | 82164-BZ050 |
| 82171 | Roof No. 1 wiring harness | 82171-BZM40 · 82171-BZM50 · 82171-BZM60 · 82171-BZM70 · 82171-BZQ70 · 82171-BZQ80 · 82171-BZS30 |
| 82184 | Rear door No. 1 wiring harness | 82184-BZJ40 · 82184-BZJ50 · 82184-BZJ60 · 82184-BZJ70 · 82184-BZK50 · 82184-BZK60 |
| 82285E | lighting harness | 82285-BZ030 |
| 82349 | Light control rheostat wiring harness | 88605-BZ240 |

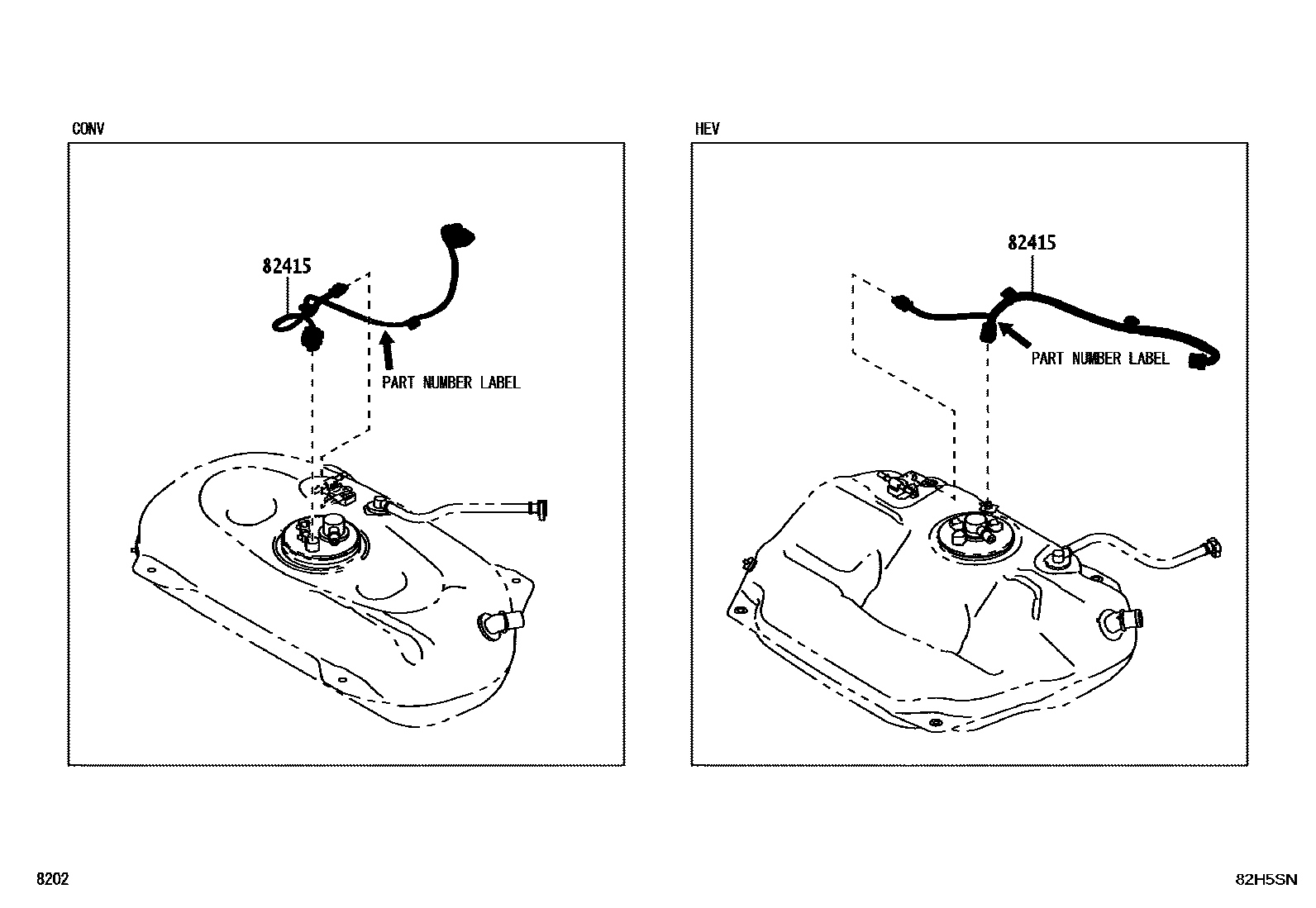

| 82415 | fuel pump wiring harness | 82415-BZ210 · 82415-BZ220 |
| 82620 | Fuse box assembly | 82620-47070 |
| 82666A | Connector holder No. 2 | 82666-BZ030 |
| 82666B | No. 3 connector holder | 82666-BZ040 |
| 82666C | No. 4 connector holder | 82666-BZ050 |
| 82666D | No. 5 connector holder | 82666-BZ080 |
| 82721 | No. 1 wiring harness bracket | 82715-BZR30 |
| 82817 | No. 1 wire harness protection device | 82817-BZ270 |
| 82817A | No. 2 wire harness protection device | 82817-BZ380 |
| 82817B | No. 3 wire harness protection device | 82817-BZ310 |
| 82817C | No. 4 wire harness protection device | 82817-BZ320 |
| 82817D | No. 5 wire harness protection device | 82817-BZ330 |
| 82817E | No. 6 wire harness protection device | 82817-BZ340 |
| 82817F | No. 7 wire harness protection device | 82817-BZ350 |
| 82988 | Air bag repair line | 89171-BZ130 |
| 82H21C | Connector cover | 82821-47680 |
| 82H21D | Connector cover | 82821-33490 |
| 82H21G | Connector cover | 82821-47690 |
| 82H21H | Connector cover | 82821-50500 |
