Toyota YARIS 后牌照灯 — Figure 8113

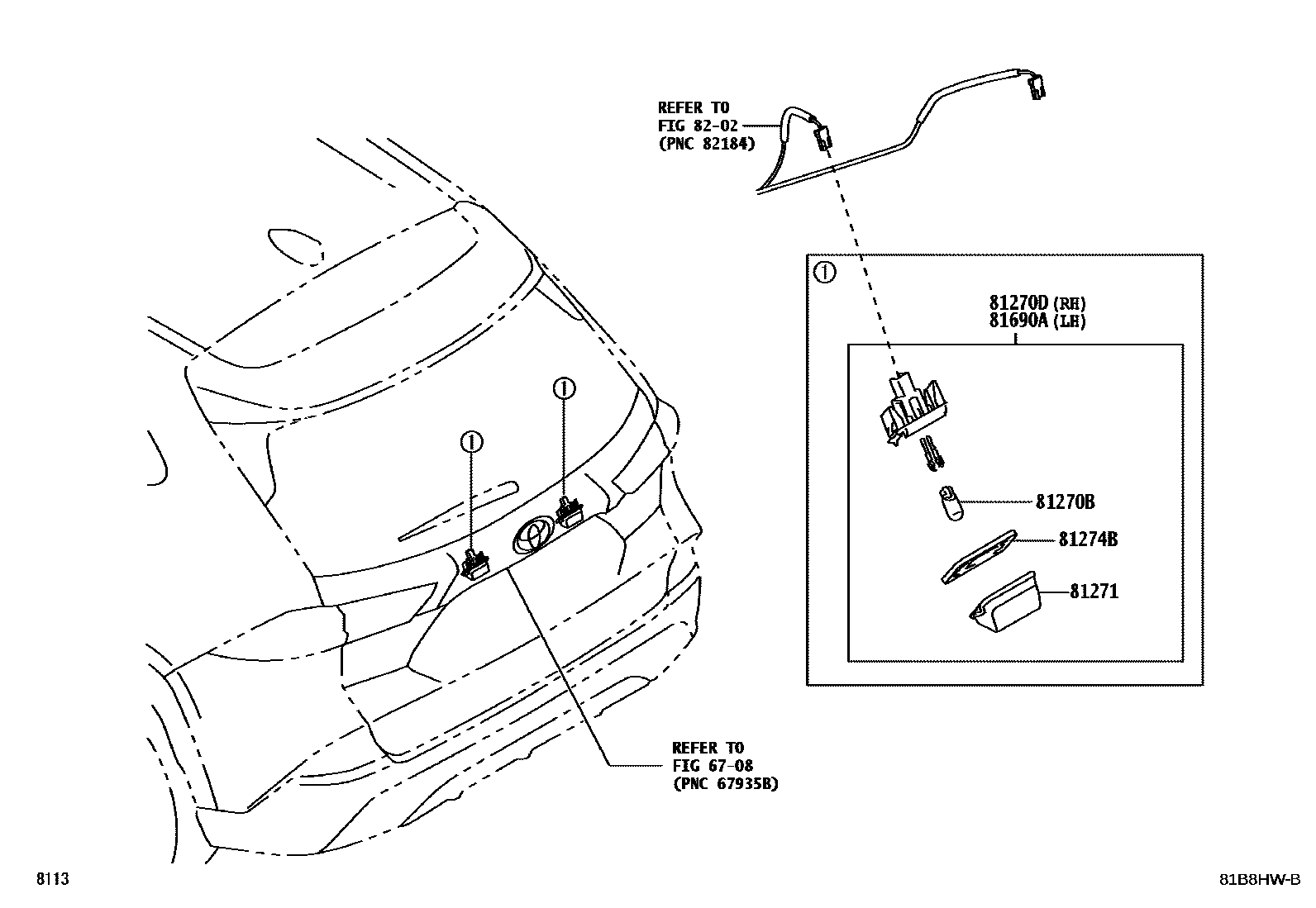

Toyota YARIS EPC diagram 8113, 后牌照灯, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270B | Bulb (for license plate light) | 90981-11013 |
| 81270D | Right license plate light assembly | 81270-0D120 |
| 81271 | license plate lamp shade | 81271-0D120 |
| 81274B | license plate light seal | 81274-02130 |
| 81690A | Left license plate light assembly | 81270-0D120 |
