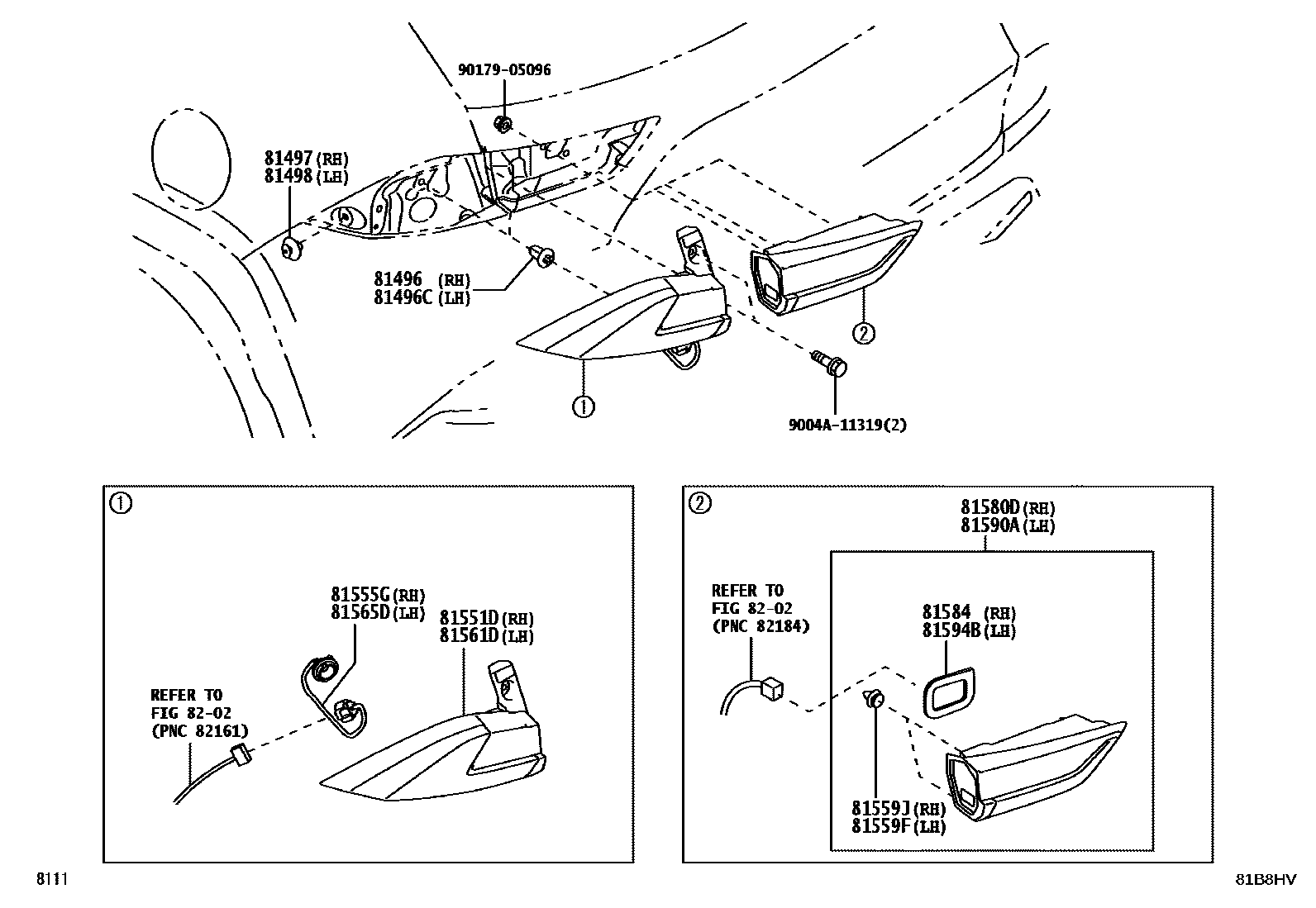

Toyota YARIS 后组合灯 — Figure 8111
Toyota YARIS EPC diagram 8111, 后组合灯, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-0D040 |
| 81496C | No. 2 rear combination light guide block | 81496-0D040 |
| 81497 | Right rear combination lamp cover | 81497-0D070 |
| 81498 | Left rear combination lamp cover | 81497-0D070 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-BZ640 |
| 81555G | Right rear combination lamp wire | 81555-BZ340 |
| 81559F | Left rear combination light clip | 90044-67500 |
| 81559J | Right rear combination light clip | 90044-67500 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-BZ630 |
| 81565D | Left rear combination lamp wire | 81565-BZ170 |
| 81580D | Right rear light assembly | 81580-BZ510 |
| 81584 | Right rear light seal | 81584-BZ020 |
| 81590A | Left rear light assembly | 81590-BZ510 · 81590-BZ520 |
| 81594B | Left rear light seal | 81594-BZ020 |
