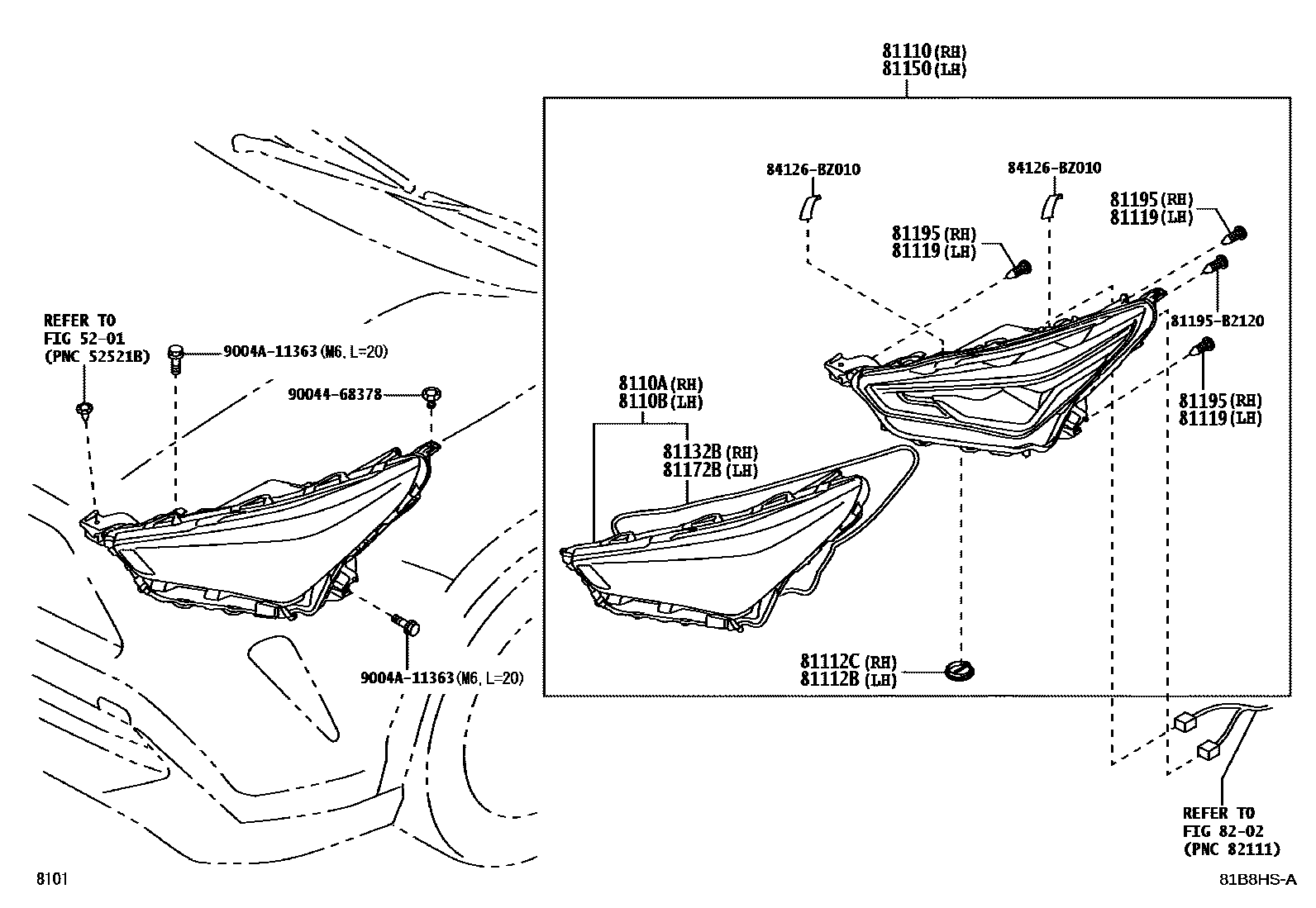

Toyota YARIS Headlamp — Figure 8101
Toyota YARIS EPC diagram 8101, Headlamp, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 8110A | Right headlight cover sub-assembly | 8110A-BZ280 · 8110A-BZ290 |
| 8110B | Left headlight cover sub-assembly | 8110B-BZ280 · 8110B-BZ290 |
| 81110 | Right headlight assembly | 81110-BZF20 · 81110-BZF30 |
| 81112B | cover ring | 81112-B2010 |
| 81112C | Right cover ring | 81112-B2010 |
| 81119 | headlight screw | 81195-B2020 |
| 81132B | Headlight cover gasket | 81132-B2010 |
| 81150 | Left headlight assembly | 81150-BZF20 · 81150-BZF30 |
| 81172B | Headlight cover gasket | 81132-B2010 |
| 81195 | headlight screw | 81195-B2020 |
