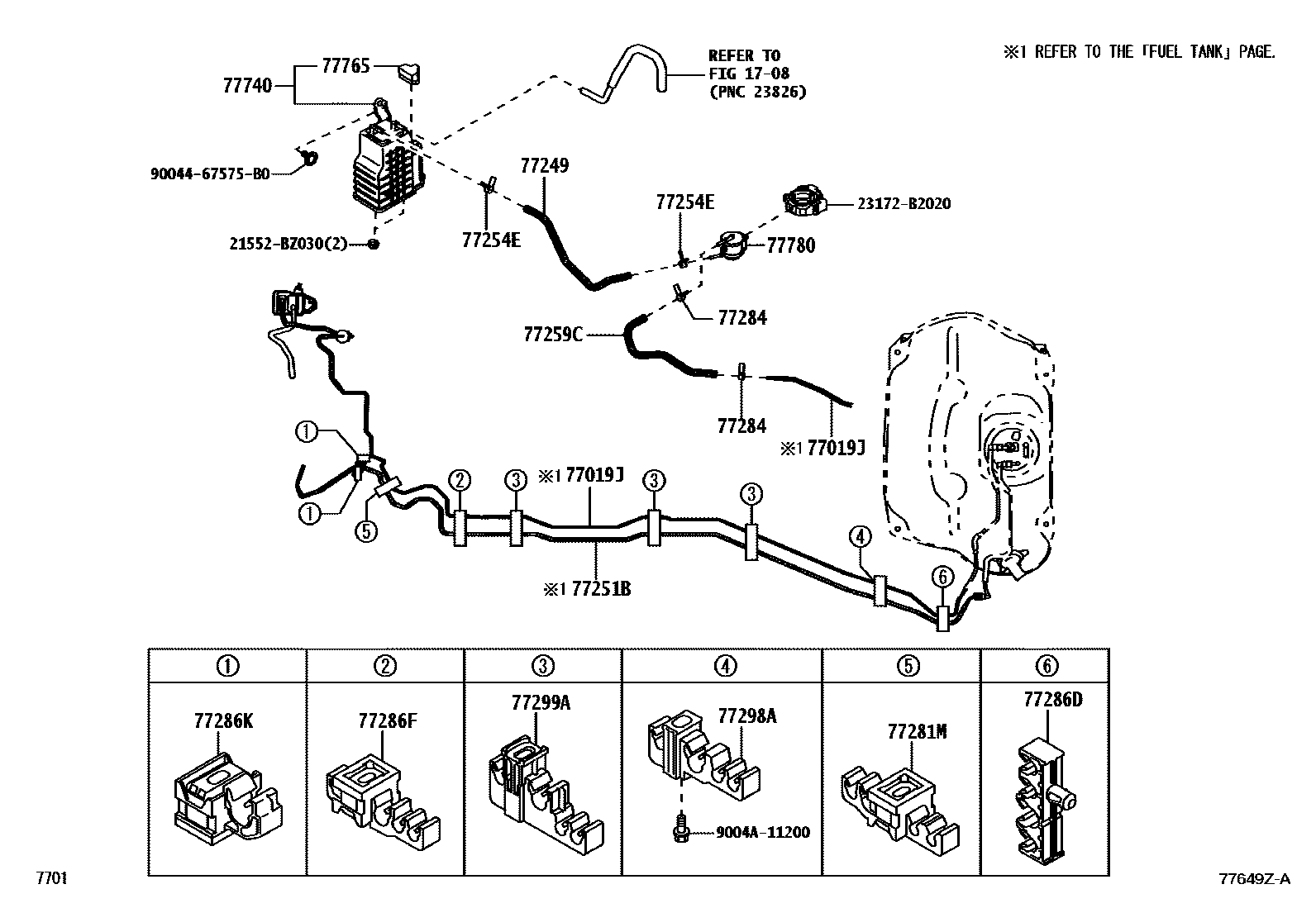

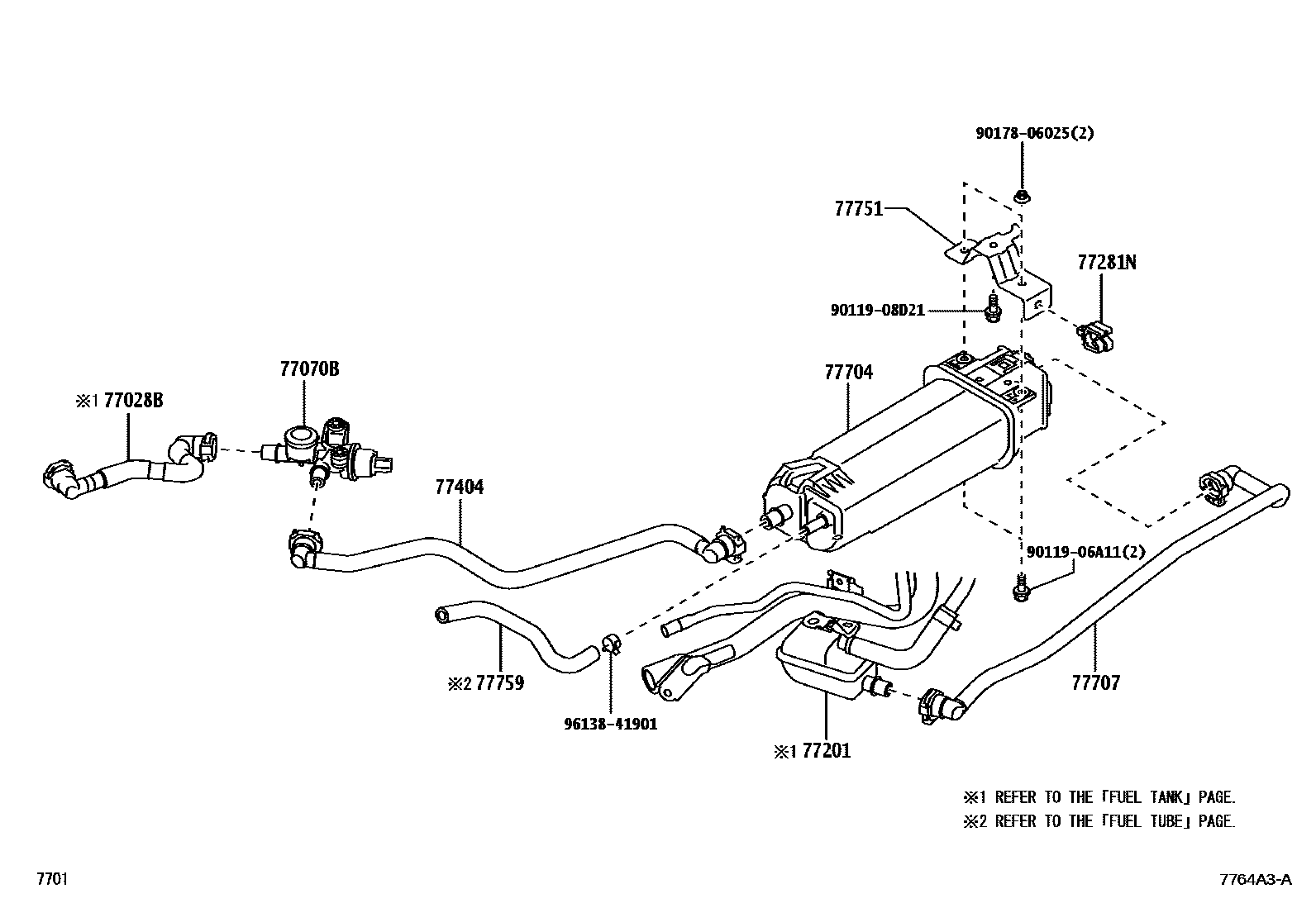

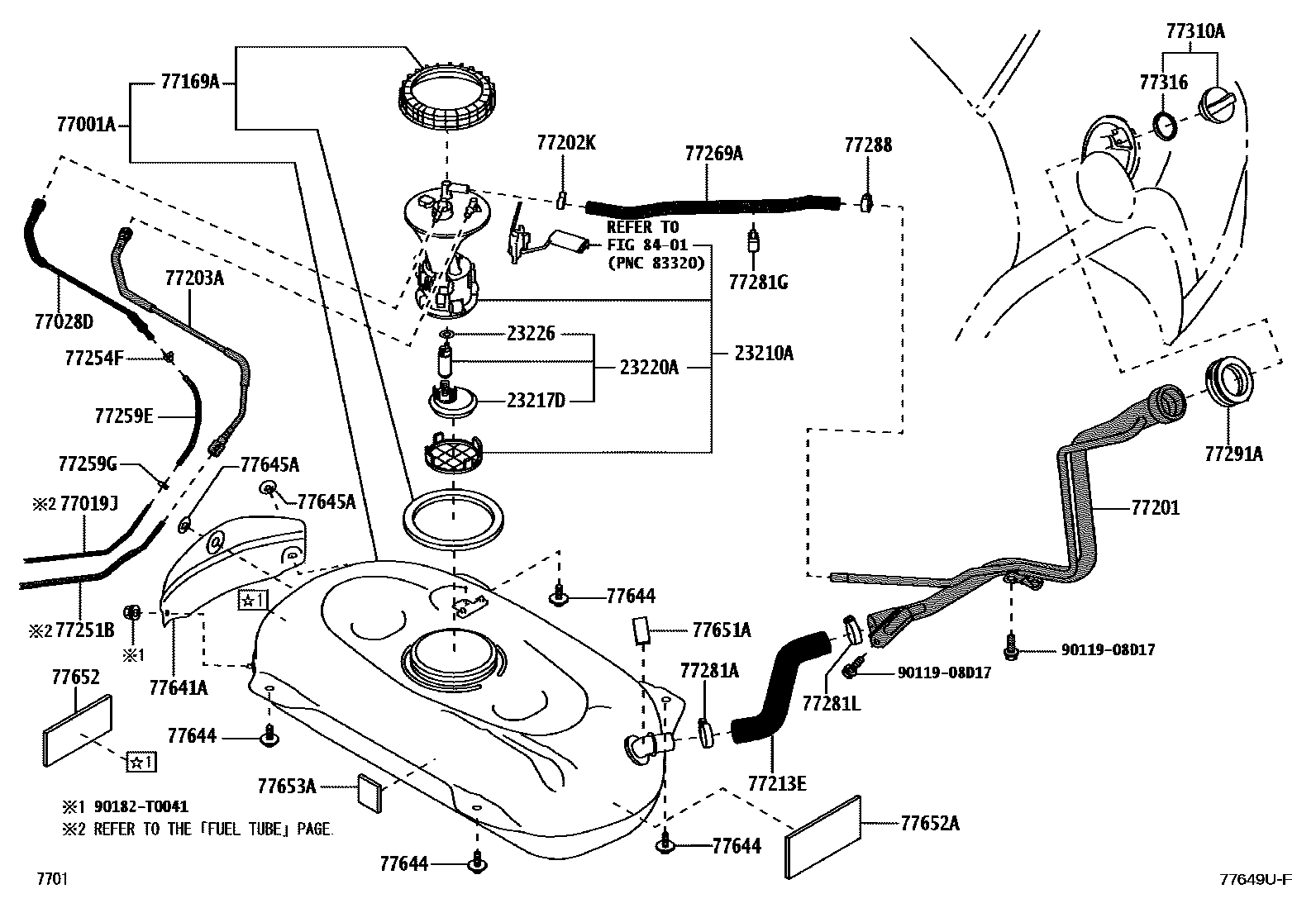

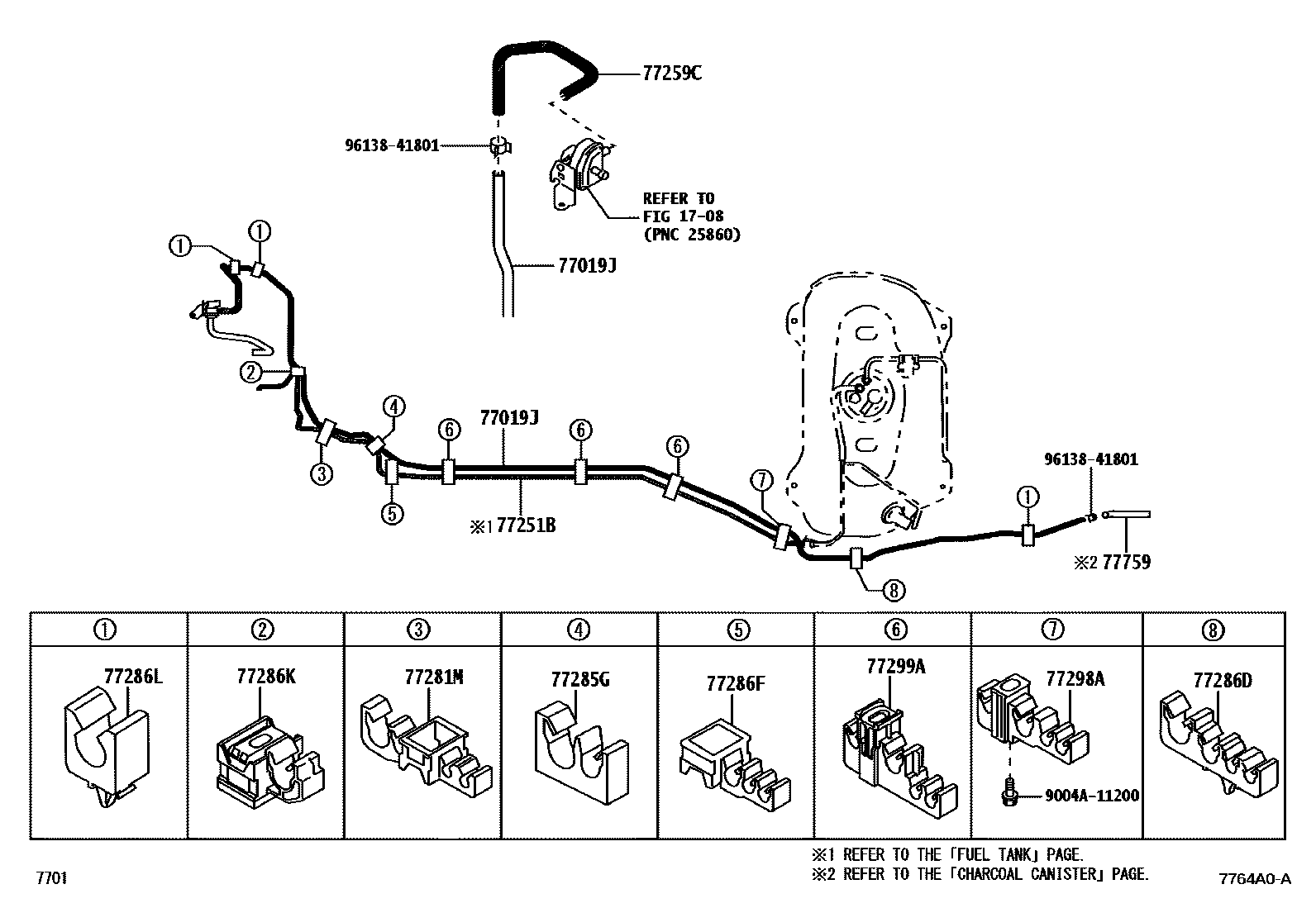

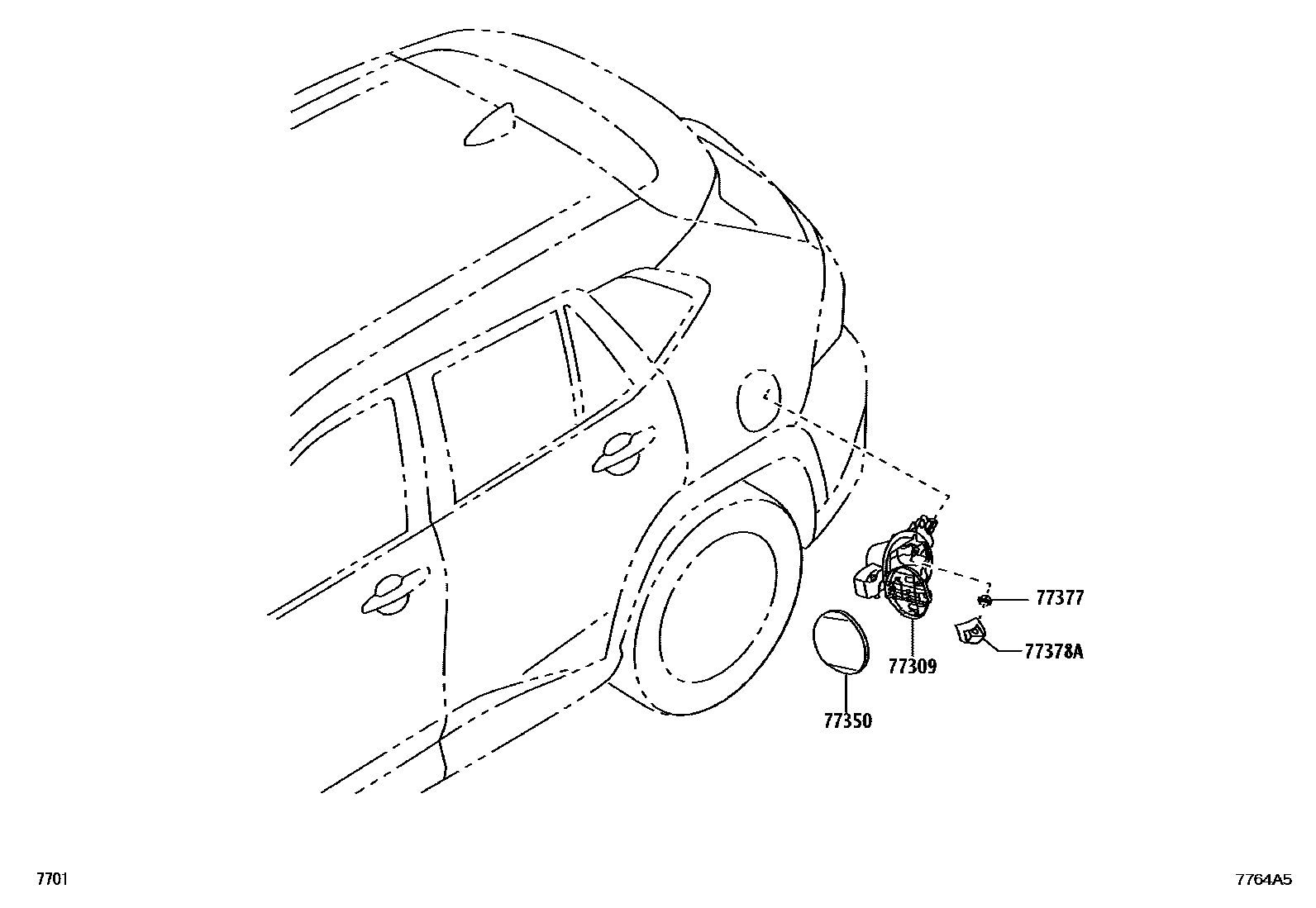

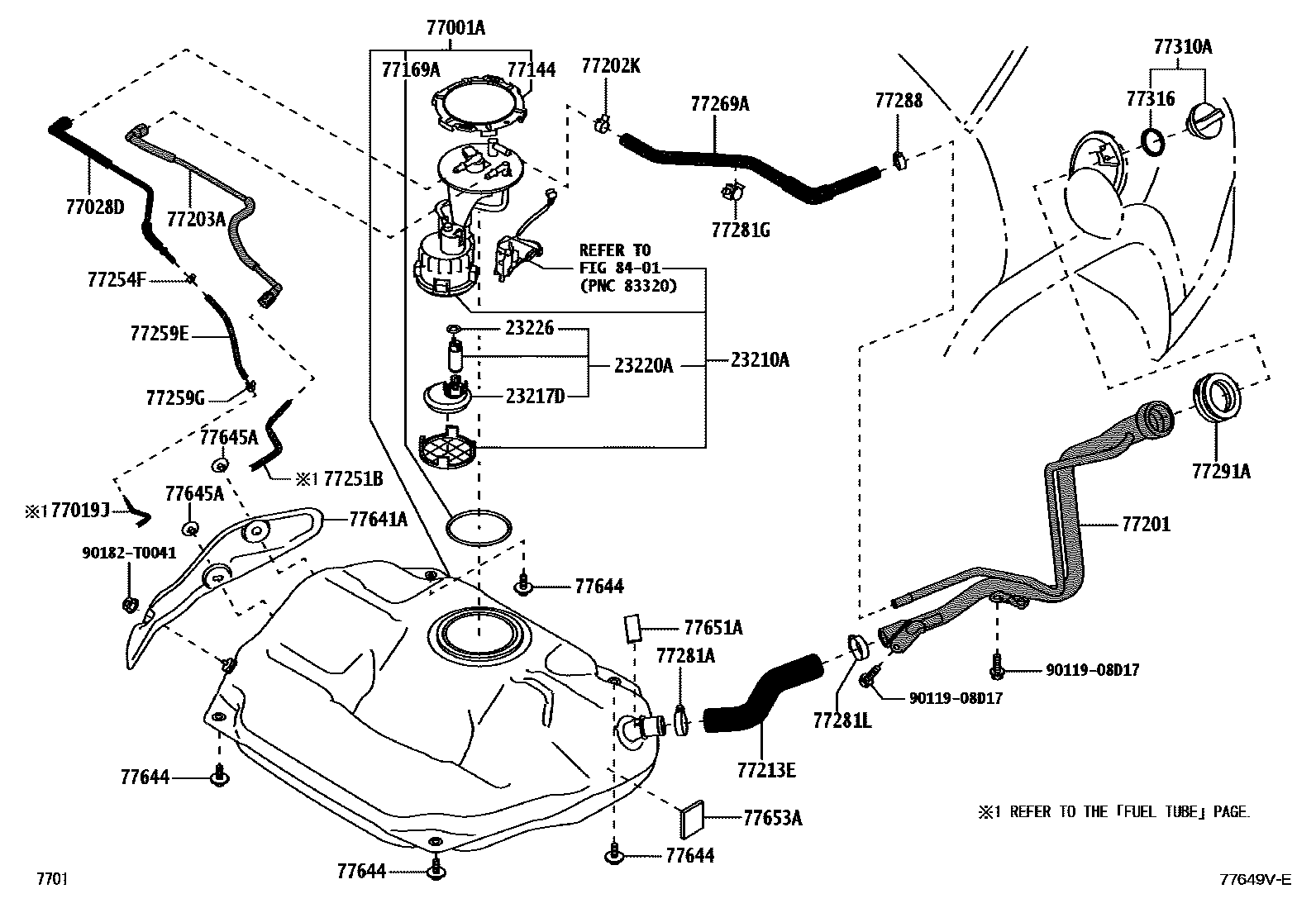

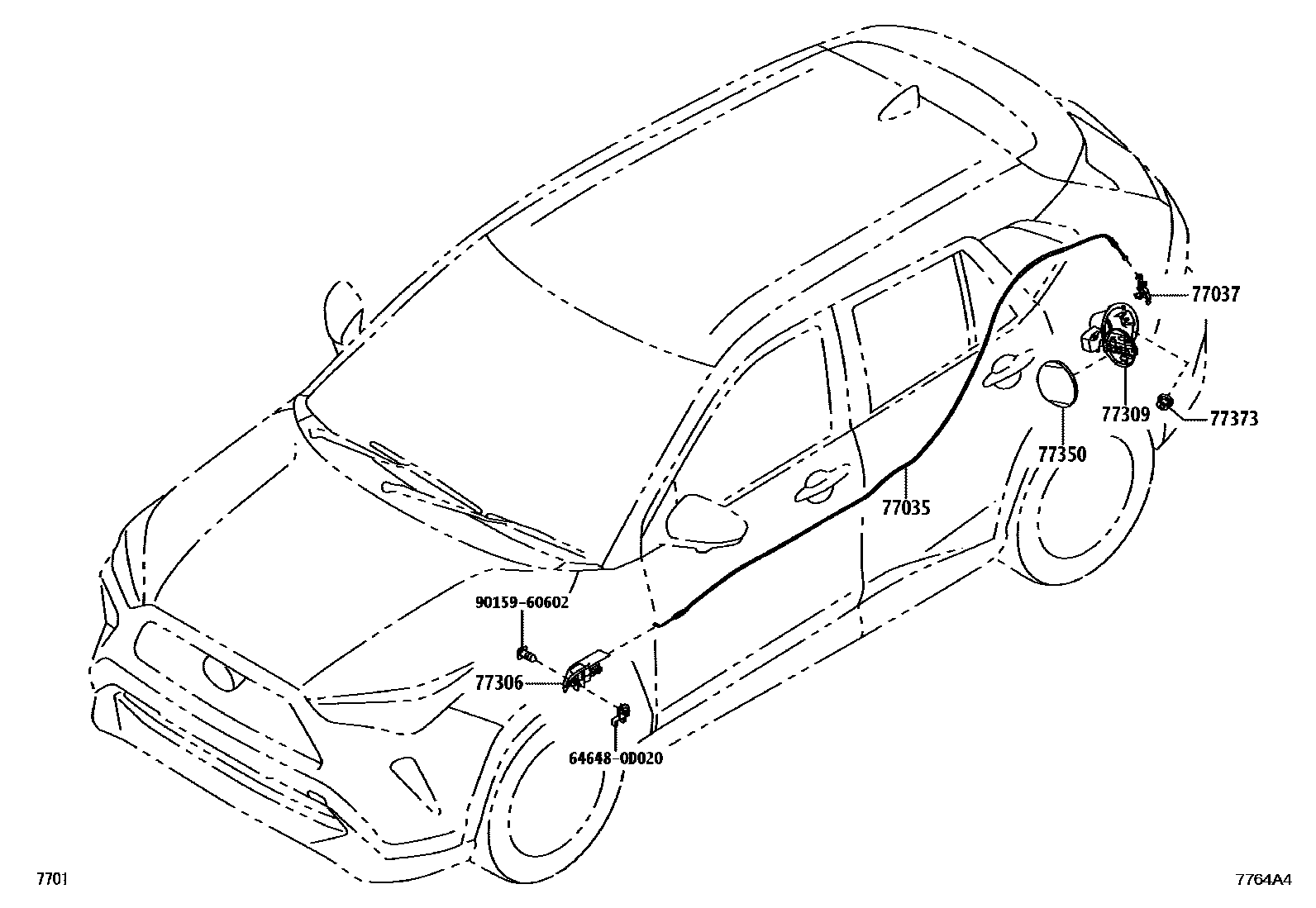

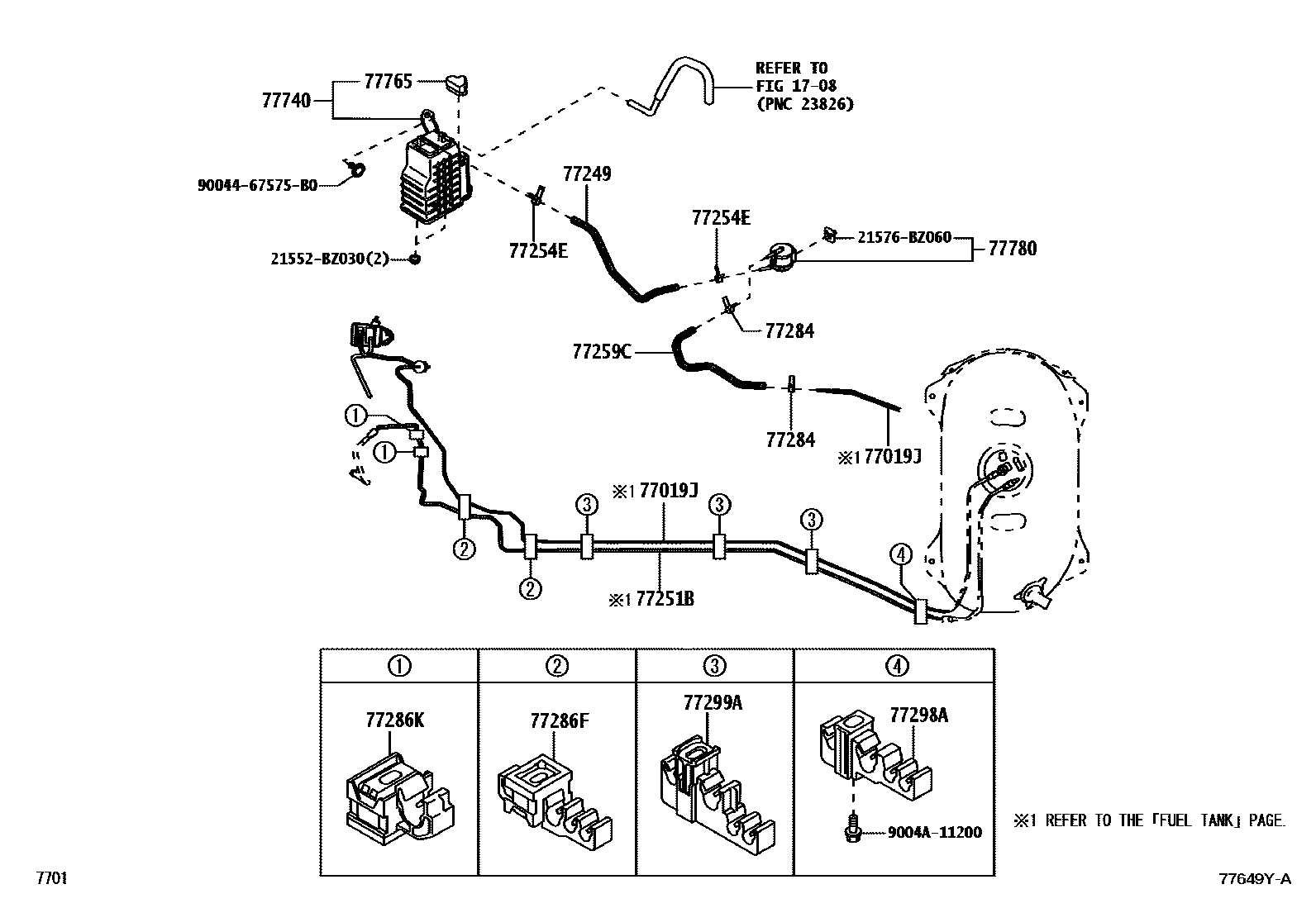

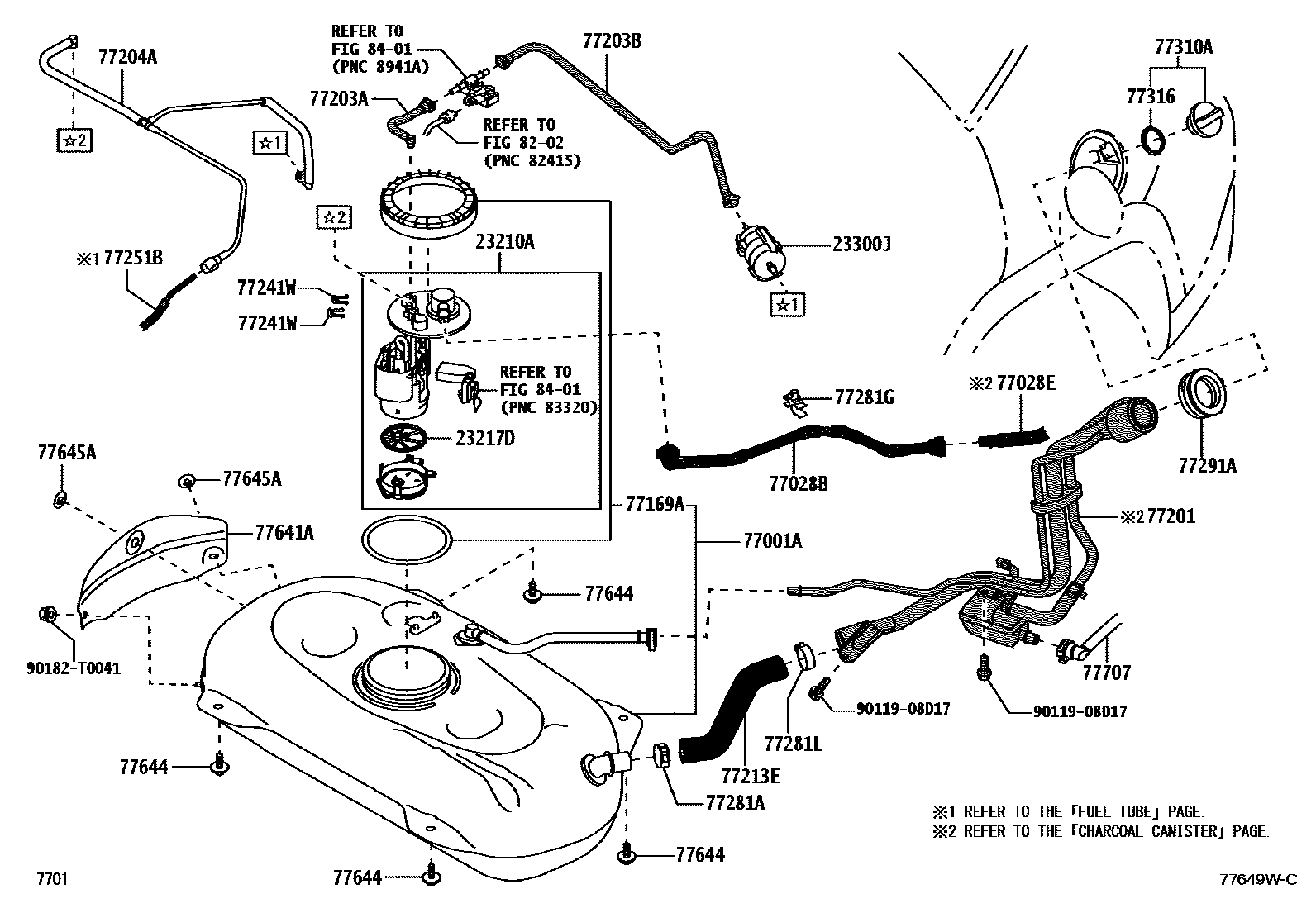

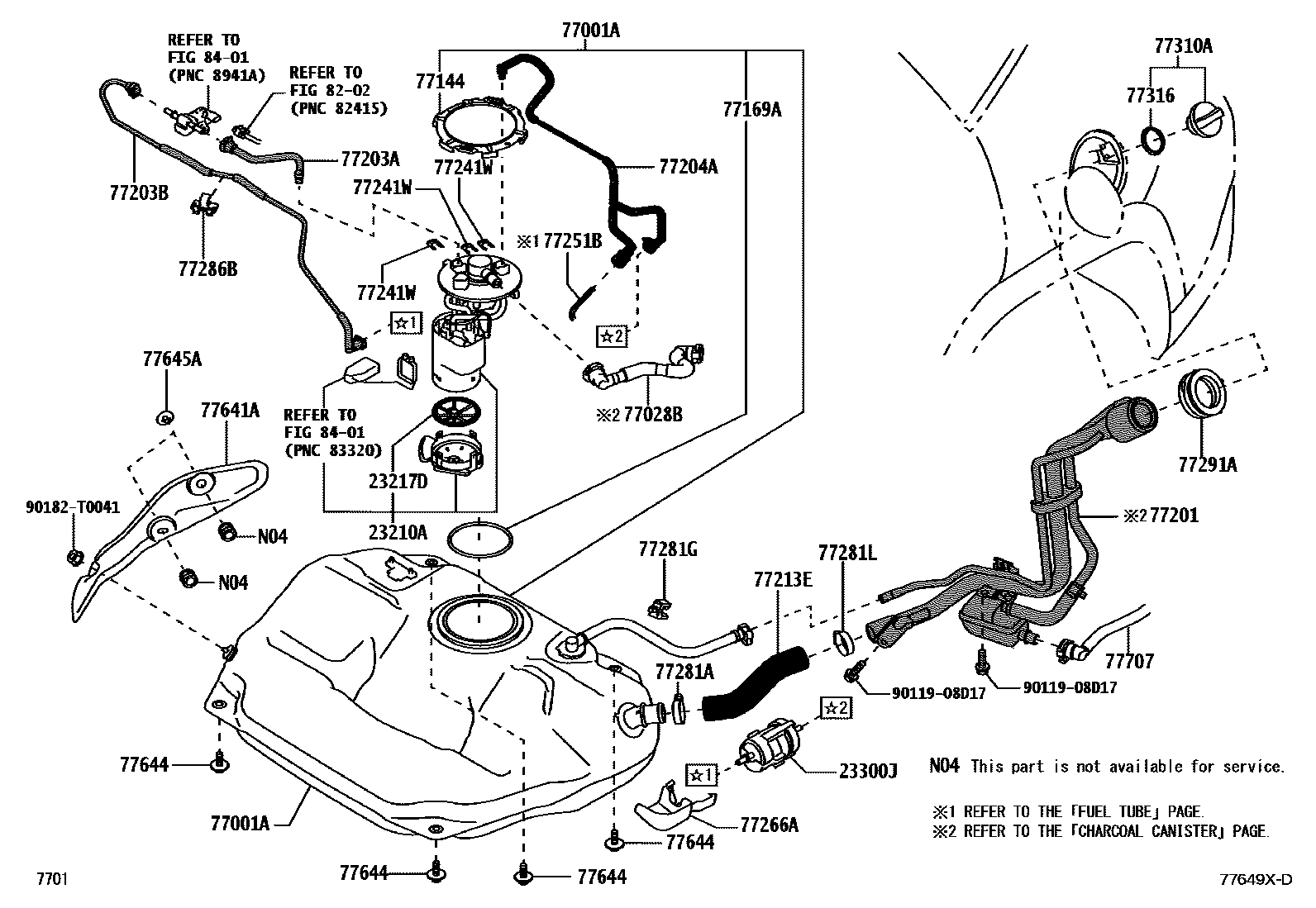

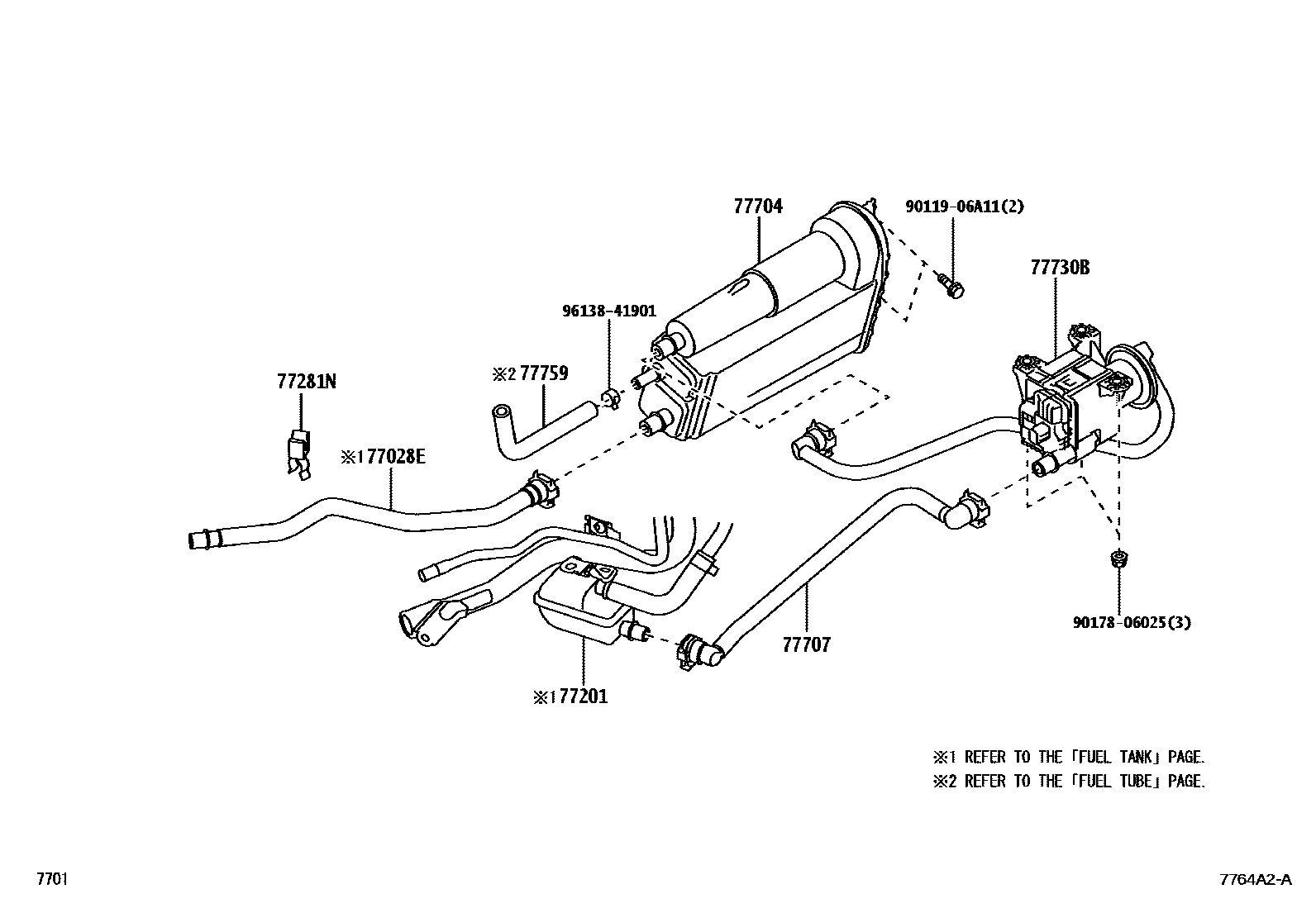

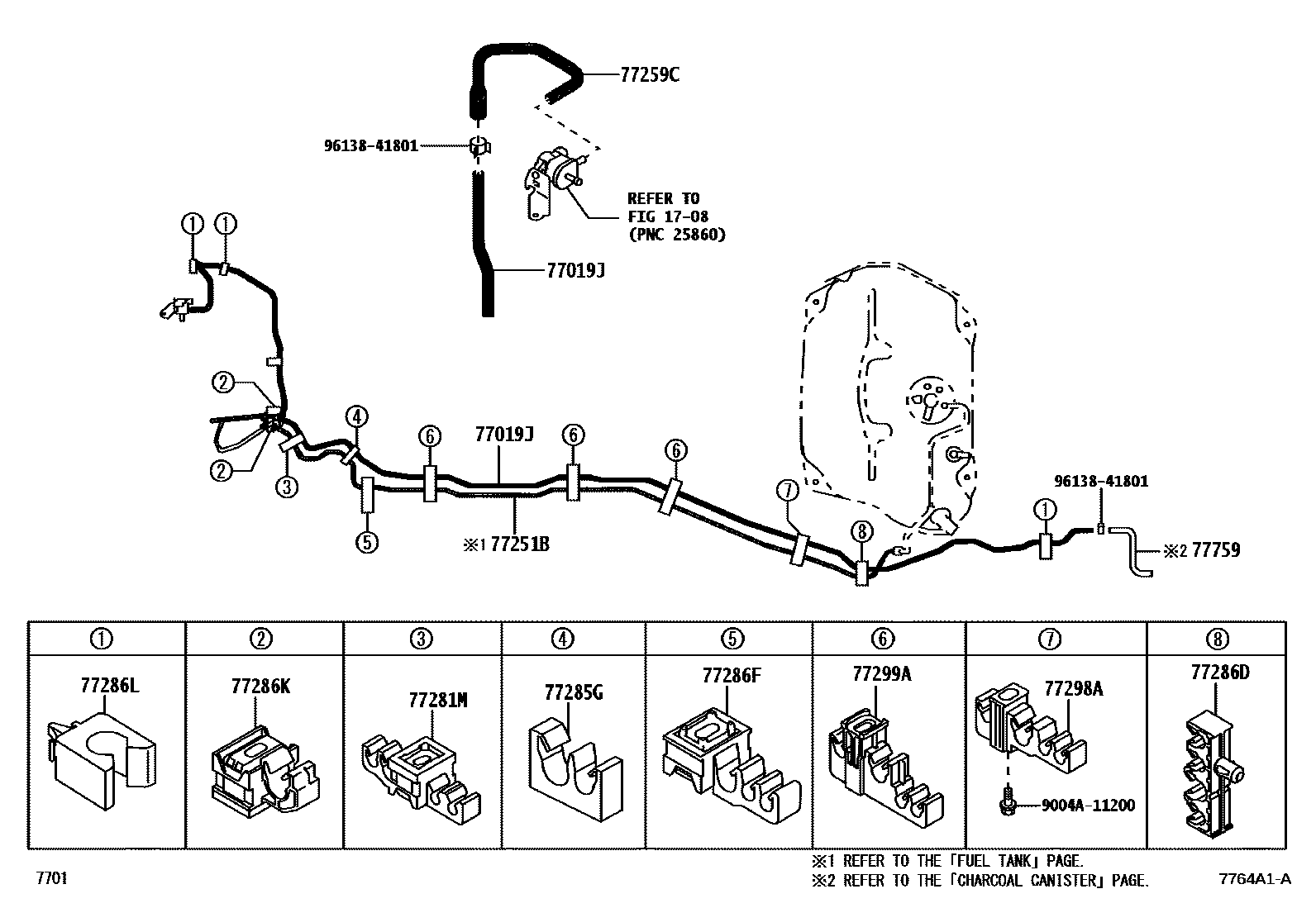

Toyota YARIS 燃油箱和燃油管 — Figure 7701
Toyota YARIS EPC diagram 7701, 燃油箱和燃油管, with 12 images and 71 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23210A | Water pump assembly with motor and bracket | 23210-BZ430 · 23210-BZ480 · 23210-BZ490 · 23210-BZ510 |
| 23217D | fuel pump filter | 23105-BZ020 · 23105-BZ030 · 23217-0Y050 |
| 23220A | Fuel pump assembly with filter | 23220-BZ050 · 23220-BZ070 |
| 23226 | O-ring (for fuel pump) | 9004B-30027 |
| 23300J | fuel filter assembly | 23300-F2030 |
| 77001A | Fuel tank sub-assembly | 77001-BZA10 · 77001-BZA30 · 77001-BZA50 · 77001-BZA70 |
| 77019J | Fuel tank to carbon canister hose sub-assembly | 77263-BZ450 · 77263-BZ460 · 77263-BZ520 · 77263-BZ530 |
| 77028B | No. 3 fuel evaporation pipe sub-assembly | 77028-BZ270 · 77028-BZ280 |
| 77028D | Rear fuel evaporation exhaust pipe sub-assembly | 77028-BZ290 · 77028-BZ300 |
| 77028E | Rear fuel tank to carbon canister hose sub-assembly | 77028-BZ310 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-BZ530 |
| 77037 | Fuel filler cap lock sub-assembly | 77037-BZ160 |
| 77070B | SOUS-ENS. SOUPAPE, FERM RESERVOIR | 90910-15087 |
| 77144 | Fuel pump instrument fixture | 77144-30030 |
| 77169A | Fuel suction pipe fixed gasket | 77169-47030 · 77169-47040 · 77169-BZ340 · 77169-BZ350 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-BZ460 · 77201-BZ470 · 77201-BZ480 · 77201-BZ490 |
| 77202K | Clamp (for breather hose) | 90044-67244 |
| 77203A | Fuel suction pipe sub-assembly | 77203-BZ490 · 77203-BZ510 · 77203-BZ530 · 77203-BZ540 |
| 77203B | Fuel suction pipe sub-assembly | 77203-BZ500 · 77203-BZ520 |
| 77204A | fuel tank return pipe | 77204-BZ070 · 77204-BZ080 |
| 77213E | Fuel tank to filler pipe hose | 77213-B1100 · 77213-B1110 · 77213-BZ450 · 77213-BZ460 |
| 77241W | Pipe joint clip | 77241-33011 |
| 77249 | fuel drain hose | 77249-BZ040 |
| 77251B | main fuel pipe | 77251-BZ560 · 77251-BZ570 · 77251-BZ630 · 77251-BZ640 |
| 77254E | Clamp (for fuel drain hose) | 90044-60327 |
| 77254F | Clamp (for No. 1 fuel drain hose) | 90044-67271 |
| 77259C | fuel hose | 77259-B1060 · 77259-BZ150 · 77259-BZ340 |
| 77259E | fuel hose | 77259-BZ120 |
| 77259G | fuel hose clip | 90044-67229 |
| 77266A | No. 1 fuel line protection device | 77266-BZ020 |
| 77269A | fuel tank breather hose | 77269-BZ320 · 77269-BZ330 |
| 77281A | Fuel filler pipe clamp | 90460-46005 |
| 77281G | fuel hose clamp | 77281-BZ040 · 77281-BZ180 · 77281-BZ190 |
| 77281L | fuel hose clamp | 90460-46005 |
| 77281M | fuel hose clamp | 77286-BZ140 · 77286-BZ200 |
| 77281N | fuel hose clamp | 77281-BZ190 · 77281-BZ200 |
| 77284 | Fuel pipe clamp | 90044-60327 |
| 77285G | No. 1 fuel pipe clamp | 77285-BZ040 |
| 77286B | No. 2 fuel pipe clamp with retaining ring | 77286-BZ230 |
| 77286D | No. 2 fuel pipe clamp | 77286-BZ150 · 77286-BZ210 |
| 77286F | No. 2 fuel pipe clamp | 77286-B2030 · 77286-BZ190 |
| 77286K | No. 2 fuel pipe clamp | 77286-B1010 |
| 77286L | No. 5 fuel pipe clamp | 77286-BZ180 |
| 77288 | Ventilation hose clamp | 90460-22002 |
| 77291A | Fuel tank filler pipe cover | 77291-BZ070 |
| 77298A | No. 4 fuel pipe clamp | 77298-B2020 · 77298-BZ070 |
| 77299A | No. 5 fuel pipe clamp | 77299-B2010 · 77299-BZ070 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-0D070 |
| 77309 | Fuel inlet cover hinge sub-assembly | 77308-BZ170 |
| 77310A | Fuel tank cap assembly | 77300-12020 · 77300-12040 · 77300-33040 |
| 77316 | fuel tank cap gasket | 77316-52040 · 77316-75010 |
| 77350 | Fuel filler cap assembly | 77350-BZ240 |
| 77373 | fuel cap lock nut | 90179-10186 |
| 77377 | Fuel filler cap lock retainer | 77377-33040 |
| 77378A | Fuel filler cap lock cover | 77378-BZ020 |
| 77404 | Fuel tank vent hose sub-assembly | 77404-BZ040 |
| 77641A | No. 1 fuel tank protective shell | 77641-BZ210 · 77641-BZ220 |
| 77644 | fuel tank bolt | 90041-20369 |
| 77645A | Fuel tank protective shell fixings | 77645-BZ130 |
| 77651A | No. 1 fuel tank liner | 77651-BZ040 |
| 77652 | No. 1 fuel tank liner | 77651-BZ080 |
| 77652A | No. 2 fuel tank liner | 77651-BZ050 |
| 77653A | No. 3 fuel tank liner | 77651-BZ060 |
| 77704 | Carbon canister sub-assembly | 77740-12770 · 77740-16280 |
| 77707 | Carbon canister outlet hose sub-assembly | 77707-BZ010 · 77707-BZ020 |
| 77730B | Carbon canister assembly with outlet hose | 77730-B1010 |
| 77740 | Carbon canister assembly | 77740-BZ140 |
| 77751 | Carbon canister base bracket | 77751-BZ020 |
| 77759 | Carbon canister hose | 77759-B1020 · 77759-B1030 |
| 77765 | Carbon canister protective cover | 21133-BZ030 |
| 77780 | Purge control valve assembly | 17660-BZ070 · 23122-BZ090 |
