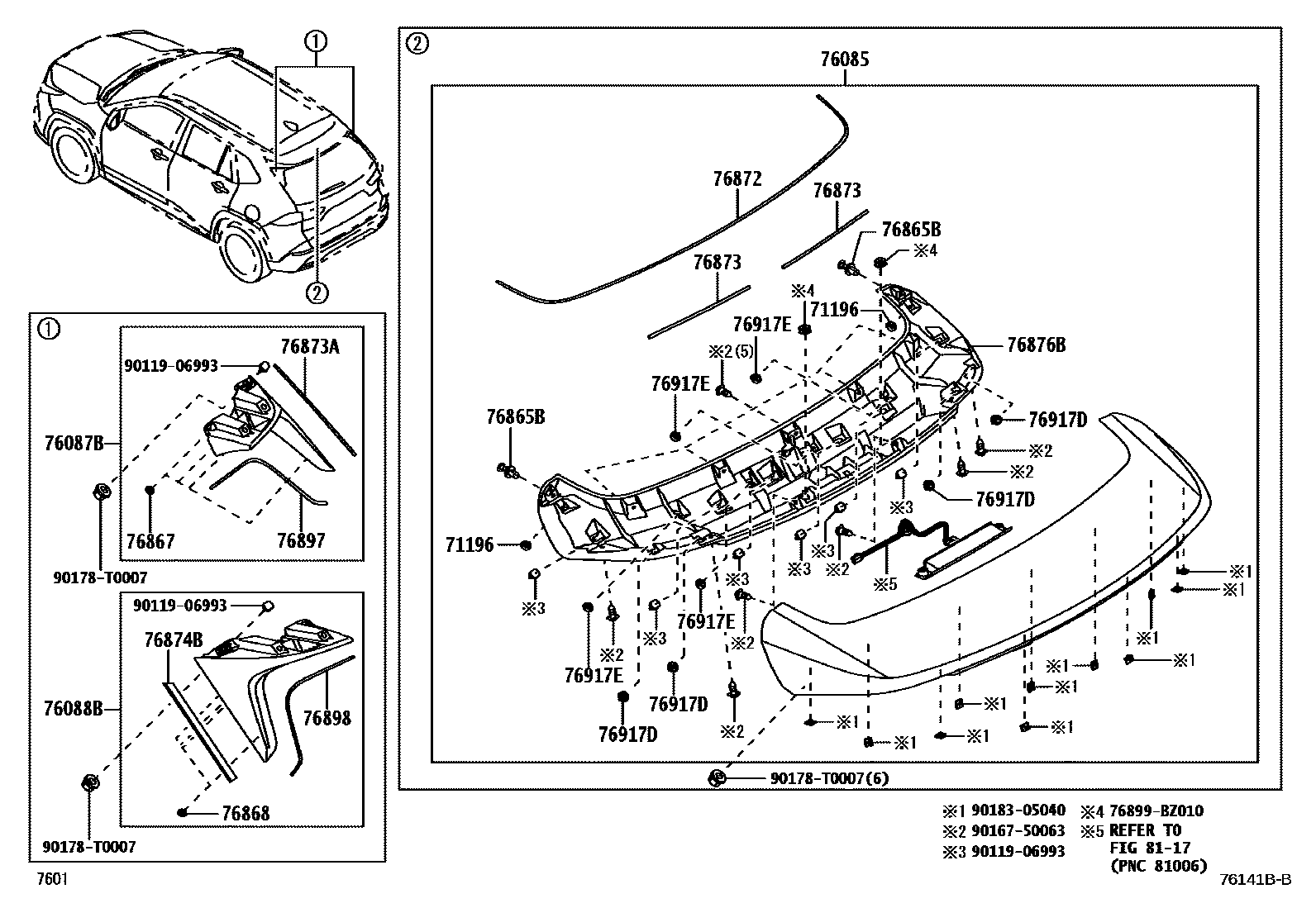

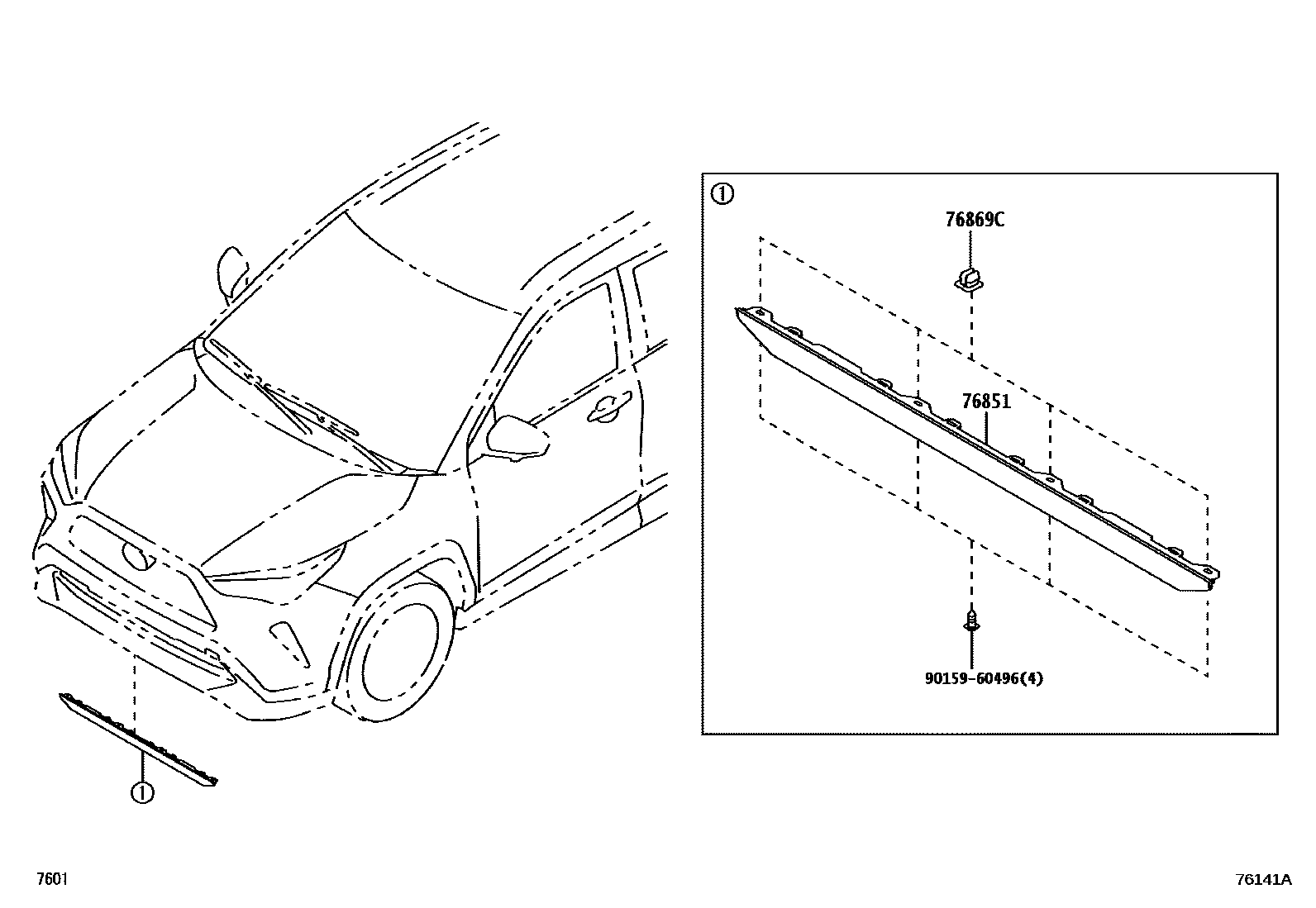

Toyota YARIS 挡泥板和扰流板 — Figure 7601
Toyota YARIS EPC diagram 7601, 挡泥板和扰流板, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71196 | Clip (for rear spoiler) | 90044-67500 |
| 76085 | Rear spoiler sub-assembly | 76085-BZ905 |
| 76087B | Right rear spoiler sub-assembly | 76087-BZ160 |
| 76088B | Left rear spoiler sub-assembly | 76088-BZ160 |
| 76851 | front spoiler cover | 76851-BZ270 |
| 76865B | Rear spoiler fixings | 90467-05170 |
| 76867 | Right rear spoiler fixing | 90044-67500 |
| 76868 | Left rear spoiler fixing | 90044-67500 |
| 76869C | No. 1 screw seal | 90189-06237 |
| 76872 | No. 1 rear spoiler protective strip | 76872-BZ170 |
| 76873 | No. 2 rear spoiler protective strip | 76873-BZ130 |
| 76873A | Right rear spoiler protective strip | 76873-BZ140 |
| 76874B | Left rear spoiler protective strip | 76874-BZ120 |
| 76876B | Rear spoiler insert | 76876-BZ010 |
| 76897 | Right rear spoiler protection strip | 76887-BZ430 |
| 76898 | Left rear spoiler protection strip | 76887-BZ430 |
| 76917D | clip | 90467-09232 |
| 76917E | clip | 90467-T0019 |
