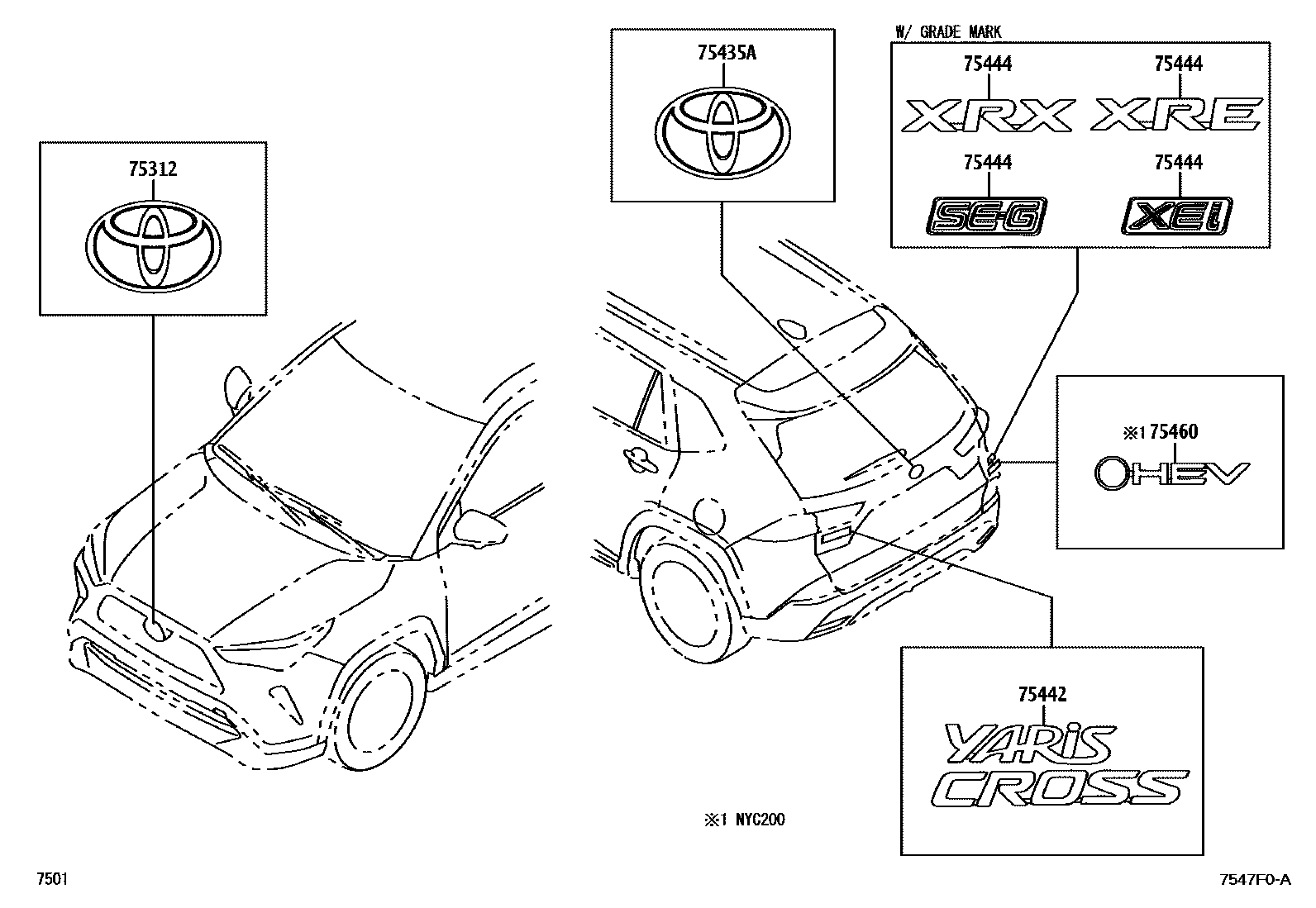

Toyota YARIS 丰田徽标和铭牌(车外和车内) — Figure 7501
Toyota YARIS EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75312 | Radiator grille plate base | 75312-BZ210 |
| 75435A | Rear door trim | 75432-BZ060 |
| 75442 | Trunk door number plate No. 2 | 75442-BZ440 |
| 75444 | Trunk door No. 4 nameplate | 75444-02F40 · 75444-02F60 · 75444-0A060 · 75444-0A080 |
| 75460 | Rear sign assembly | 75440-BZ070 |
