Toyota YARIS 警示铭牌(车外和车内) — Figure 7403

Toyota YARIS EPC diagram 7403, 警示铭牌(车外和车内), with 3 images and 10 PNC and OE references.

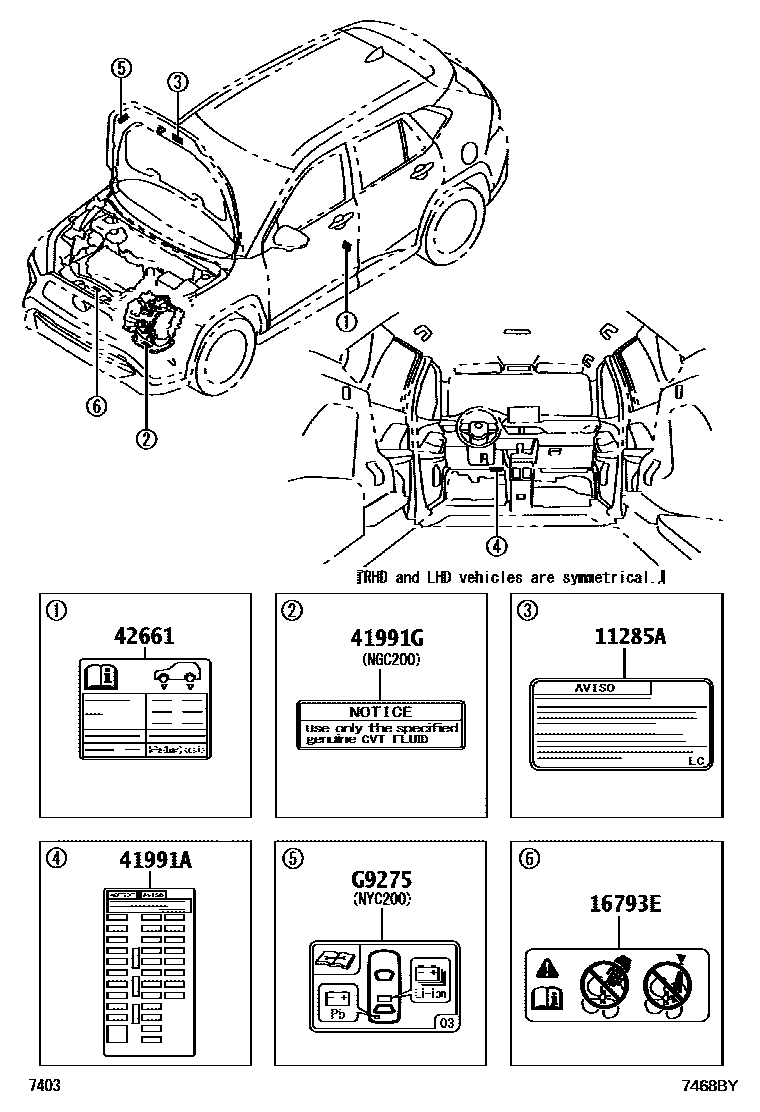

Toyota YARIS 警示铭牌(车外和车内) EPC diagram — 7468BY
警示铭牌(车外和车内) — 7468BY (202510 – 999999)

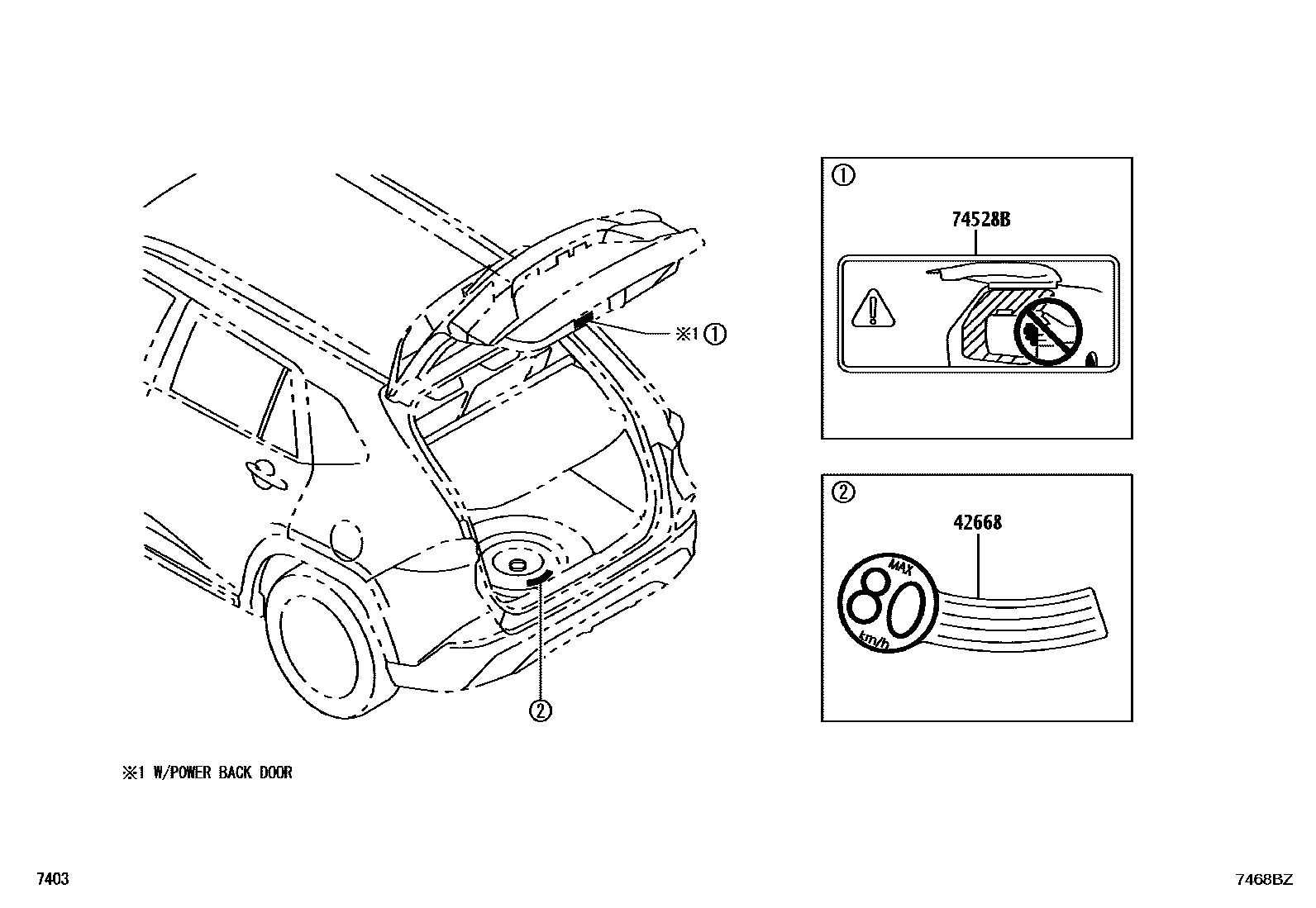

Toyota YARIS 警示铭牌(车外和车内) EPC diagram — 7468BZ
警示铭牌(车外和车内) — 7468BZ (202510 – 999999)

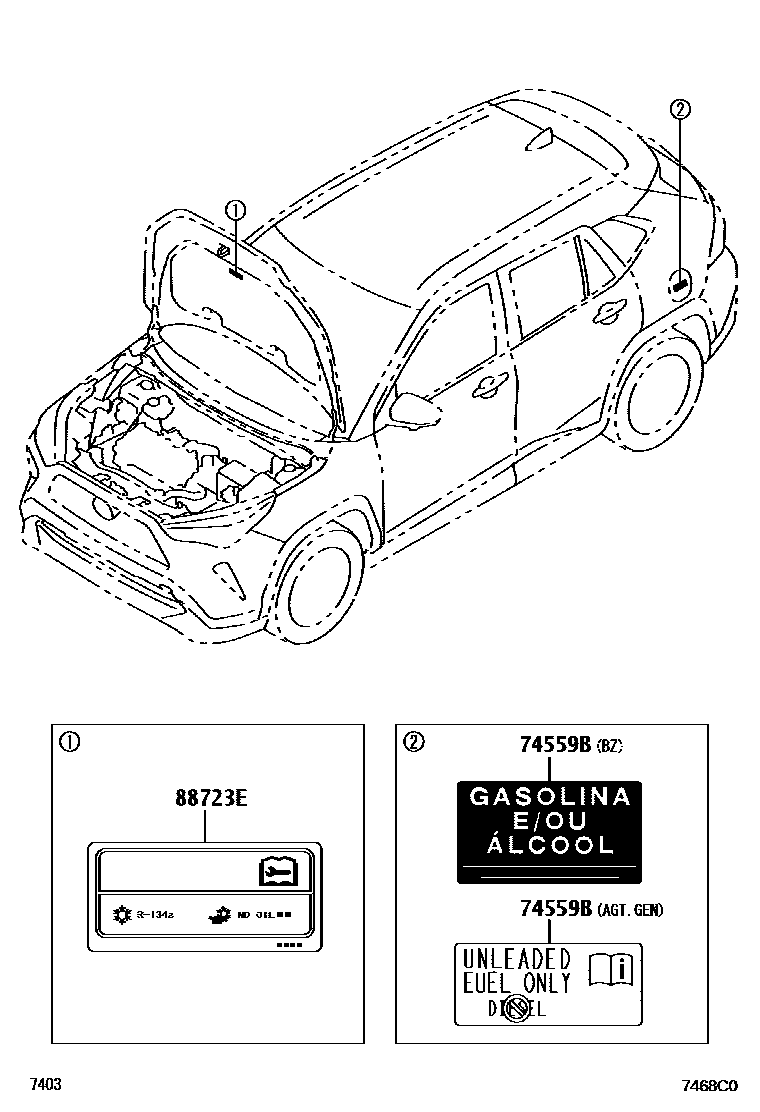

Toyota YARIS 警示铭牌(车外和车内) EPC diagram — 7468C0
警示铭牌(车外和车内) — 7468C0 (202510 – 999999)

PNC and OE references

PNCPart nameOE numbers
11285ACoolant System Caution Labels11285-BZ150
16793ECooling fan warning label16793-36030
41991Awarning nameplate41991-BZ280
41991GWarning Label No. 133621-B2010
42661tire pressure information label42661-BZG60 · 42661-BZG70
42668Small spare tire warning label42668-0D050
74528BBack door warning label74528-47020
74559Bfuel information label74559-02040 · 74559-20140
88723ECooler maintenance warning label88723-BZ040 · 88723-BZ050
G9275No. 1 battery warning labelG9275-BZ010
