Toyota YARIS battery holder — Figure 7402

Toyota YARIS EPC diagram 7402, battery holder, with 2 images and 6 PNC and OE references.

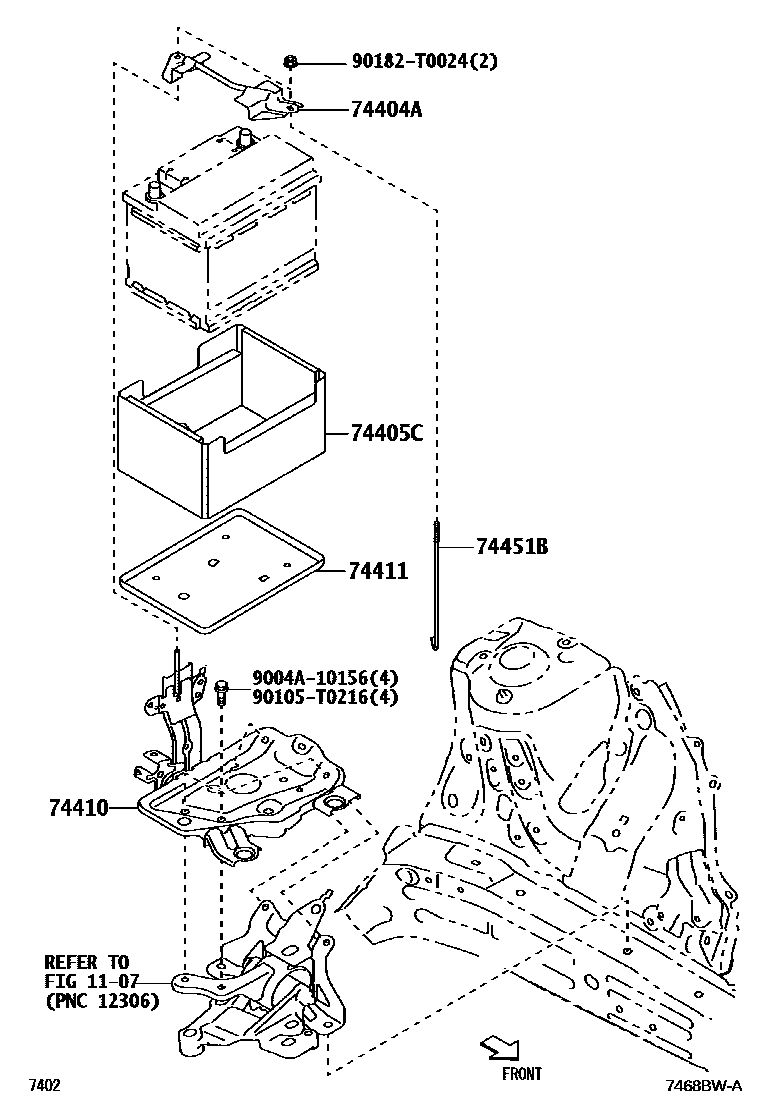

Toyota YARIS battery holder EPC diagram — 7468BWA
battery holder — 7468BWA (202510 – 999999)

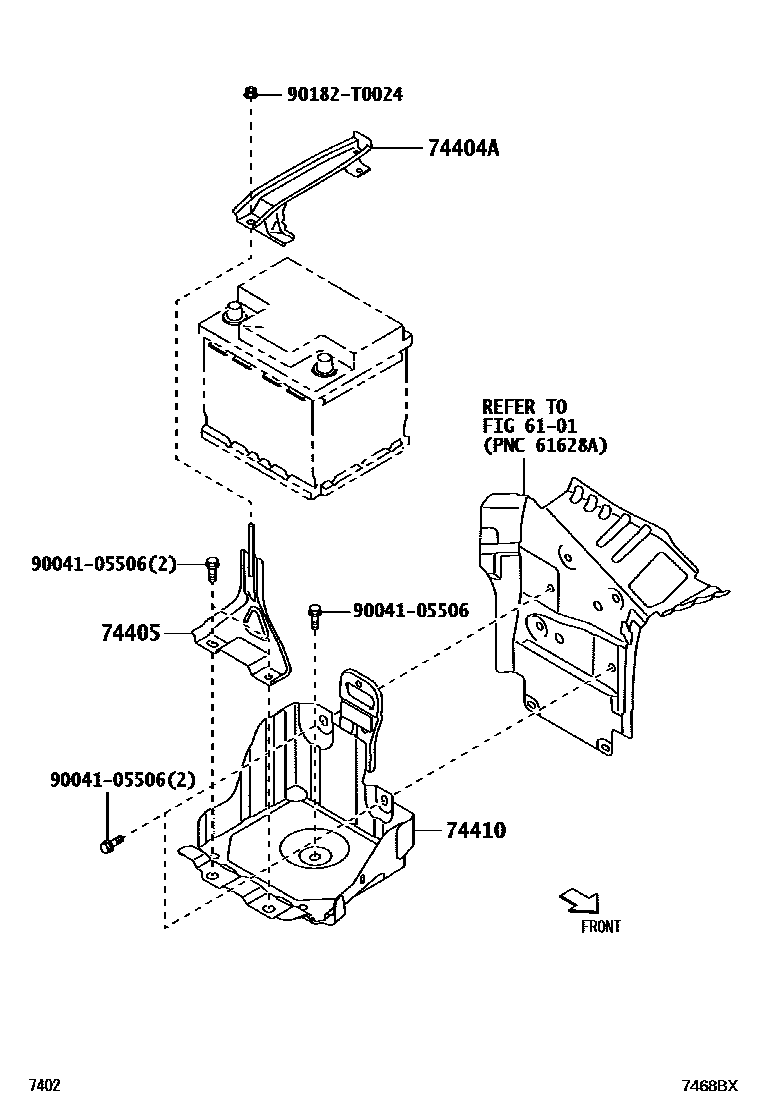

Toyota YARIS battery holder EPC diagram — 7468BX
battery holder — 7468BX (202510 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-BZ220 · 74404-BZ230
74405No. 2 battery clip sub-assembly74405-BZ140
74405CBattery cover sub-assembly74405-BZ160 · 74405-BZ170
74410Battery bracket assembly74410-BZ110 · 74410-BZ120 · 74410-BZ140
74411battery holder74411-BZ150 · 74411-BZ230
74451BBattery clamp bolt74451-BZ090
