Toyota YARIS 后排座椅和座椅滑轨 — Figure 7102

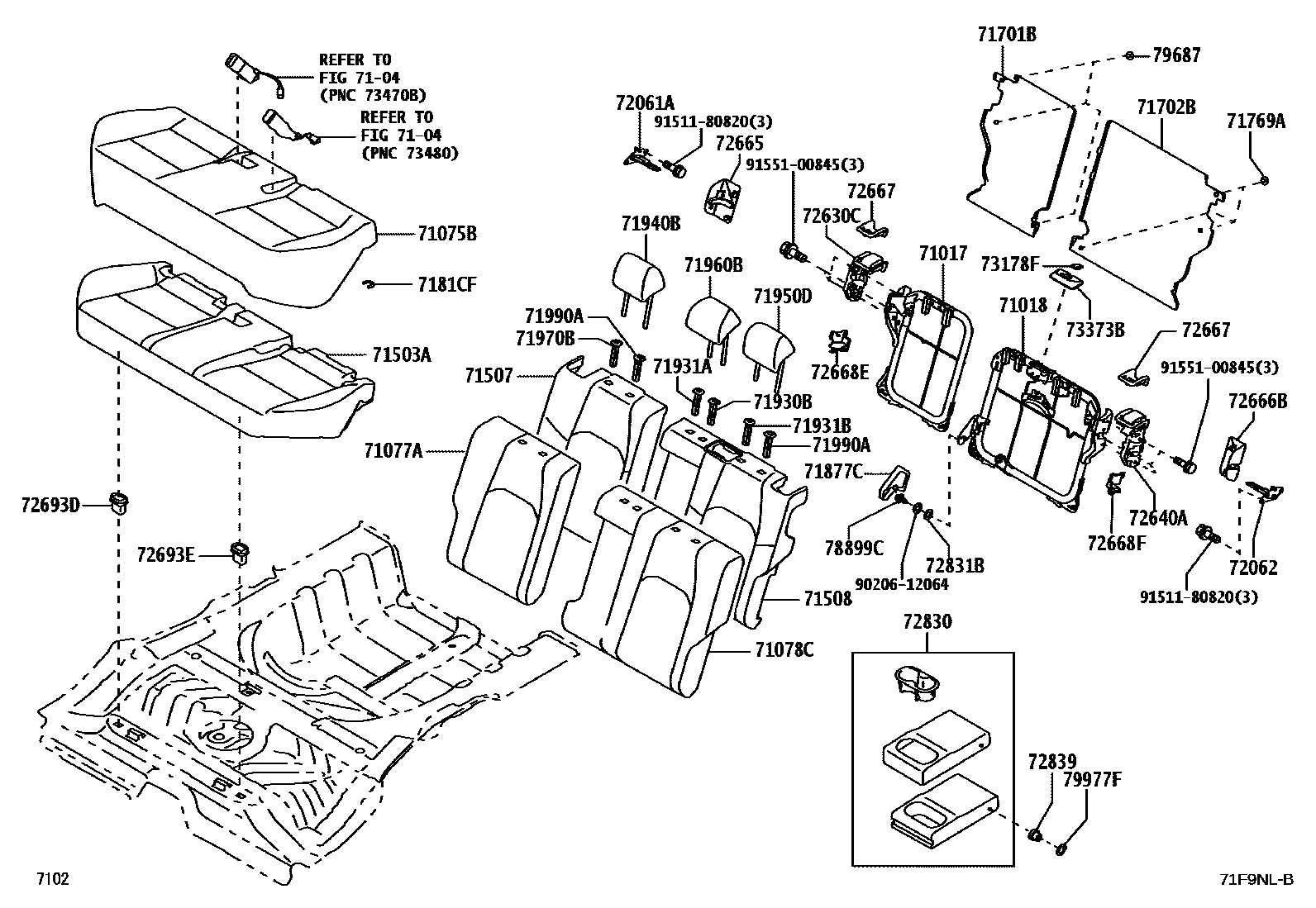

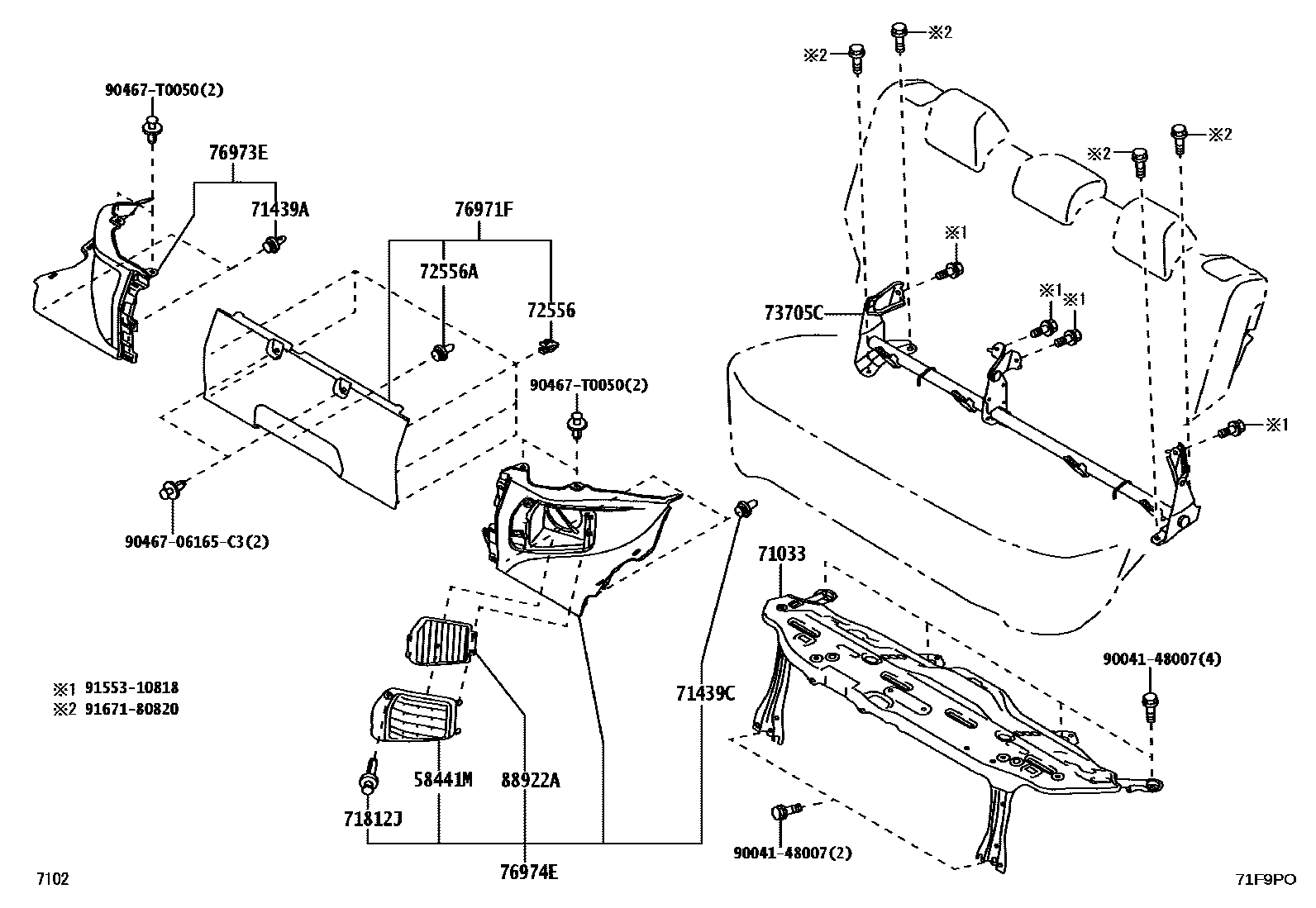

Toyota YARIS EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-BZ520 |
| 71018 | Rear left seat back frame sub-assembly | 71018-BZ380 |
| 71033 | Rear seat cushion and leg sub-assembly | 71033-BZ110 |
| 71439A | clip | 90467-T0019 |
| 71439C | clip | 90467-T0019 |
| 71503A | Rear seat cushion sub-assembly | 71503-BZ790 · 71503-BZ800 |
| 71507 | Rear right seat back cushion sub-assembly | 71507-BZ700 |
| 71508 | Rear left seat back cushion sub-assembly | 71508-BZ470 |
| 71701B | Rear right seat back panel sub-assembly | 71701-BZ050 |
| 71702B | Rear left seat back panel sub-assembly | 71702-BZ050 |
| 71769A | Rear seat back panel clip | 71769-28040 |
| 7181CF | Small clamp ring (for rear seat cushion) | 90468-18008 |
| 71877C | Rear left seat armrest hole cover | 71877-BZ070 |
| 72061A | Rear right seat back lock base sub-assembly | 72061-BZ010 |
| 72062 | Rear left seat back lock base sub-assembly | 72062-BZ010 |
| 72556 | Clip (for rear seats) | 90467-05172 |
| 72556A | Clip (for rear seats) | 90467-T0019 |
| 72668E | Rear lower right seat back lock frame | 72668-BZ110 |
| 72668F | Rear lower left seat back lock frame | 72668-BZ120 |
| 72693D | Rear right seat cushion lock hook | 72693-12080 |
| 72693E | Rear left seat cushion lock hook | 72693-12080 |
| 72831B | No. 1 rear seat center armrest panel | 72831-BZ050 |
| 72839 | Rear seat armrest hinge gasket | 72839-22010 |
| 73705C | Child restraint seat anchor bracket sub-assembly | 73705-BZ180 |
| 78899C | Rear auxiliary seat bolt | 78899-60070 |
| 79687 | clip | 71769-28040 |
| 79977F | Left seat backrest felt pad | 79977-BZ060 |
| 88922A | Air Cleaner | G92DH-K0010 |
