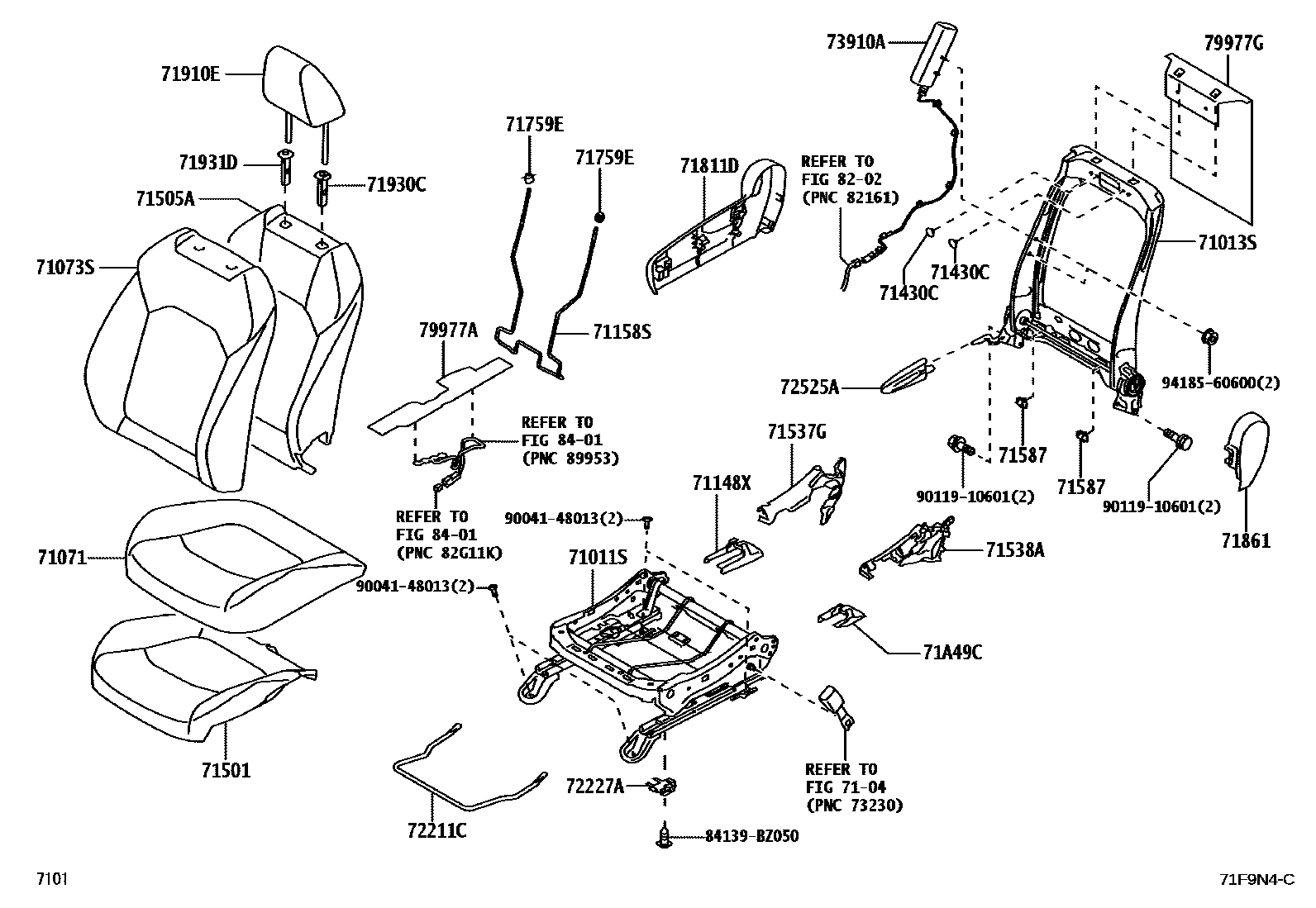

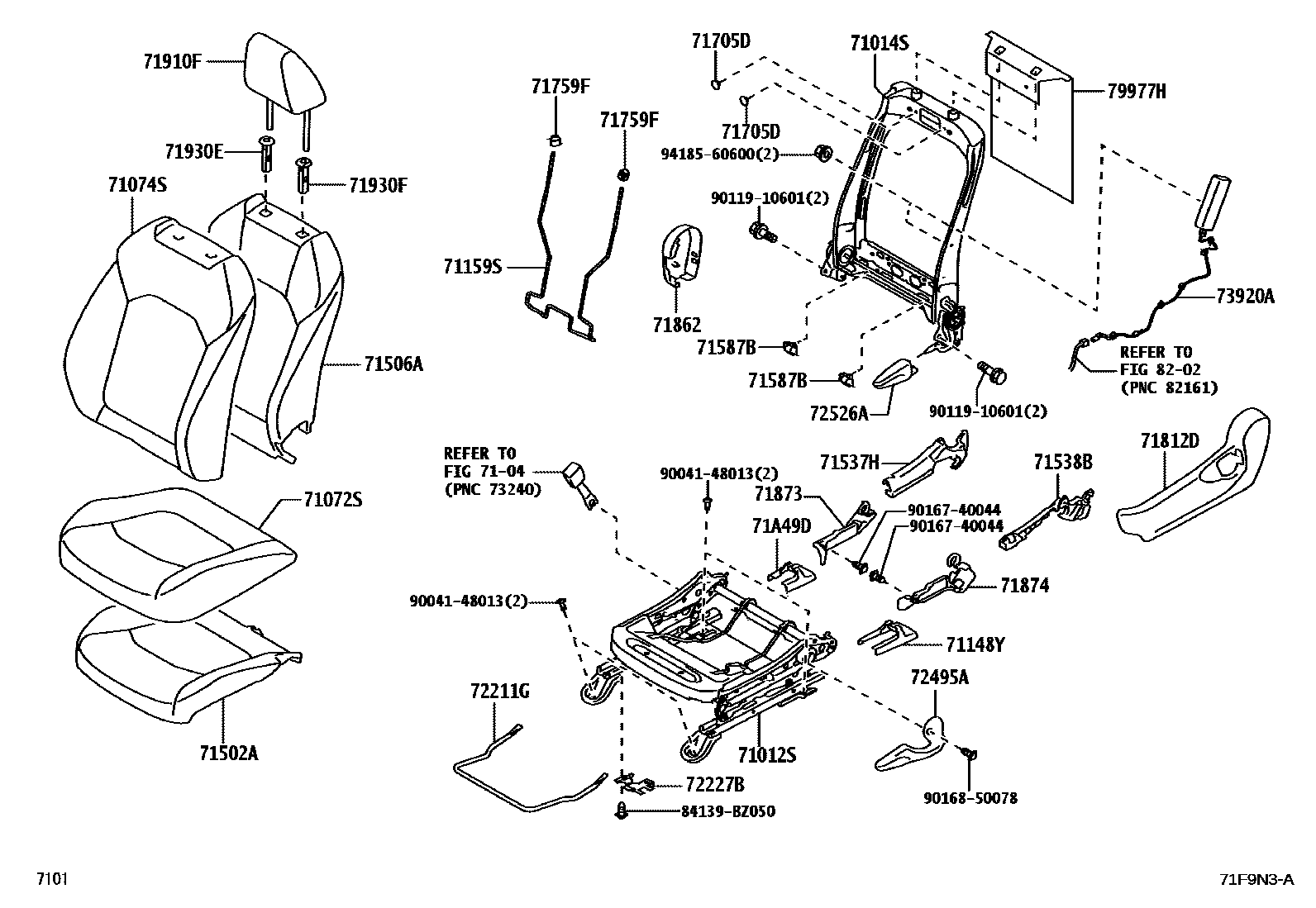

Toyota YARIS 前排座椅和座椅滑轨 — Figure 7101
Toyota YARIS EPC diagram 7101, 前排座椅和座椅滑轨, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71011S | Front right seat cushion frame sub-assembly | 71011-BZ190 |
| 71012S | Front left seat cushion frame sub-assembly | 71012-BZ160 |
| 71013S | Front right seat back frame sub-assembly | 71013-BZ210 |
| 71014S | Front left seat back frame sub-assembly | 71014-BZ200 |
| 71158S | Front right seat back frame | 71157-BZ130 |
| 71159S | Front left seat back frame | 71157-BZ130 |
| 71430C | clip | 71769-BZ030 |
| 71501 | Front right seat cushion sub-assembly | 71501-BZ780 |
| 71502A | Front left seat cushion sub-assembly | 71502-BZ410 |
| 71505A | Front right seat back cushion sub-assembly | 71505-BZ770 |
| 71506A | Front left seat back cushion sub-assembly | 71506-BZ620 |
| 71587 | Front seat back edge protective cover | 71587-BZ020 |
| 71587B | Front seat back edge protective cover | 71587-BZ020 |
| 71705D | Front seat back panel clip | 71769-BZ030 |
| 71759E | Front seat right backrest hook | 71759-BZ070 |
| 71759F | Front seat left backrest hook | 71759-BZ070 |
| 72211C | Seat slide adjustment handle | 72211-0D240 |
| 72211G | Left seat slide adjustment handle | 72211-0D240 |
| 72227A | Right No. 2 seat slide rail bracket | 72226-BZ040 |
| 72227B | Left No. 2 seat slide rail bracket | 72226-BZ080 |
| 73910A | Front right seat airbag assembly | 73910-BZ200 |
| 73920A | Front left seat airbag assembly | 73920-BZ190 |
| 79977A | Seat back felt pad | 79977-BZ090 |
| 79977G | Front seat back right felt pad | 79977-BZ080 |
| 79977H | Felt pad, left side of front seat backrest | 79977-BZ080 |
