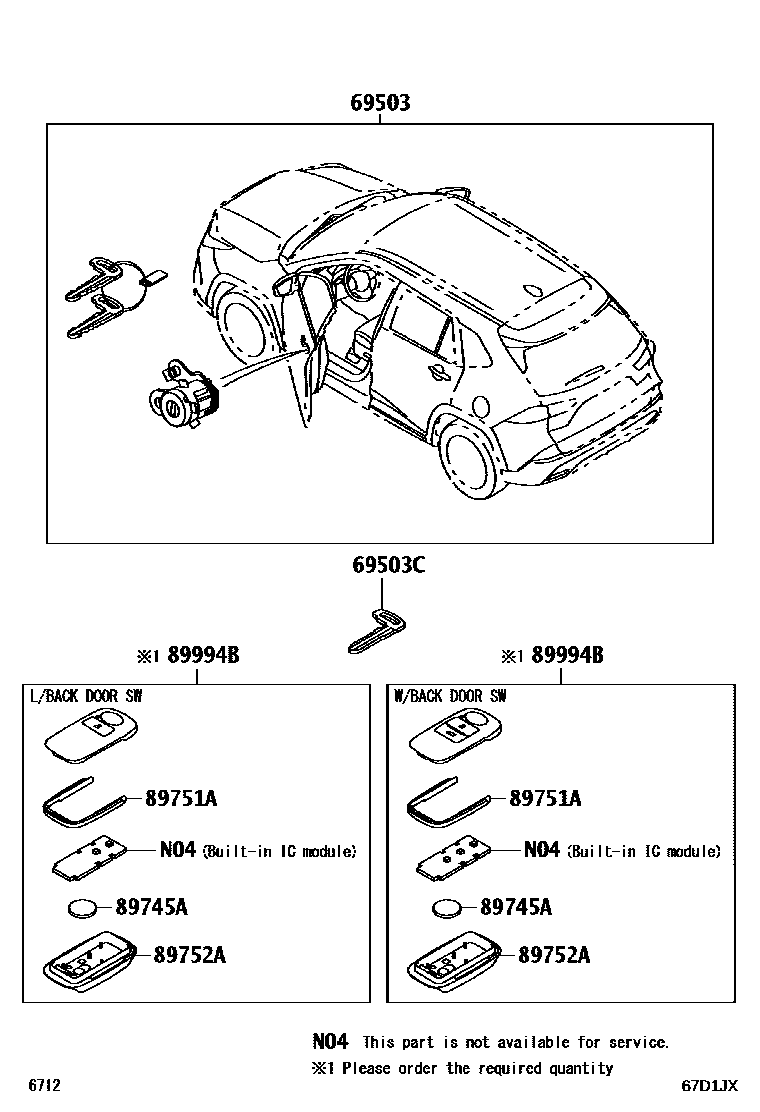

Toyota YARIS 锁芯组件 — Figure 6712
Toyota YARIS EPC diagram 6712, 锁芯组件, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503 | Door lock cylinder components | 69005-BZK60 |
| 69503C | Deputy key | 69516-BZ110 |
| 89745A | Transmitter battery | 89745-BZ090 |
| 89751A | Transmitter housing cover | 89751-BZ210 |
| 89752A | transmitter housing | 89752-BZ260 |
| 89994B | electronic key transmitter | 89994-BZ380 · 89994-BZ390 |
