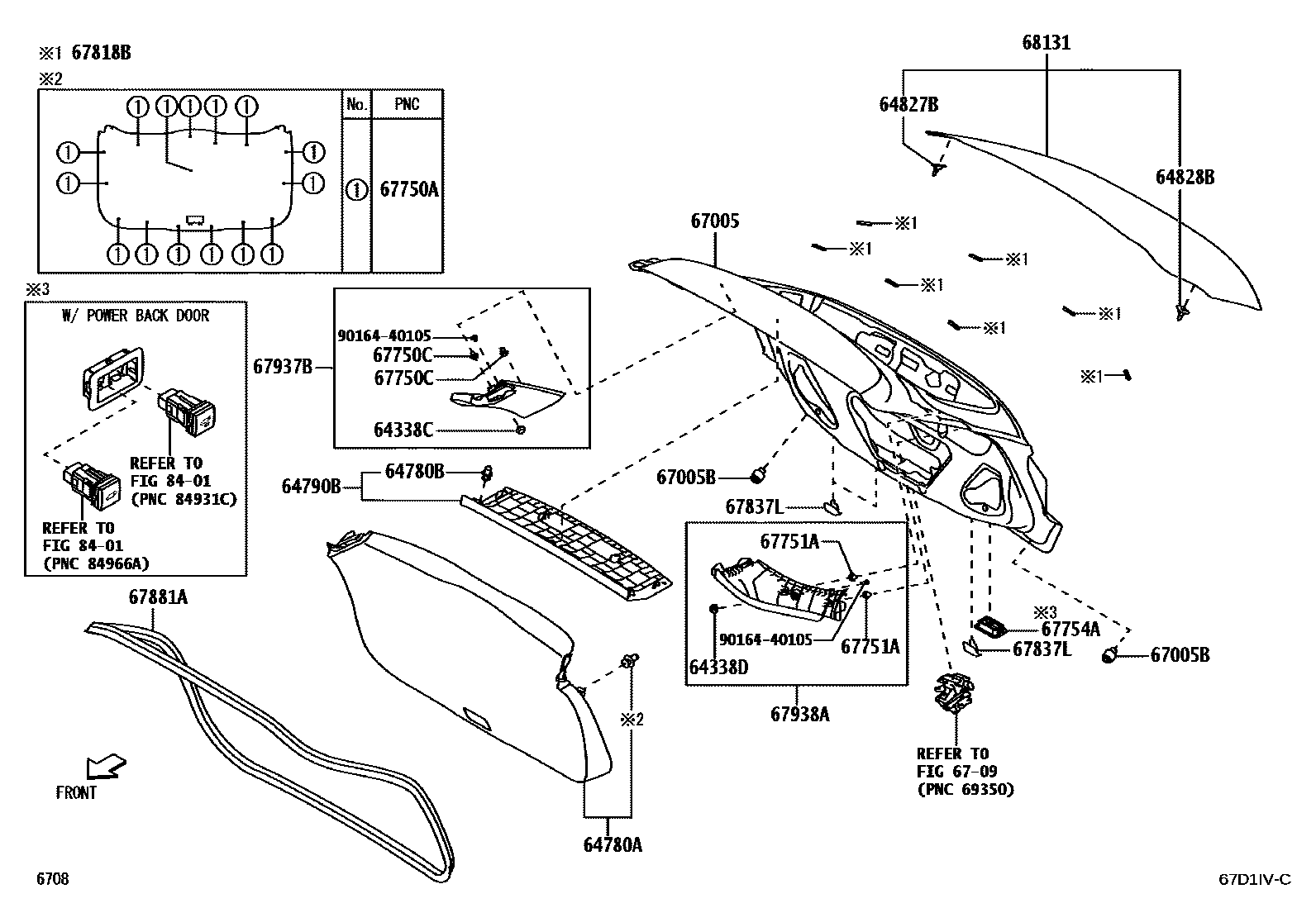

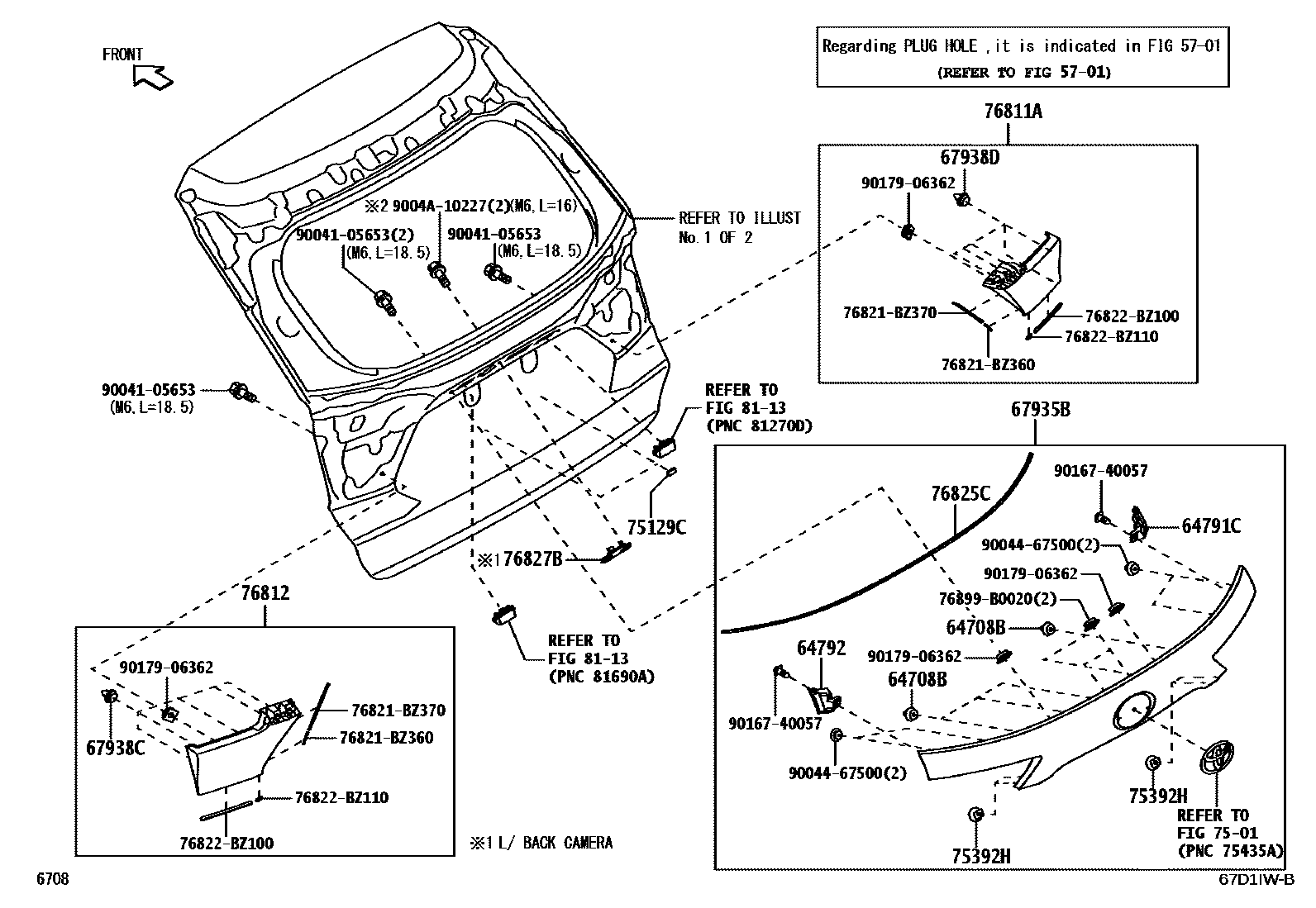

Toyota YARIS 背门板和背门玻璃 — Figure 6708
Toyota YARIS EPC diagram 6708, 背门板和背门玻璃, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64708B | Rear door decorative panel clip | 90467-T0019 |
| 64780B | Clip (for rear door trim panel) | 90467-10161 |
| 64791C | Decorative cover on the right side of the rear door | 76821-BZ380 |
| 64792 | Decorative cover on the left side of the rear door | 76822-BZ120 |
| 64827B | Catch on the right side of the back window glass | 64827-BZ170 |
| 64828B | Catch on the left side of the back window glass | 64828-BZ140 |
| 67005 | Rear door panel sub-assembly | 67005-BZF10 · 67005-BZF20 |
| 67005B | Cushion pad (for back door panel) | 90541-09142 |
| 67750A | Clip (for rear door trim panel) | 90467-10161 |
| 67750C | AGRAFE FIXATION (PANNEAU GARNITURE HAYON) | 90467-10161 |
| 67751A | Clip (for rear door trim panel) | 90467-10161 |
| 67818B | Back window glass spacer | 64818-BZ090 |
| 67837L | Door dust seal retainer | 67837-BZ030 |
| 67881A | Back door seal | 67881-BZ330 · 67881-BZ340 |
| 67935B | Rear door decorative panel | 76801-BZ907 |
| 67938C | Left side clip (for rear door side trim strip) | 90044-67500 |
| 67938D | AGRAFE FIX. (DE DOUBLURE LATERALE HAYON) | 90044-67500 |
| 68131 | back door glass | 68105-BZ510 |
| 75129C | rear license plate cushion | 75129-0D110 |
| 75392H | External protective strip fixings | 53145-B2030 |
| 76811A | Rear door exterior decorative strip | 76812-BZ904 |
| 76812 | Lower trim strip outside rear door | 76813-BZ904 |
| 76825C | Rear door exterior decorative strip protective cover | 76825-BZ170 |
| 76827B | No. 2 rear door trim strip fixings | 76826-BZ090 |
