Toyota YARIS 后门板和后门玻璃 — Figure 6705
Toyota YARIS EPC diagram 6705, 后门板和后门玻璃, with 3 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

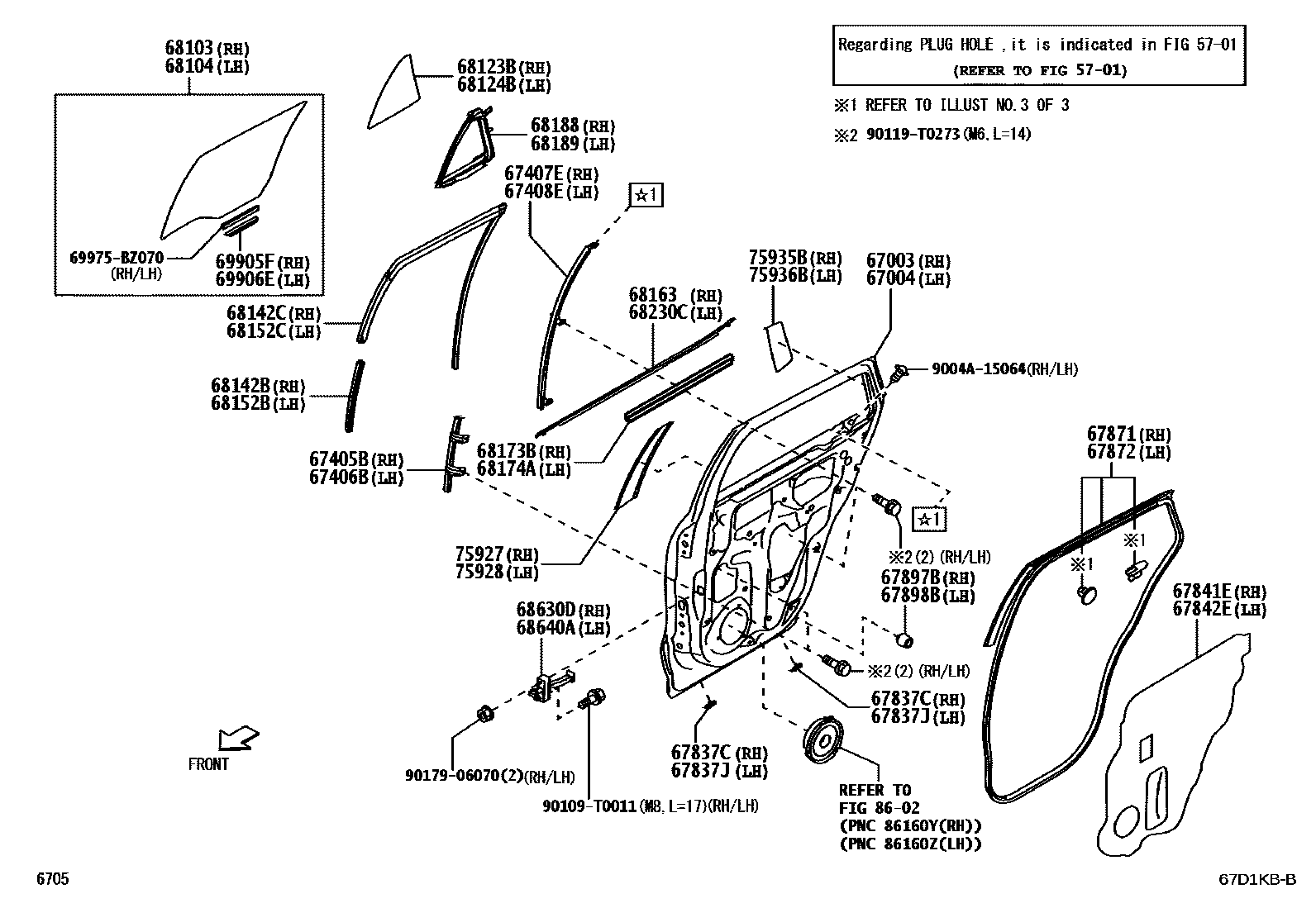

| 67003 | Right rear door panel sub-assembly | 67003-BZ870 |
| 67004 | Left rear door panel sub-assembly | 67004-BZ870 |
| 67405B | Right rear door window glass front guide groove sub-assembly | 67405-BZ100 |
| 67406B | Left rear door window glass front guide groove sub-assembly | 67406-BZ100 |
| 67407E | Right rear door window divider sub-assembly | 67407-BZ200 |
| 67408E | Left rear door window divider sub-assembly | 67408-BZ200 |

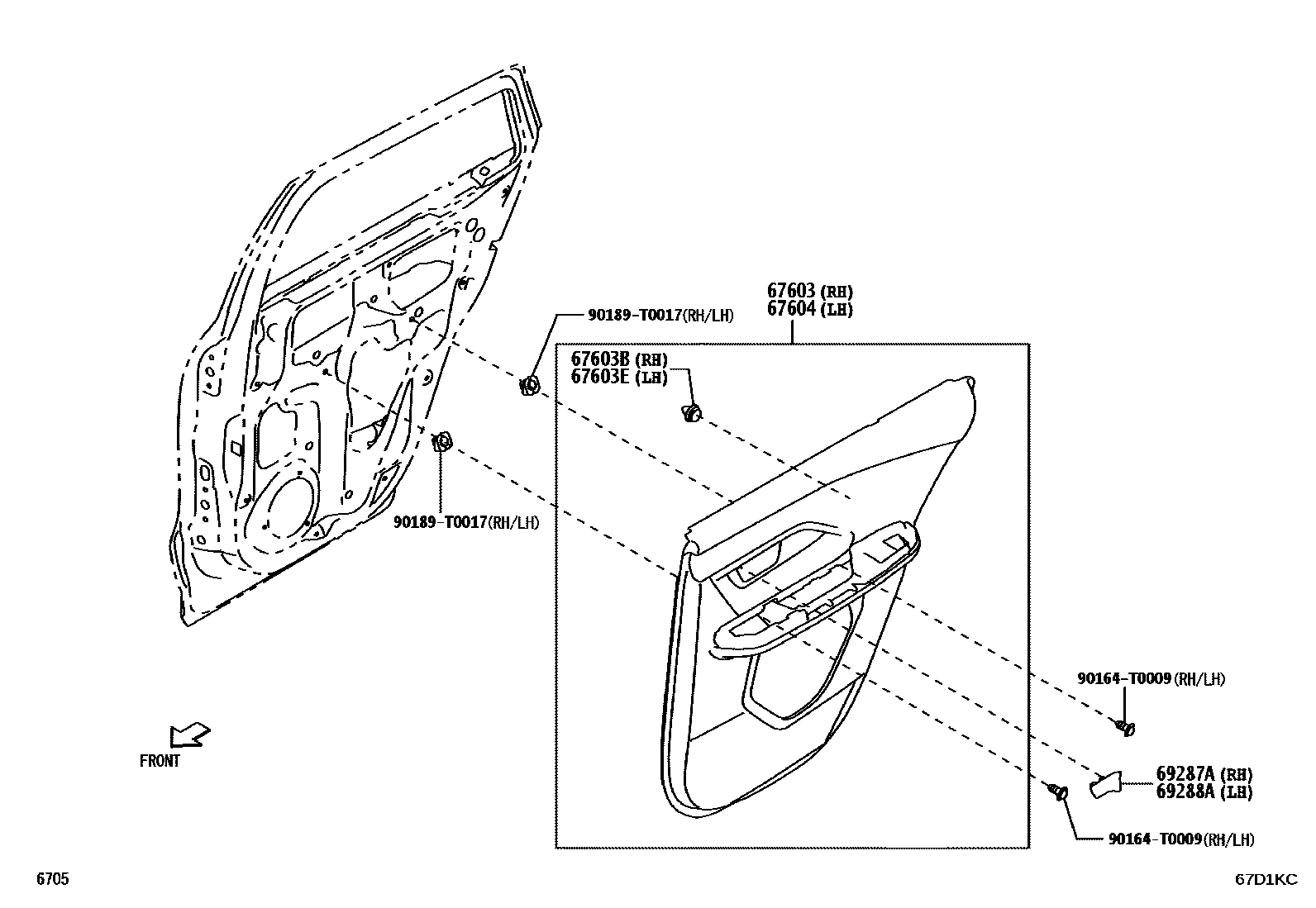

| 67603B | Catch (for rear door trim panel) | 90467-T0019 |
| 67603E | Catch (for rear door trim panel) | 90467-T0019 |
| 67837C | Rear door dust seal retainer | 67837-0K090 |
| 67837J | Door dust seal retainer | 67837-0K090 |
| 67841E | Right rear door access hole cover | 67841-BZ560 |
| 67842E | Left rear door access hole cover | 67842-BZ300 |

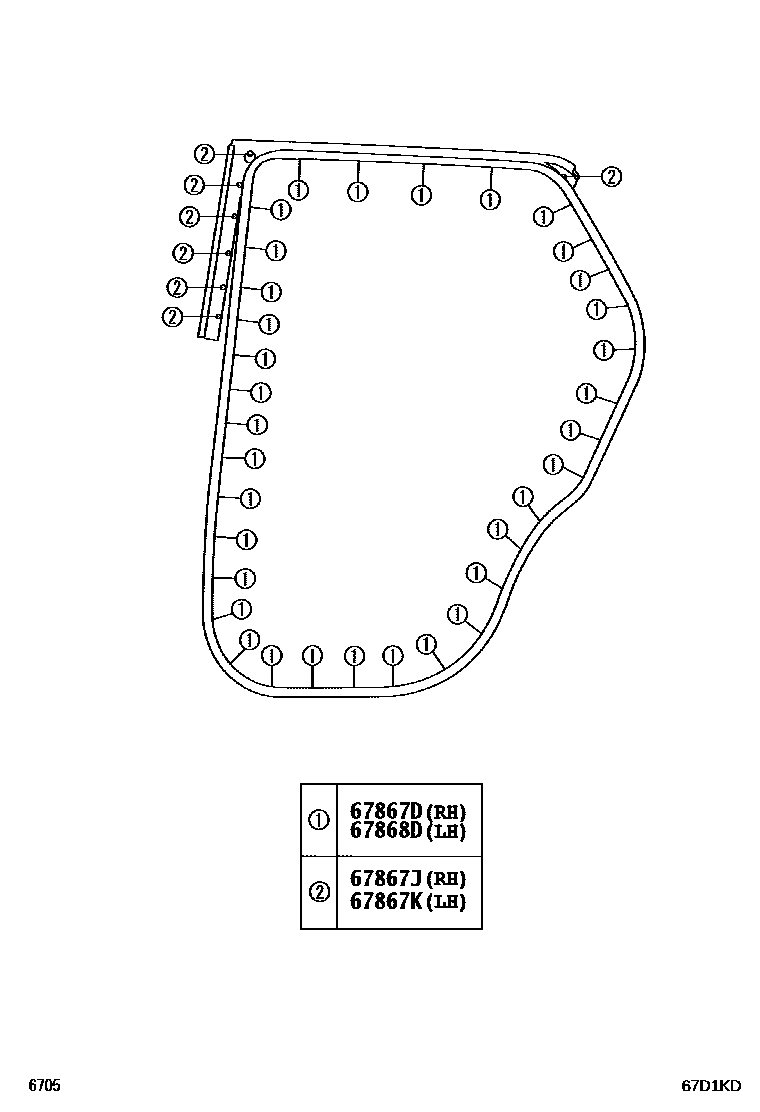

| 67867D | Right rear door seal strip fixing | 67867-BZ490 |
| 67867J | Right door seal strip clip (for rear door) | 9004A-46317 |
| 67867K | Left door seal strip clip (for rear door) | 9004A-46317 |
| 67868D | Left rear door seal strip fixing | 67867-BZ500 |
| 67871 | Right rear door sealing strip | 67871-BZ360 |
| 67872 | Left rear door sealing strip | 67872-BZ360 |
| 67897B | Right rear door cushion | 90541-09124 |
| 67898B | Left rear door cushion | 90541-09124 |
| 68103 | Right rear door glass sub-assembly | 68103-BZ630 |
| 68104 | Left rear door glass sub-assembly | 68104-BZ630 |
| 68123B | Right rear door corner window glass | 68123-BZ230 |
| 68124B | Left rear door corner window glass | 68124-BZ230 |
| 68142B | Right rear door window lift chute | 68144-BZ220 |
| 68142C | Right rear door glass lift slot | 68142-BZ320 |
| 68152B | Left rear door window lift chute | 68144-BZ220 |
| 68152C | Left rear door glass lift slot | 68152-BZ320 |
| 68163 | Rear door glass outer seal strip | 68163-BZ290 · 68163-BZ310 |
| 68173B | Right rear door glass inner sealing strip | 68173-BZ310 |
| 68174A | Left rear door glass inner sealing strip | 68174-BZ310 |
| 68188 | Right rear door corner window seal | 68188-BZ130 |
| 68189 | Left rear door corner window seal | 68189-BZ130 |
| 68230C | Left rear door glass outer sealing strip assembly | 68164-BZ290 · 68164-BZ310 |
| 68630D | Right rear door opening limiter assembly | 68630-BZ280 |
| 68640A | Left rear door opening limiter assembly | 68630-BZ280 |
| 69905F | Right rear door glass groove sub-assembly | 69905-BZ020 |
| 69906E | Left rear door glass groove sub-assembly | 69906-BZ010 |
