Toyota YARIS 前门锁和车门把手 — Figure 6703

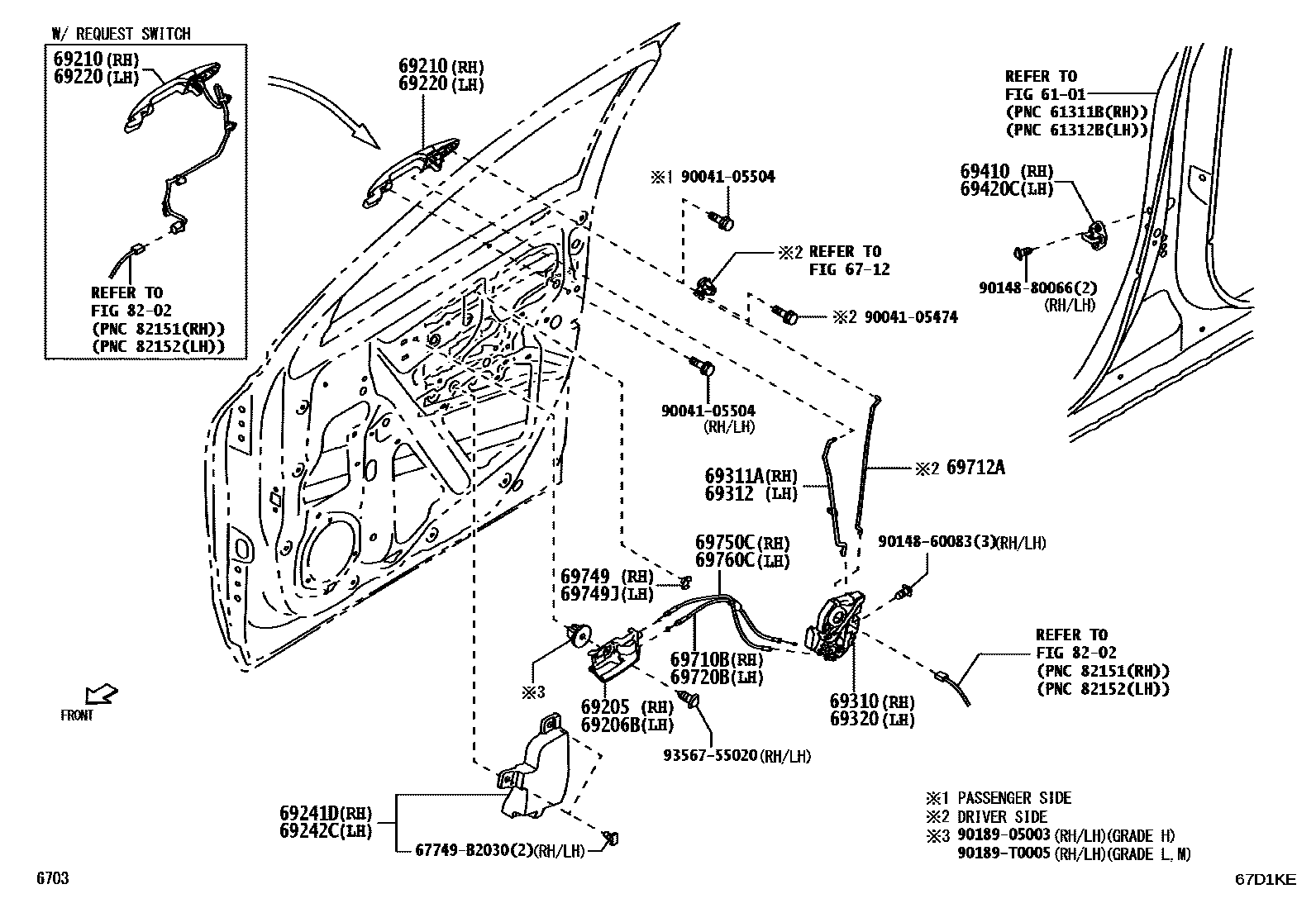

Toyota YARIS EPC diagram 6703, 前门锁和车门把手, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69241D | Right front door outer handle pad | 75787-BZ120 |
| 69242C | Left front door outer handle pad | 75788-BZ120 |
| 69310 | Right front door lock assembly | 69310-BZ390 · 69310-BZ550 |
| 69311A | Right front door lock opening lever | 69311-BZ220 |
| 69312 | Left front door lock opening lever | 69312-BZ220 |
| 69320 | Left front door lock assembly | 69320-BZ360 · 69320-BZ530 |
| 69410 | Front door lock plate assembly | 69410-02090 |
| 69420C | Door lock plate assembly | 69410-02090 |
| 69710B | Right front door lock remote control cable assembly | 69710-BZ310 |
| 69712A | Left front door lock remote control lever | 69712-BZ140 |
| 69720B | Left front door lock remote control cable assembly | 69710-BZ310 |
| 69749 | Front door lock link clip | 69749-32040 |
| 69749J | Front door lock clip | 69749-32040 |
| 69750C | Right front door inner lock cable assembly | 69750-BZ290 |
| 69760C | Left front door inner lock cable assembly | 69760-BZ290 |
