Toyota YARIS 前门板和前门玻璃 — Figure 6701

Toyota YARIS EPC diagram 6701, 前门板和前门玻璃, with 4 images and 30 PNC and OE references.

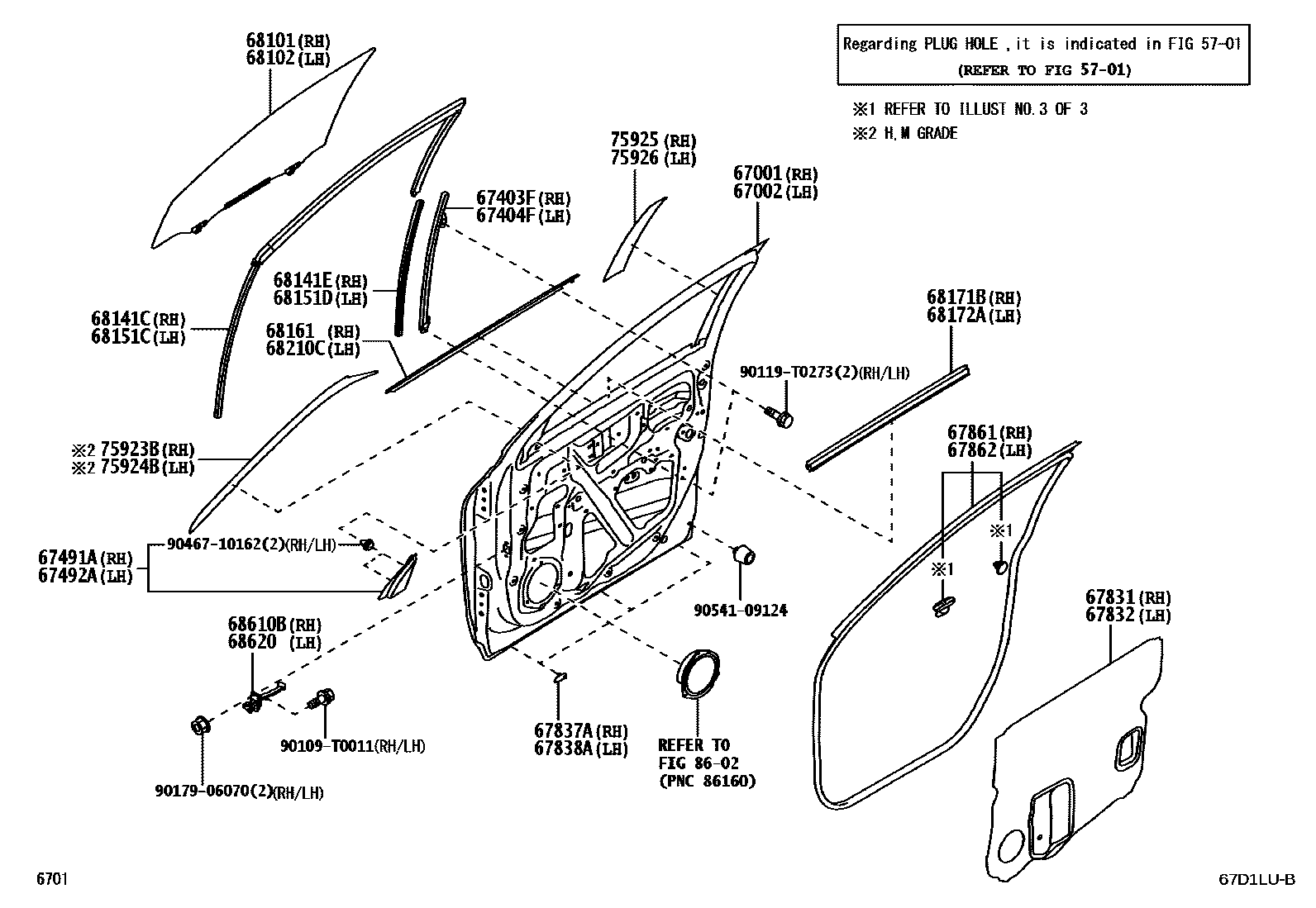

Toyota YARIS 前门板和前门玻璃 EPC diagram — 67D1LUB
前门板和前门玻璃 — 67D1LUB (202510 – 999999)

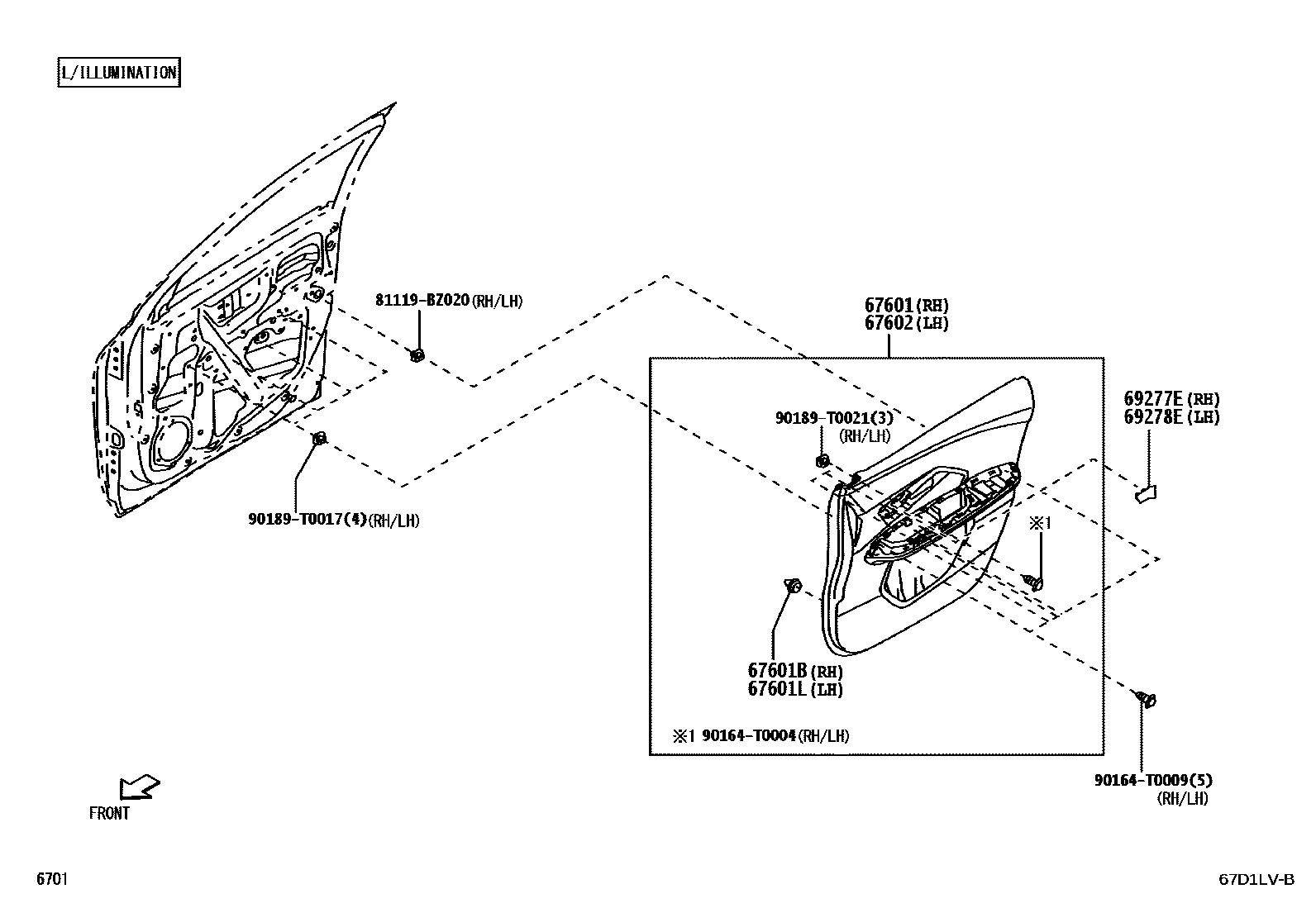

Toyota YARIS 前门板和前门玻璃 EPC diagram — 67D1LVB
前门板和前门玻璃 — 67D1LVB (202510 – 999999)

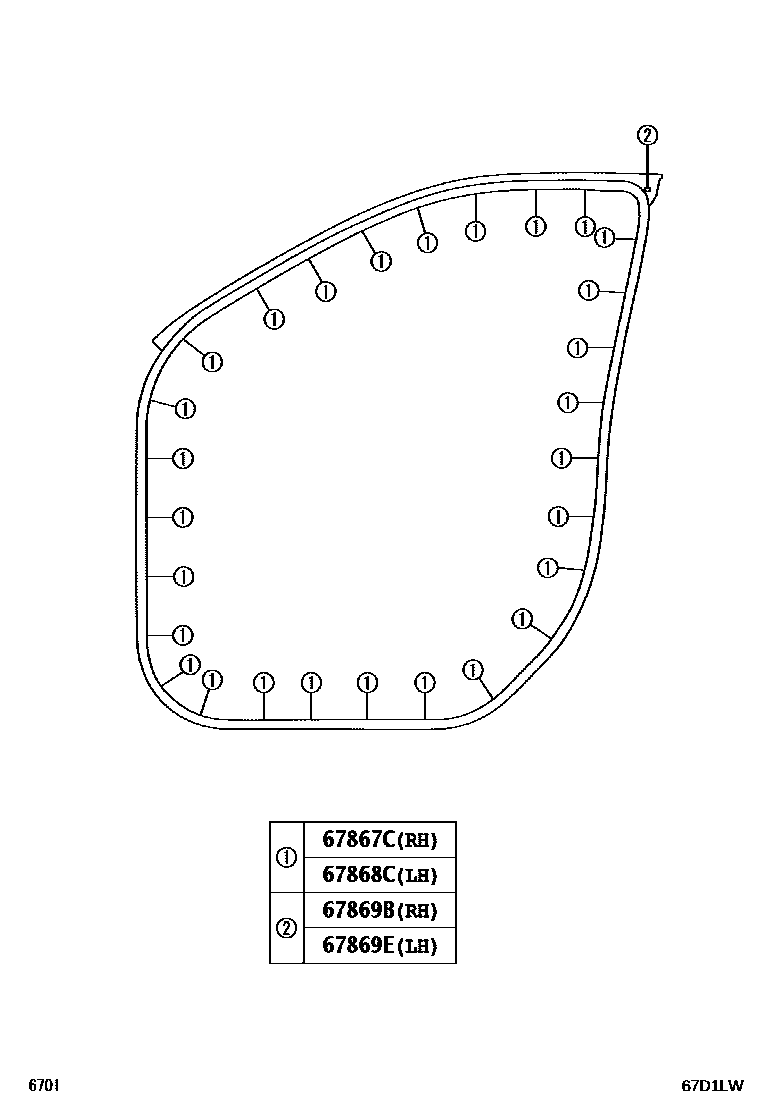

Toyota YARIS 前门板和前门玻璃 EPC diagram — 67D1LW
前门板和前门玻璃 — 67D1LW (202510 – 999999)

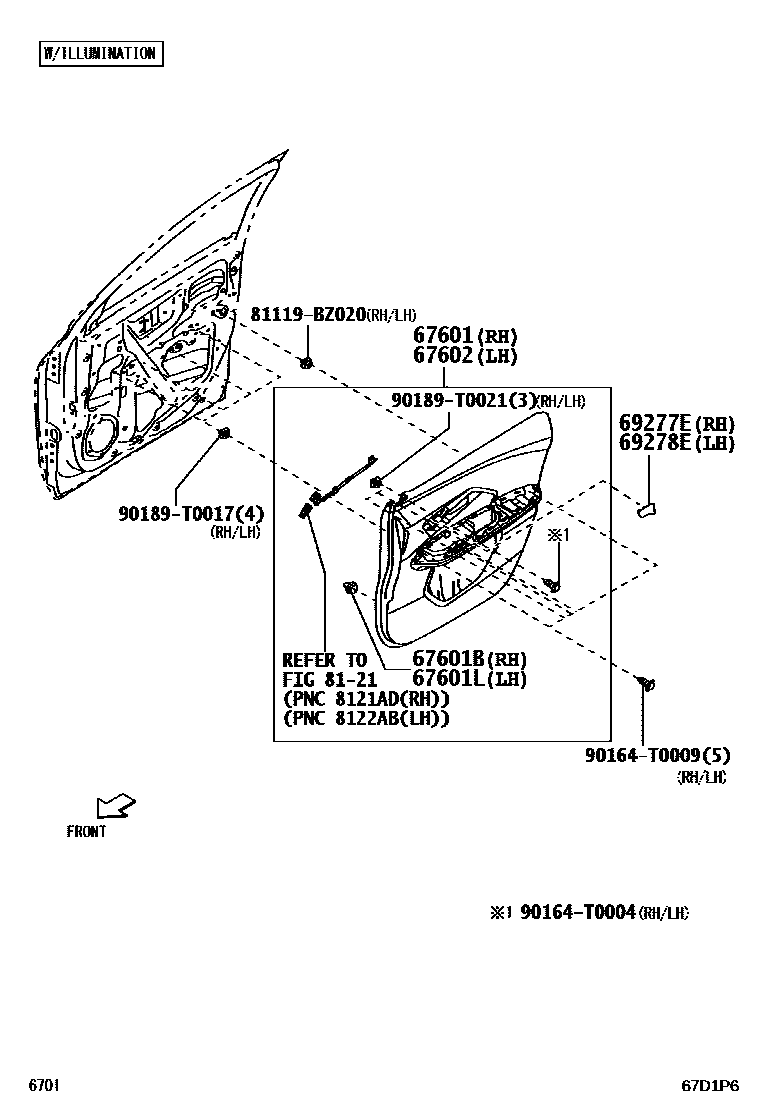

Toyota YARIS 前门板和前门玻璃 EPC diagram — 67D1P6
前门板和前门玻璃 — 67D1P6 (202510 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-BZ840
67002Left front door panel sub-assembly67002-BZ870
67403FRight front door rear lower door frame sub-assembly67403-BZ240
67404FLeft front door rear lower door frame sub-assembly67404-BZ230
67491ARight front door lower door frame bracket decorative strip67491-BZ210
67492ALeft front door lower door frame bracket decorative strip67492-BZ210
67601BCatch (for front door trim panel)90467-T0019
67601LCatch (for front door trim panel)90467-T0019
67831Right front door access hole cover67831-BZ600
67832Left front door access hole cover67832-BZ220
67837ARight front door ventilator seal67837-0K090
67838ALeft front door ventilator seal67837-0K090
67861Right front door seal67861-BZ360
67862Left front door seal67862-BZ360
67867CRight front door seal strip fixing67867-BZ510
67868CLeft front door seal strip fixing67867-BZ450
67869BFront door seal strip clip9004A-46317
67869EFront door seal strip clip9004A-46317
68101Right front door glass sub-assembly68101-BZ570
68102Left front door glass sub-assembly68102-BZ570
68141CRight front door glass lift channel68141-BZ310
68141ERight front door glass lift channel68143-BZ230
68151CLeft front door glass lift channel68151-BZ310
68151DLeft front door glass lift channel68143-BZ230
68161Front door glass outer seal strip68161-BZ290 · 68161-BZ310
68171BRight front door glass inner sealing strip68171-BZ310
68172ALeft front door glass inner sealing strip68172-BZ310
68210CLeft front door glass outer sealing strip assembly68162-BZ290 · 68162-BZ310
68610BRight front door opening limiter assembly68610-BZ320
68620Left front door opening limiter assembly68610-BZ320
