Toyota YARIS 底板和底板装饰罩 — Figure 6404

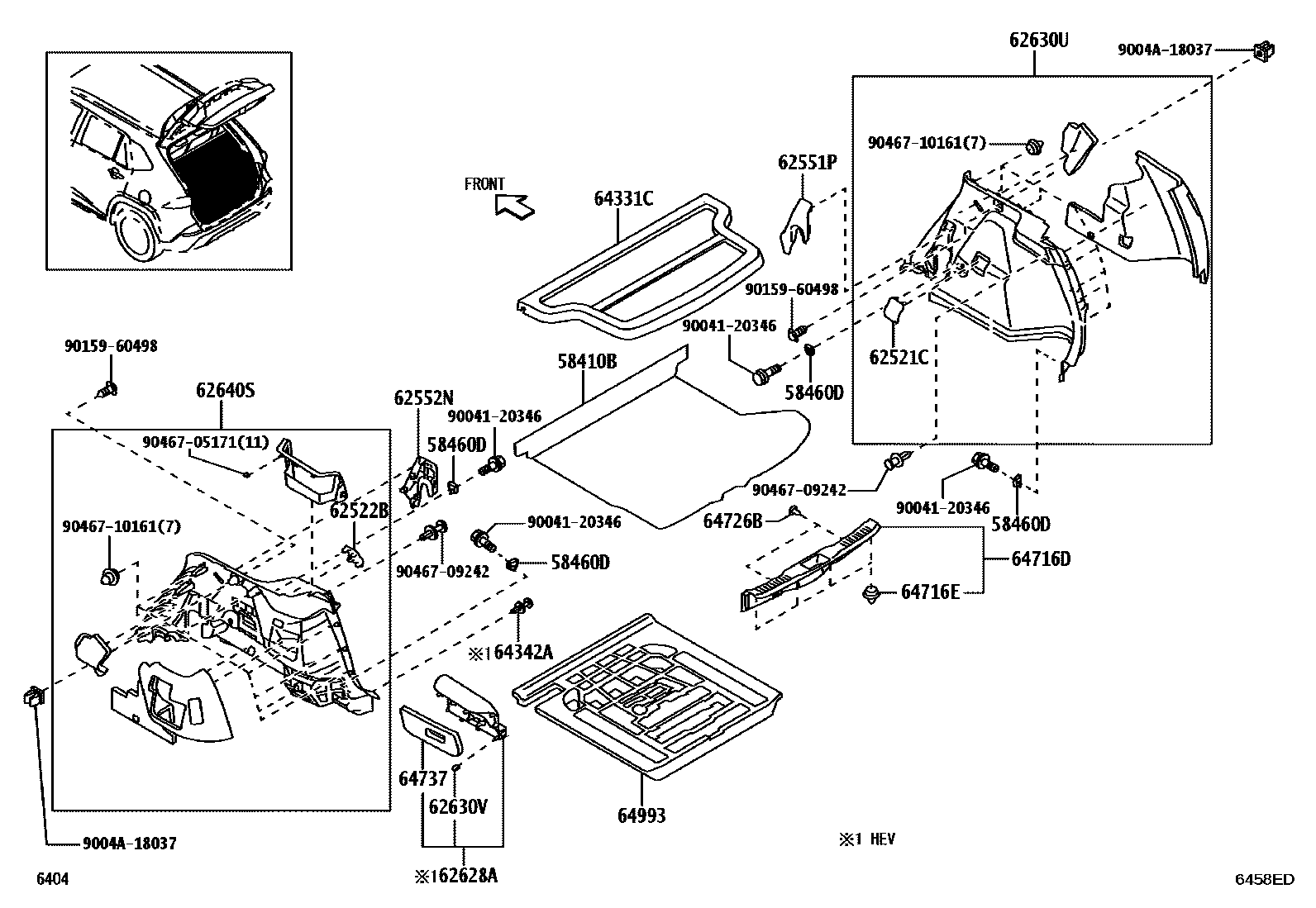

Toyota YARIS EPC diagram 6404, 底板和底板装饰罩, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58460D | Luggage fixing belt lock assembly | 58460-33020 |
| 62630V | Clip (for rear side panel) | 90467-05171 |
| 64716E | Clip (for rear floor decorative cover) | 90467-T0021 |
| 64737 | Bottom panel side trim muffler pad | 64737-BZ150 |
| 64993 | Bottom floor box | 64993-BZ100 |
