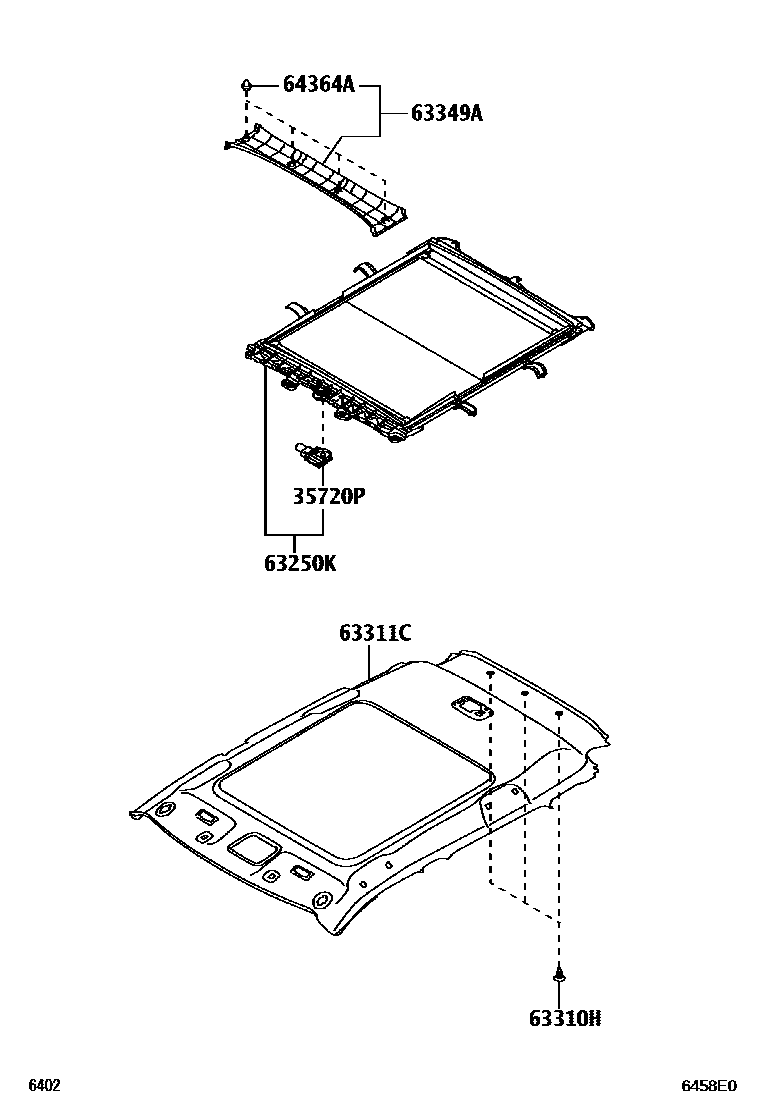

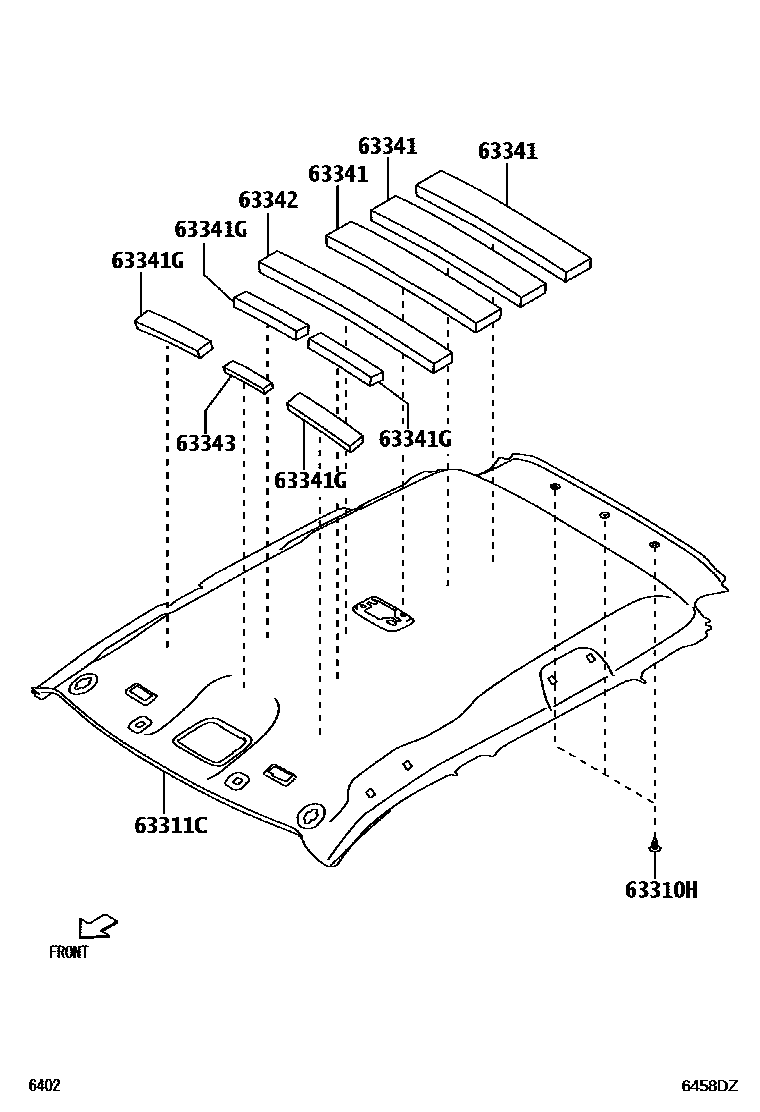

Toyota YARIS 车顶内衬和消声垫 — Figure 6402
Toyota YARIS EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35720P | Gear assembly | 63260-B1010 |
| 63250K | CHAMBRE ASS, PARE SOLEIL | 63250-B1010 |
| 63341 | No. 1 roof silencer mat | 63341-BZ260 |
| 63341G | roof muffler mat | 63341-BZ240 |
| 63342 | No. 2 roof muffler pad | 63341-BZ250 |
| 63343 | No. 3 roof muffler pad | 63351-BZ160 |
| 64364A | clip | 75867-68010 |
