Toyota YARIS 天窗板和背窗玻璃 — Figure 6104

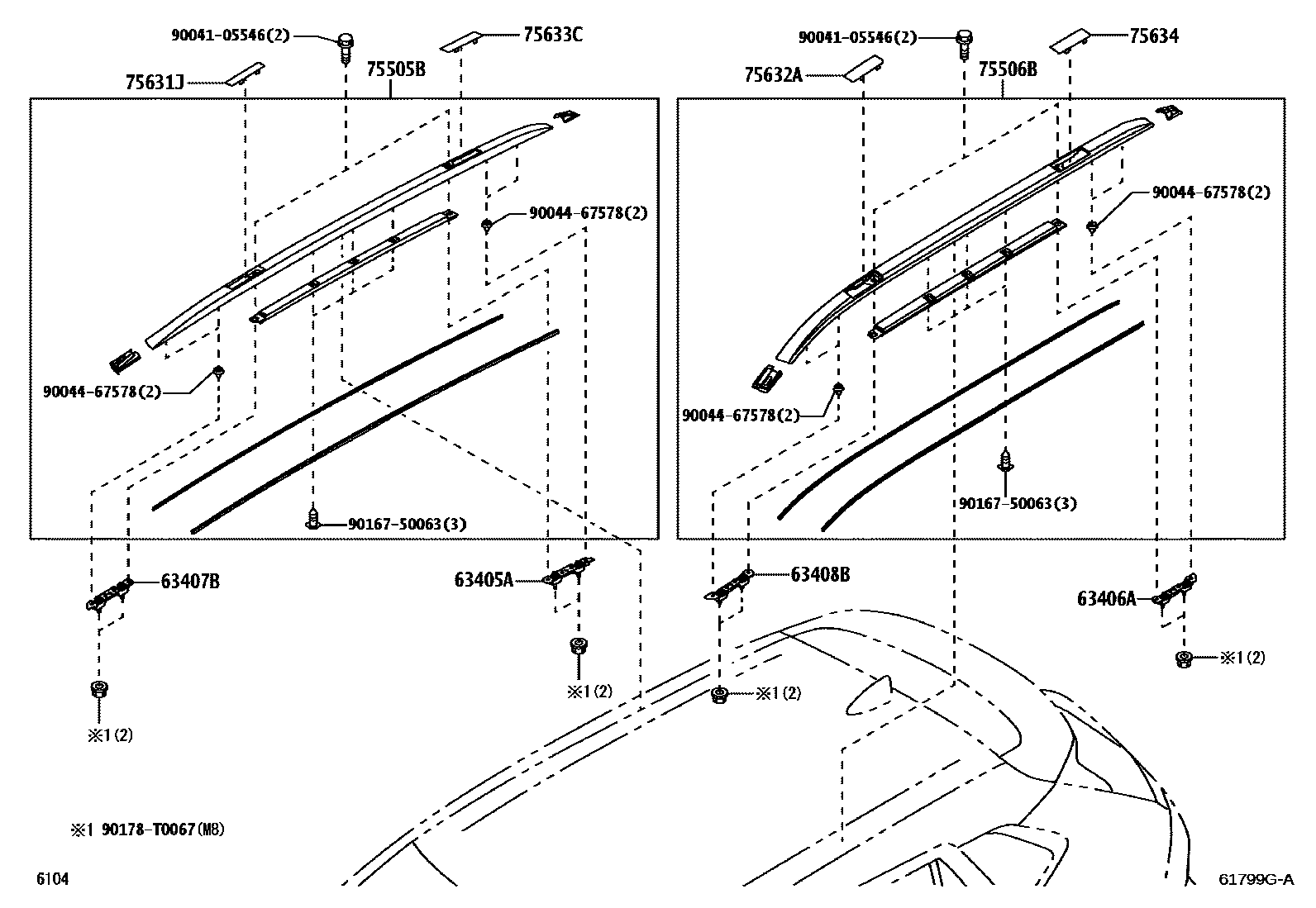

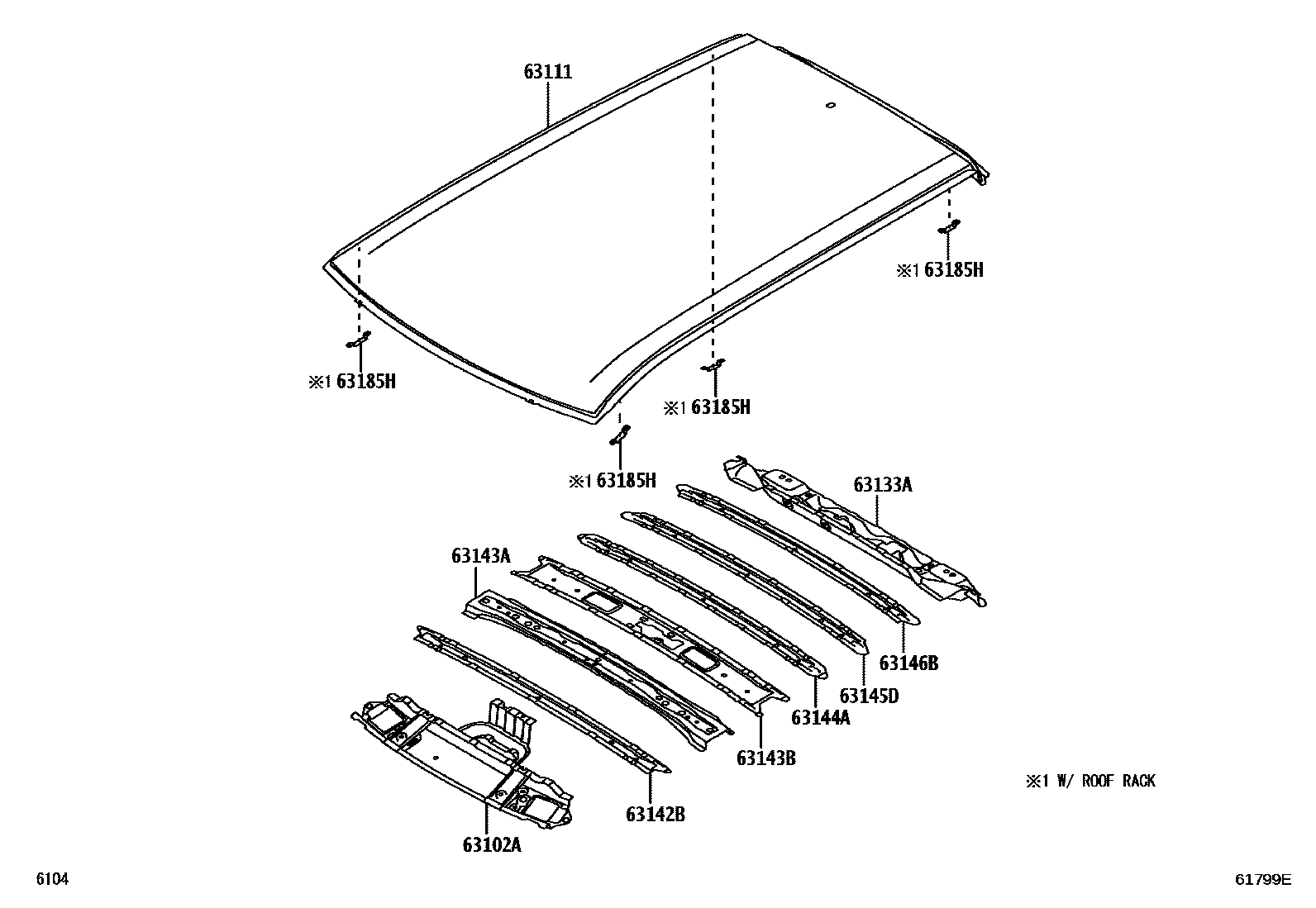

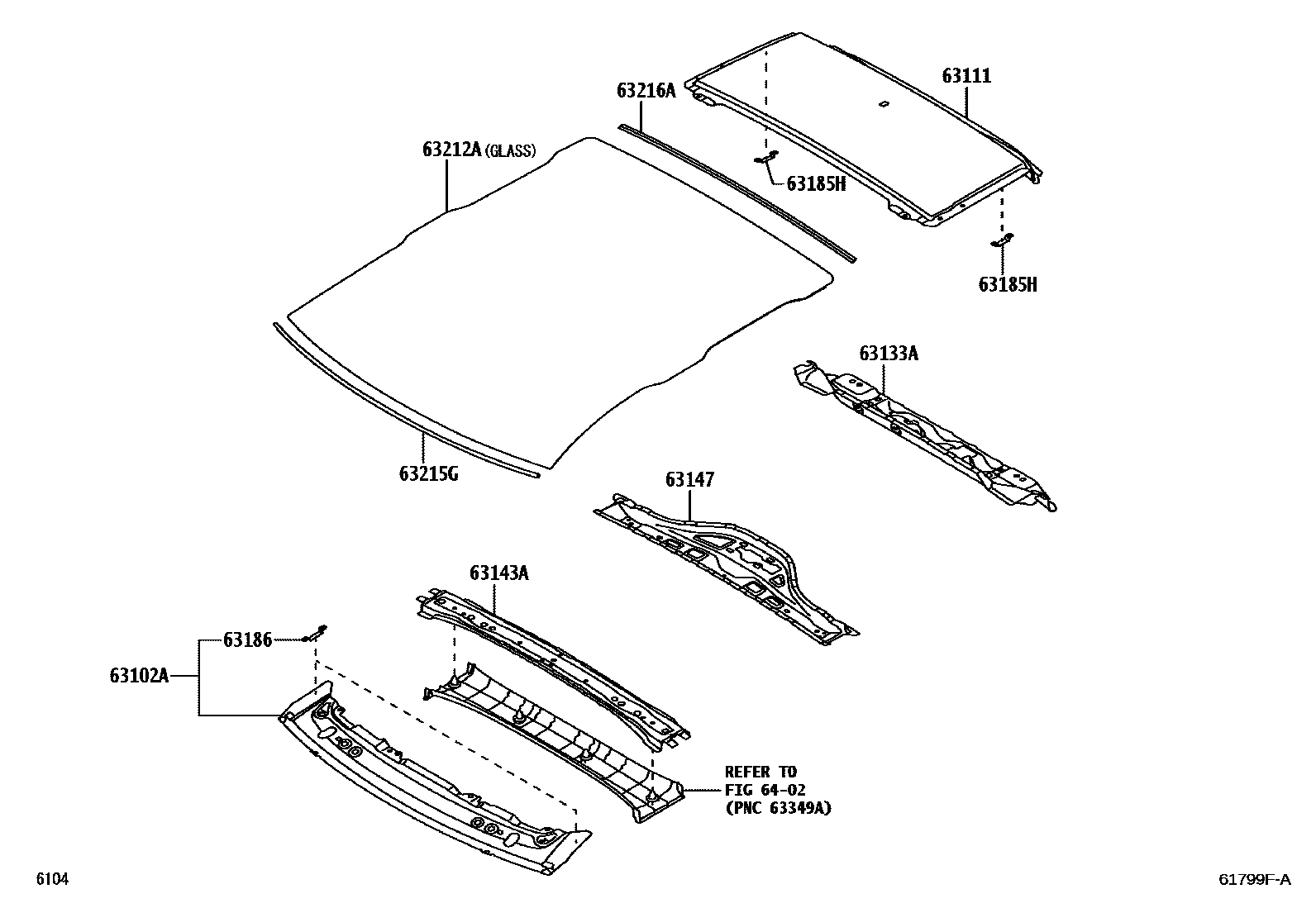

Toyota YARIS EPC diagram 6104, 天窗板和背窗玻璃, with 3 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63102A | Windshield roof sub-assembly | 63102-BZ050 · 63102-BZ110 |
| 63111 | roof panel | 63111-BZ420 · 63111-BZ430 · 63113-BZ020 |
| 63133A | upper frame of back window | 63134-BZ340 · 63134-BZ350 |
| 63142B | Rear roof panel reinforcement | 63142-BZ240 |
| 63143A | Roof panel reinforcement | 63141-BZ280 · 63141-BZ290 |
| 63143B | No. 3 roof panel reinforcement | 63143-BZ180 |
| 63144A | No. 4 roof panel reinforcement | 63144-BZ150 |
| 63145D | roof reinforcement bracket | 63145-BZ070 |
| 63146B | No. 2 windshield roof reinforcement | 63146-BZ030 |
| 63147 | Roof panel reinforcement bracket | 63147-BZ020 |
| 63185H | Roof rack bracket | 63185-BZ050 |
| 63186 | Front roof rack bracket | 63185-BZ050 |
| 63212A | skylight glass | 63201-BZ902 |
| 63215G | Front sunroof protective strip | 63215-BZ010 |
| 63216A | Sunroof rear protective strip | 63216-BZ010 |
| 63405A | Rear roof rack bracket sub-assembly | 63408-BZ070 |
| 63406A | Left rear roof rack bracket sub-assembly | 63407-BZ070 |
| 63407B | Front roof rack bracket sub-assembly | 63407-BZ070 · 63407-BZ080 |
| 63408B | Left front roof rack bracket sub-assembly | 63408-BZ070 · 63408-BZ080 |
| 75505B | Right front roof side trim sub-assembly | 75505-BZ060 |
| 75506B | Left front roof side trim sub-assembly | 75506-BZ060 |
| 75631J | No. 1 roof right side trim panel cover | 75631-BZ090 |
| 75632A | No. 1 roof left trim panel cover | 75632-BZ060 |
| 75633C | No. 2 roof right trim panel cover | 75633-BZ060 |
| 75634 | No. 2 roof left trim panel cover | 75634-BZ060 |
