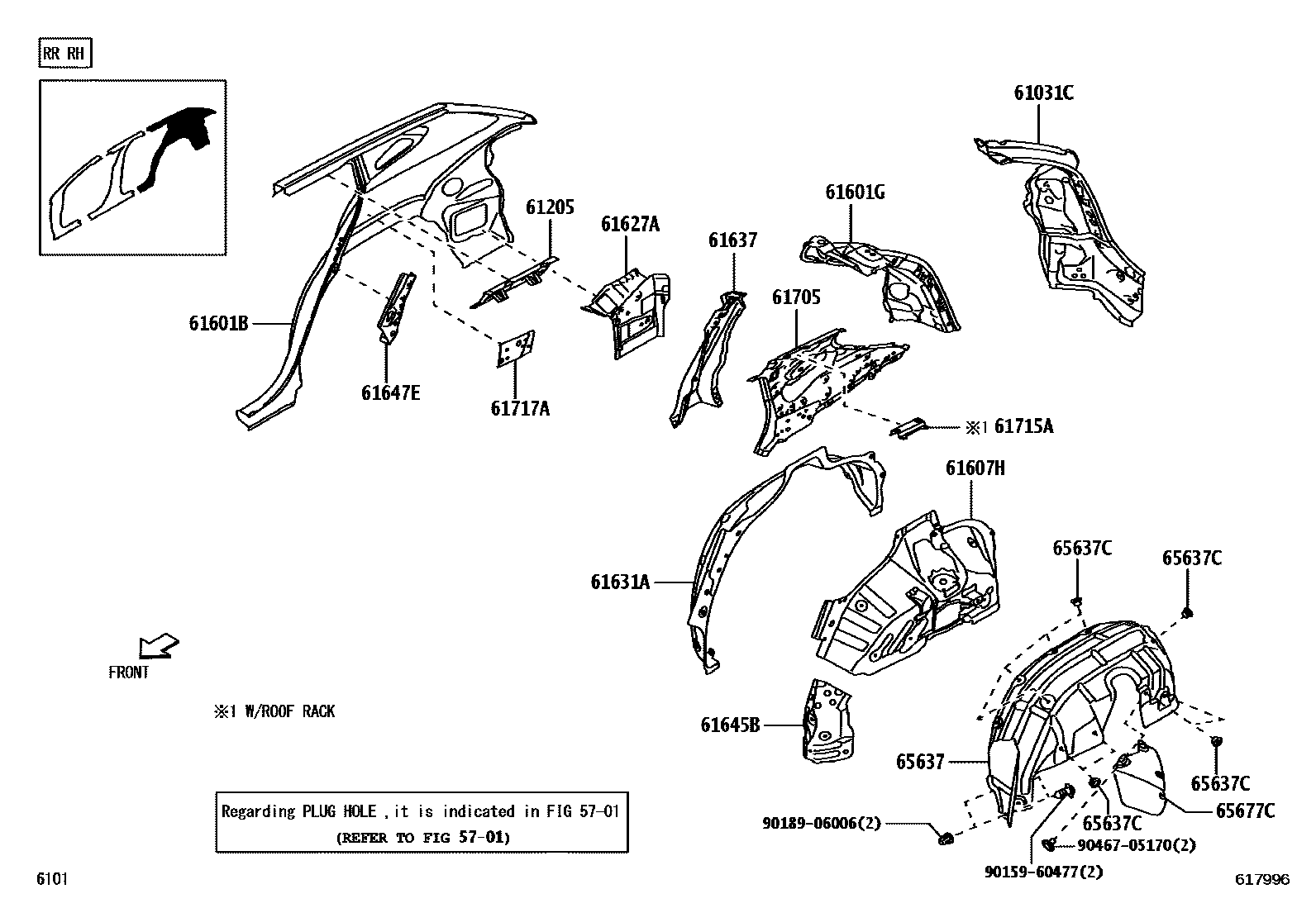

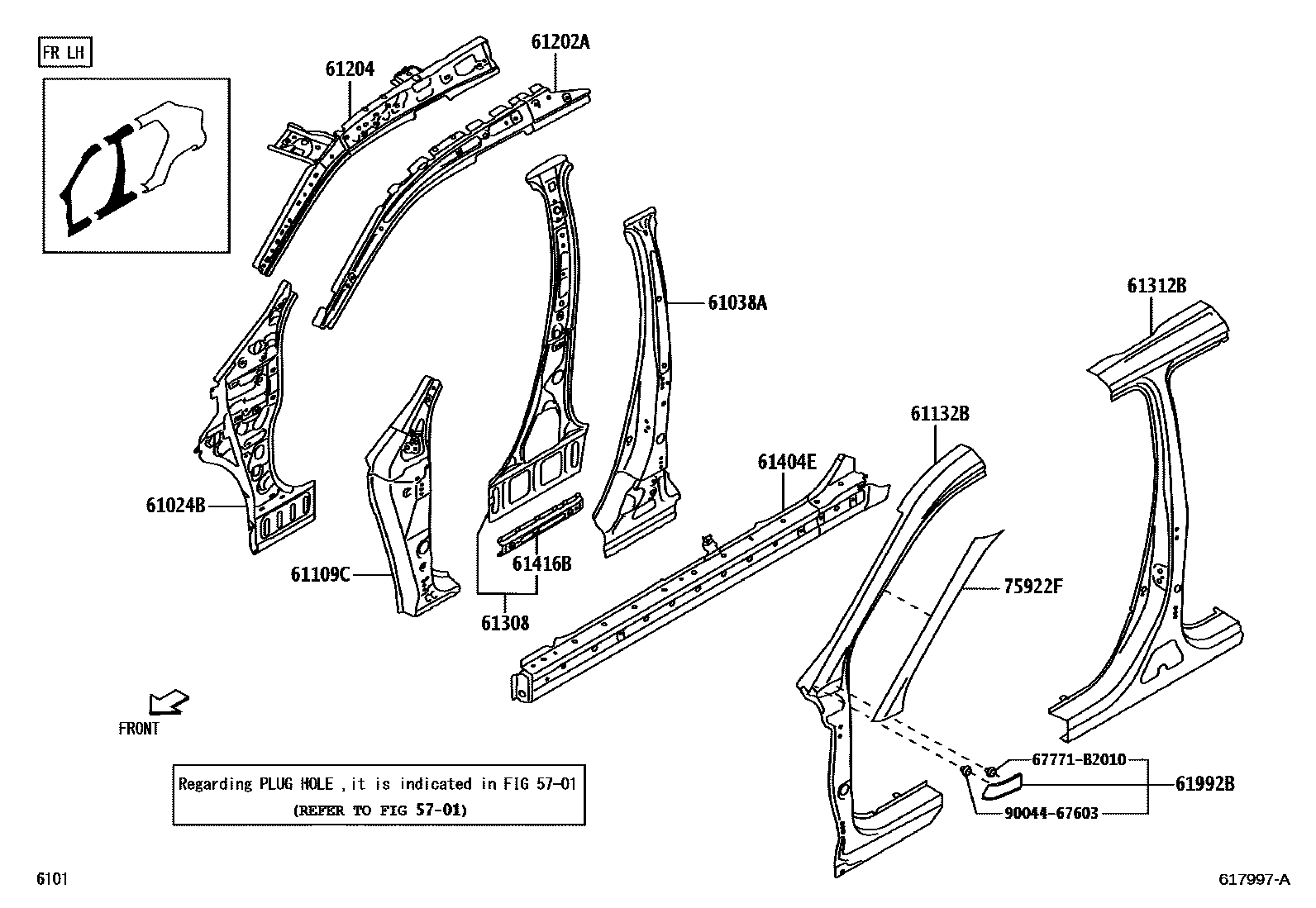

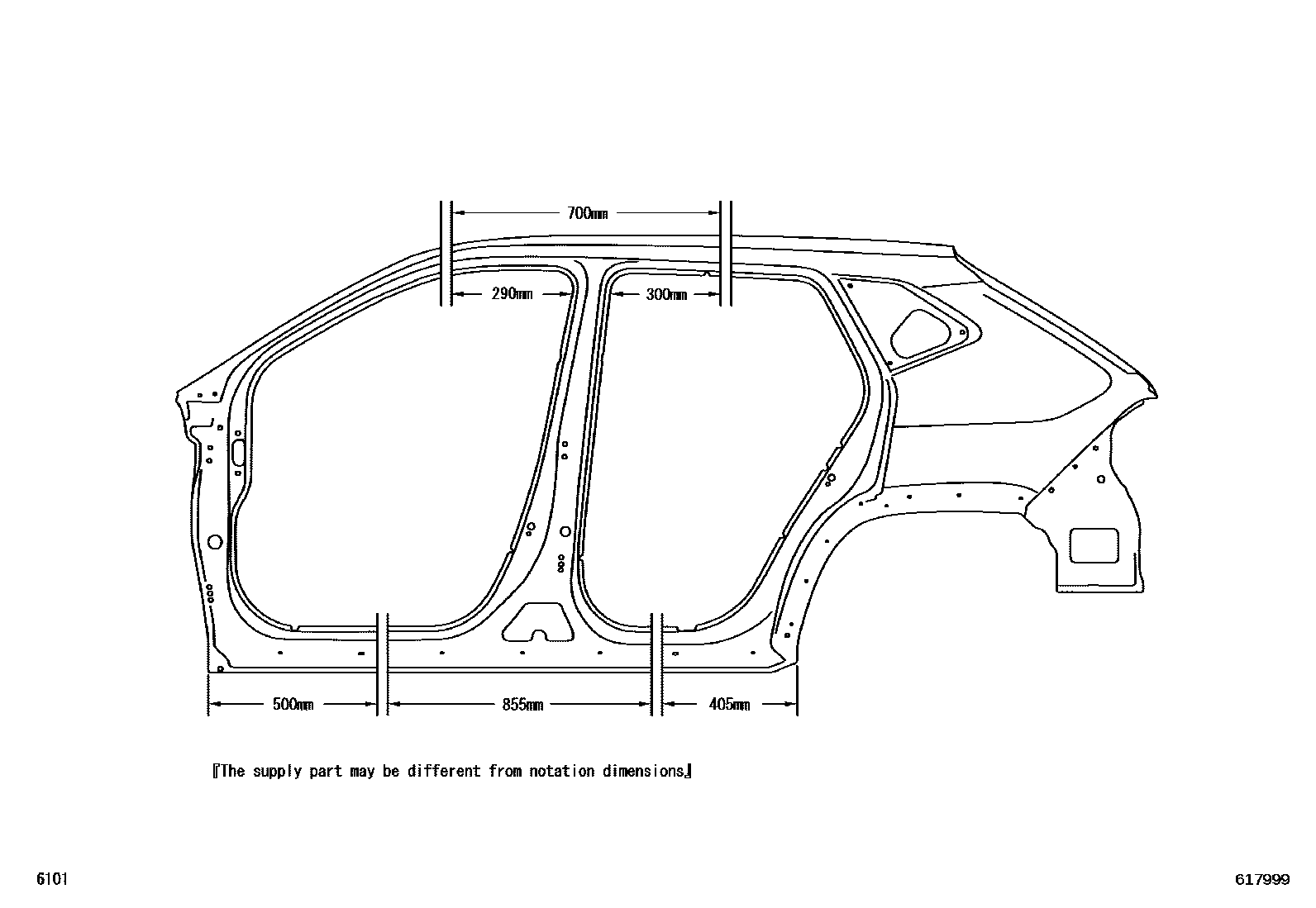

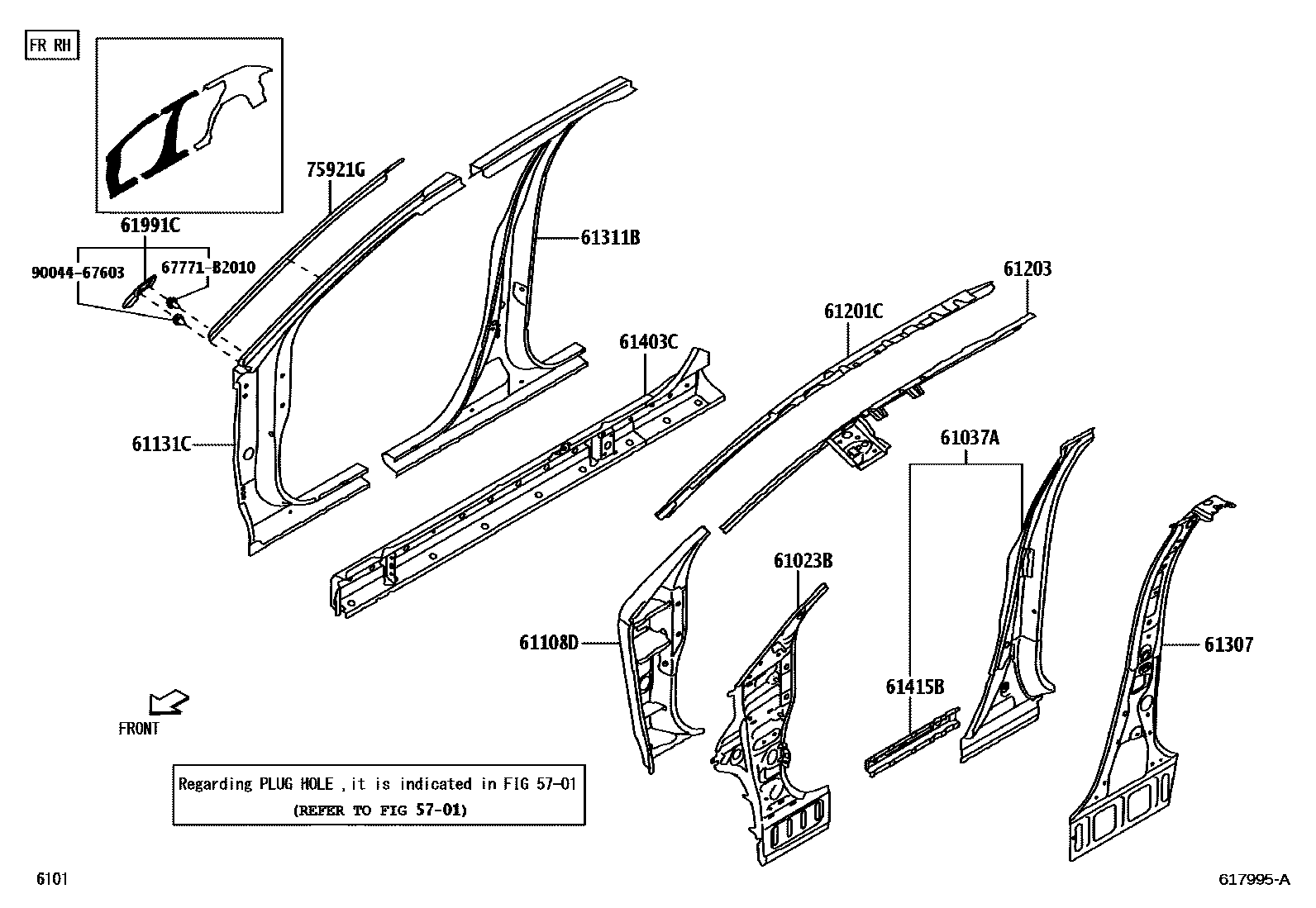

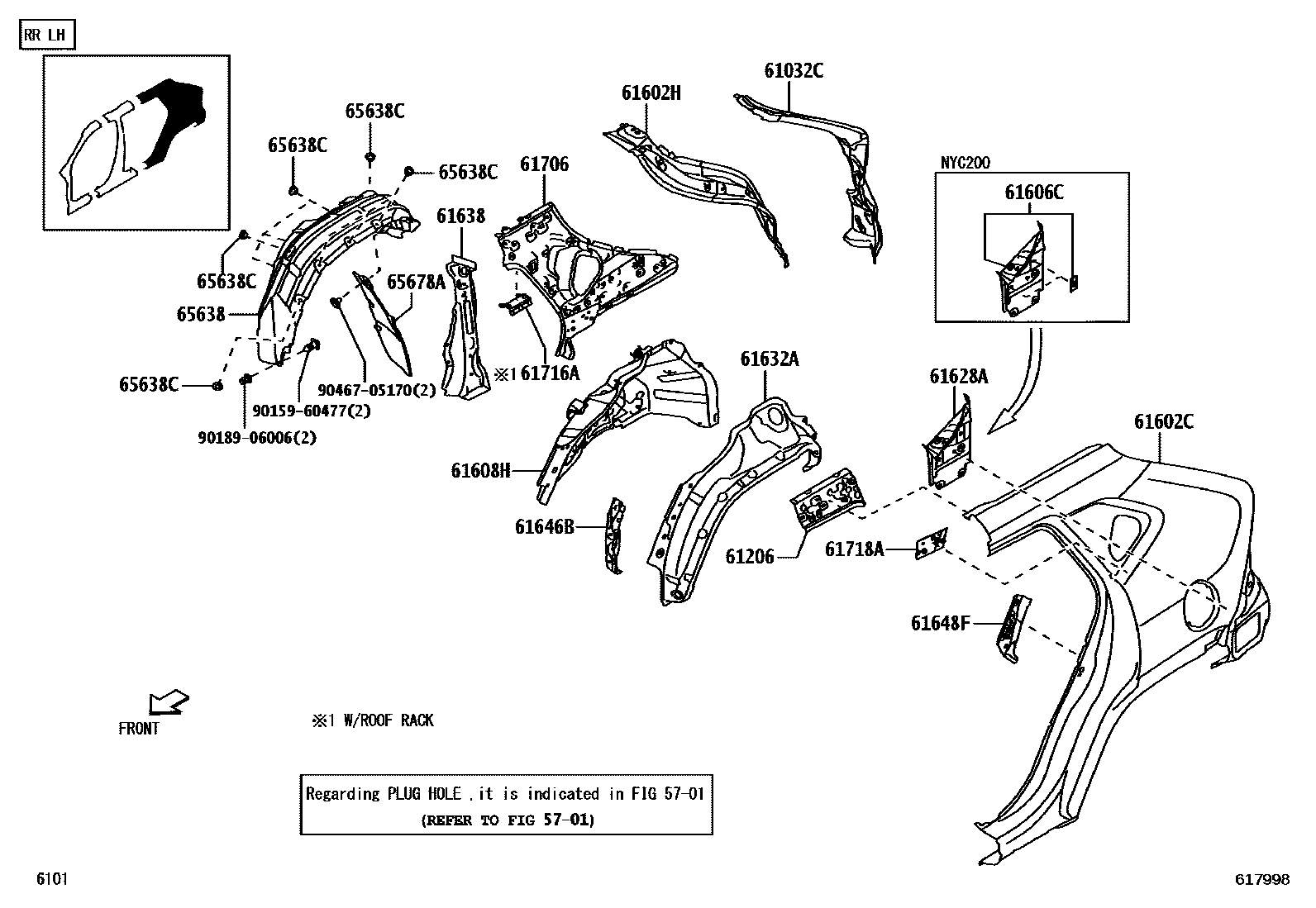

Toyota YARIS 侧梁 — Figure 6101
Toyota YARIS EPC diagram 6101, 侧梁, with 5 images and 55 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61023B | Right body inner front pillar sub-assembly | 61023-BZ620 |
| 61024B | Left body inner front pillar sub-assembly | 61024-BZ630 |
| 61031C | Right rear side panel extension sub-assembly | 61031-BZ300 · 61031-BZ310 |
| 61032C | Left rear side panel extension sub-assembly | 61032-BZ380 · 61032-BZ390 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-BZ450 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-BZ480 |
| 61108D | Front panel right lower reinforcement sub-assembly | 61108-BZ902 |
| 61109C | Front panel left lower reinforcement sub-assembly | 61109-BZ902 · 61109-BZ903 |
| 61131C | Right body outer front pillar | 61131-BZ700 |
| 61132B | Left body outer front pillar | 61132-BZ640 |
| 61201C | Roof right outer longitudinal beam sub-assembly | 61201-BZ901 |
| 61202A | Roof left outer longitudinal beam sub-assembly | 61202-BZ901 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-BZ150 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-BZ100 |
| 61205 | Right rear roof inner longitudinal beam sub-assembly | 61205-BZ050 |
| 61206 | Left rear roof inner longitudinal beam sub-assembly | 61206-BZ050 |
| 61307 | Right body inner center pillar sub-assembly | 61307-BZ170 · 61307-BZ180 |
| 61308 | Left body inner center pillar sub-assembly | 61308-BZ210 · 61308-BZ220 |
| 61311B | Right body outer center pillar | 61311-BZ470 |
| 61312B | Left body outer center pillar | 61312-BZ460 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-BZ902 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-BZ902 |
| 61415B | Right door outer sill extension | 61415-BZ080 |
| 61416B | Left door outer sill extension | 61415-BZ080 |
| 61601B | Right side enclosure sub-assembly | 61601-BZ340 |
| 61601G | Right rear body rear side panel sub-assembly | 61601-BZ230 · 61601-BZ250 |
| 61602C | Left side enclosure sub-assembly | 61602-BZ360 |
| 61602H | Left rear body rear side panel sub-assembly | 61602-BZ210 · 61602-BZ240 |
| 61606C | Left rear side panel inner panel sub-assembly | 61606-BZ130 |
| 61607H | Right side wheel cover lining plate sub-assembly | 61607-BZ080 |
| 61608H | Left side wheel cover lining plate sub-assembly | 61608-BZ080 |
| 61627A | Right side panel lower extension | 61621-BZ170 |
| 61628A | Extension piece under left side hoarding | 61622-BZ200 |
| 61631A | Right wheel cover outer panel | 61631-BZ260 |
| 61632A | Left side wheel cover outer panel | 61632-BZ260 |
| 61637 | Right wheel cover bracket | 61637-BZ150 |
| 61638 | Left side wheel cover bracket | 61638-BZ100 |
| 61645B | Right rear side wheel housing corner panel | 61645-BZ160 |
| 61646B | Left rear side wheel housing corner panel | 61646-BZ190 |
| 61647E | Right side panel lower reinforcement | 61647-BZ040 |
| 61648F | Reinforcement piece under left side hoarding | 61648-BZ040 |
| 61705 | Roof right inner panel sub-assembly | 61705-BZ160 |
| 61706 | Roof left inner panel sub-assembly | 61706-BZ140 |
| 61715A | Roof right inner upper extension | 61715-BZ080 |
| 61716A | Roof left inner upper extension | 61716-BZ080 |
| 61717A | Right side panel extension reinforcement | 61717-BZ060 |
| 61718A | Left side bulkhead extension reinforcement | 61718-BZ090 |
| 61991C | Right front pillar cover protector | 61991-BZ040 |
| 61992B | Left front pillar cover protector | 61992-BZ040 |
| 65637 | Right rear wheel house lining | 65637-BZ310 |
| 65637C | Rear wheel cover lining clip | 90467-06121 |
| 65638 | Left rear wheel house lining | 65638-BZ260 |
| 65638C | Rear wheel cover lining clip | 90467-06121 |
| 65677C | Right rear wheel house seal | 65677-BZ020 |
| 65678A | Left rear wheel house seal | 65678-BZ020 |
