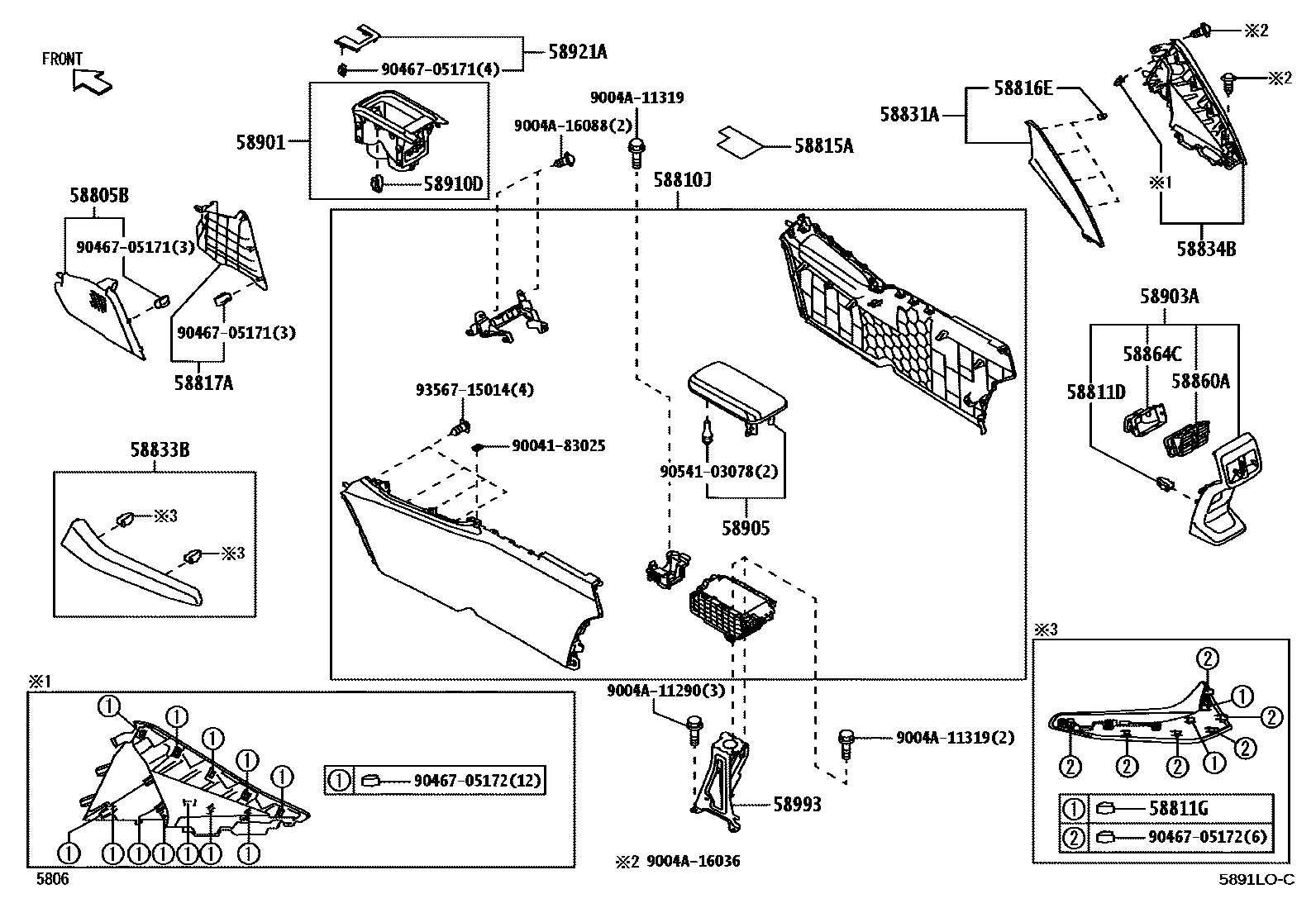

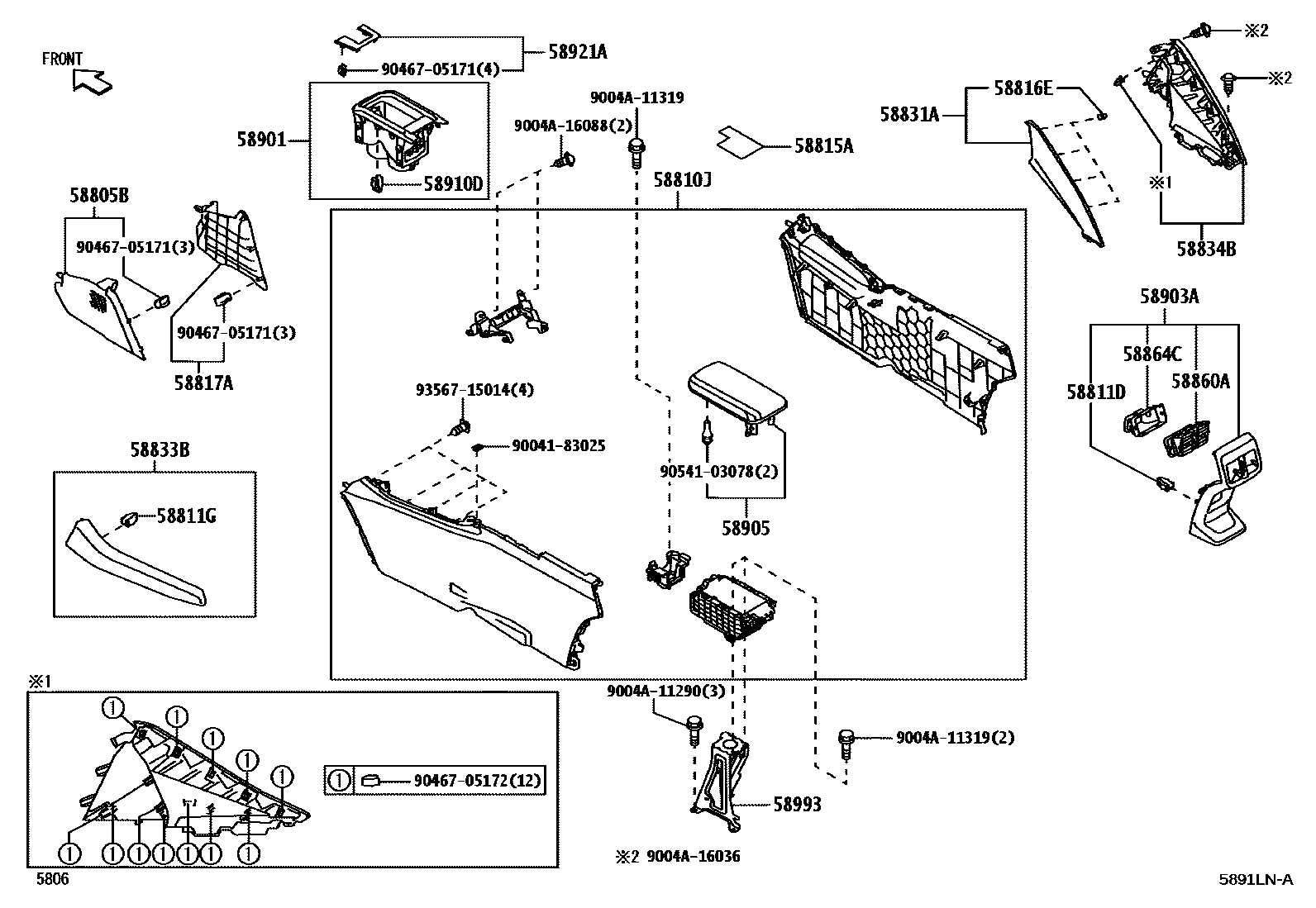

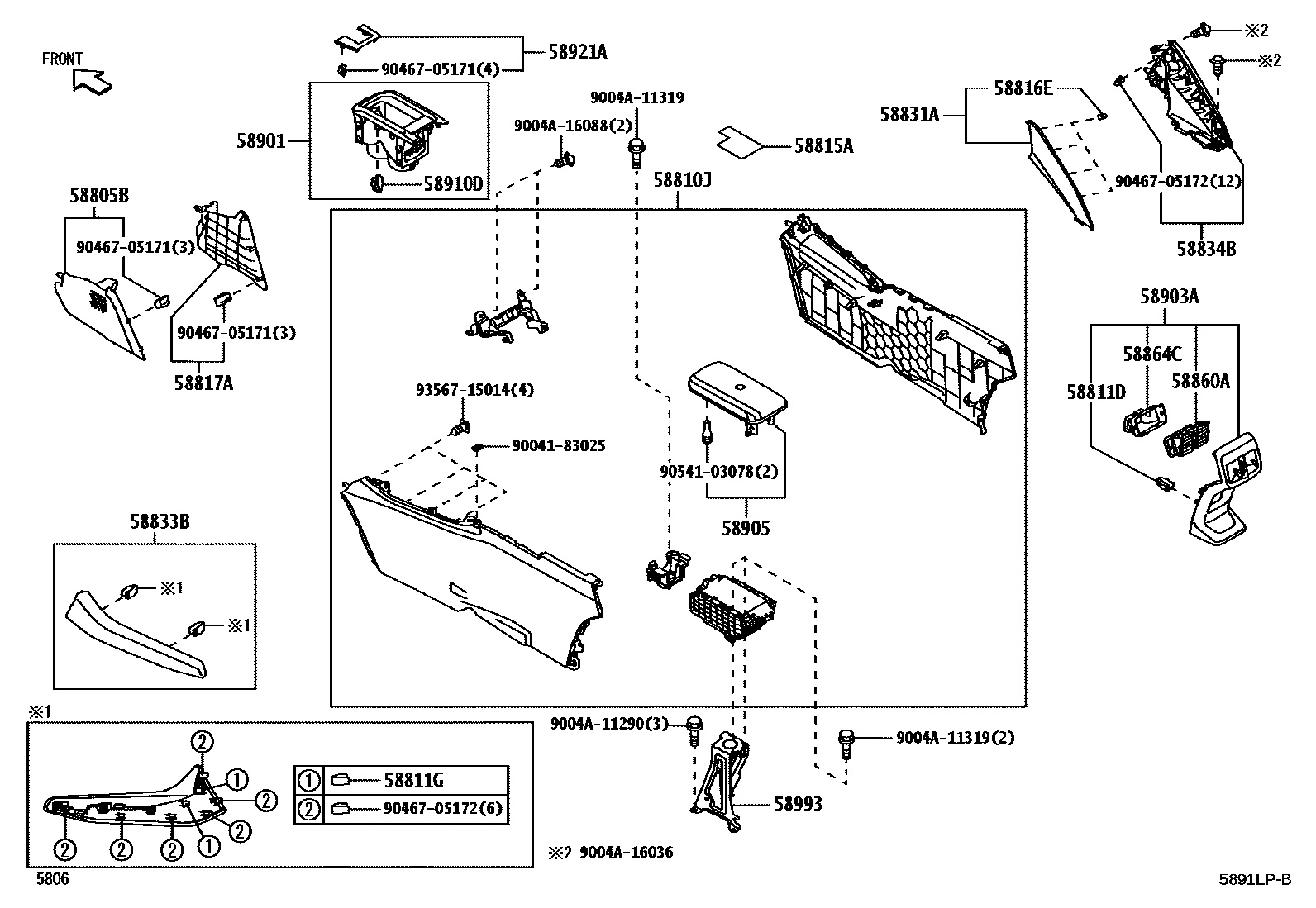

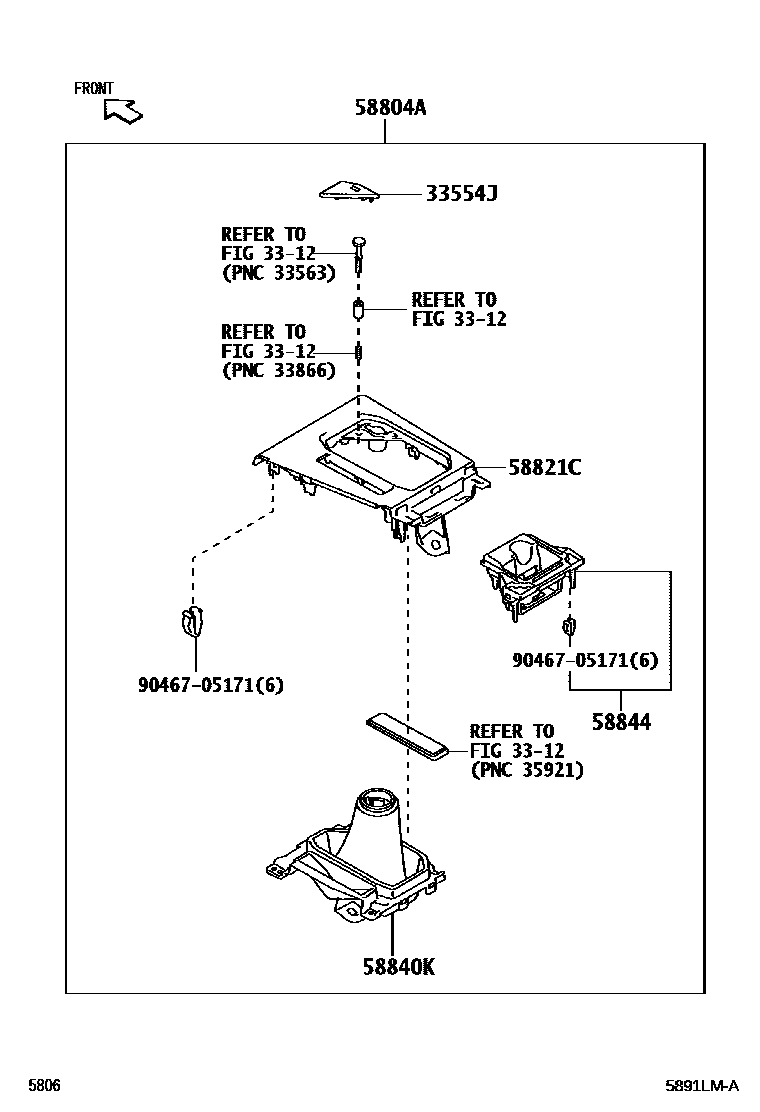

Toyota YARIS 中央扶手箱和支架 — Figure 5806
Toyota YARIS EPC diagram 5806, 中央扶手箱和支架, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58811D | Clip (for armrest box) | 90467-05171 |
| 58811G | Clip (armrest box) | 90467-05171 · 90467-05172 |
| 58815A | Armrest box felt pad | 58815-BZ160 |
| 58816E | Front armrest box insert clip | 90467-05172 |
| 58864C | Armrest box No. 4 air duct | 58864-BZ030 |
| 58910D | Clip (for armrest box) | 90467-05171 |
| 58993 | Armrest box rear mounting bracket | 58993-BZ020 |
