Toyota YARIS 地板垫和地毯 — Figure 5804

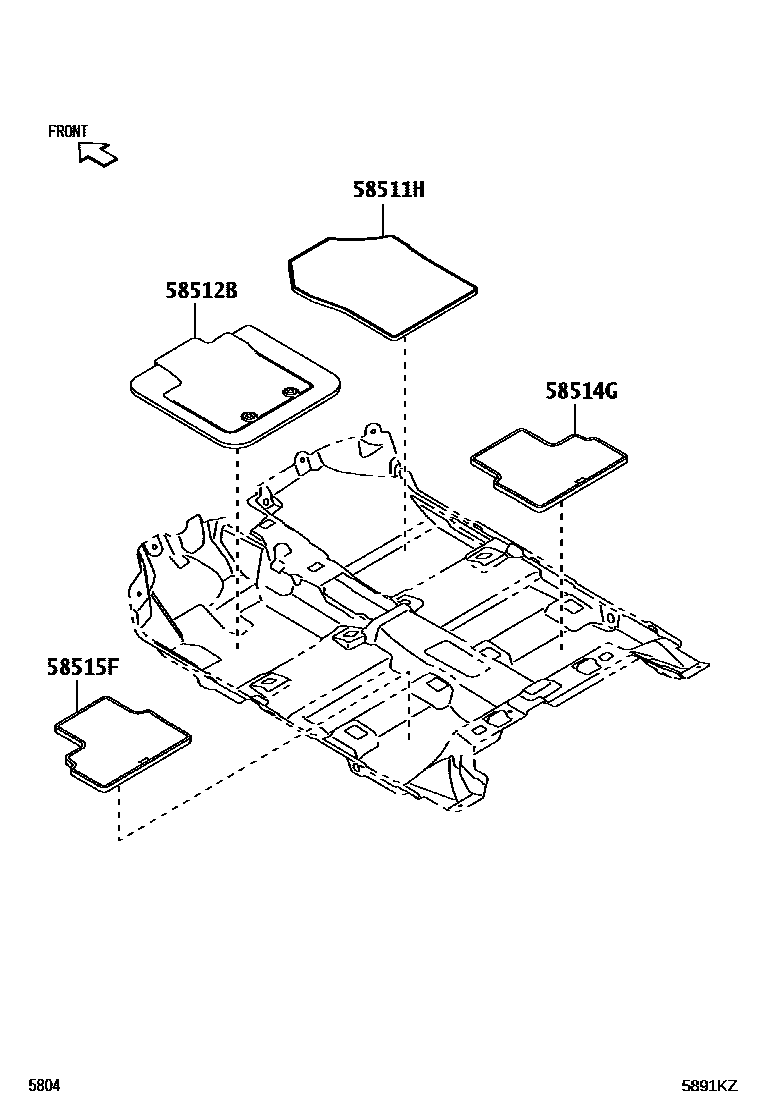

Toyota YARIS EPC diagram 5804, 地板垫和地毯, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58511H | Front floor right mat | 58511-BP020 · 58511-BP030 · 58511-BP040 |
| 58512B | Front floor left mat | 58512-BP020 · 58512-BP030 · 58512-BP040 |
| 58514G | Rear floor right mat | 58514-BP020 · 58514-BP030 · 58514-BP040 |
| 58515F | Rear floor left mat | 58515-BP010 · 58515-BP020 · 58515-BP030 |
| 58522D | Carpet hook number 2 | 58522-52030 |
| 58561C | Front floor silencer No. 1 | 58561-BZ250 · 58561-BZ260 |
| 58607C | Front floor right rear muffler pad sub-assembly | 58676-BZ060 · 58676-BZ070 |
| 58608B | Front floor left rear muffler pad sub-assembly | 58677-BZ060 · 58677-BZ070 |
| 58621G | Front floor right muffler pad | 58621-BZ150 |
| 58622C | Front floor left muffler pad | 58622-BZ080 |
