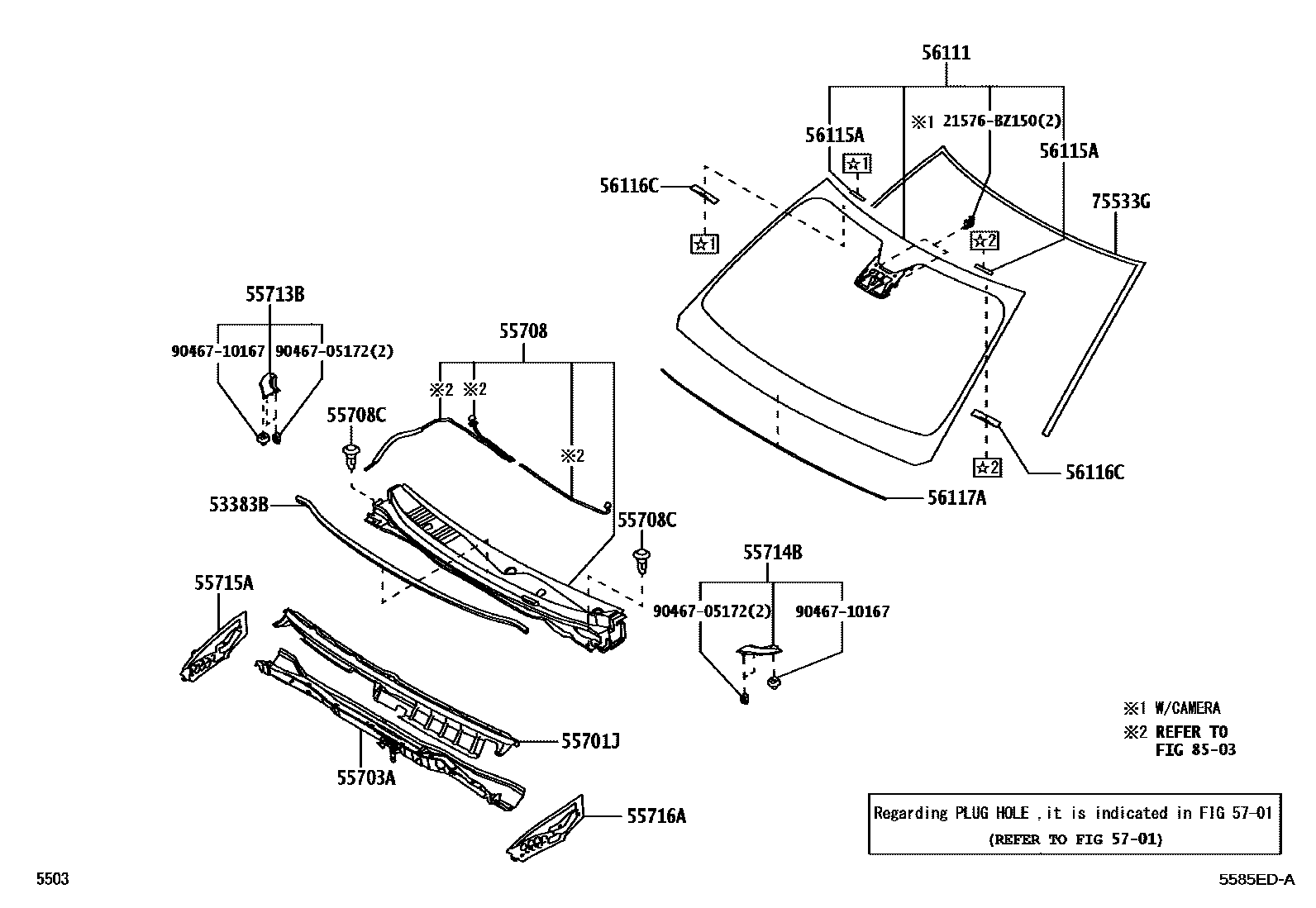

Toyota YARIS 前围板和挡风玻璃 — Figure 5503
Toyota YARIS EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-BZ240 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-BZ350 |
| 55703A | Front wall upper inner panel sub-assembly | 55703-BZA30 · 55703-BZA40 |
| 55708 | Ventilation grille sub-assembly on front apron | 55708-BZ280 |
| 55708C | Ventilation grille clips on front apron | 9004A-46323 |
| 55713B | Right front wall side panel hole cover | 53445-BZ180 |
| 55714B | Left front wall side panel hole cover | 53446-BZ180 |
| 55715A | From cowl upper cover to fender right stay | 55715-BZ080 |
| 55716A | From cowl upper cover to fender left stay | 55716-BZ090 |
| 56111 | windshield | 56101-BZ931 · 56101-BZ932 · 56101-BZ933 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-BZ310 |
| 75533G | Windshield outer protective strip | 75533-BZ270 |
