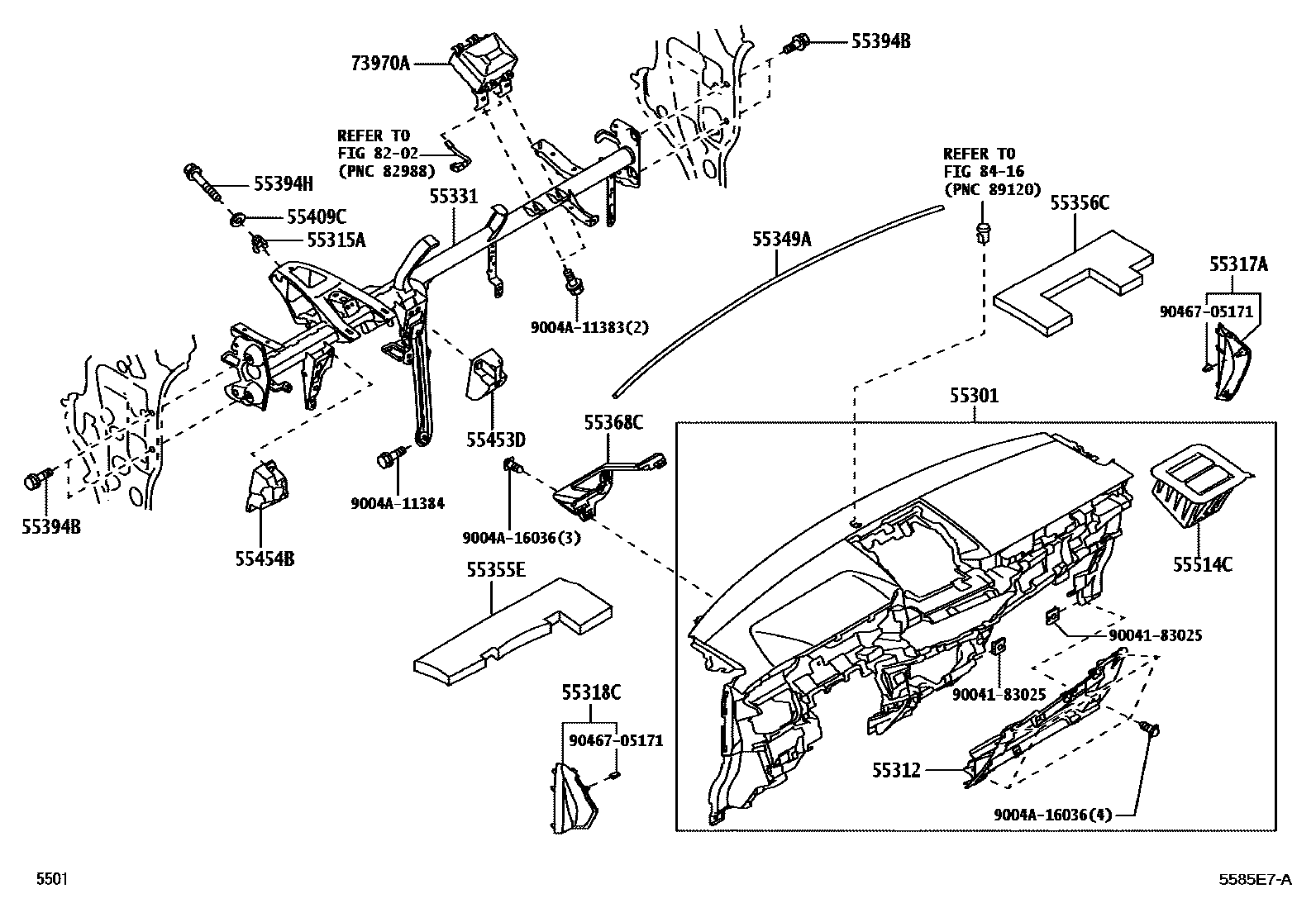

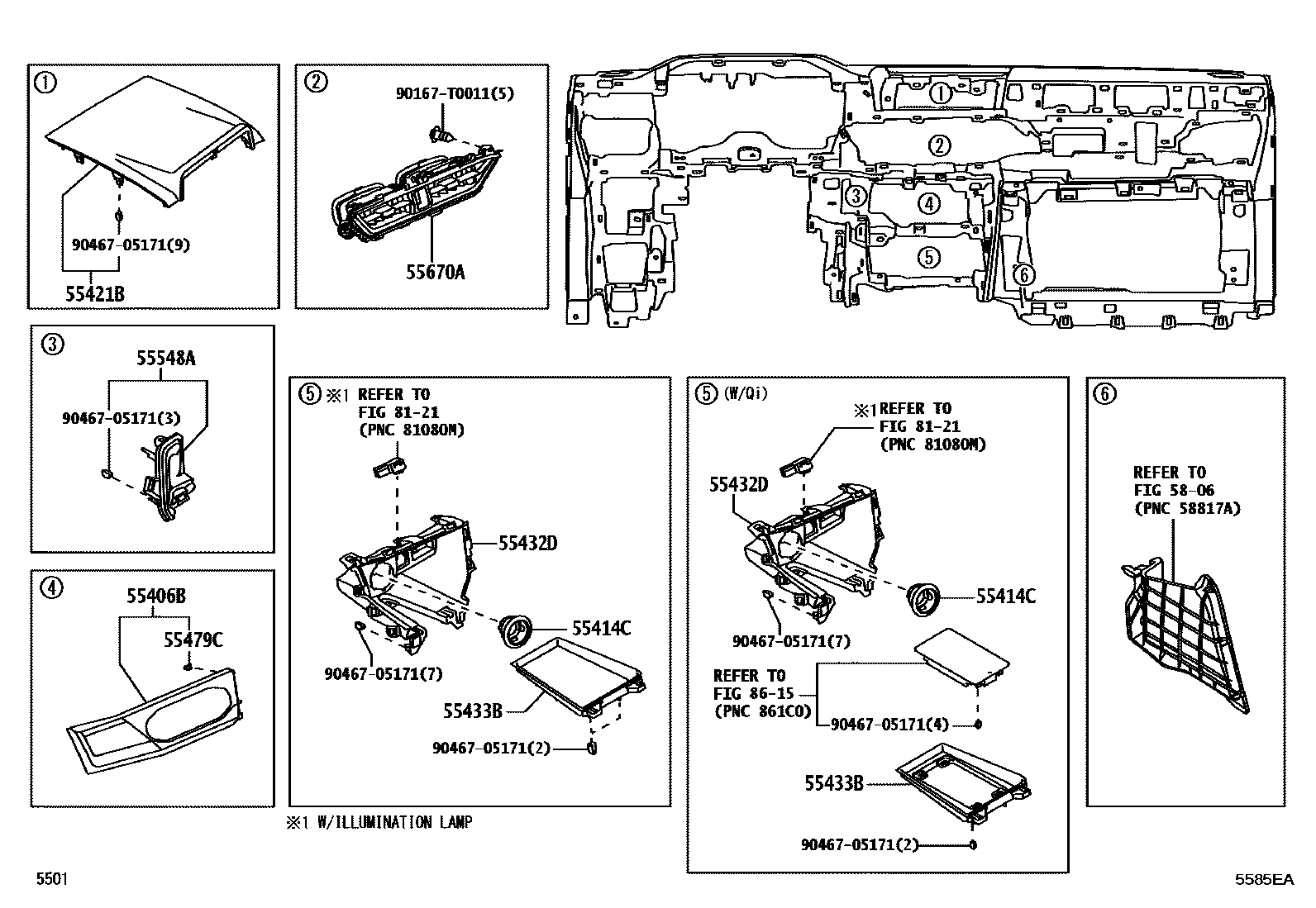

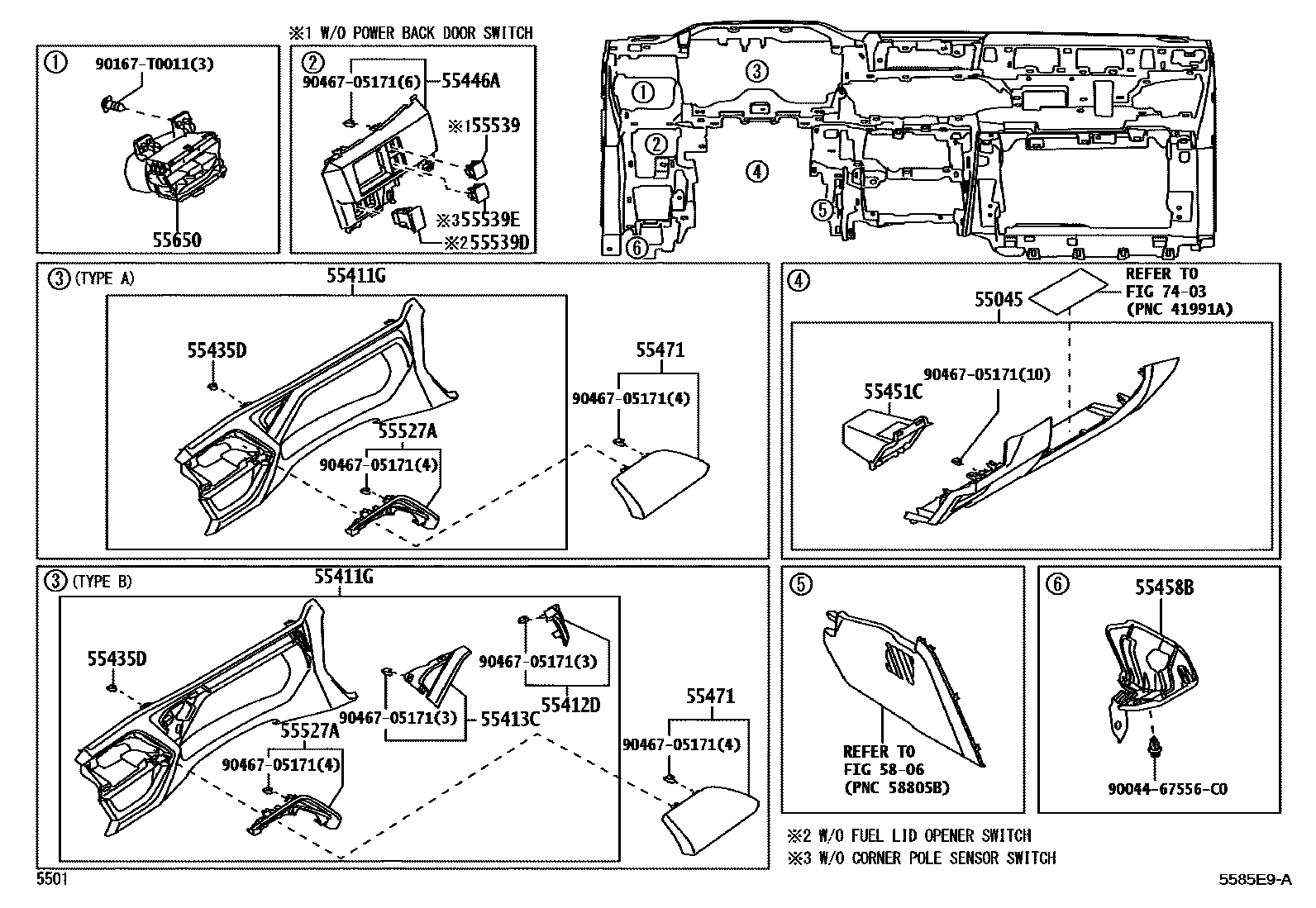

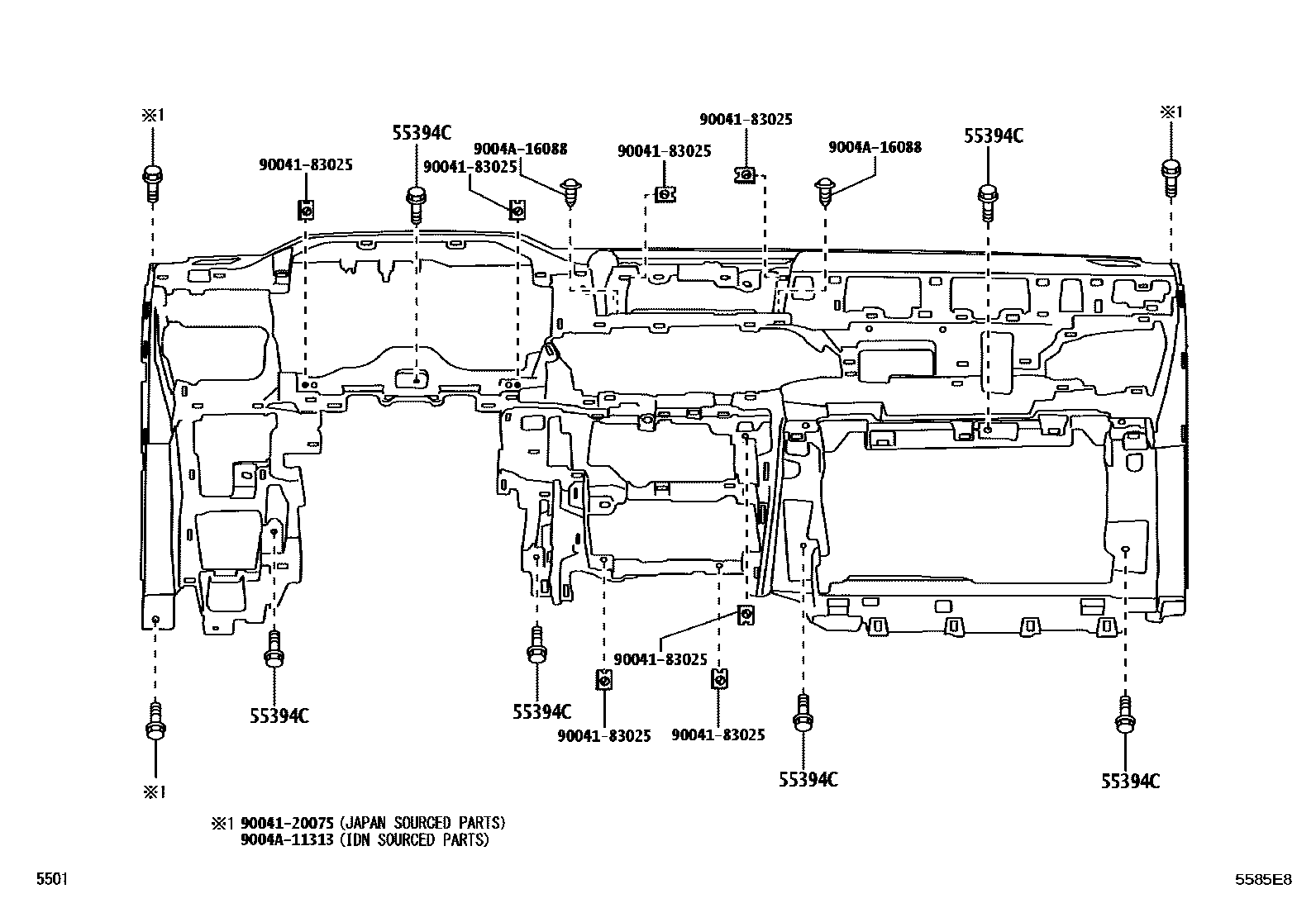

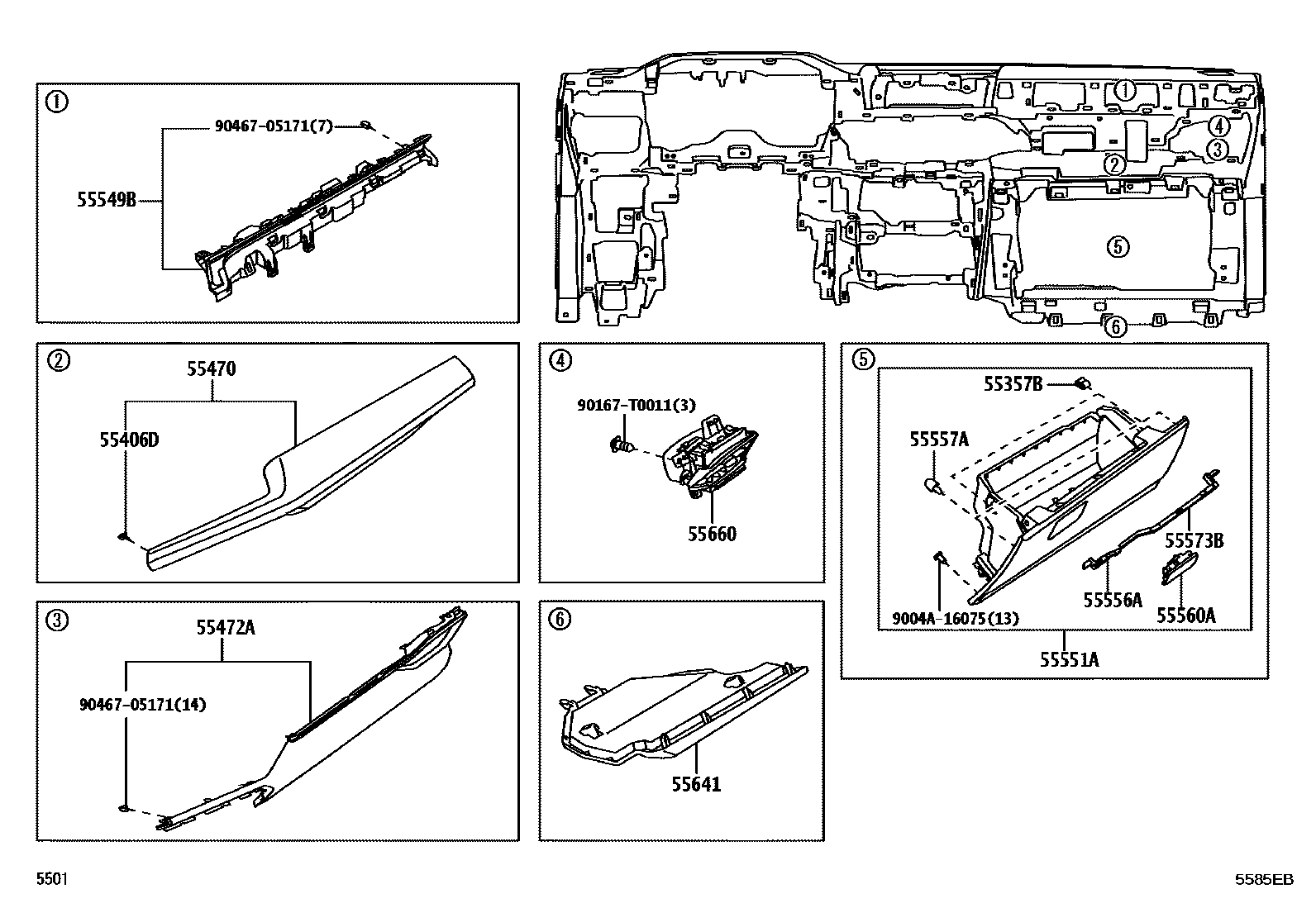

Toyota YARIS 仪表板和手套箱 — Figure 5501
Toyota YARIS EPC diagram 5501, 仪表板和手套箱, with 5 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55315A | Instrument panel spacer No. 1 | 55315-B2020 |
| 55331 | Dashboard reinforcement | 55305-BZF00 · 55305-BZF10 |
| 55349A | Dashboard cushion | 55349-BZ230 |
| 55355E | Dashboard cushion | 55355-BZ260 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-BZ230 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-B1070 |
| 55368C | Instrument mounting bracket | 55368-BZ140 |
| 55394B | Dashboard bolts | 55394-BZ020 |
| 55394C | Dashboard bolts | 9004A-11313 |
| 55394H | Instrument panel bolt No. 2 | 9004A-11385 |
| 55406D | Clip (for instrument cluster decorative panel) | 90467-05172 |
| 55409C | hole plug | 90048-71319 |
| 55435D | Instrument cover group clip | 90467-05171 |
| 55453D | Dashboard Safety Mat No. 1 | 55453-BZ160 |
| 55454B | Dashboard Safety Mat No. 2 | 55454-BZ170 |
| 55479C | Clip (for instrument panel lower cover) | 90467-05171 |
| 55514C | Passenger air bag cover retainer | 55514-BZ100 |
| 55556A | Glove box cover right stopper arm | 55556-BZ060 |
| 55557A | Glove box cover limit pad | 55557-B2040 |
| 55573B | Glove box cover left stopper arm | 55573-BZ070 |
| 73970A | Dashboard passenger air bag assembly | 73970-BZ320 |
