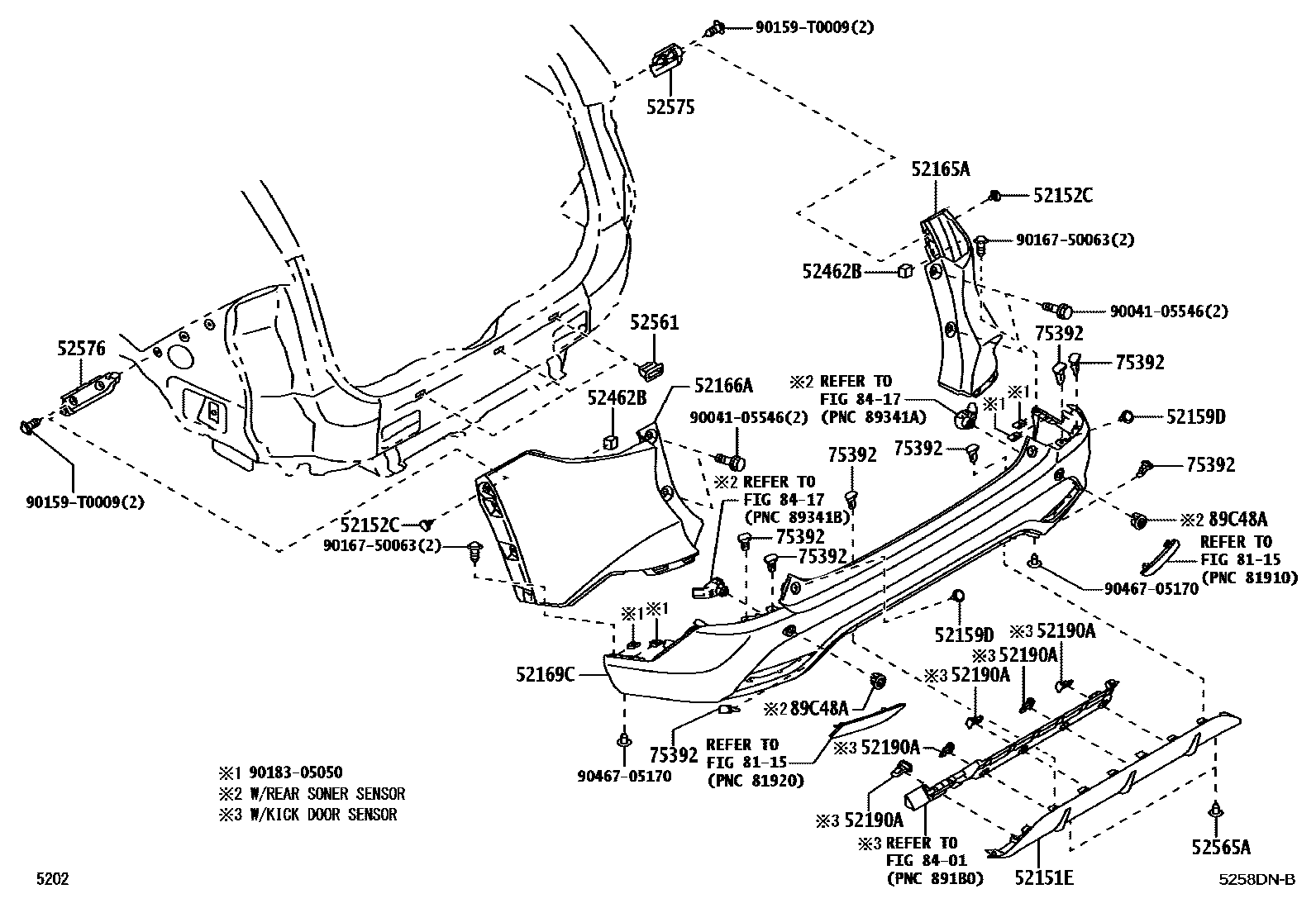

Toyota YARIS 后保险杠及附件 — Figure 5202
Toyota YARIS EPC diagram 5202, 后保险杠及附件, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52151E | rear bumper | 52151-BZ080 |
| 52152C | Rear bumper side clips | 90467-07220 |
| 52159D | Rear bumper cover clip | 90044-68381 |
| 52165A | Rear bumper right upper cover | 52165-BZ905 |
| 52166A | Rear bumper left upper cover | 52166-BZ905 |
| 52169C | Rear bumper lower cover | 52169-BZ380 · 52169-BZ390 |
| 52190A | clip | 75392-0K010 |
| 52462B | rear bumper lining | 52462-BZ140 |
| 52561 | Rear bumper upper center fixing bracket | 52561-B2010 |
| 52565A | Rear bumper lower fixing bracket | 90044-68381 |
| 52575 | Rear bumper right side fixing bracket | 52575-BZ110 |
| 52576 | Rear bumper left side fixing bracket | 52576-BZ110 |
| 75392 | External protective strip fixings | 75392-0K010 |
