Toyota YARIS 悬架横梁和发动机底罩 — Figure 5102

Toyota YARIS EPC diagram 5102, 悬架横梁和发动机底罩, with 2 images and 11 PNC and OE references.

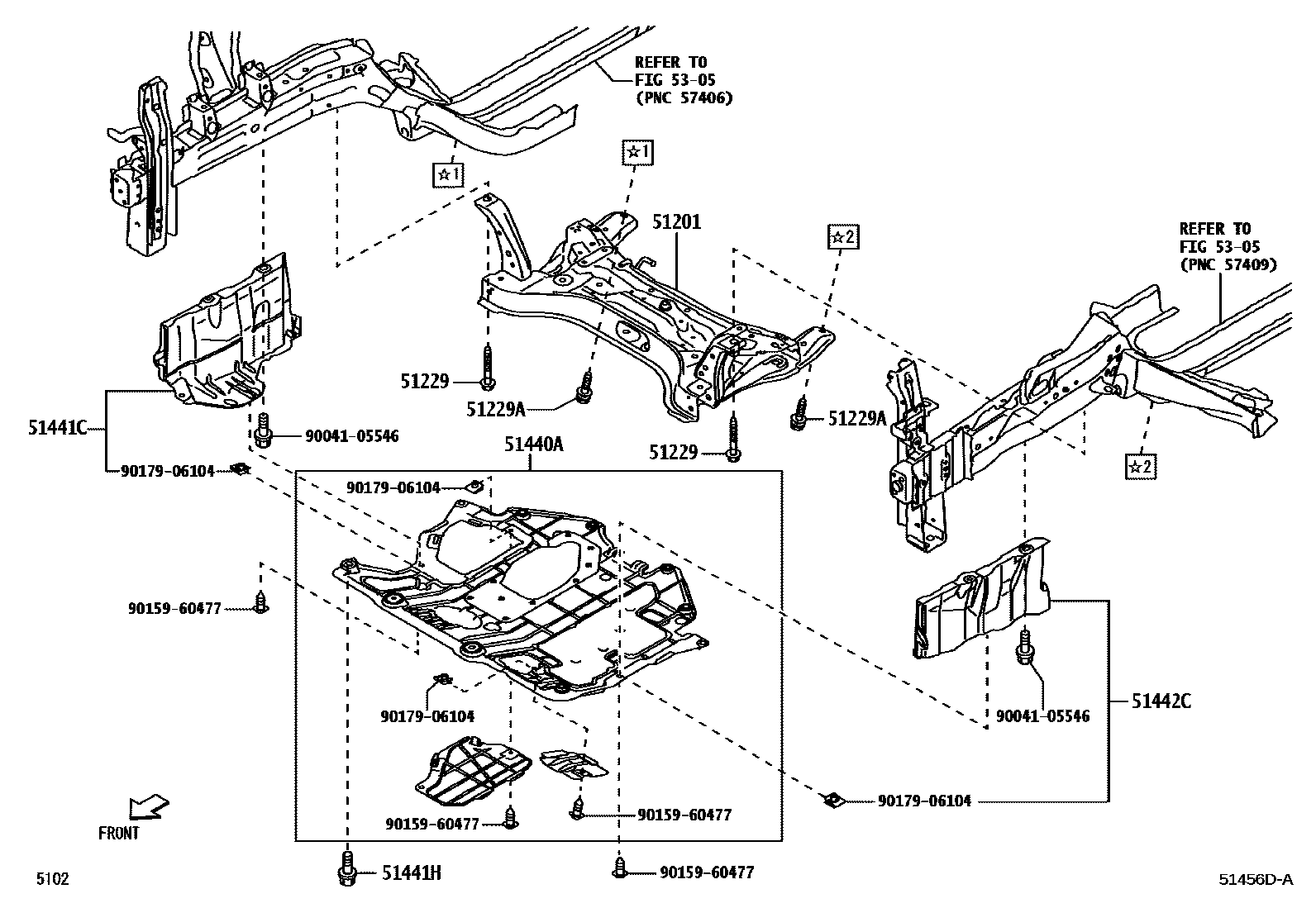

Toyota YARIS 悬架横梁和发动机底罩 EPC diagram — 51456DA
悬架横梁和发动机底罩 — 51456DA (202510 – 999999)

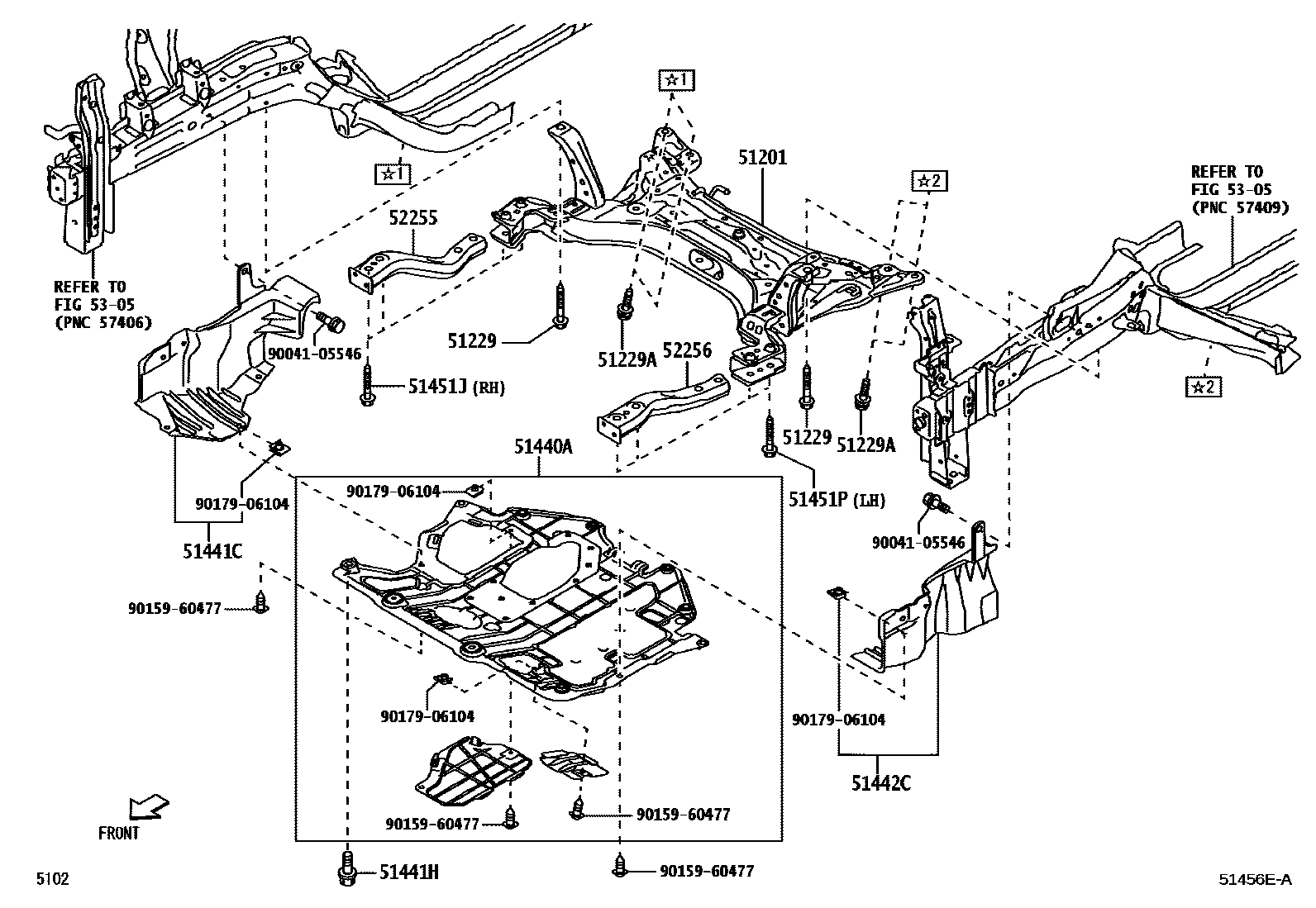

Toyota YARIS 悬架横梁和发动机底罩 EPC diagram — 51456EA
悬架横梁和发动机底罩 — 51456EA (202510 – 999999)

PNC and OE references

PNCPart nameOE numbers
51201Front suspension cross member sub-assembly51201-BZ230 · 51201-BZ240
51229Suspension cross member fixing bolts90041-05594
51229AFront suspension cross member mounting bolts91673-A1025
51440AEngine bottom cover assembly51405-BZ130
51441CEngine right bottom cover51441-BZ420 · 51441-BZ430
51441HBolts with washers (for engine underhood)90041-05546
51442CEngine left bottom cover51442-BZ230 · 51442-BZ240
51451JBolt No. 19004A-10273
51451PBolt No. 29004A-10273
52255Right front suspension cross member front bracket51205-BZ090
52256Left front suspension cross member front bracket51206-BZ020
