Toyota YARIS Rear Spring & Shock Absorber — Figure 4804

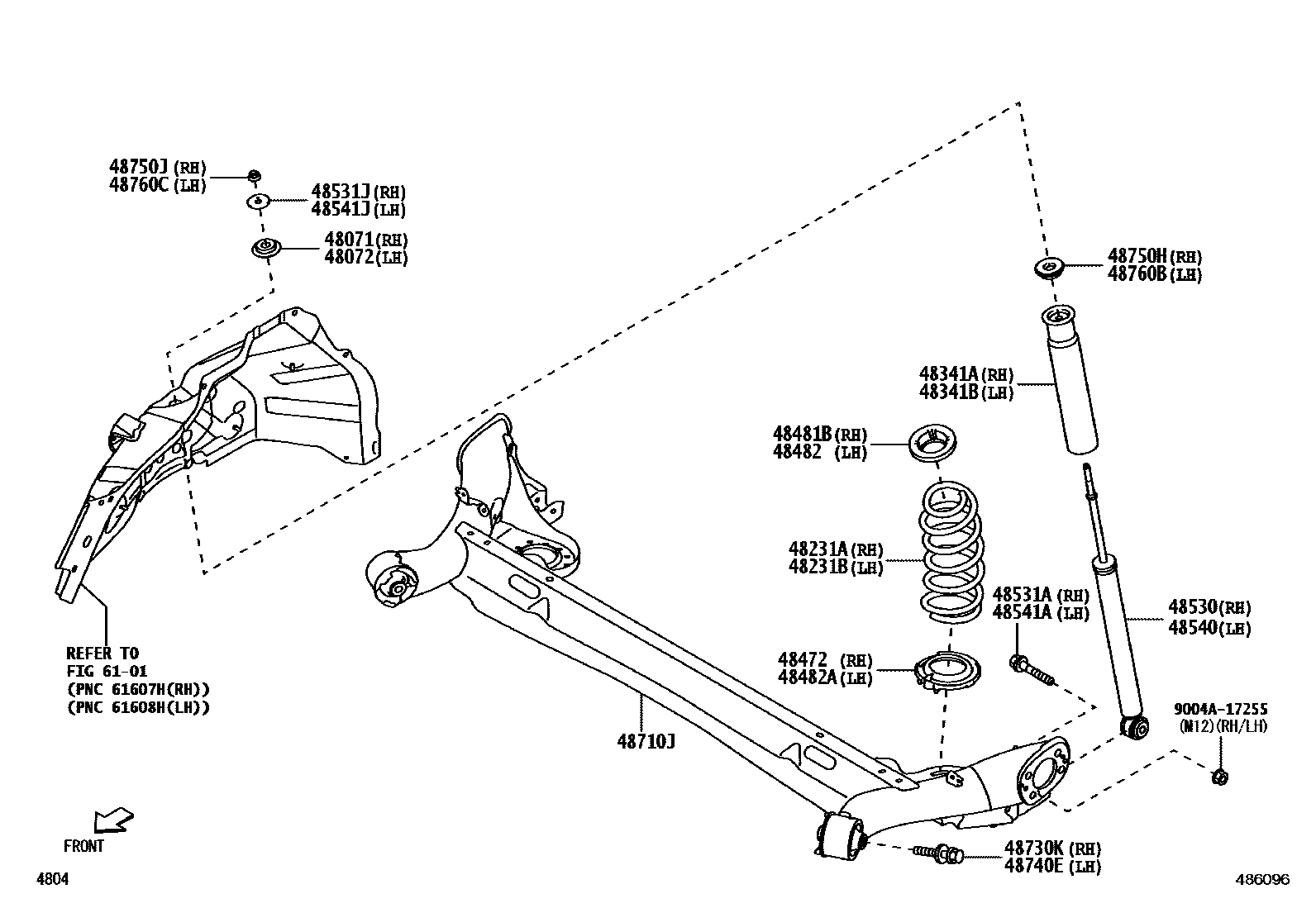

Toyota YARIS EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48071 | Right rear suspension bearing sub-assembly | 48755-BZ080 |
| 48072 | Left rear suspension bearing sub-assembly | 48755-BZ080 |
| 48231A | Right rear coil spring | 48231-BZC40 · 48231-BZC50 |
| 48231B | Left rear coil spring | 48231-BZC40 · 48231-BZC50 |
| 48341A | No. 1 right rear spring buffer block | 48341-BZ170 |
| 48341B | No. 1 left rear spring buffer block | 48341-BZ170 |
| 48472 | Rear spring lower seat | 48482-BZ190 |
| 48481B | Upper right rear spring seat | 48481-BZ120 |
| 48482 | Rear spring left upper seat | 48481-BZ120 |
| 48482A | Rear spring lower seat | 48482-BZ190 |
| 48530 | Right rear shock absorber assembly | 48531-BZD70 · 48531-BZD80 |
| 48531A | Joint bolt (for right rear shock absorber) | 90041-01716 |
| 48531J | Right rear shock absorber No. 1 cushion washer | 90042-01758 |
| 48540 | Left rear shock absorber assembly | 48531-BZD70 · 48531-BZD80 |
| 48541A | Joint bolt (for left rear shock absorber) | 90041-01716 |
| 48541J | Left rear shock absorber No. 1 cushion washer | 90042-01758 |
| 48710J | Rear suspension No. 1 arm assembly | 48710-BZ520 |
| 48730K | Bolt (for right rear suspension arm No. 2) | 9004A-11379 |
| 48740E | Bolt (for left rear suspension arm No. 2) | 9004A-11379 |
| 48750H | Right rear suspension support assembly | 48750-BZ090 |
| 48750J | Nut (for rear mount to right rear shock absorber) | 94188-01001 |
| 48760B | Left rear suspension support assembly | 48750-BZ090 |
| 48760C | Nut (for rear mount to left rear shock absorber) | 94188-01001 |
